Anet A8 Diagonal reinforcement compatible with Front frame brace

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.7k views
  • 2 likes
  • 84 downloads

3D model description

This is a remix of two designs :
* The original idea is from photoberto (M8 version) : https://www.thingiverse.com/thing:2351450
I liked the idea but wanted something more compact
* The top plate part is a remix from RamiFee : https://www.thingiverse.com/thing:2560585 .
I modified the holes location, so that they are perfectly aligned with the original top plates provided with the A8.

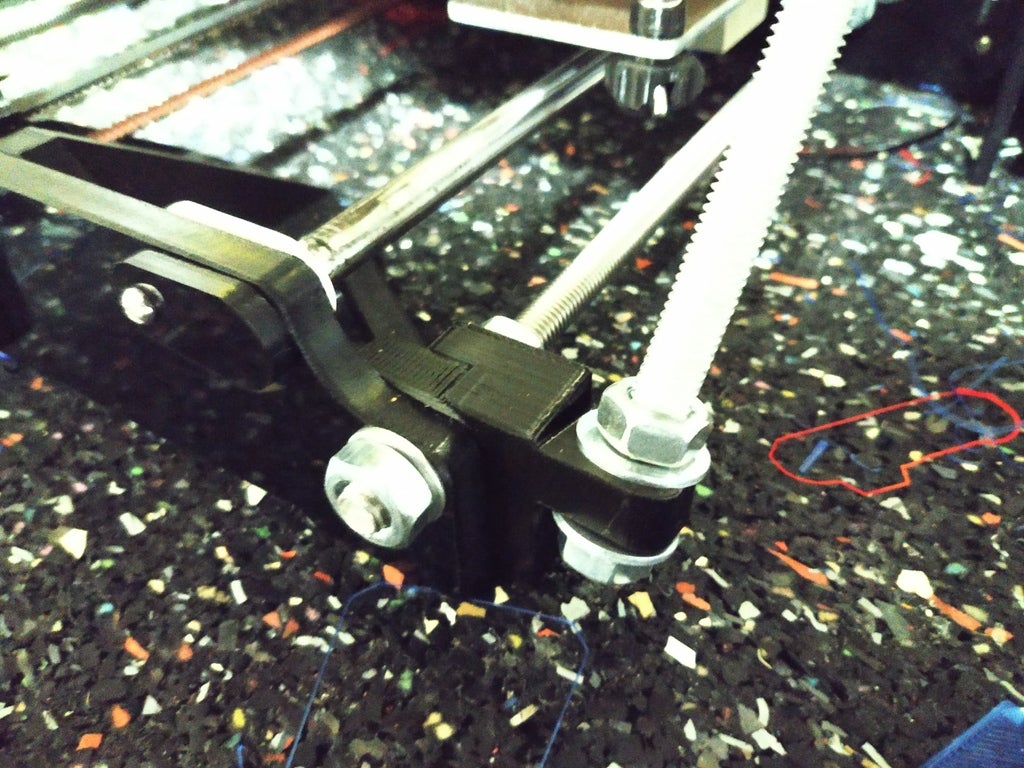

The main idea is to have a diagonal reinforcement (you 'll need about 1meter of 8mm threaded rod), but compatible with

* fantastic Anet A8 Front Frame brace by Leo_N : https://www.thingiverse.com/thing:1857991
* and additionnaly compatible with Bowden extruder mount by Brogz007 : https://www.thingiverse.com/thing:2146021

This will allow you to greatly increase stability of the Anet for a ridiculous cost.

You'll need to print :
1 Anet A8 Front Frame Brace by Leo_N
1 Top left part
1 Top right part
1 Bottom left part
1 Bottom right part

And you need to provide : about 1meter of 8mm threaded rod cut in 2 equal parts. + 8xM8 nuts and washers

Of course, you keep the full range of moves of the original A8.

  • 3D file format: STL
  • Publication date: 2019/07/02 at 10:51
