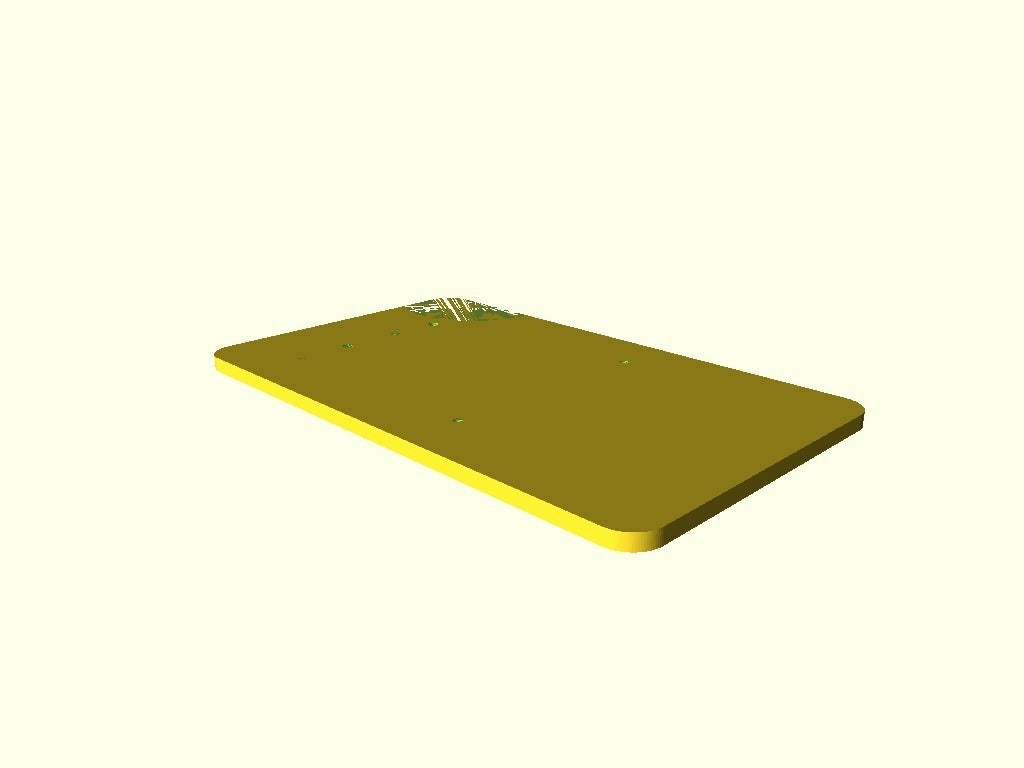

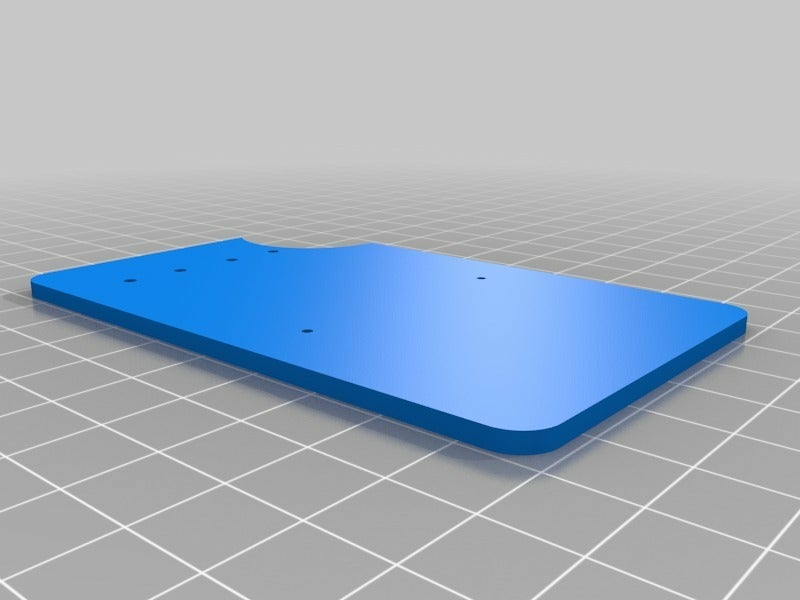

Anet A8 Auto Level Replacement Plate

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 232 views
  • 6 downloads

3D model description

*** Update 7/15/2017 ***

Made cutout larger so homing Y min works without hitting.

*** Summary ***

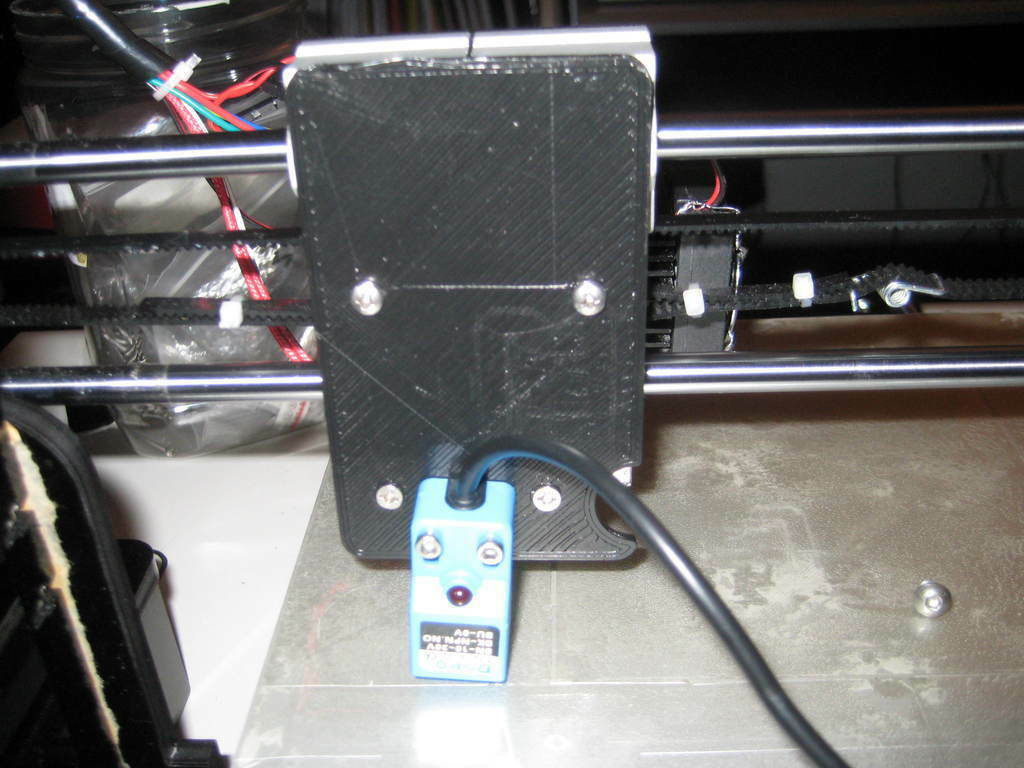

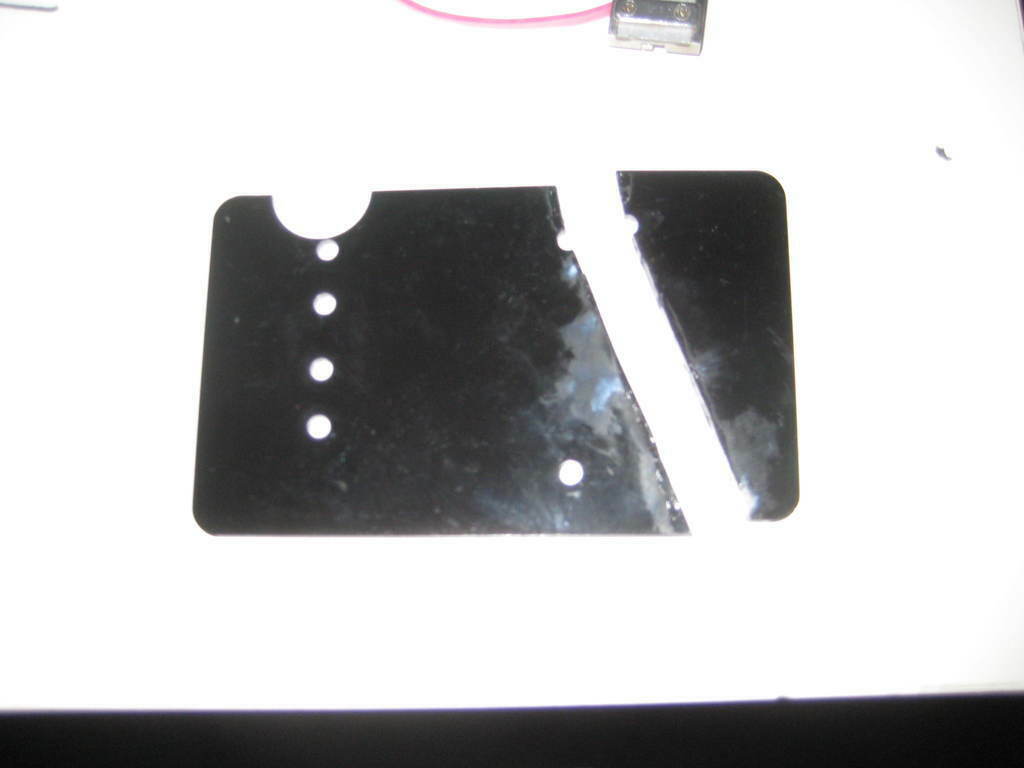

The acrylic plate that comes with the Anet A8 auto bed leveling kitkit broke in half when I tried to screw it on. The holes are also in a bad spot. The inductive sensor would get hit, and prevent the Y-endstop from being reached. The stock plate doesn't mount vertically like it should.

Drill out the holes to 3mm.

http://www.ebay.com/itm/Fr-Anet-A8-Prusa-i3-3D-Printer-RepRap-Durable-Auto-Leveling-Position-Sensor-FM3/201959918249

  • 3D file format: SCAD and STL
  • Publication date: 2020/12/15 at 20:51
