Anet A6 Cable holder X wagen

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

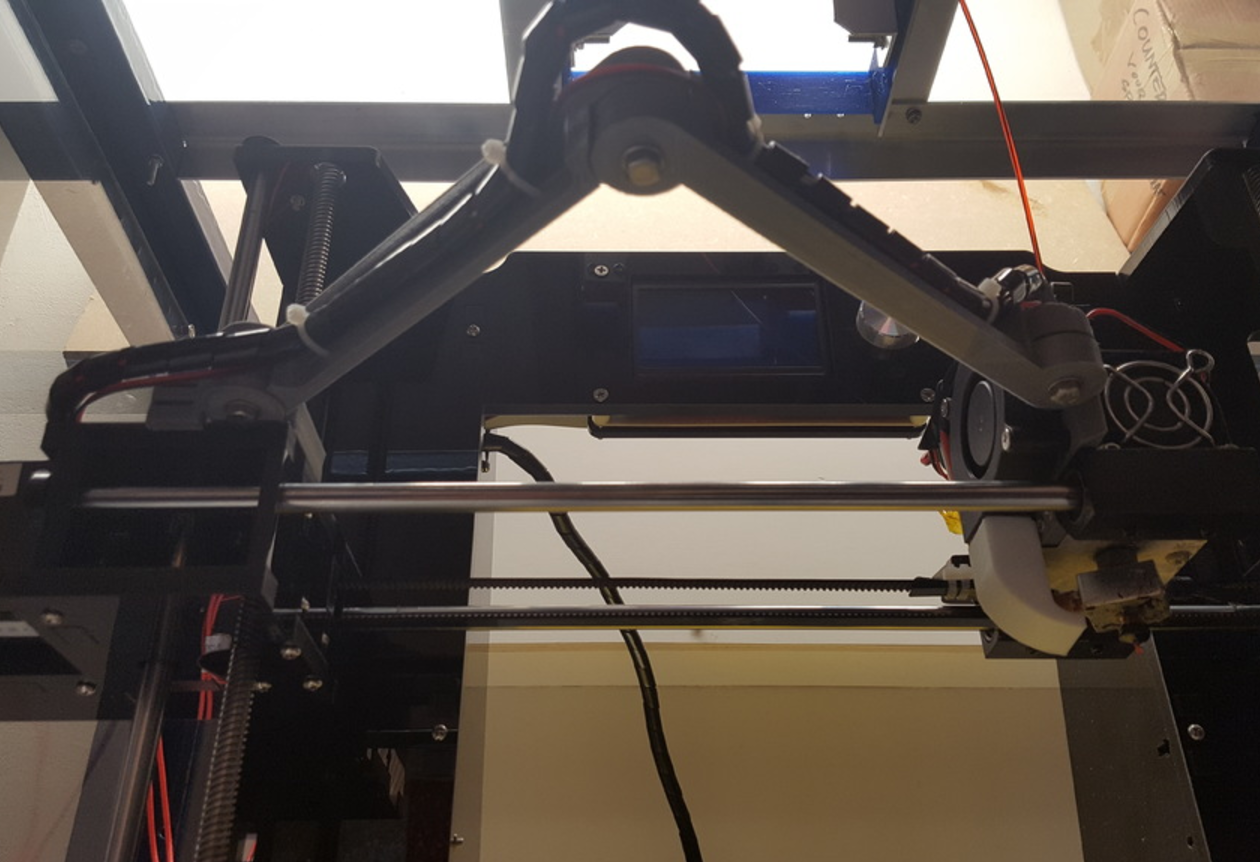

A simple way to hold the cables for the x wagen :-)

One of the problems with the Anet A6 printer is that the cable
to the X wagen gets stuck with higher prints.
This is my simple solution for that :-)

I recommend to use metal spacers between the moving parts

later:
It came to my understanding that some people want to use a fan
so i made some extra parts to make this possible again

Now there are 3 possibilities:

1: no fan with the original setup
2: for my J-Hotend mod
3: for a fan with the original hotendsetup

also see pictures :-)

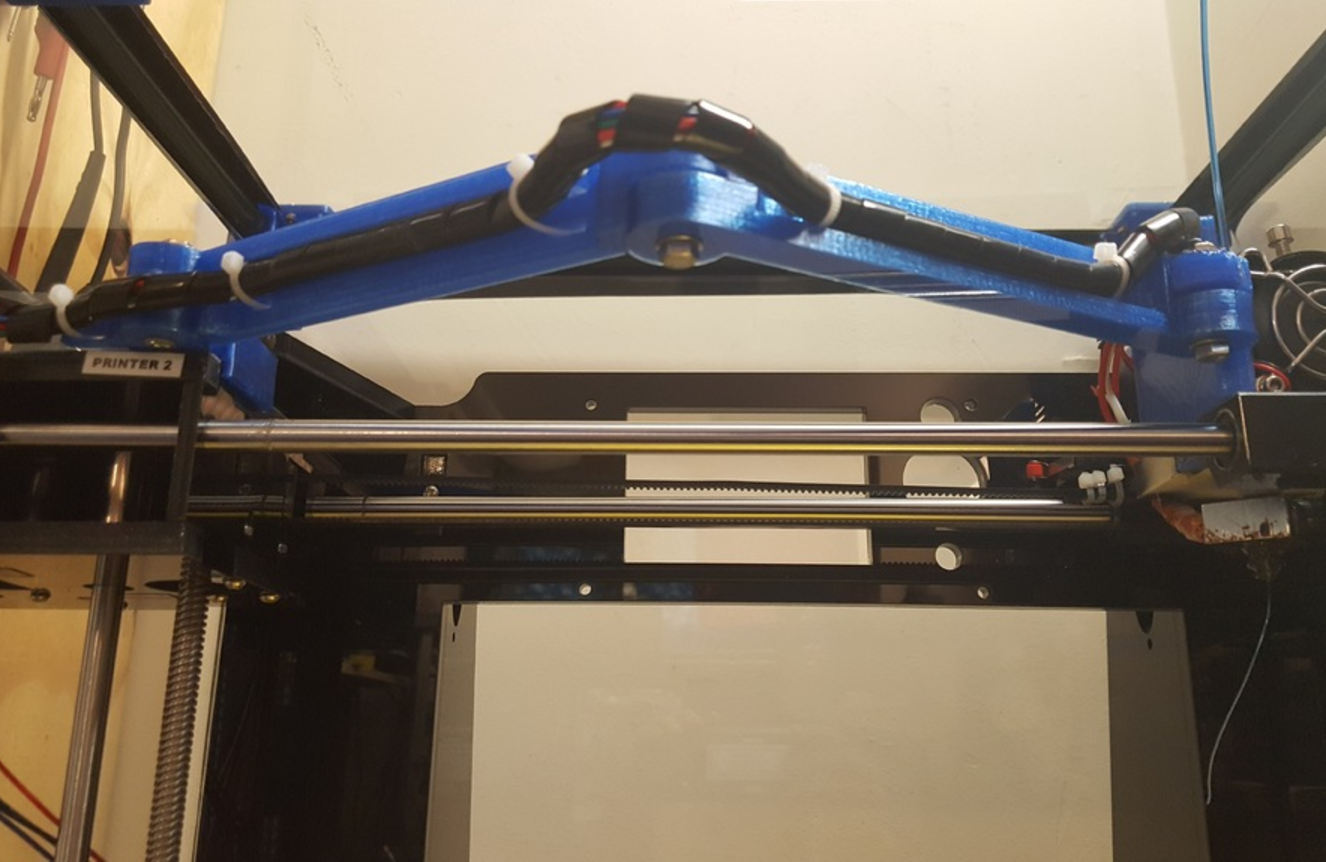

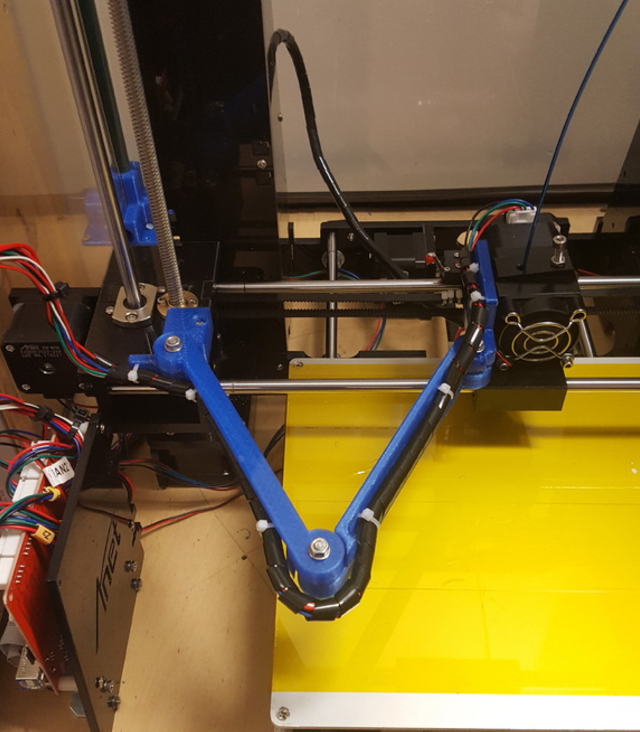

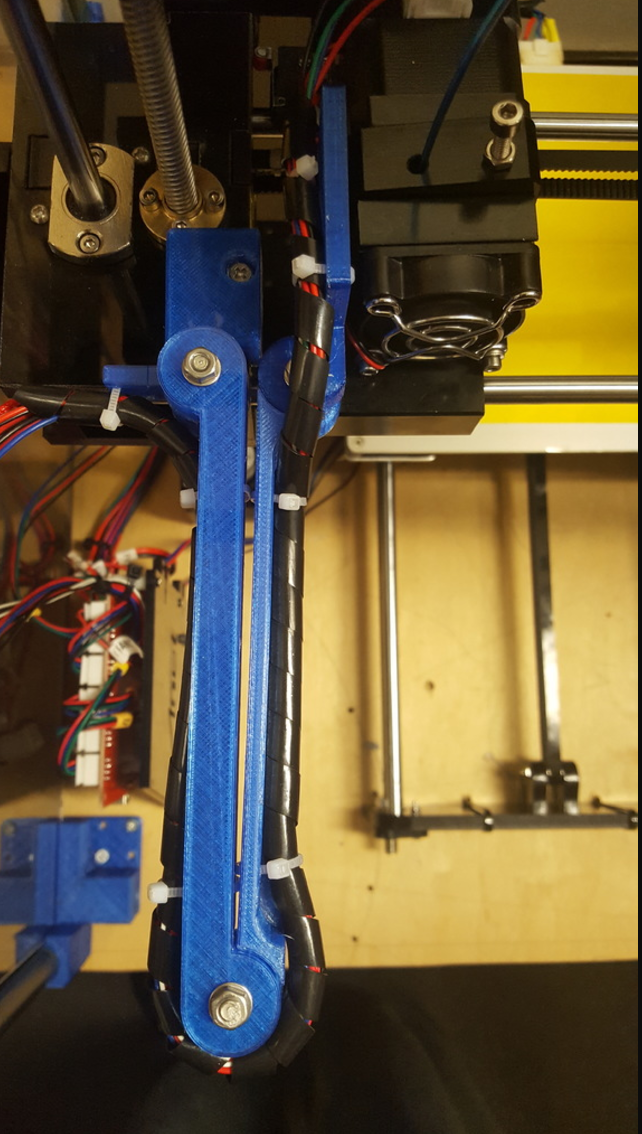

Blue PET-G one is the original setup without fan.
Black ABS one is the J-Hotend setup.

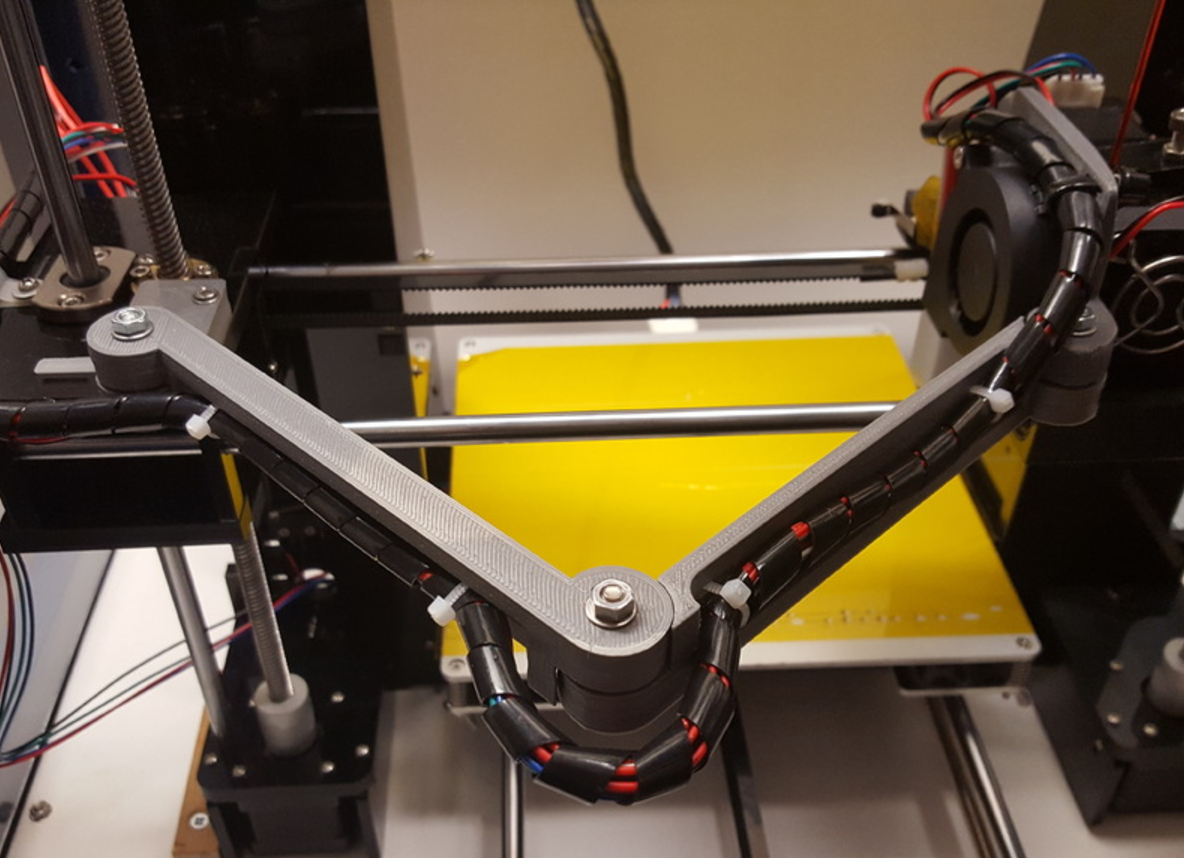

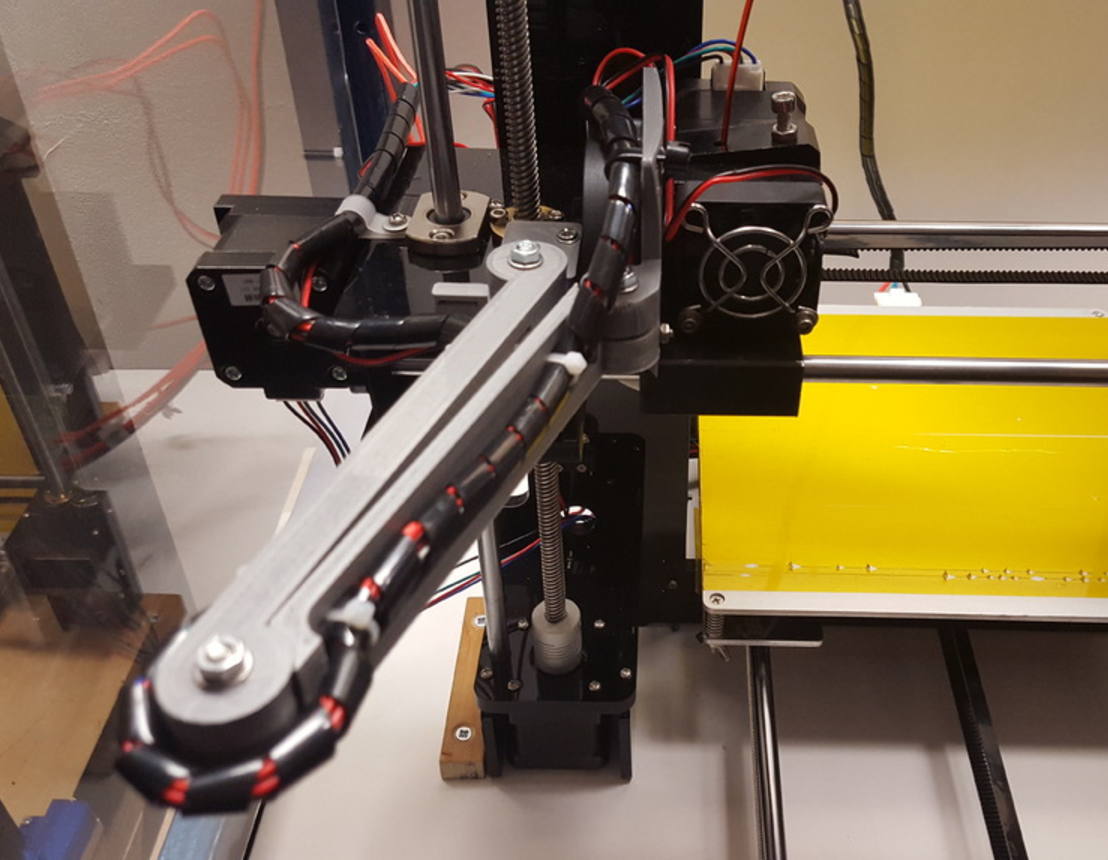

Silver ABS one is the original setup with fan

I also put the files per set up in a ZIP file to make it easier :-)

PS: I know the word Cable is spelled wrong in the file names ;-) to long nights i Guess :-)
in my language it's "kabel" :-)


3D printing settings

Printer:
Anet A6/ CUSTOM

Rafts:
No

Supports:
No

Resolution:
0.2-0.4

Infill:
15%

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • A6_kable_holder_FOR_J-HOTENDmod.zip
    • A6_kable_holder_NO_FAN.zip
    • A6_kable_holder_WITH_FAN.zip
    • A6_kable_holder_x_wagen1.stl
    • A6_kable_holder_x_wagen1_with_fan.stl
    • A6_kable_holder_x_wagen2.stl
    • A6_kable_holder_x_wagen3.stl
    • A6_kable_holder_x_wagen4.stl
    • A6_kable_holder_x_wagen4_for_hotendmod.stl
    • A6_kable_holder_x_wagen4_for_hotendmod_spacer.stl
    • A6_kable_holder_x_wagen4_with_fan.stl
