3D model description

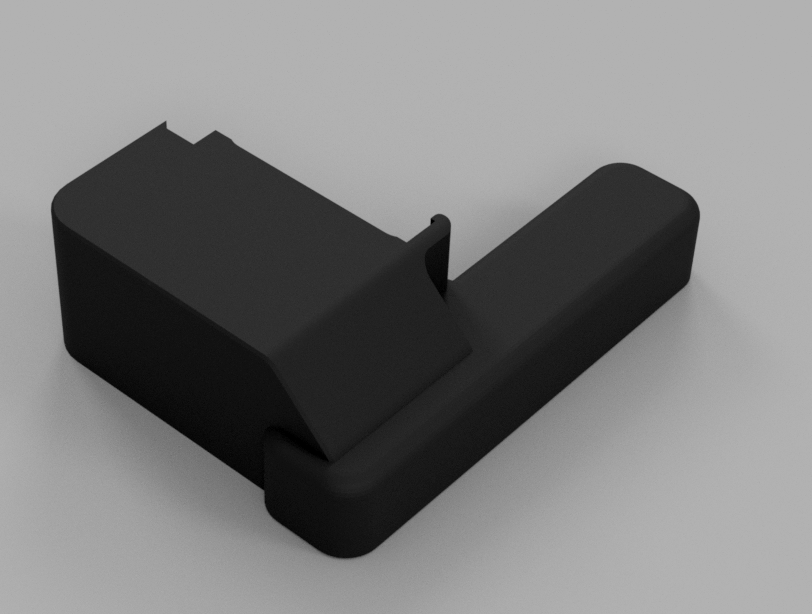

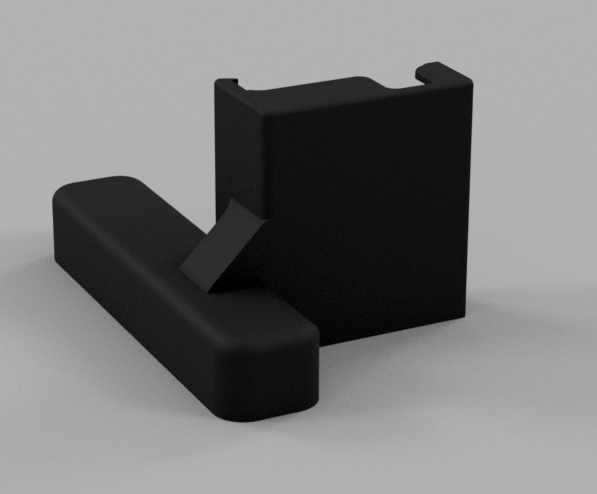

update 25/01/21 added deeper non-logo covers to hide the left Z motor wires and the right Z.(see photo)

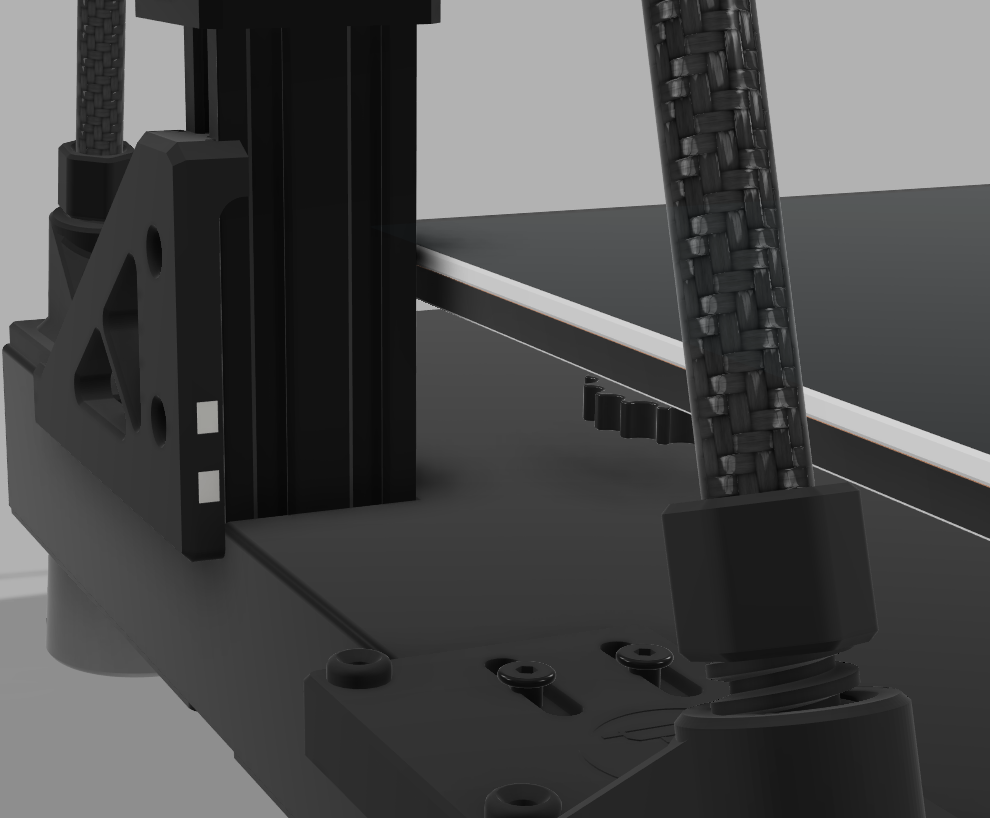

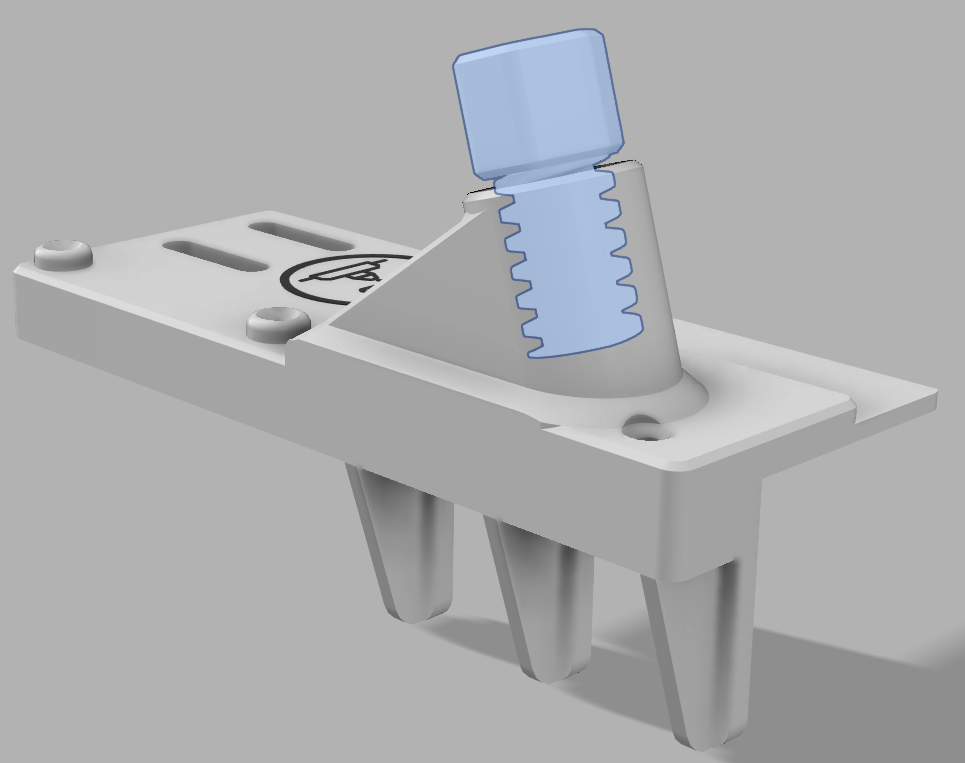

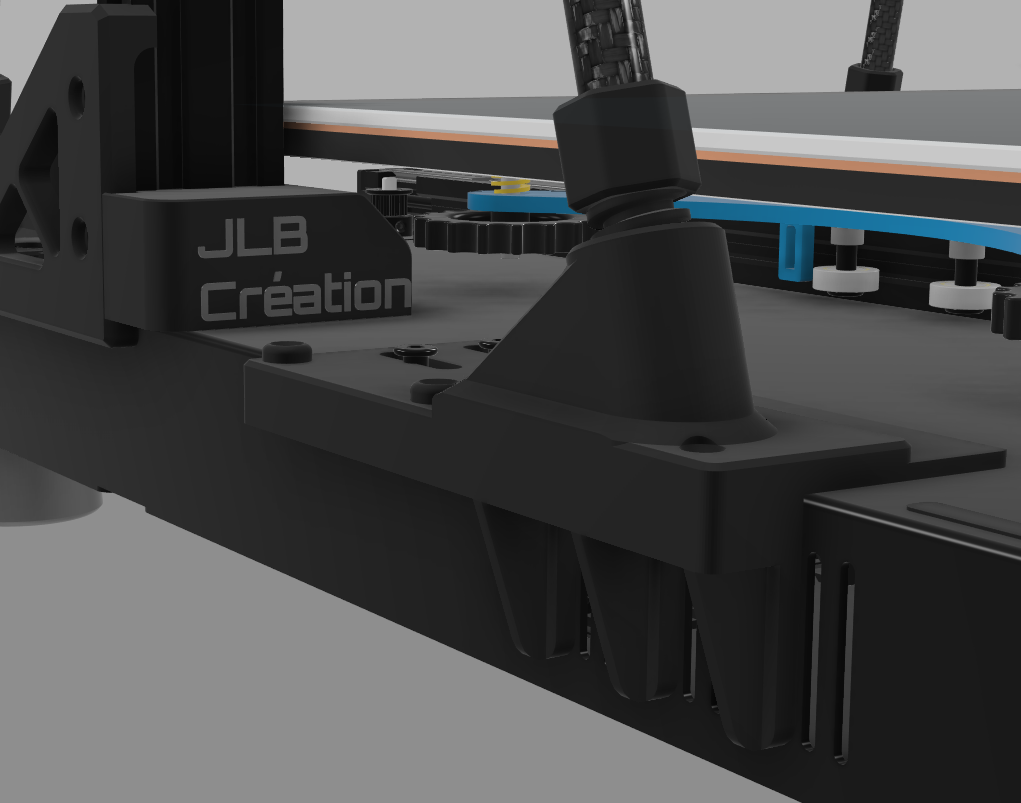

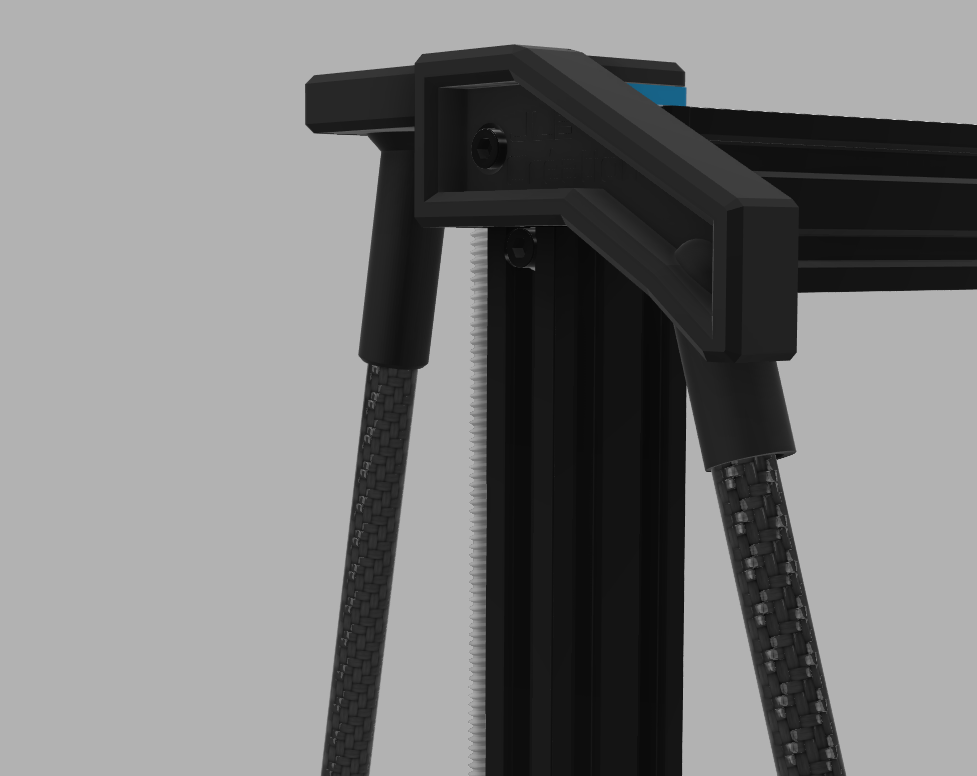

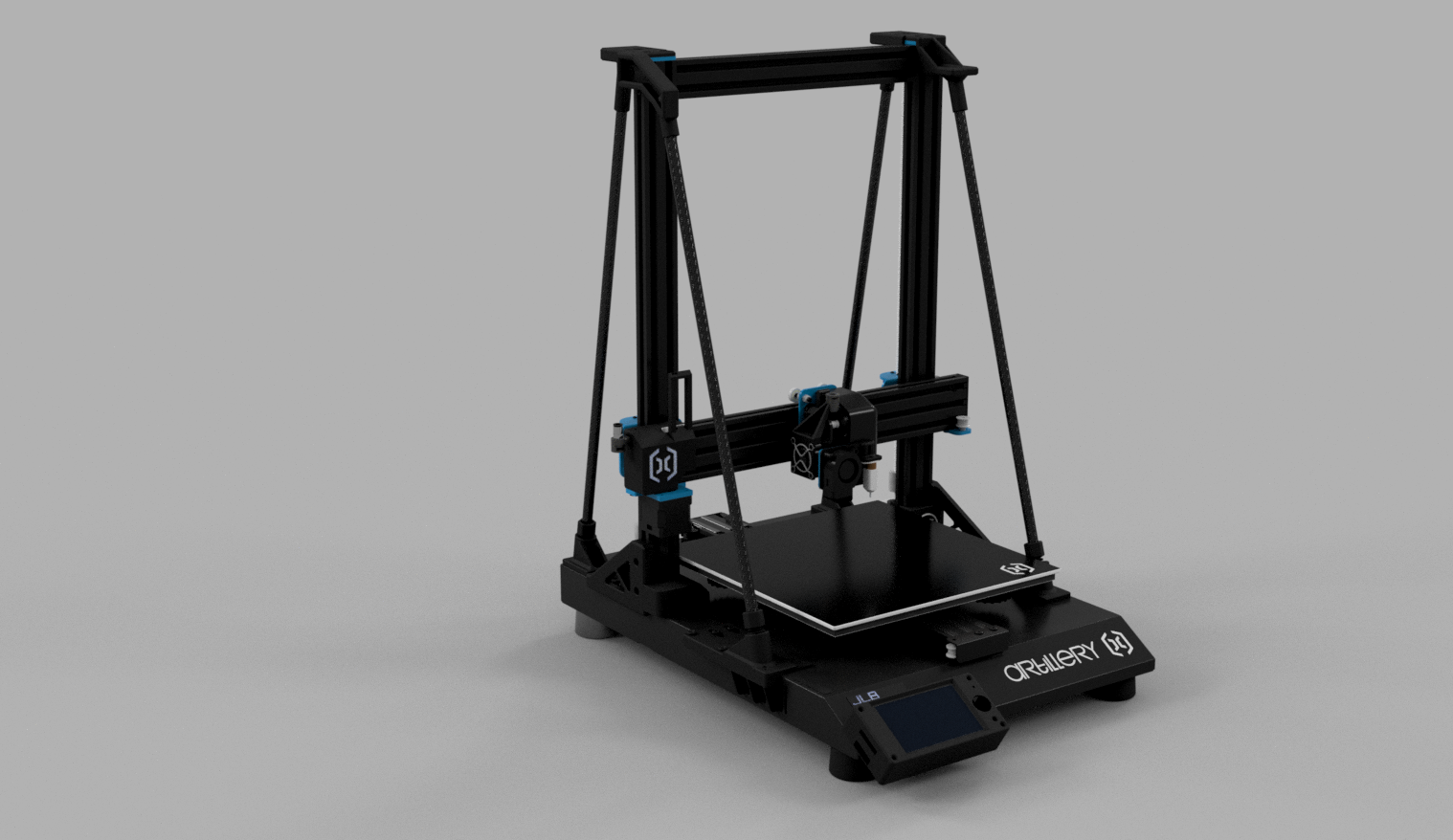

This package includes all the parts to install the front, rear and side stiffeners. my version allows to take advantage of the original print volume.

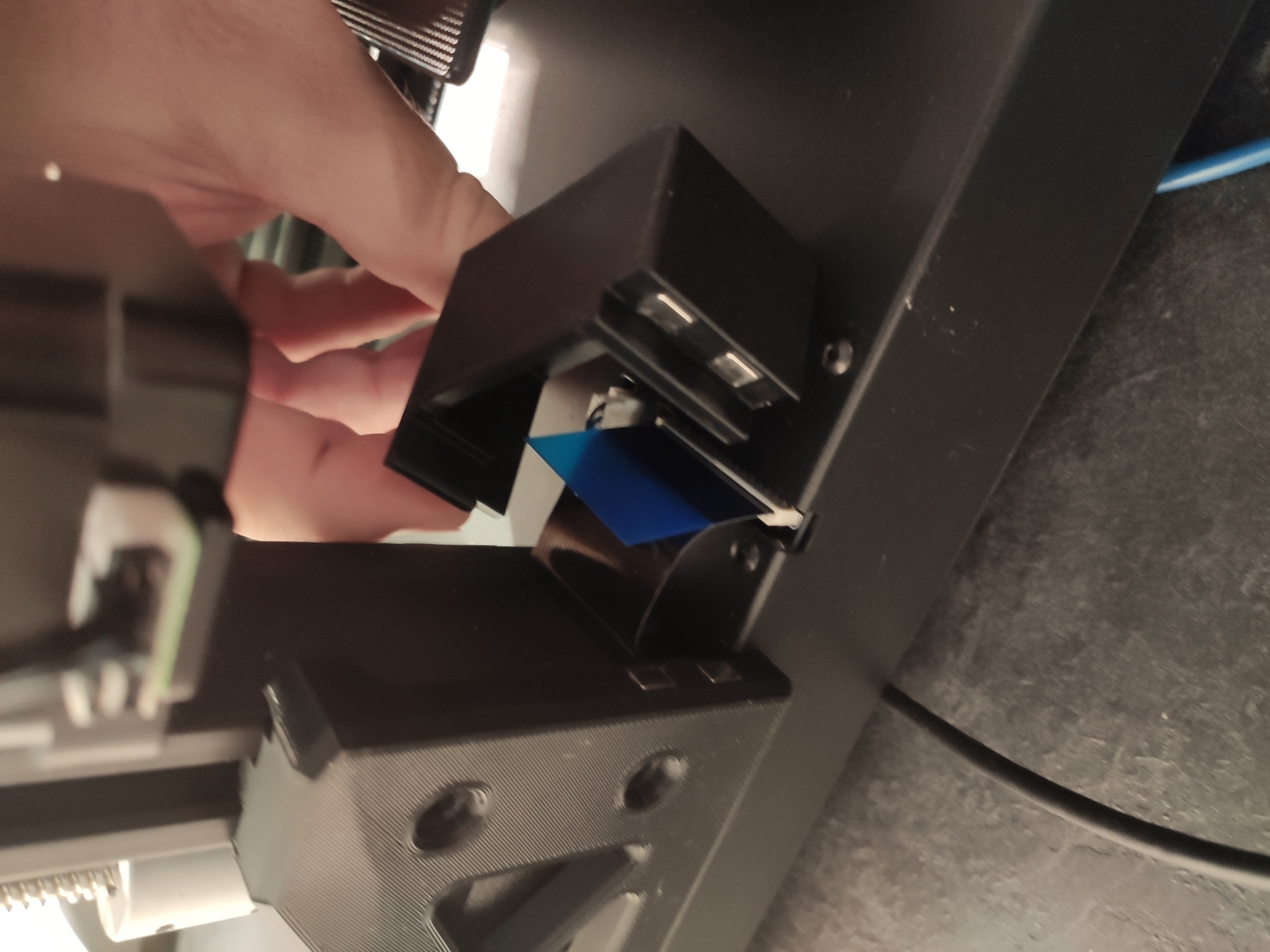

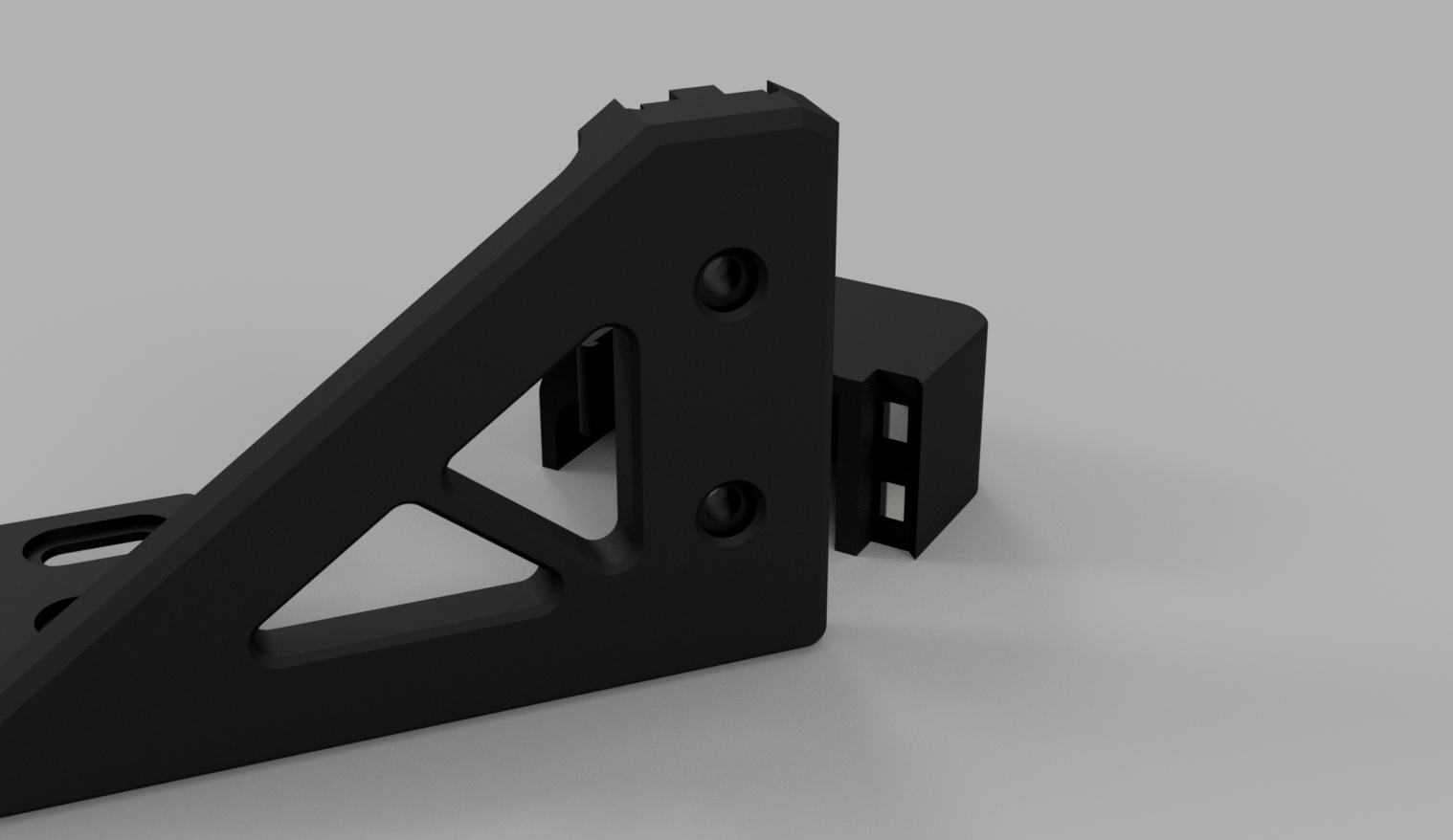

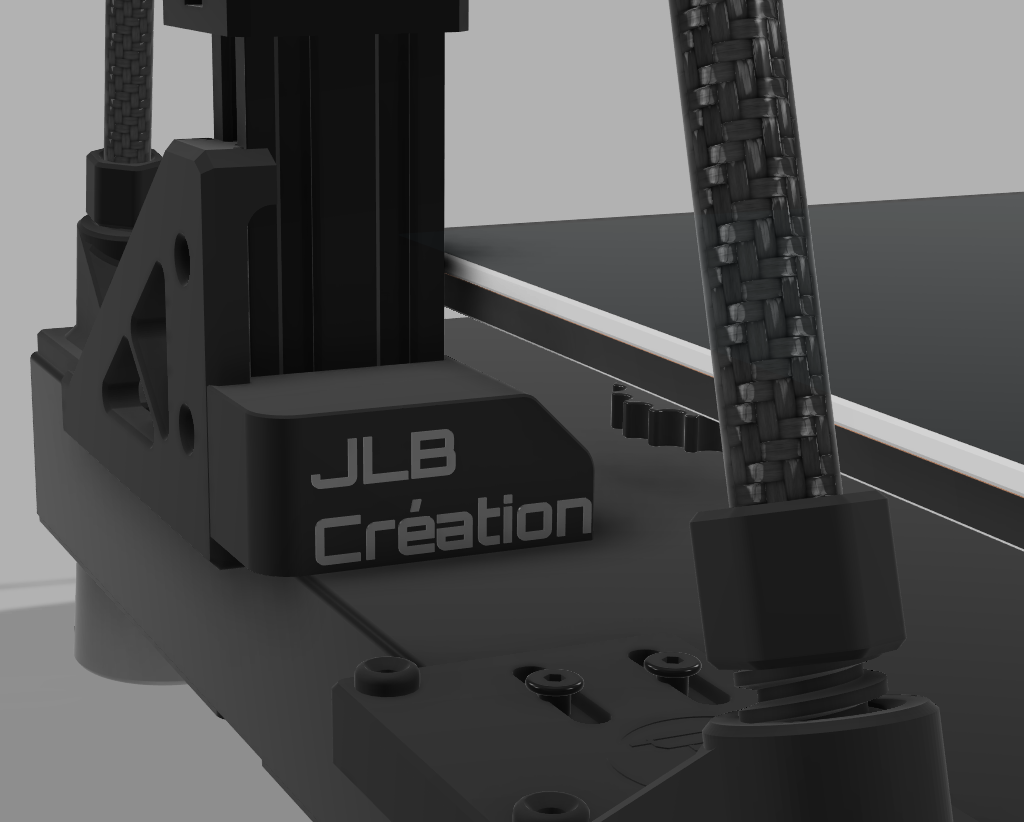

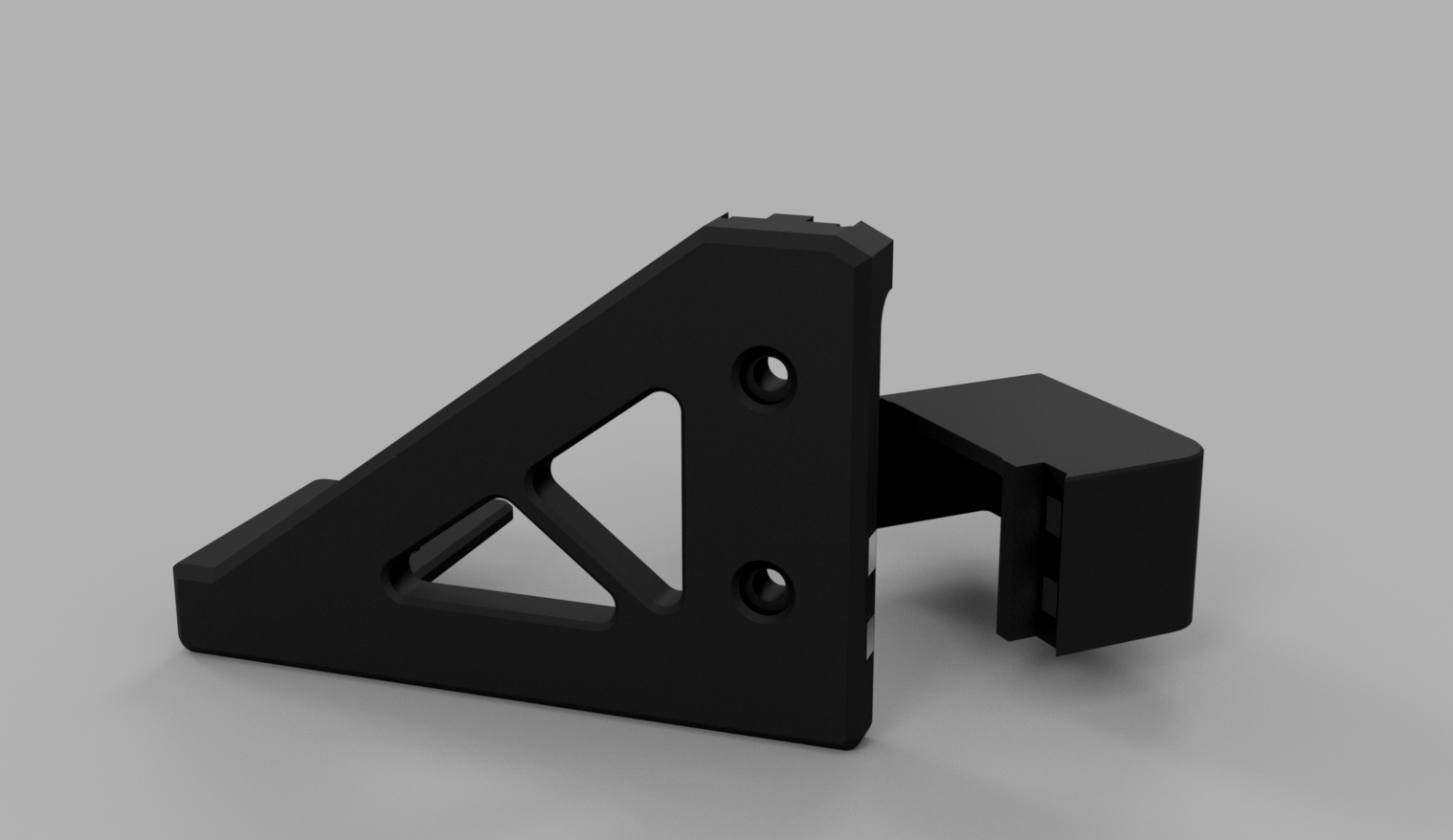

the magnetic covers allow easy access to the tablecloths while being protected.

you will need :

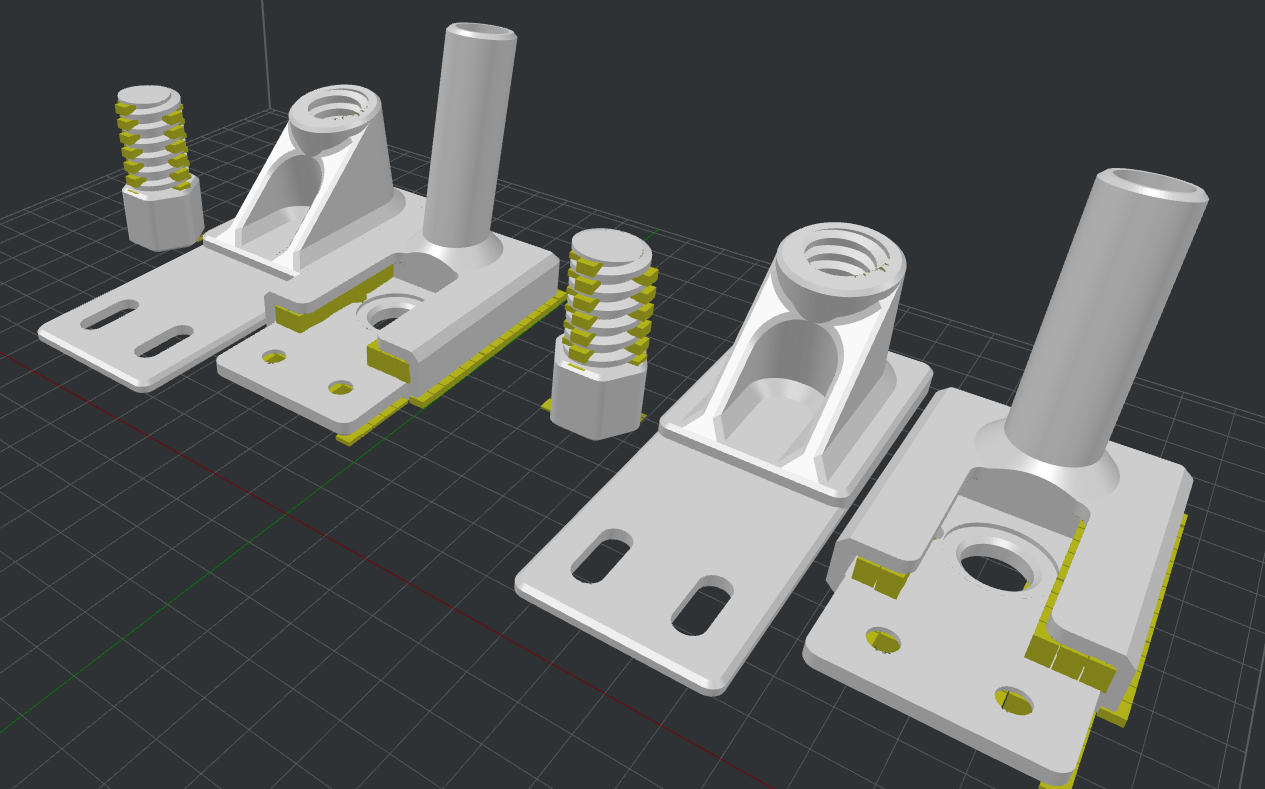

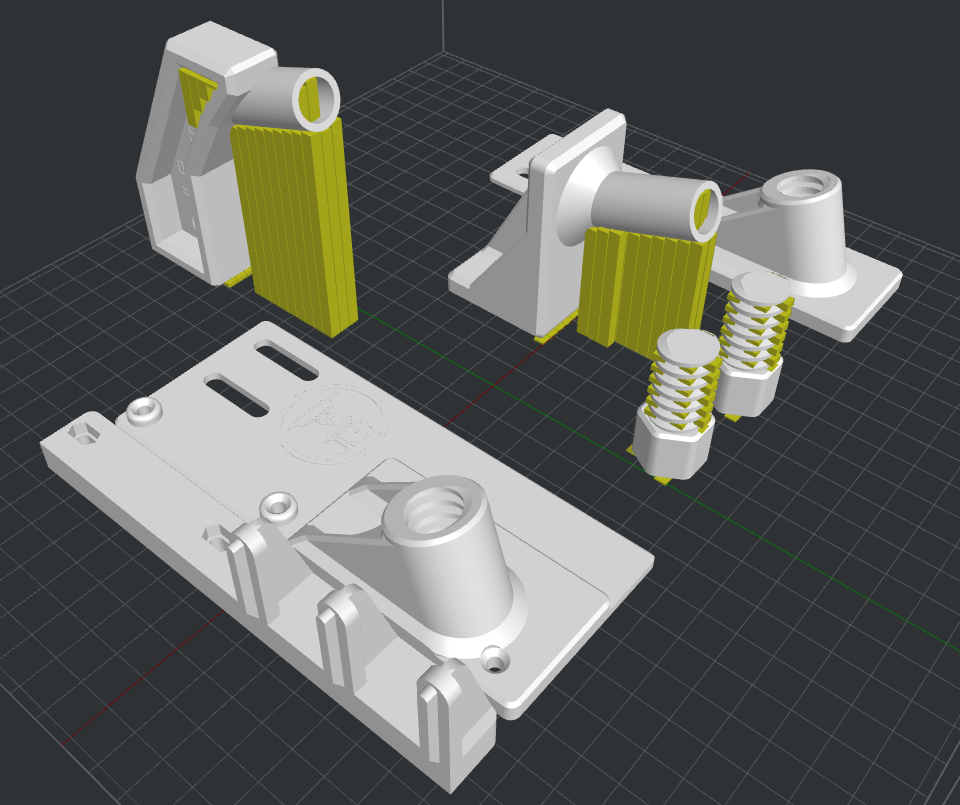

print all the parts according to the direction indicated on the photos in question.

8 magnets of 6mm x 4mm x 2mm available here: https://www.supermagnete.fr/aimants-bloc-neodyme/parallelepipede-magnetique-6mm-4mm-2mm_Q-06-04-02-HN

1 cylinder head screw 5x60 mm

3 countersunk screws 3x20 mm

3 nuts M3

6 flat or cylindrical head screws M4x12

6 Tnuts M4

2 pairs of carbon rod 12mm (inside 10mm) length 50cm available here:

https://www.amazon.fr/dp/B09MJC8JDB/ref=cm_sw_r_apan_glt_i_TDARFET5PEYX18P9TAPY?_encoding=UTF8&psc=1

if you install a BL touch the right cover will not be useful because the limit switch disappears.

3D printing settings

see photo for printing direction and media.
