3D model description

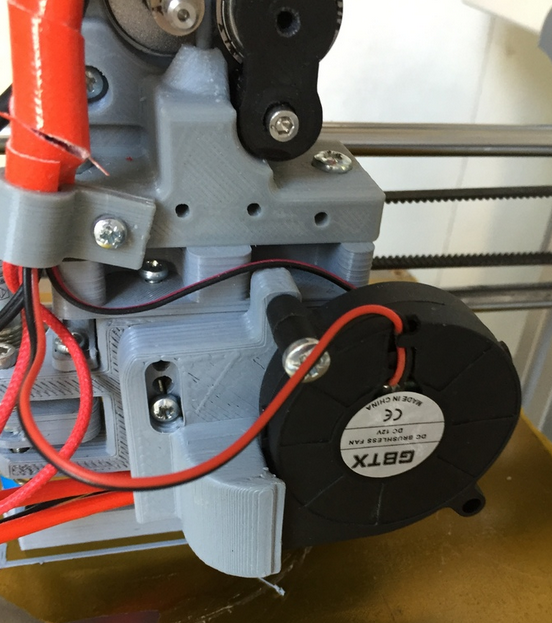

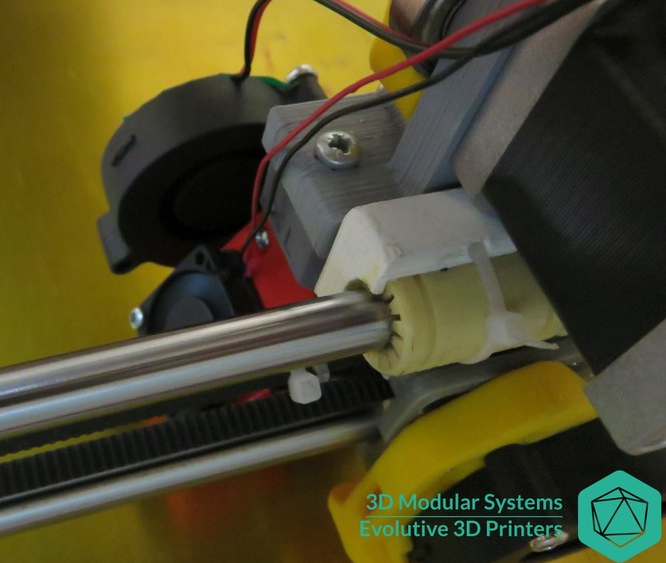

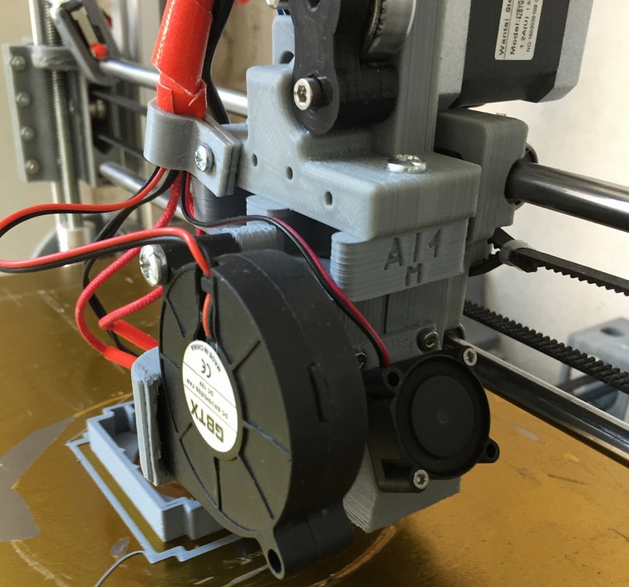

These plastic parts improve the cooling of the head radiator sings using the turbine that replaces the 30 or 25mm fans often used on the heating heads.
You will find several plastic models available for the AllInone head (use the 25mm version), the E3D V6 (use the 30mm version) and the Volcano version of the E3Dv6 (use the volcano version)
3D Modular Systems
3D Printers Scalable
http://www.3dmodularsystems.com
Twitter: https://twitter.com/3dmodularsystem
Youtube: http://www.youtube.com/c/3DModularSystems3DPrinters
3D printing settings
Filling 20%
3D printer file information
-
3D design format: STL Folder details Close
- 25mmFanShroud.stl
- 30mmFanShroud.stl
- 30mmFanShroud_Volcano.stl
- Blower_Fan_Holder_V4.stl
- Publication date: 2016/09/29 at 13:34
