AM8 AP8 Improved Y-Axis Motor Mount w/ Brace
:strip_icc():blur(20)/https://files.cults3d.com/uploaders/14968929/illustration-file/47de07d5-c799-4bc0-9214-2dac4d017303/IMG_20180812_222555.jpg)
?
Creation's quality:
0.0/5
(0 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 546 views
- 0 likes
- 15 downloads
3D model description

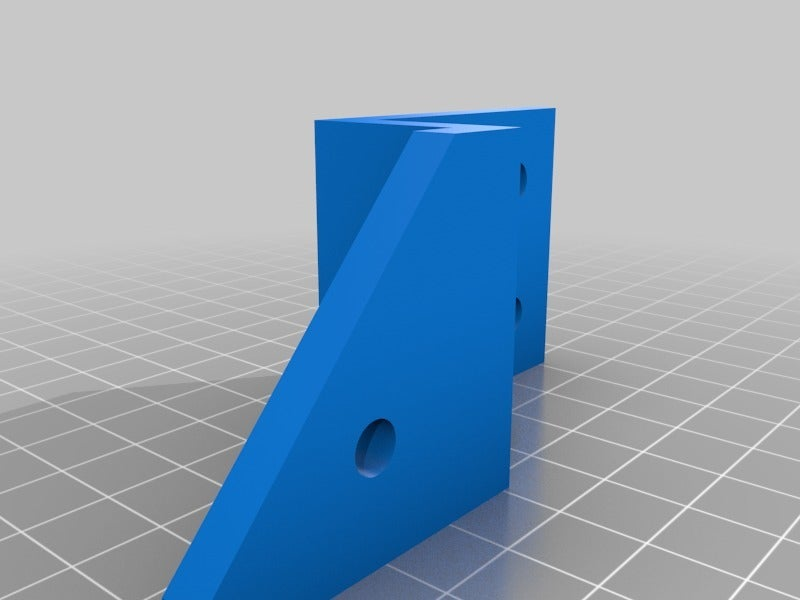

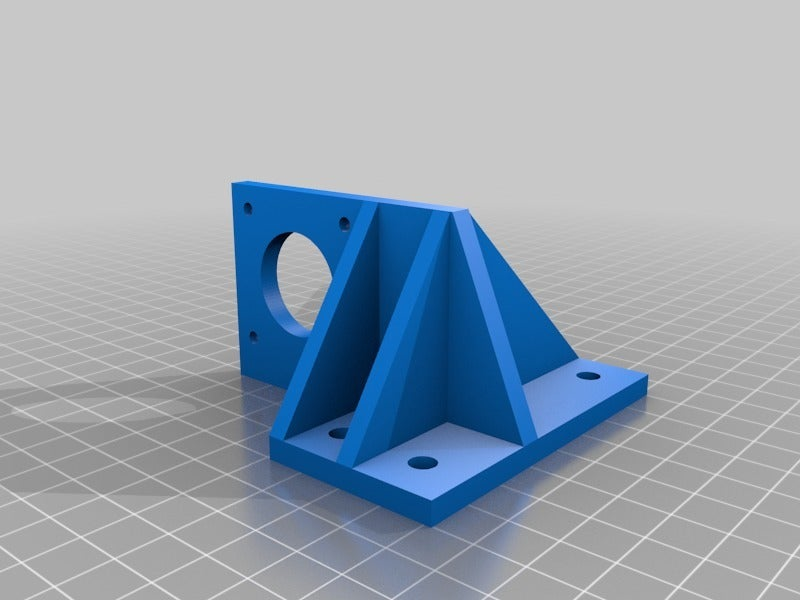

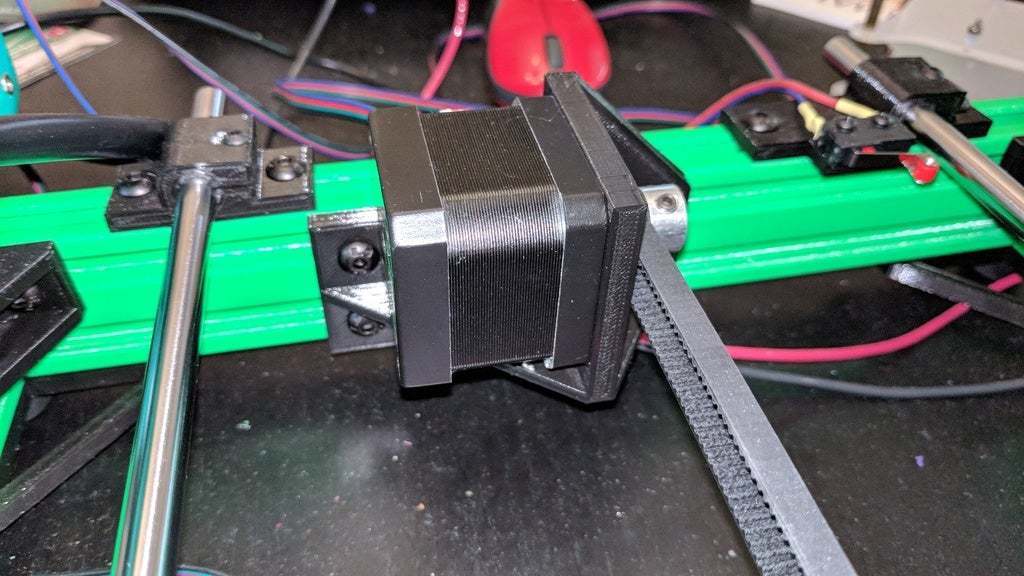

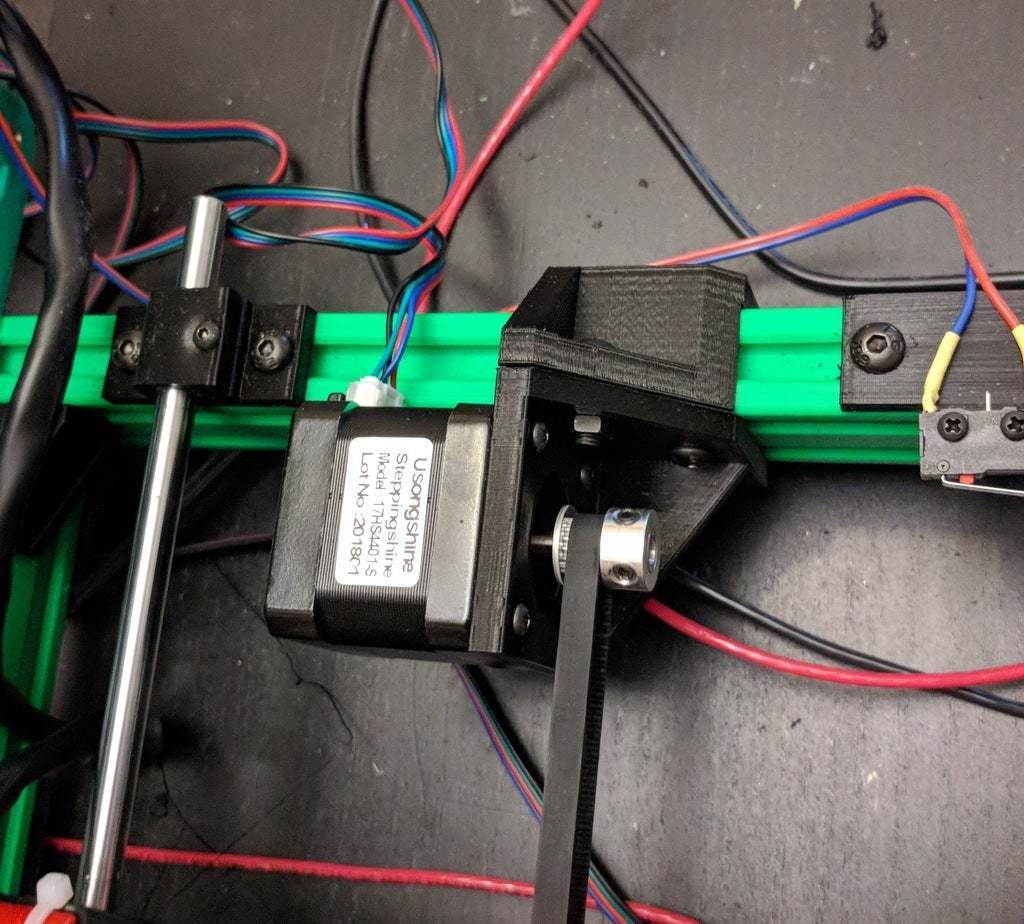

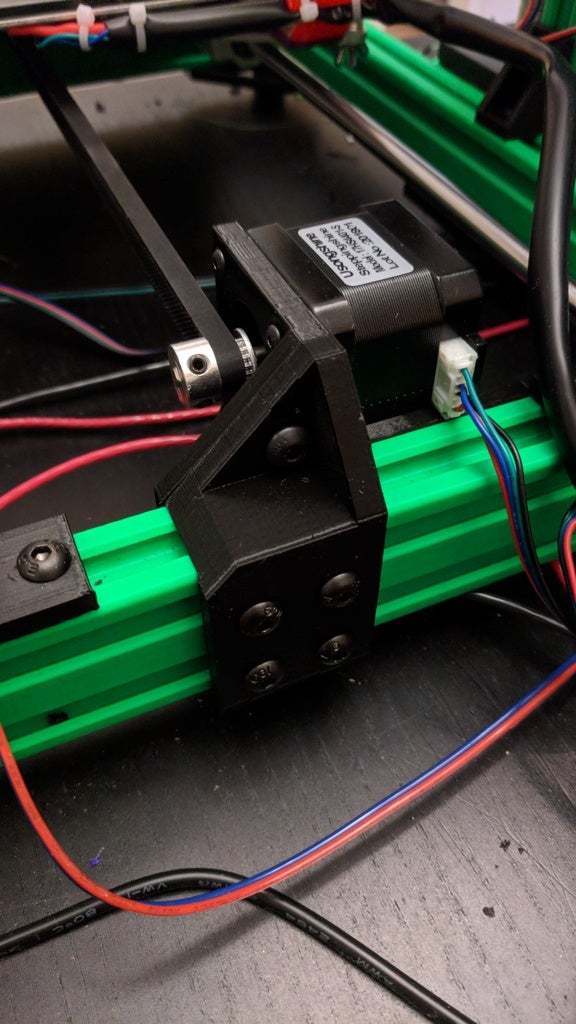

I redesigned this Y-axis motor mount after I realized how bad my Y-axis backlash was. This new mount has an extended front component that allows you to place an additional two screws for support. Then I created a new rear component that adds stability and support by attaching to the front component using an M5 * 16mm screw and nut.

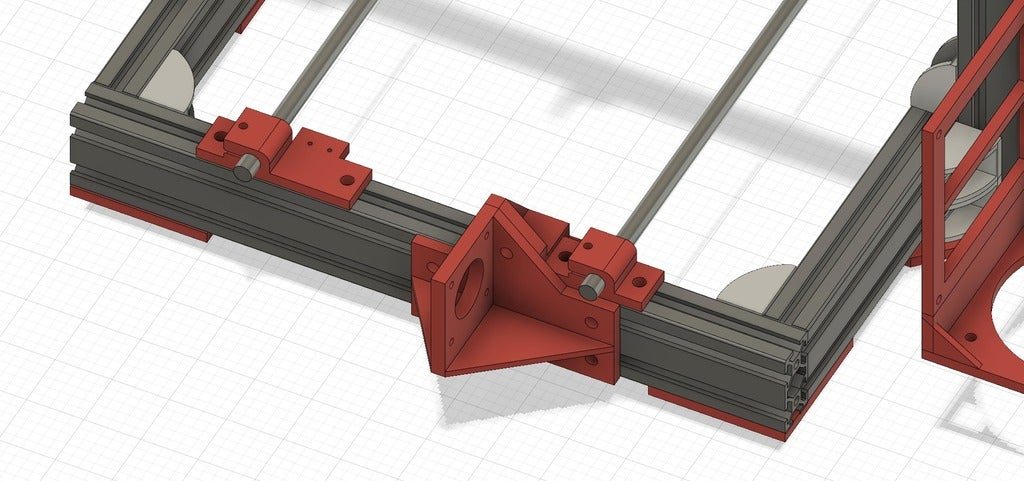

2018/08/19 - Added an outside mount option.

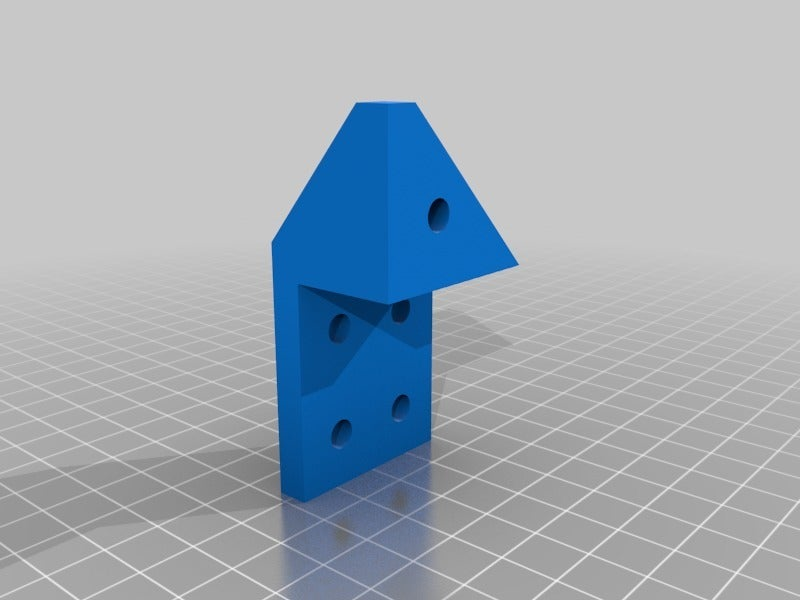

2019/04/20 - Replaced the rear brace option with one that actually works! Thanks to 8Atena's remix for pointing it out.
- 3D file format: STL
- Publication date: 2020/03/31 at 18:27
