Alphacool Eisbaer Solo Mount and Heat Exchanger for Water Cooled Hotends

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 168 views

3D model description

This is the water cooling setup I use in my CorEssentials BETA for the E3D Chimera Aqua. Obviously this will fit most other printers. You can find out more about the machine on GITHUB:

https://github.com/MacNite/CorEssentials

To built this exact setup you will need:

Alphacool Eisbaer Solo
some M3 screws
60x25mm fan
G1/4 mounts for your choosen tube diameter (for E3D that would be G1/4 to 4mm OD Tube)

https://www.ebay.de/itm/Pneumatik-IQS-Standard-gerade-Steckverschraubung-zylindrisch-MSV-alle-Gr%C3%B6%C3%9Fen/222673814779?ssPageName=STRK%3AMEBIDX%3AIT&var=521526744321&_trksid=p2057872.m2749.l2649

LED heatsink like this, needs to be cut to size

https://www.ebay.de/itm/150x60x25mm-K%C3%BChler-Aluminiumk%C3%BChlk%C3%B6rper-Extrudierter-K%C3%BChlk%C3%B6rper-f%C3%BCr-LED-RI-YTM-Ld/114003337531?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2057872.m2749.l2649

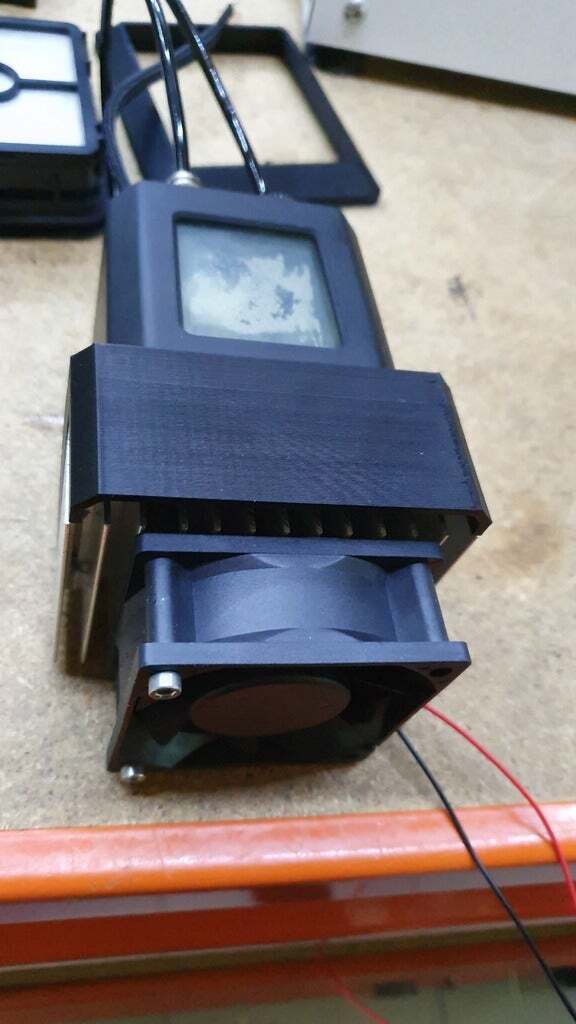

The general concept of this cooler / heat exchanger is really simple:

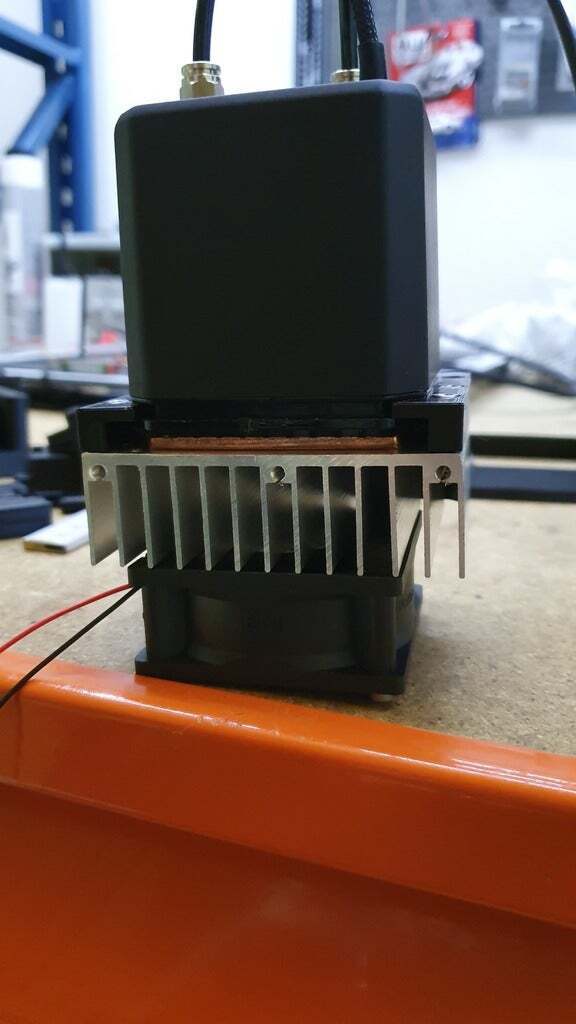

ALPHACOOL Eisbaer is an all in one solution as a Reservoir, Heat-Exchanger / Heatsink and Pump. The LED heatsink and fan are just there to increase the performance. I have also used the ALPHACOOL Eisbaer only mounted to a metal plate of other 3D printers. But obviously this becomes quite in-effective if you use a closed chamber and everything may heat up.

As an additional inspiration you may have a look at the Sparkcube EDGE by Sparklab:
https://the-sparklab.de/sparkcube-edge-255x175x400/

If there are any questions / uncertainties feel free to ask them in the comments.


3D printing settings

-

3D printer file information

  • 3D design format: STEP and STL Folder details Close
    • Eisbaer_Fan_Mount.stl
    • Eisbaer_Heatsink_Mount.stl
    • Eisbaer_Mount.step
  • Publication date: 2021/06/20 at 02:54

License

CC BY
