Aligator Clip Holder

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

You have to test some electronic stuff with loose cables and you don´t want to do a short? Here may be a solution.
Aligator clips are very cheap but they are normally not isolated, so use some of them and a short is programmed. But, if you still would have a isolated holder, you can plug in the Aligator clips, you are safe. No loose cable-ends rocking on your table and doing something and you can work quick and safe (low voltage use only!). Be careful with voltage over 24V and high current!

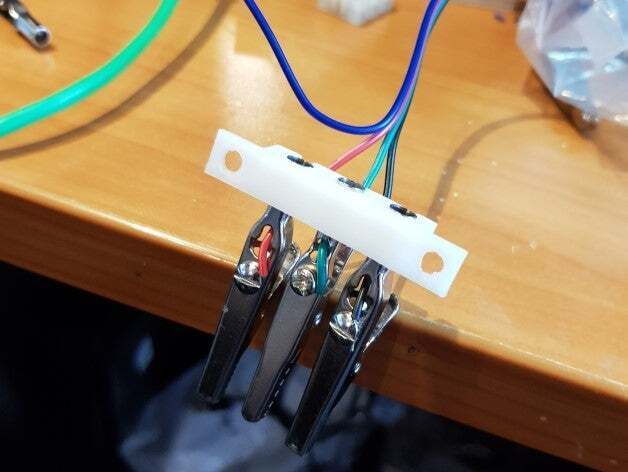

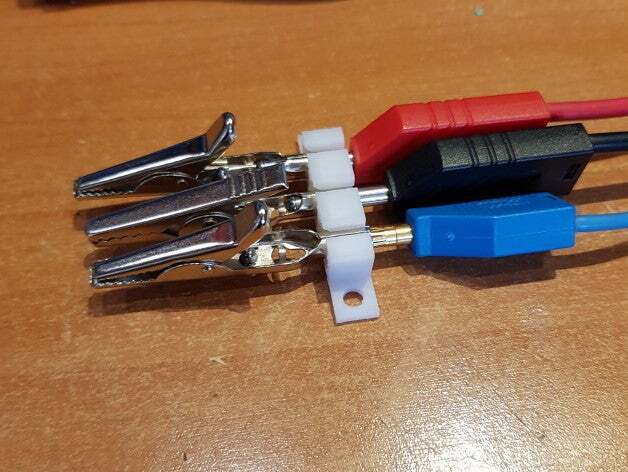

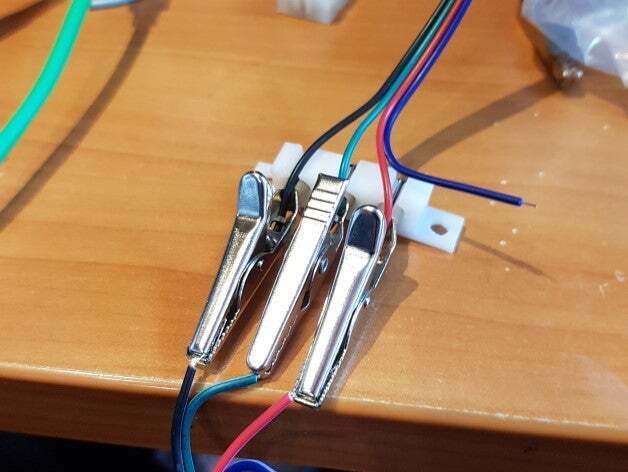

You can plug labor cables on the aligator clamps or you can screw the supporting cables (see picture). Both works.


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close

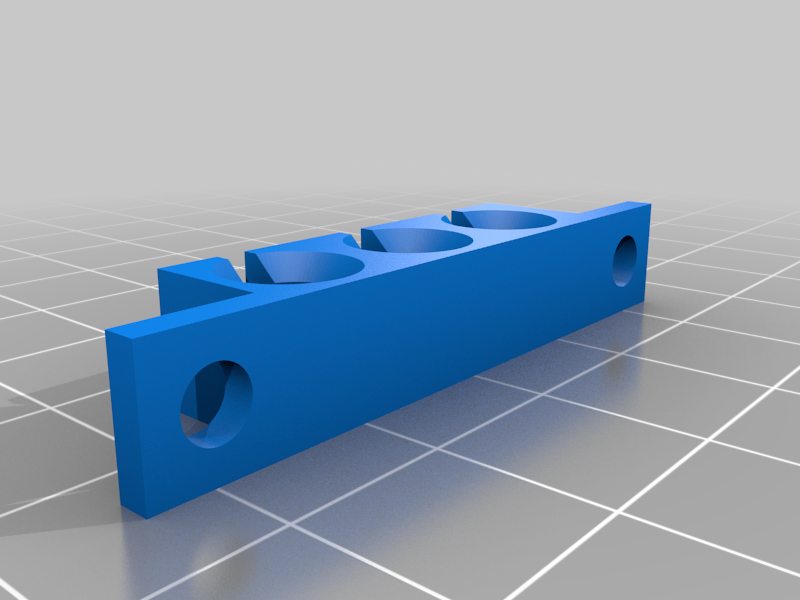

    • Kontaktblock.stl

    Learn more about the formats

  • 3D model size: X 47 × Y 10 × Z 8 mm
  • Publication date: 2021-06-06 at 01:15
    ?
    Published to Thingiverse on: 2021-06-05 at 14:11

License

CC BY

Tags

Creator

Electrical Engineer, automotive hardware, power electronic, inverters GaN/SiC, FPGA, Coding in C, practice in high voltage <=200kV, ultra high vacuum (10E-9 mBar), EMC, radiation, founded knowledge in human behavior, horses, pyrotechnics, technical stuff, chemical issues... now learning 3D-Printing and mechanical construction, absolute NERD :-)
