Alfawise U30 / U20 / U20 Plus - Longer3D LK1 / LK2 - Makerbot alternating filament end sensor holder with cable holder option and filament guide from the top
:strip_icc():blur(20)/https://files.cults3d.com/uploaders/6770121/illustration-file/9726d70b-ad55-4e0c-854a-d91ef4135ddf/Support_detecteur_fin_de_filament.jpg)
?
Creation's quality:
5.0/5
(2 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 4.9k views
- 13 likes
- 168 downloads
3D model description
I was inspired by these 3 models that I remixed into a modular thing with a solid fixation :

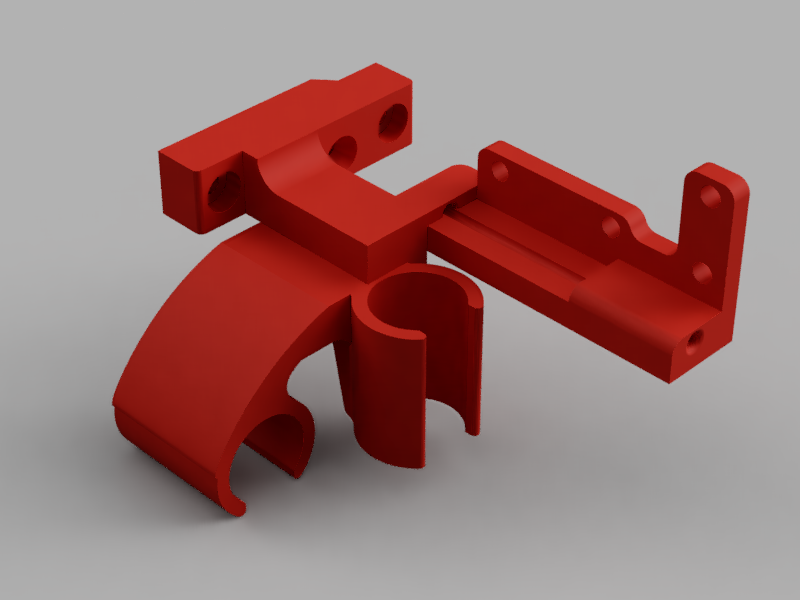

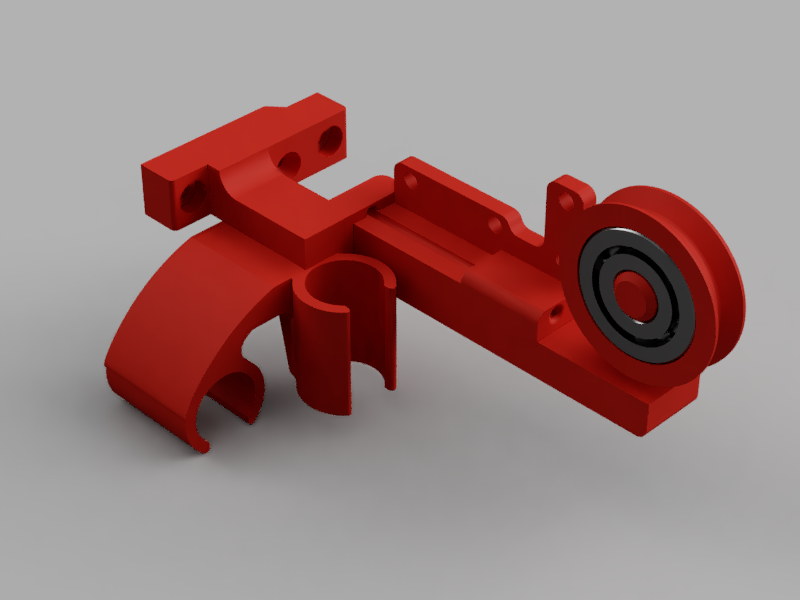

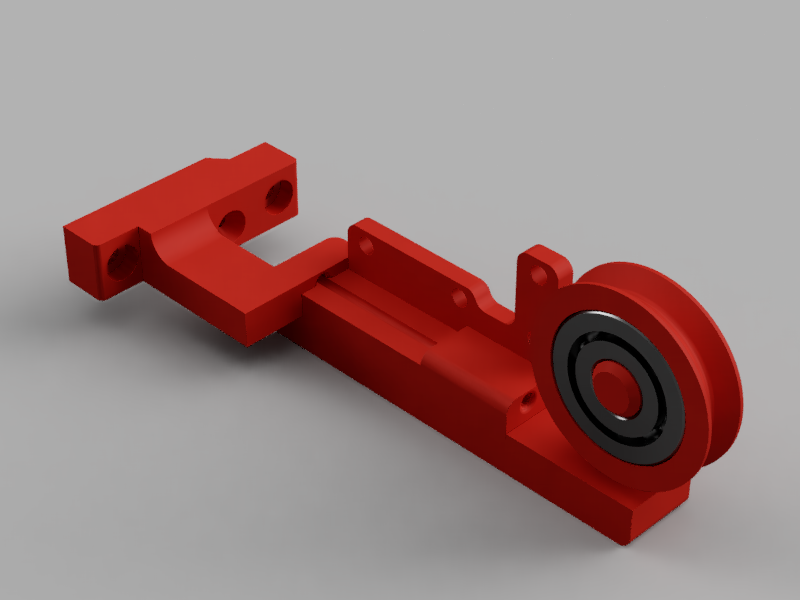

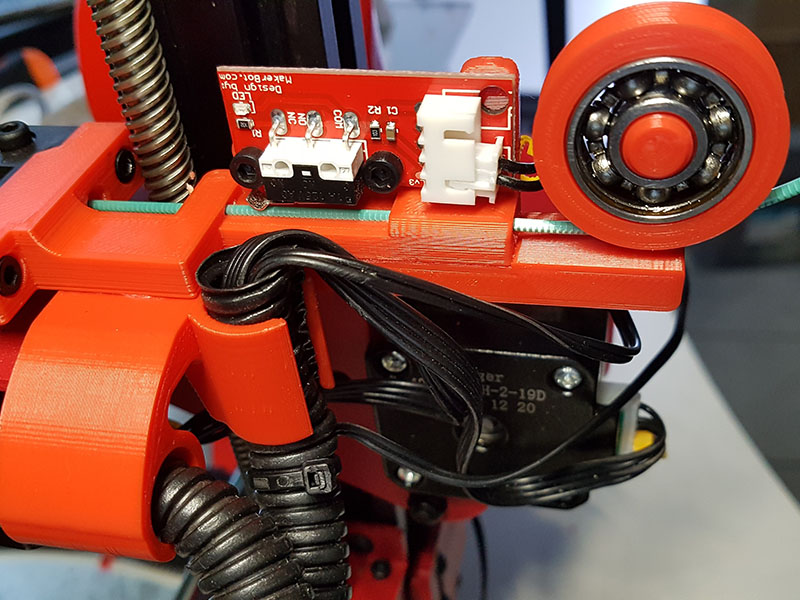

Makerbot alternating filament end sensor support with optional cable support and top filament guide.
Compatible Alfawise U30/U20/U20Plus - Longer3D LK1/LK2

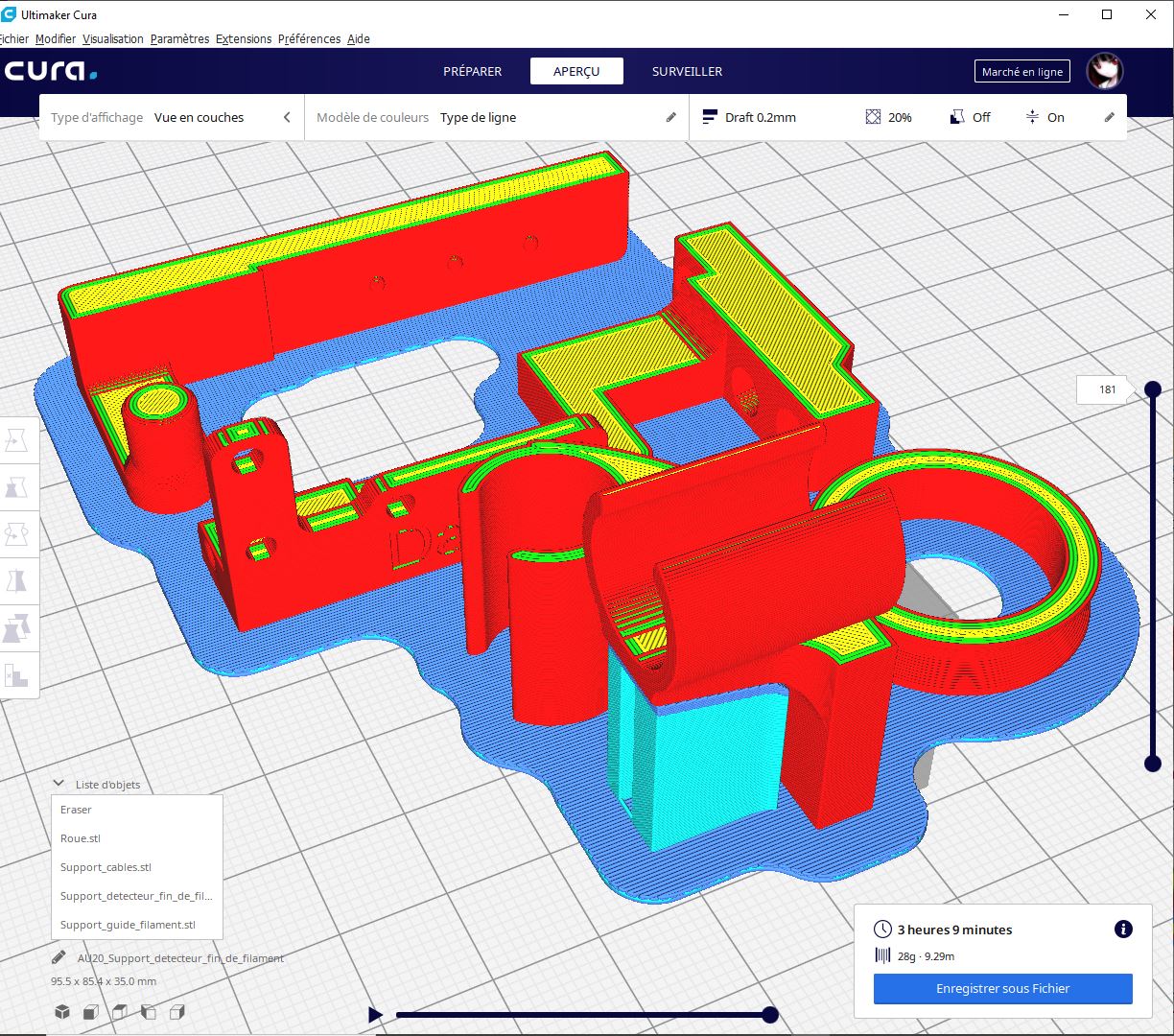

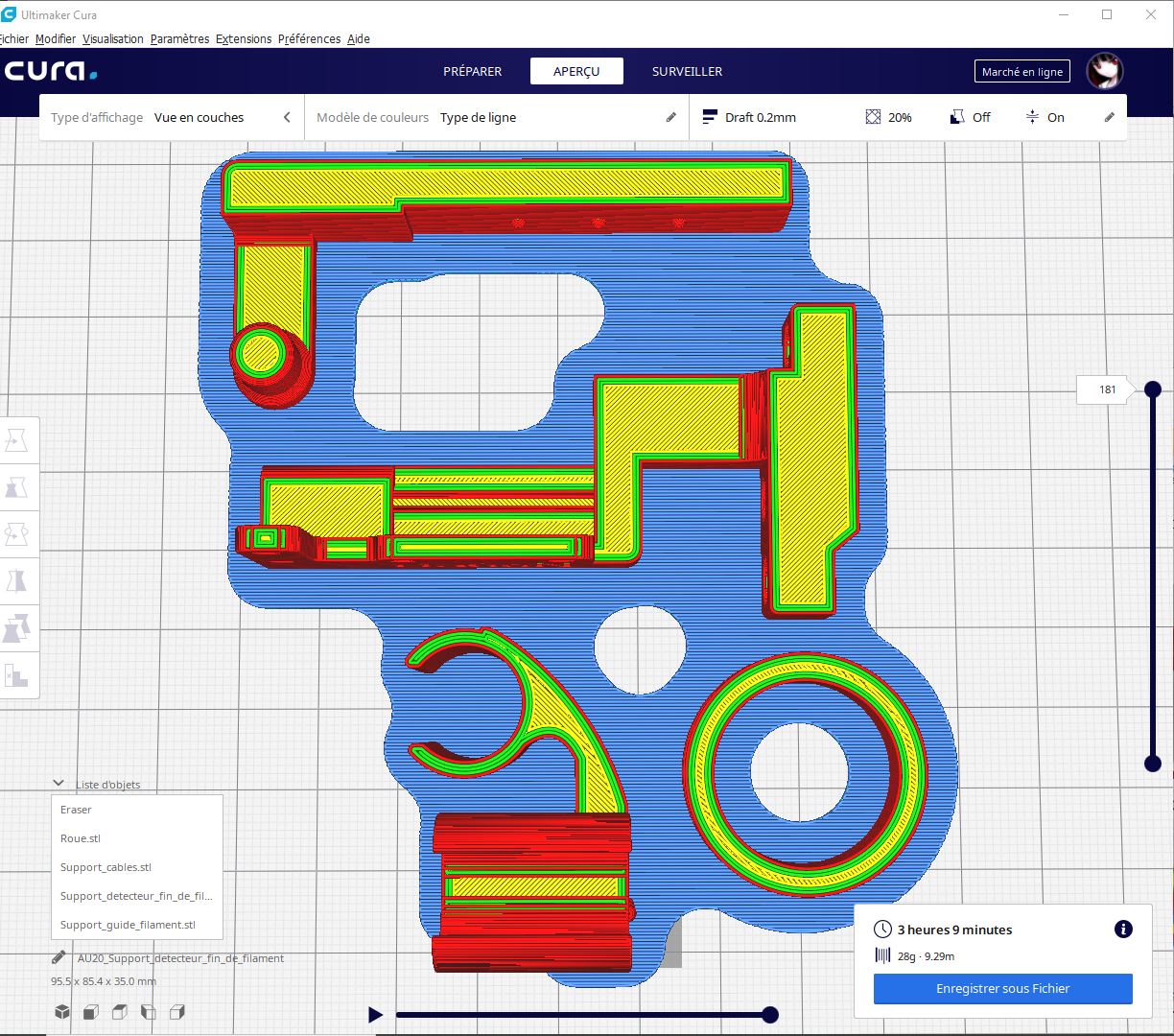

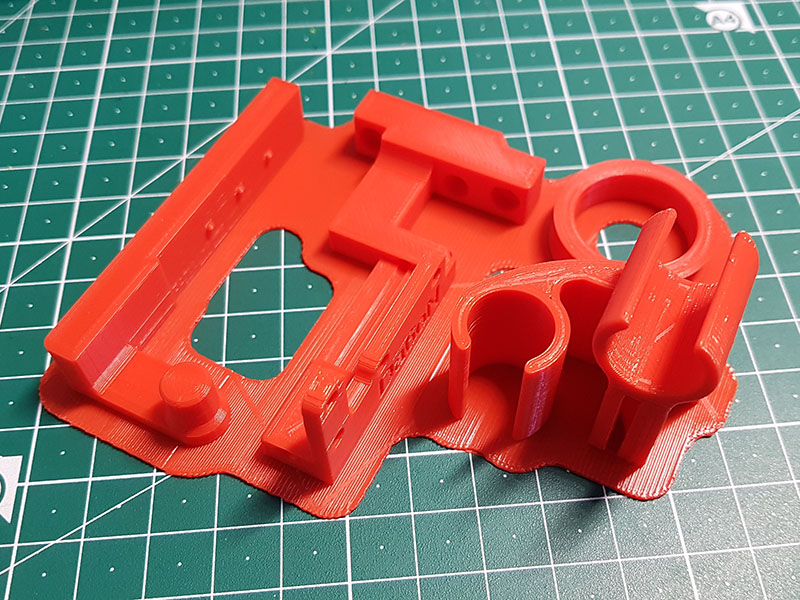

No support required except for the cable support.
Required equipment:
1x Makerbot filamanet end sensor https://www.amazon.fr/gp/product/B07MV6B4FD/
4x M3 screw 12mm
1x Ball bearing type 608 (Hand Spinner / Fidget Spinner)
Please, feel free if you like this model and want to support my free work, you can give me with paypal: https://www.paypal.me/DaGoN
Follow me for the latest news, see my creations :)
- 3D file format: STL
- Last update: 2020/08/02 at 14:10
- Publication date: 2019/10/31 at 20:31
