Adventurer3 Tube Joint Protector

?
Creation quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

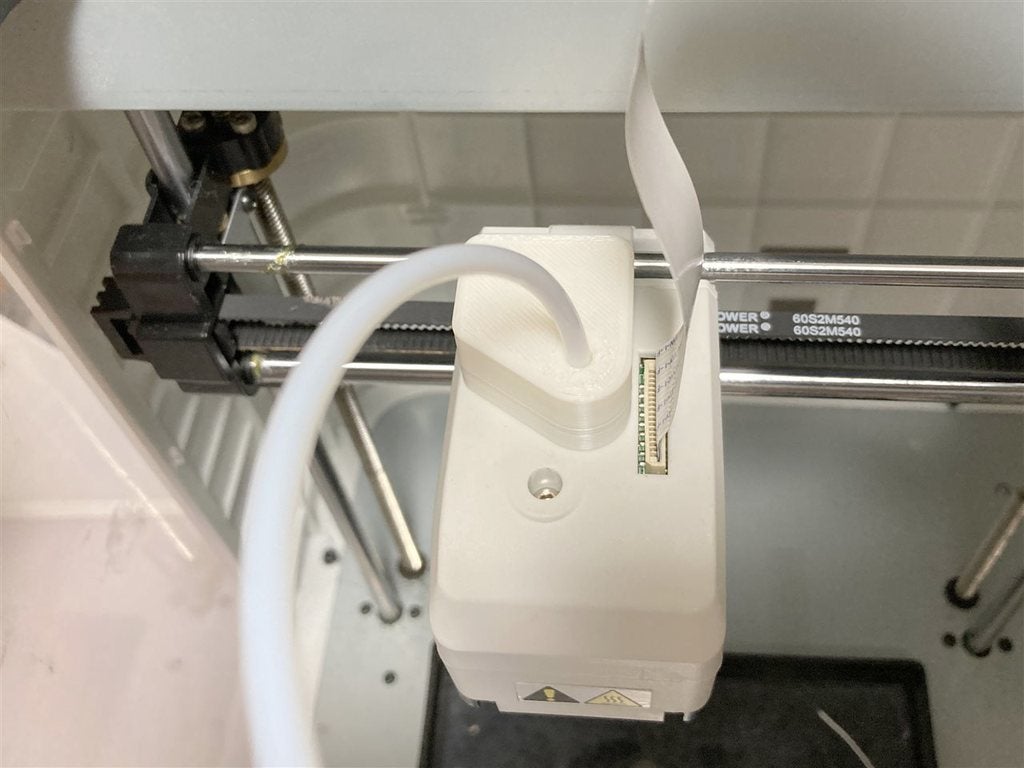

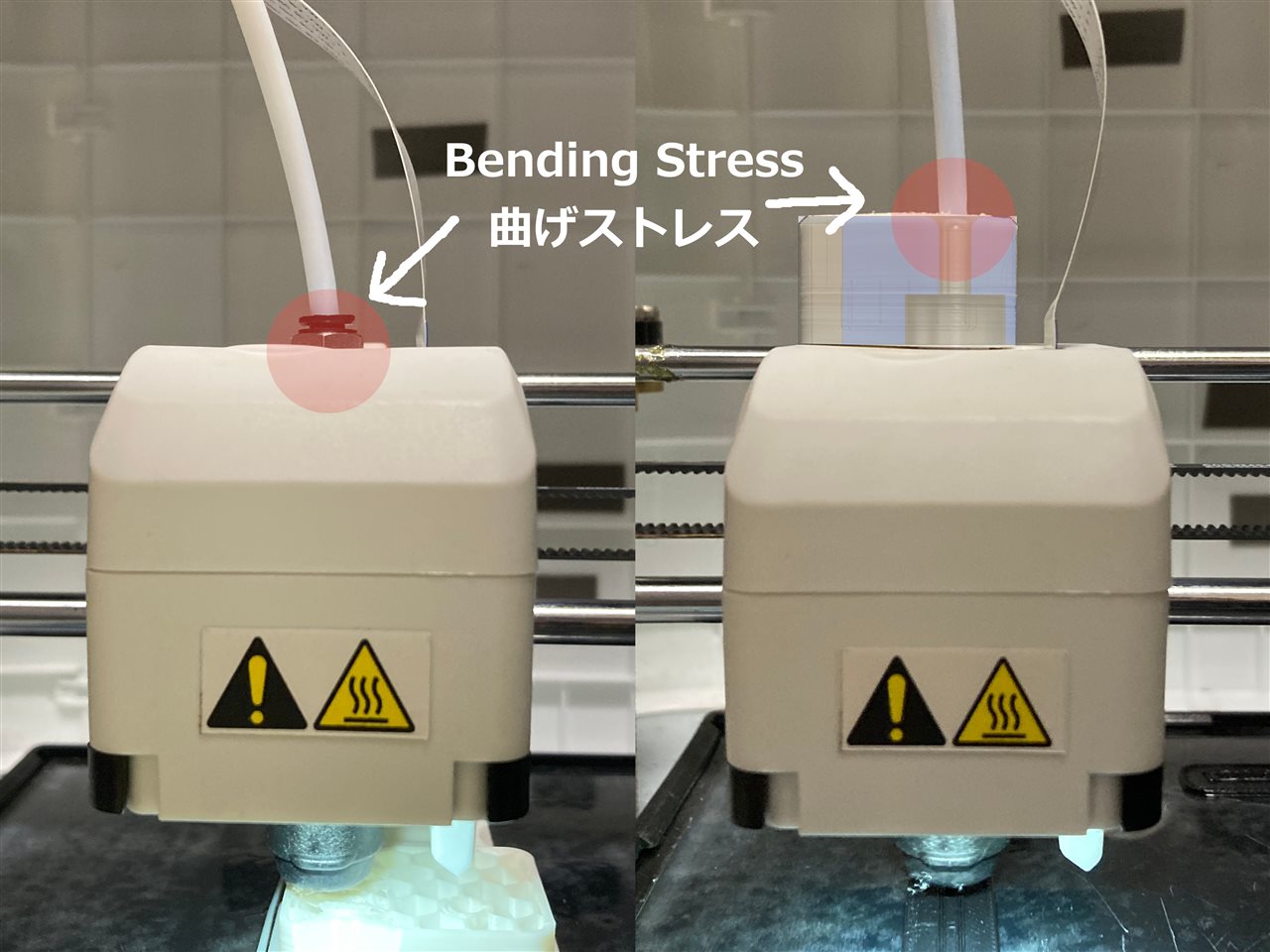

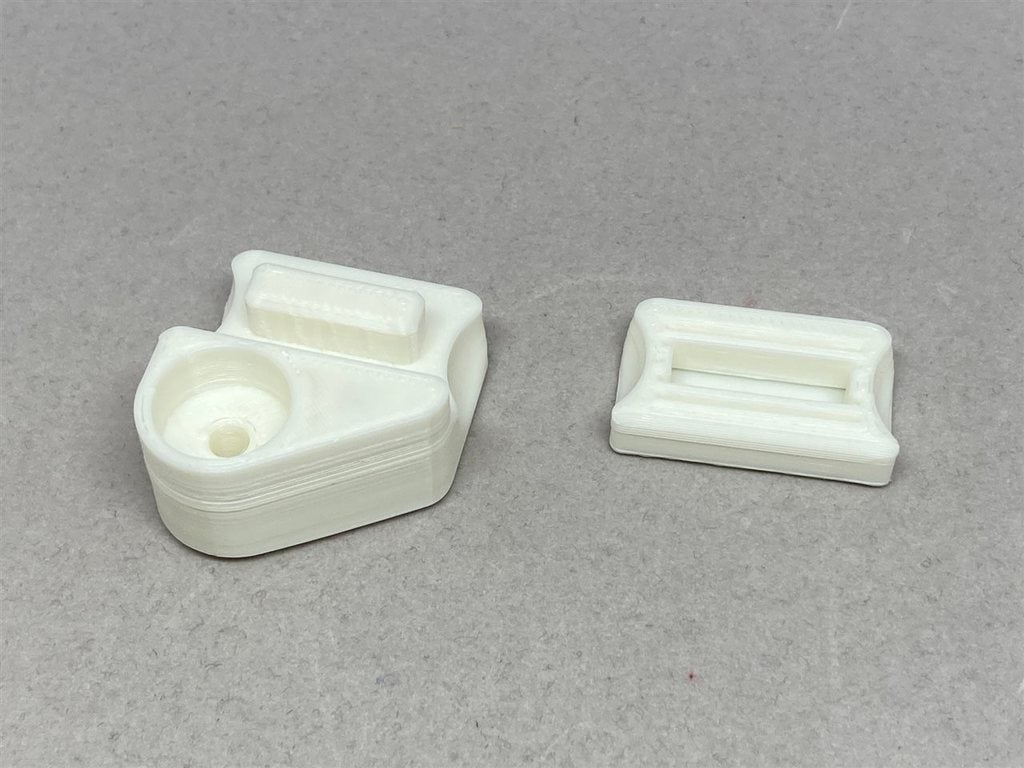

I've been having troubles with the filament guide tube getting stuck in the Adventurer3 tube joint or the internal claw breaking, so I made a protective part to shift the bending position upward, thinking that the bending stress of the tube might be the cause of the problems.

I have not tested enough whether it actually works or not, so I have flagged "Work-In-Progress".

[Japanese]
Adventurer3のエアチューブジョイントからフィラメントガイドチューブが抜けなくなったり内部の爪が破損したりのトラブルが多いので、チューブの曲げストレスがジョイント部分にかかることが原因ではないかと考えて、曲げ位置を上にずらす保護パーツを作りました。

実際に効果があるかどうかは未検証なので、Work-In-Progress(未完成)フラグを付けています。


3D printing settings

-

3D printer file information

  • 3D design format: F3D and STL Folder details Close

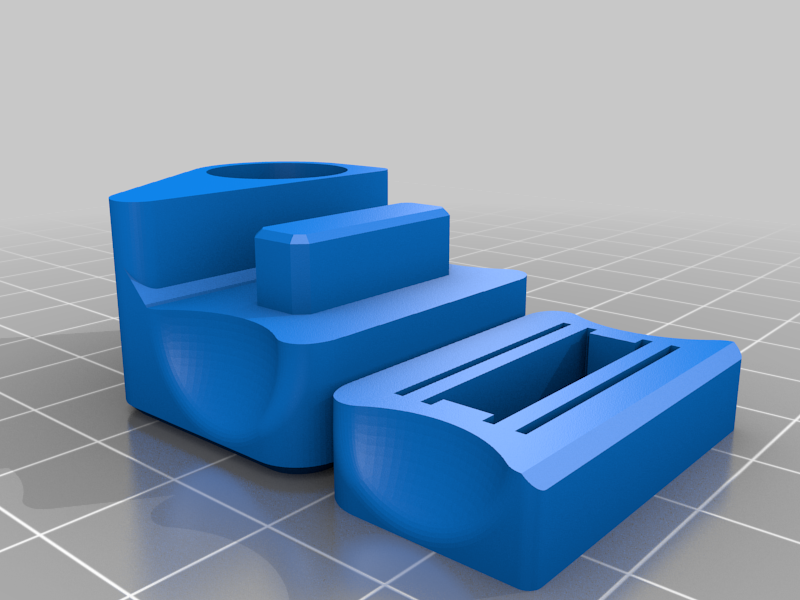

    • all.stl

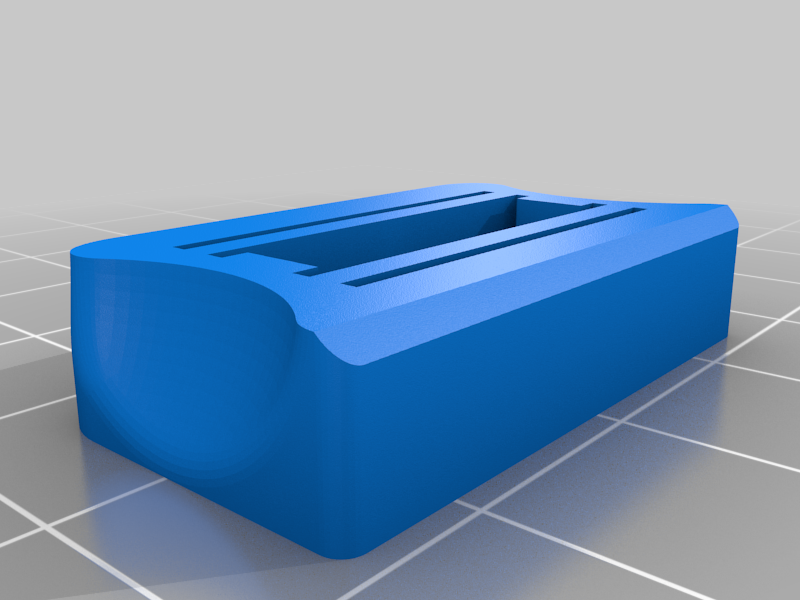

    • base.stl

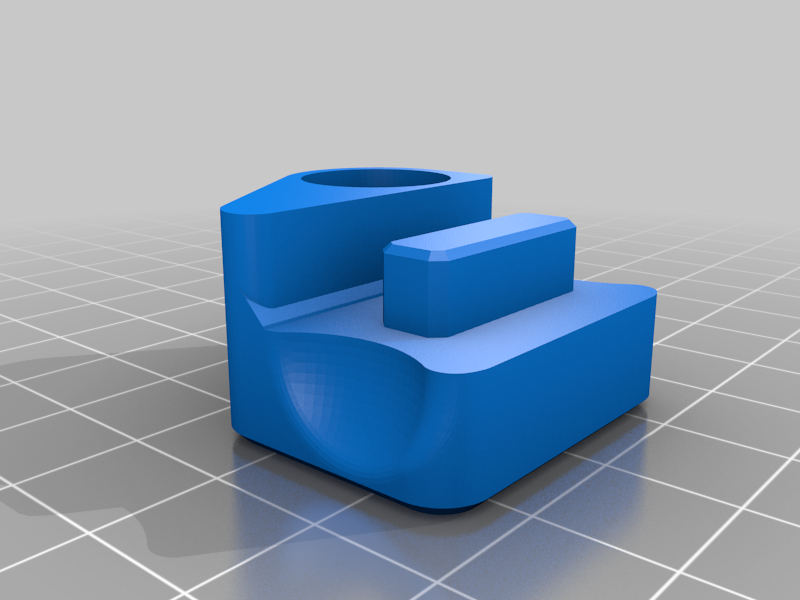

    • cover.stl
    • joint_protector.f3d

    Learn more about the formats

  • Publication date: 2021-07-08 at 01:03
    ?
    Published to Thingiverse on: 2021-07-07 at 17:07
