ultimaker coil adapter for SOVB3D coil

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.8k views
  • 7 likes
  • 52 downloads

3D model description

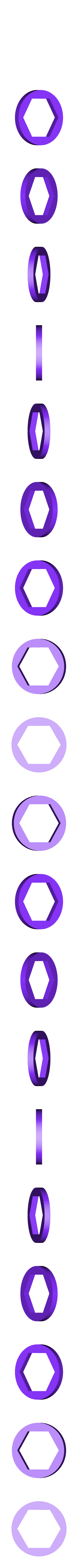

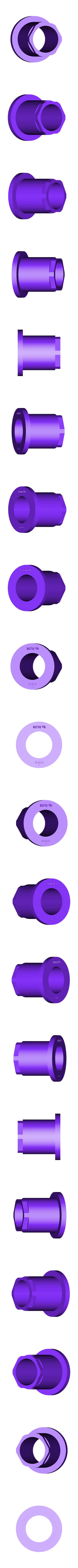

This parts consists in adapting to the coil holder of the Ultimaker long (3D Printer Ultimaker Parts UM2 Parts Axis Plastic Wire Injection Parts

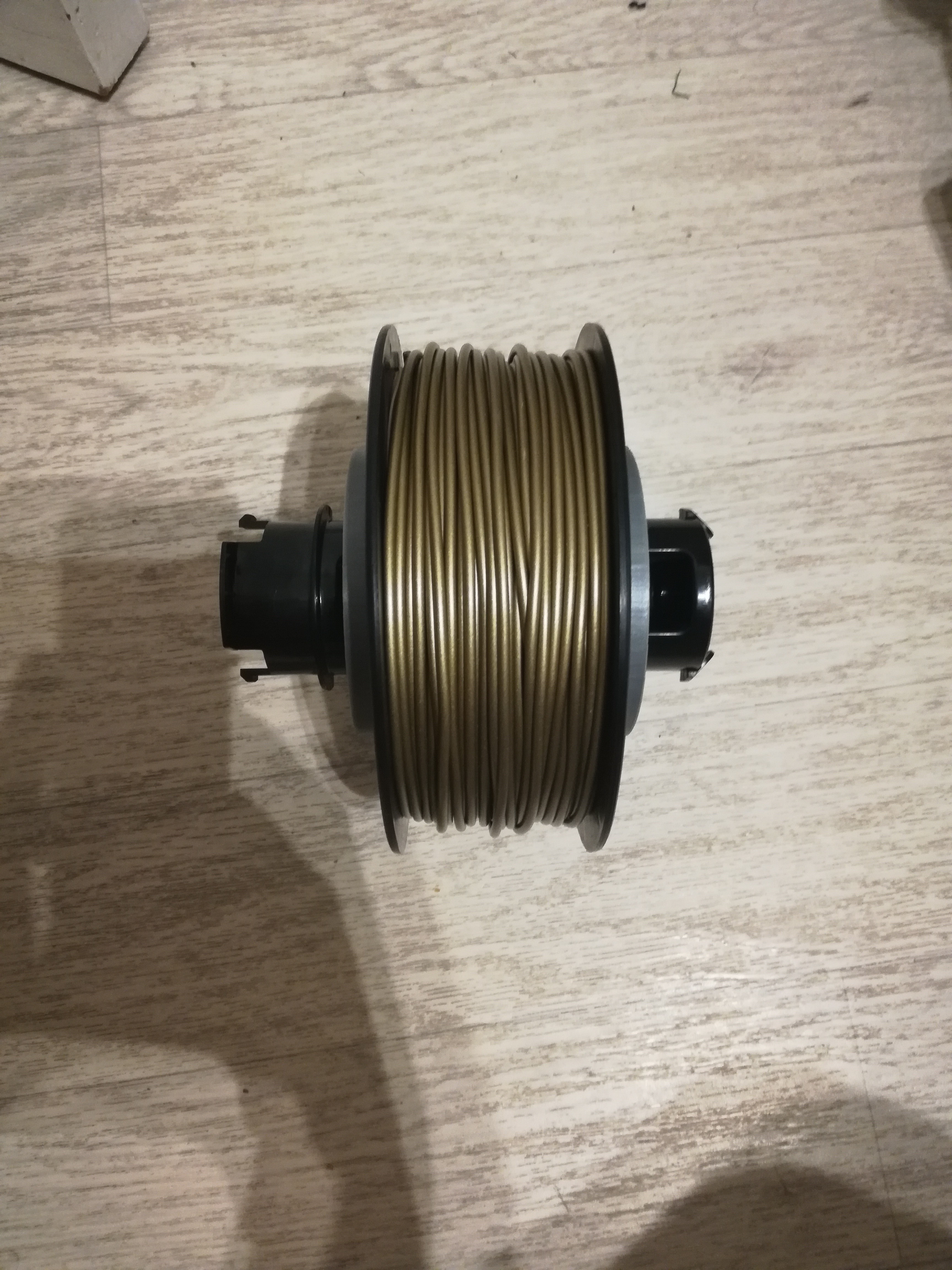

http://s.aliexpress.com/mIvUbEjy?fromSns=Copy to Clipboard) for your 500G and 1kg reels by allowing to have the end lock of the reel holder .

the other advantage is that as the diameter is adapted to the coil holder, the coil rotates round and this considerably reduces the noise and the feeder force less .

Remember to deburr the inside corners of the closure to facilitate insertion what is done with wear but the best is to deburr it from the beginning for easier insertion and it is nickel .

To remove the locking washer during these first uses help you of a screw turn to make lever but in time this one is easily removed with the fingers.


3D printing settings

Put a height of first coat layer to 0,20 and a speed in 20mm/s .

For the continuation of the printing print with parameters classic.

put a first layer height at 0.20 and a speed at 20mm/s . For further printing with classic parameters.

Filling 20% is more than enough.

3D printer file information

  • 3D design format: STL Folder details Close
    • adaptateur bobine sovb3D avec les deux logos ( Base).stl
    • adatateur bobine sovb3D ( Fermeture).stl

    Learn more about the formats

  • Last update: 2018/06/29 at 07:08
  • Publication date: 2018/06/19 at 17:22

License

CC BY NC ND
