Active coal filter holder for 120mm computer fan

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.1k views
  • 17 downloads

3D model description

3D printers melt plastic and it doesn´t smell so nice. To tacle this problem I have always had active coal filter by the printer. After moving the printer to a new place it was time to make a better filter holder.

This one is a big one with a big area for the filter material. I use a active coal sheet made for over the oven fans. A sheet costs a couple of € and lasts for years. Thickness is 7 mm.

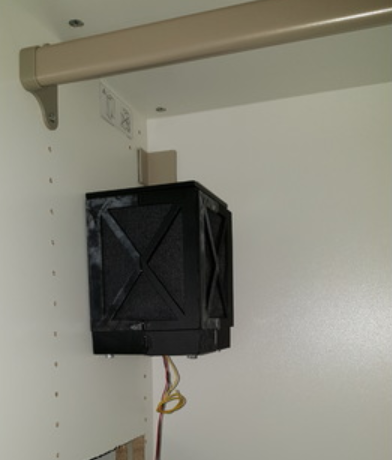

In the bottom of the holder is a standard 120mm computer fan which is drawing air in through the filters (so that the dust gets collected on the outside of the filter.

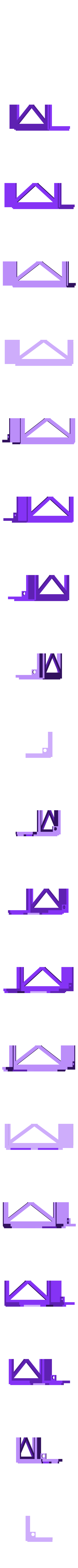

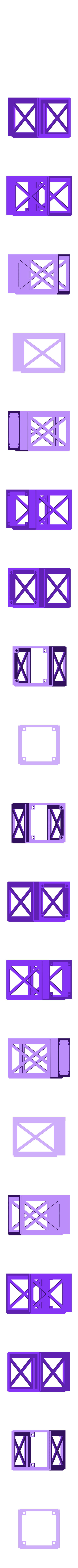

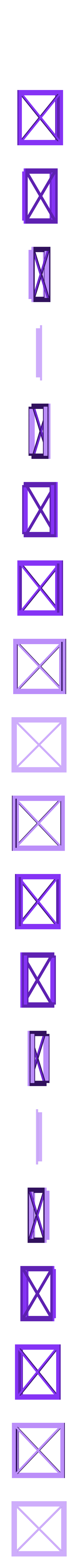

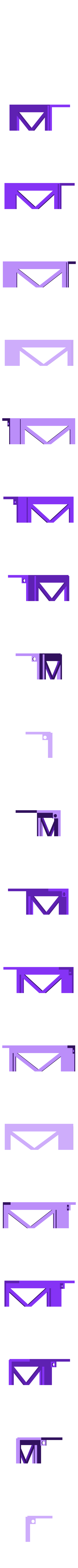

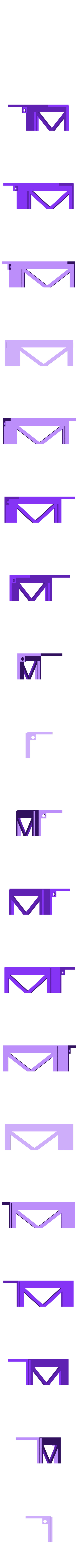

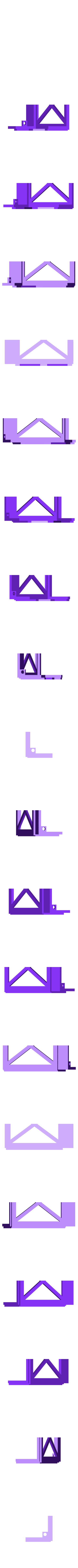

In the files is the complete holder + top and the holder cut into four pieces. I made it from the four pieces and glued them together.

3D printing settings

Printer Brand:

FlashForge

Printer:

Creator Pro

Rafts:

Doesn't Matter

Supports:

Yes

Resolution:

0,3

Infill:

15 %

Notes:
Mine is printed in ABS. It shrinked a bit so that the fan would not have been able to fit inside the enclosure. Luckily it was printed in four parts and glued together, so I could leave a gap for the fan to fit.

Post-Printing
Glue the thing together, Install a 120mm fan with four screws and cut pieces of active coal filter and install.

How I Designed This
Designed in Fusion 360
Sliced with Simplify3D
