A very compact Raspberry Pi A+ case

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 678 views
  • 26 downloads

3D model description

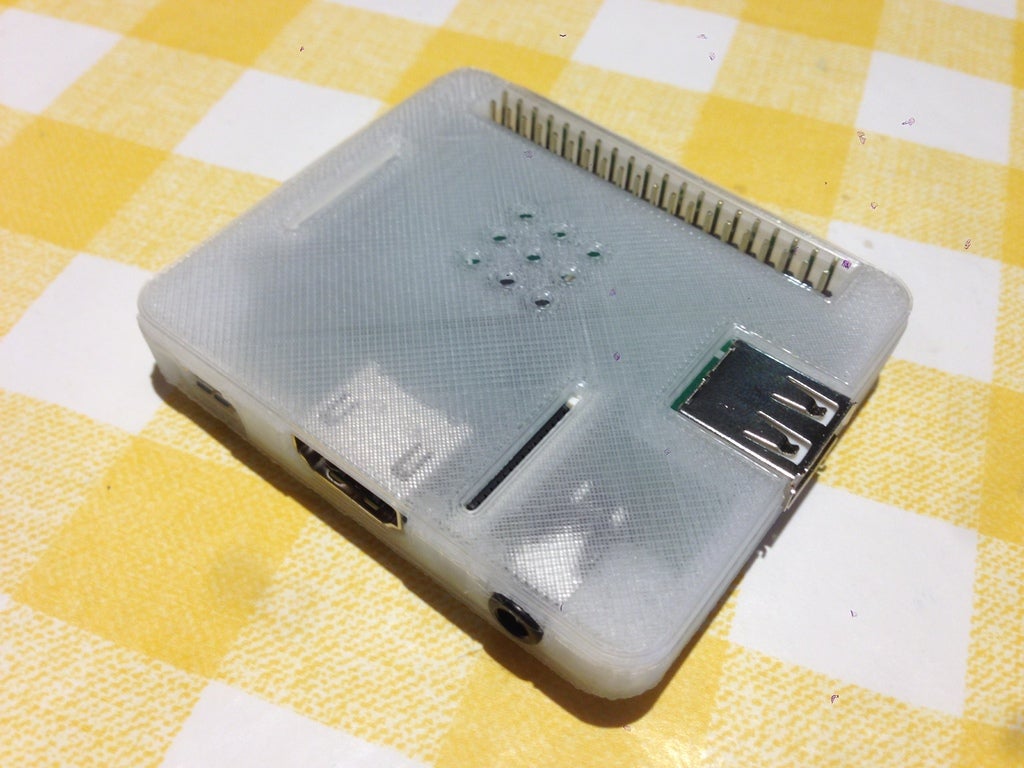

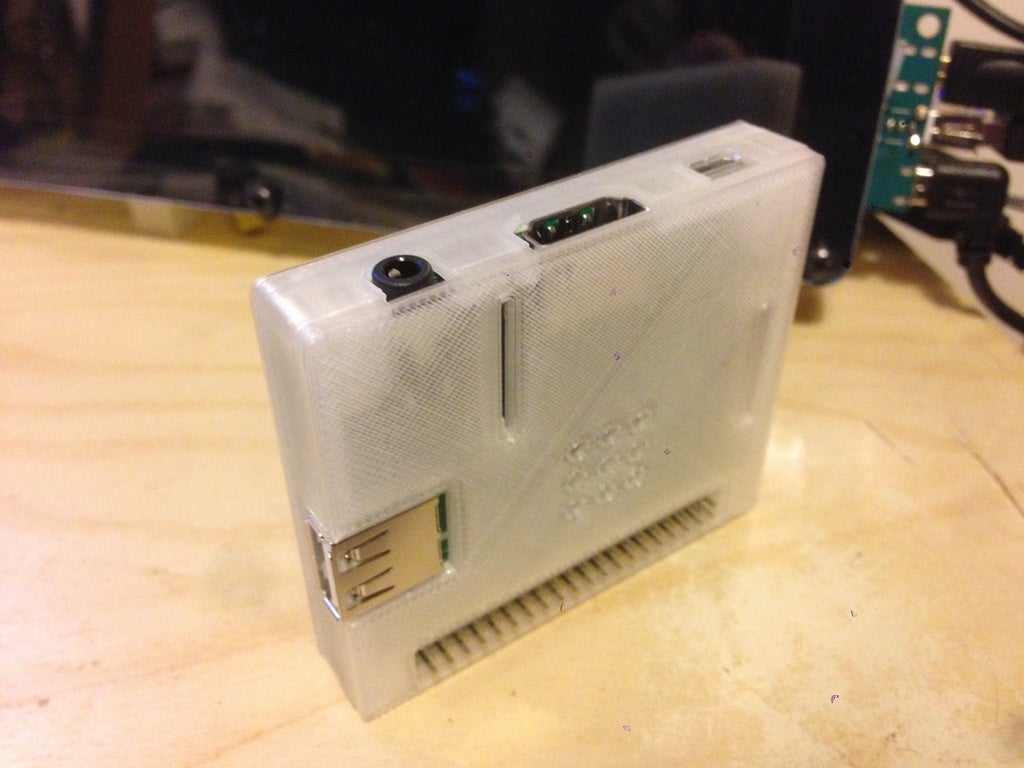

Nice compact case. Top and base are a nice friction fit.

Update v2.1 (14th Nov)

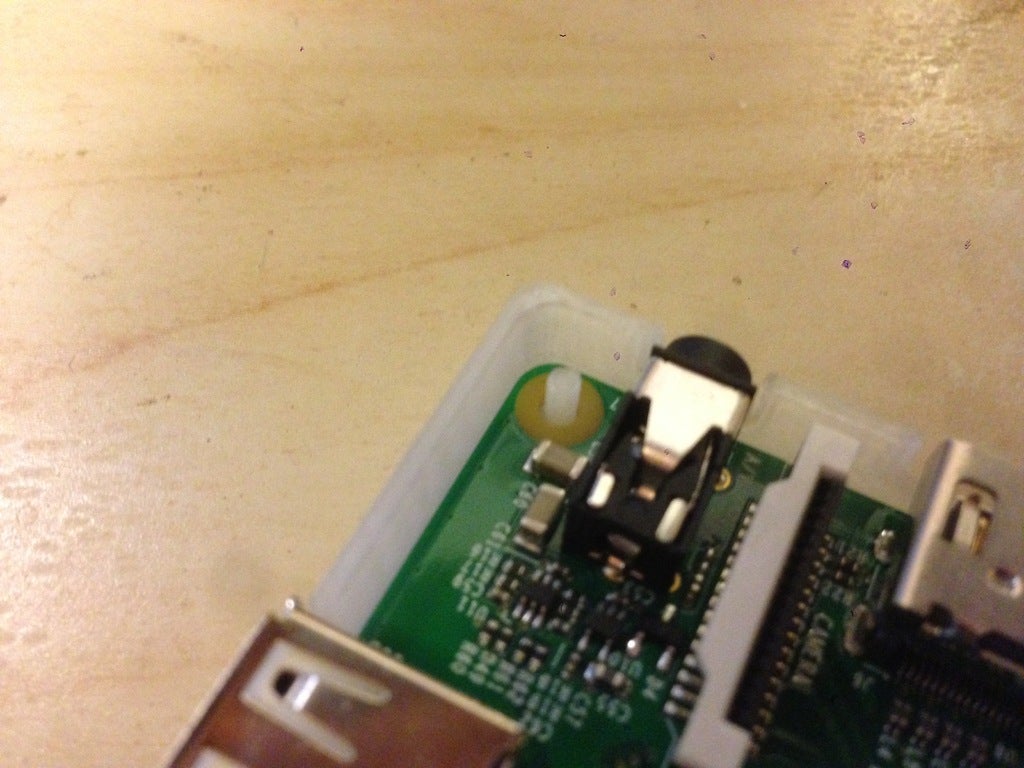

  • Very slight tweak to top part, as there was a slight interference above the A/V Socket.

UPDATED to V2 (14th Nov)

V2 files now available - many imporvements:

  • touchscreen ribbon connector now aligned.
  • increased the corner radius, so even more compact!
  • added a very slight chamfer to top and bottom edges (0.2mm/2mm)
  • created recess surrounding the micro usb socket and closed gap above.
  • closed gaps around hdmi, A/V and USB
  • also closed gap above the SD card slot, but still allows easy thumbnail release of micro SD card

Enjoy.

@rpischool

3D printing settings

I used 0.2 layer height, 20% fill.

No raft or supports

  • 3D file format: STL

Tags

Creator

License

CC BY SA
