60mm handwheel casing for a cheap encoder
:strip_icc():blur(20)/https://files.cults3d.com/uploaders/14853068/illustration-file/4fdedcc4-5a18-4a3e-830f-01d4ae7dbbcc/cnc_pendant_2020-Jul-12_10-26-14AM-000_CustomizedView2790817360.png)
?
Creation's quality:
0.0/5
(0 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 341 views
- 1 like
- 10 downloads
3D model description

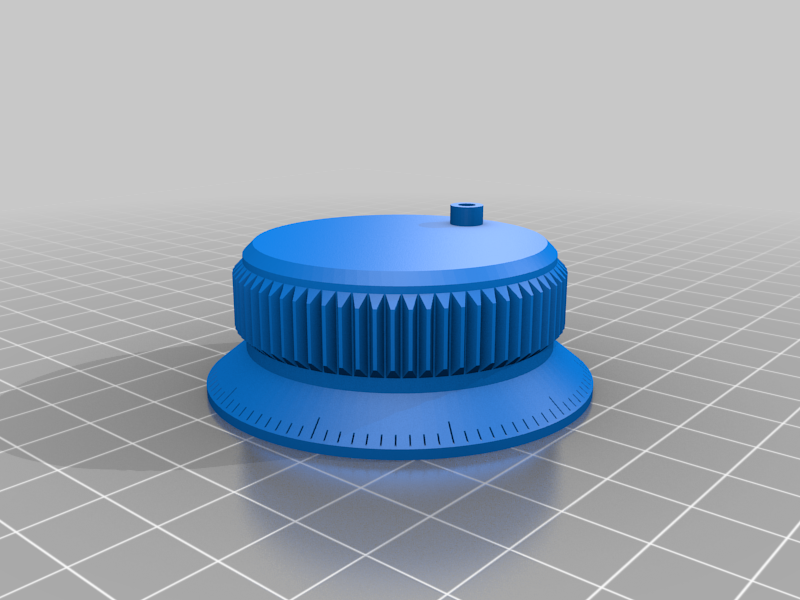

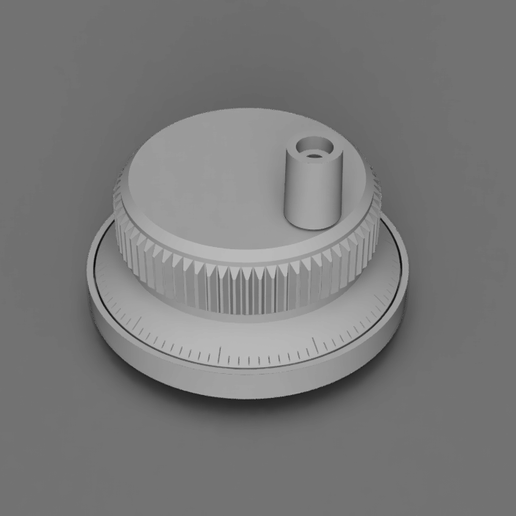

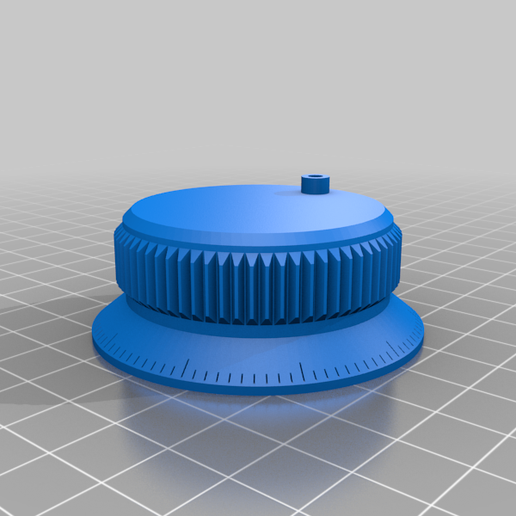

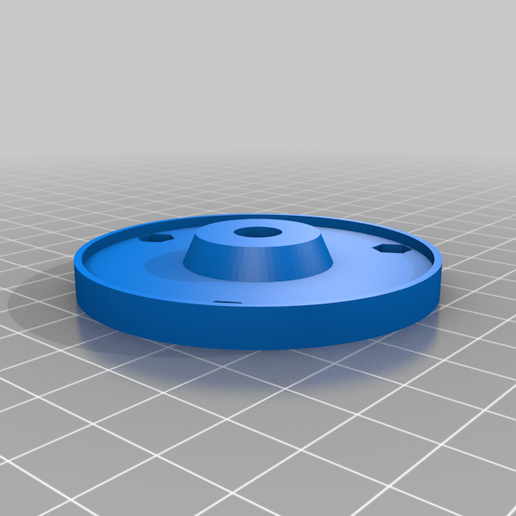

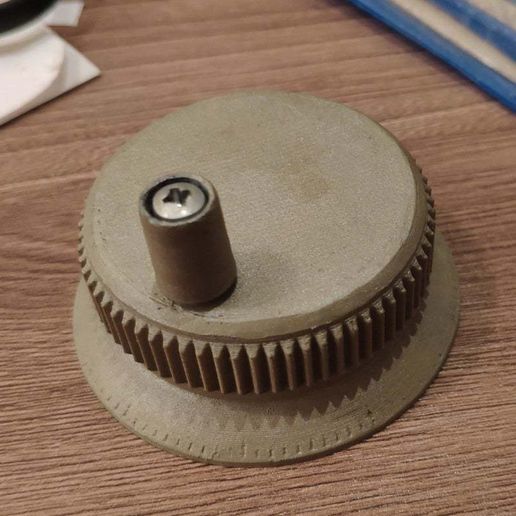

This a casing that converts a cheap rotary encoder to a 60mm handwheel that a lot of CNC pendants have. Suitable for DIY CNC pendants, MPGs and probably for fixing commercial CNC pendants.

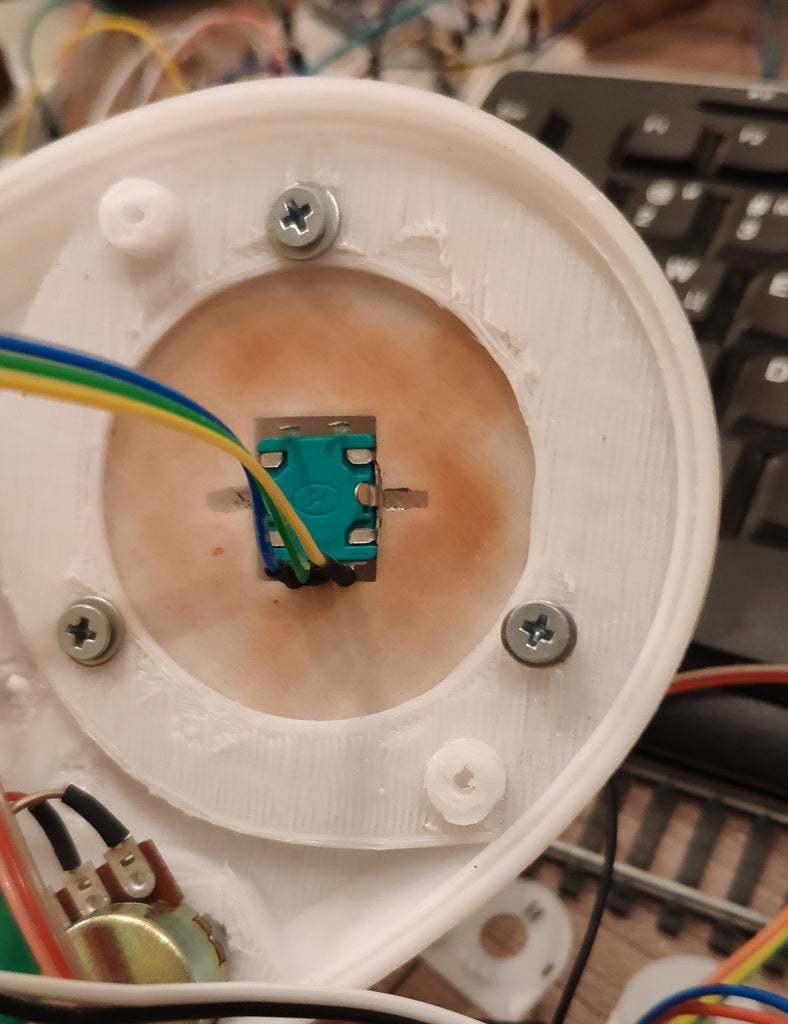

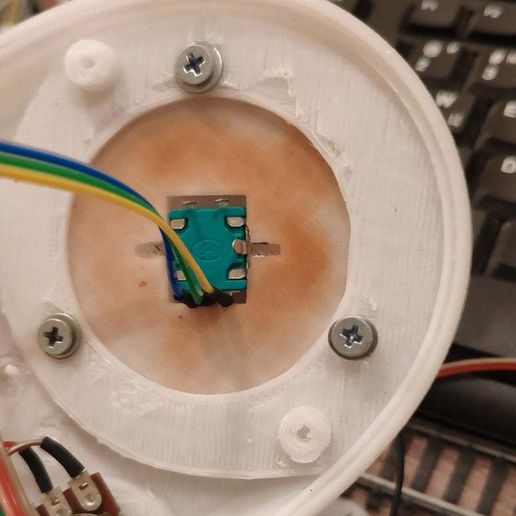

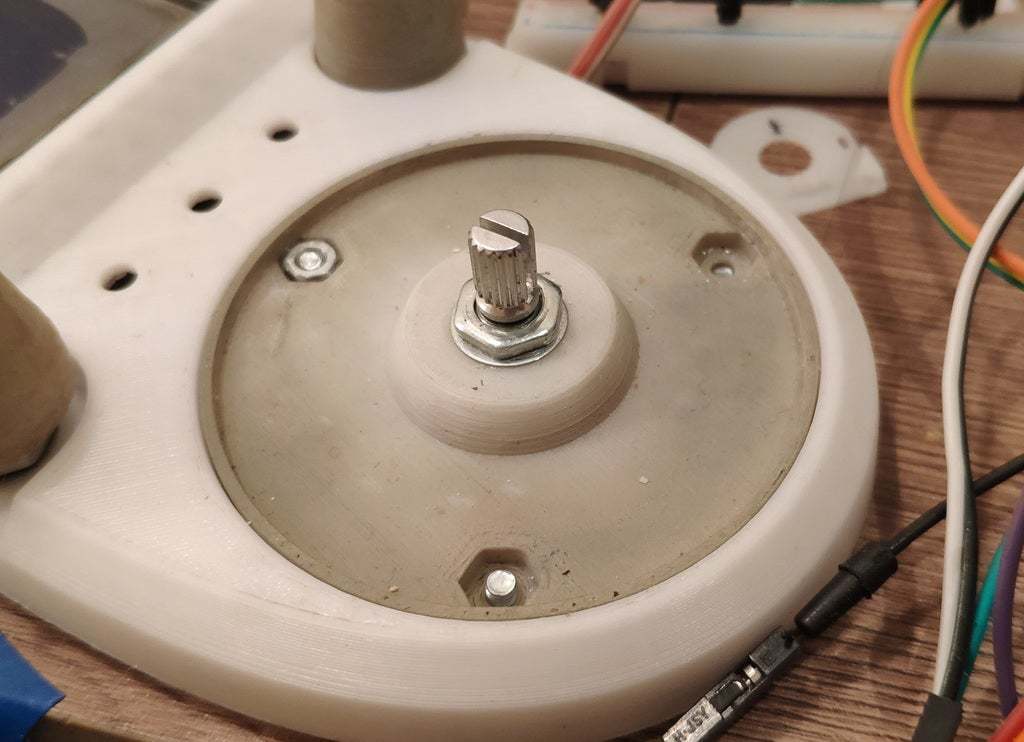

It is modeled for a EC11 rotary encoder with center-notched 10mm shaft and 5 pins, 3 for encoder and 2 for button. The encoder had 30 pulses per rotation.
- 3D file format: STL
- Publication date: 2020/08/17 at 11:00
