3D model description

UPDATE: 8/24/20 BMG-M version added

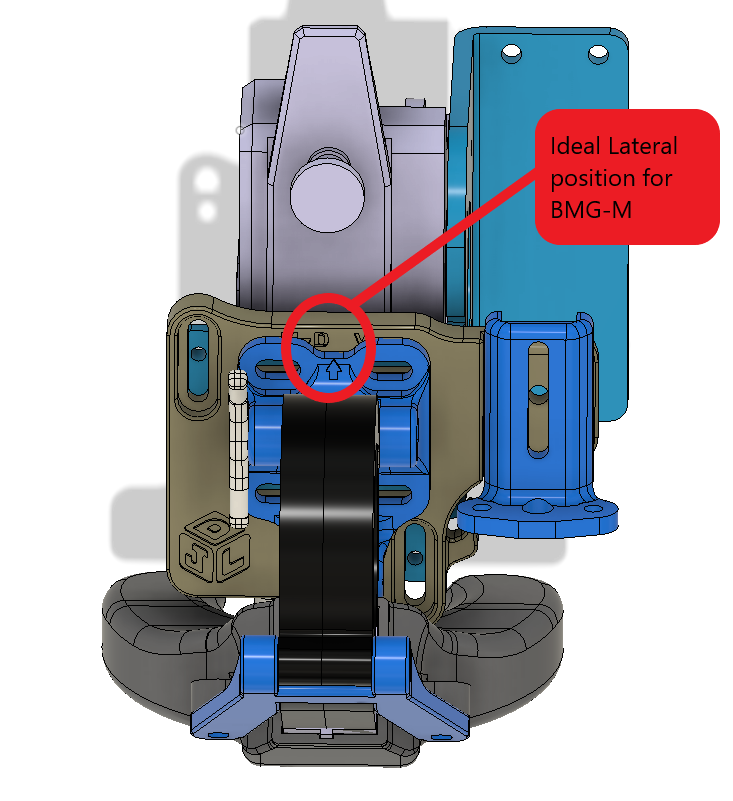

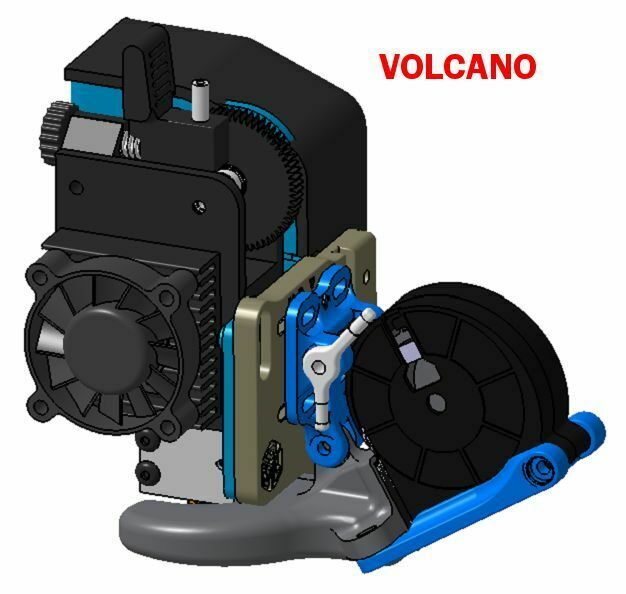

UPDATE: 8/12/20 Volcano version added, new picture with ABL offsets for volcano

WE'RE BACK AT IT! This posting is for JL Design's take on the Single 5015 duct! (Dual 5015 coming later in an update)

Features:
-Adjustable mount for fine tuning fit in both X & Z axes
- TPU vibration dampener option for reduced vibration & noise

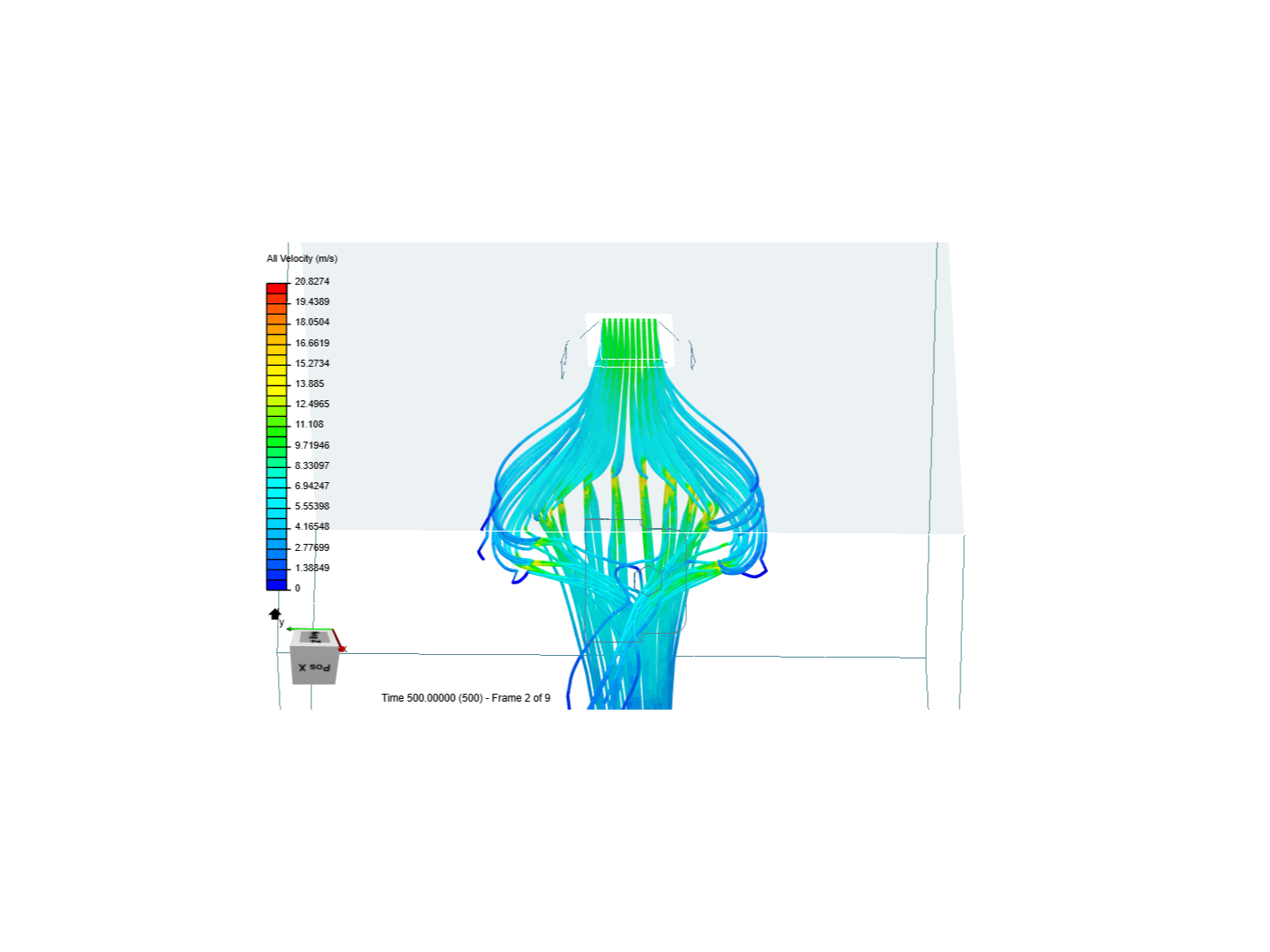

- 96% efficient for 5015 fans
- Fan Cable management

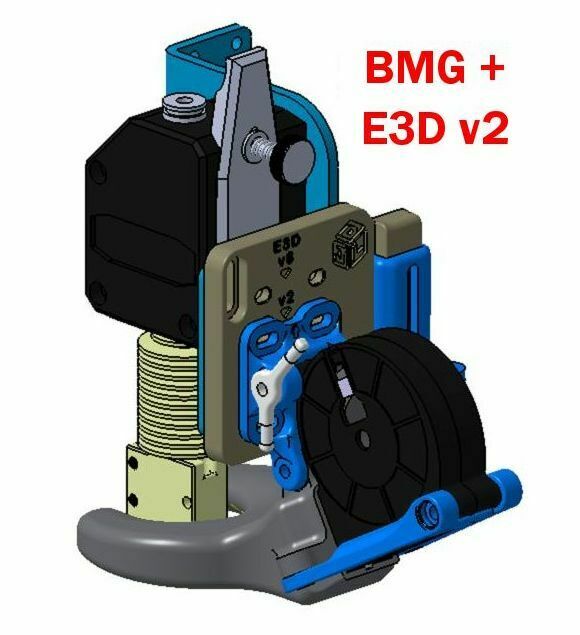

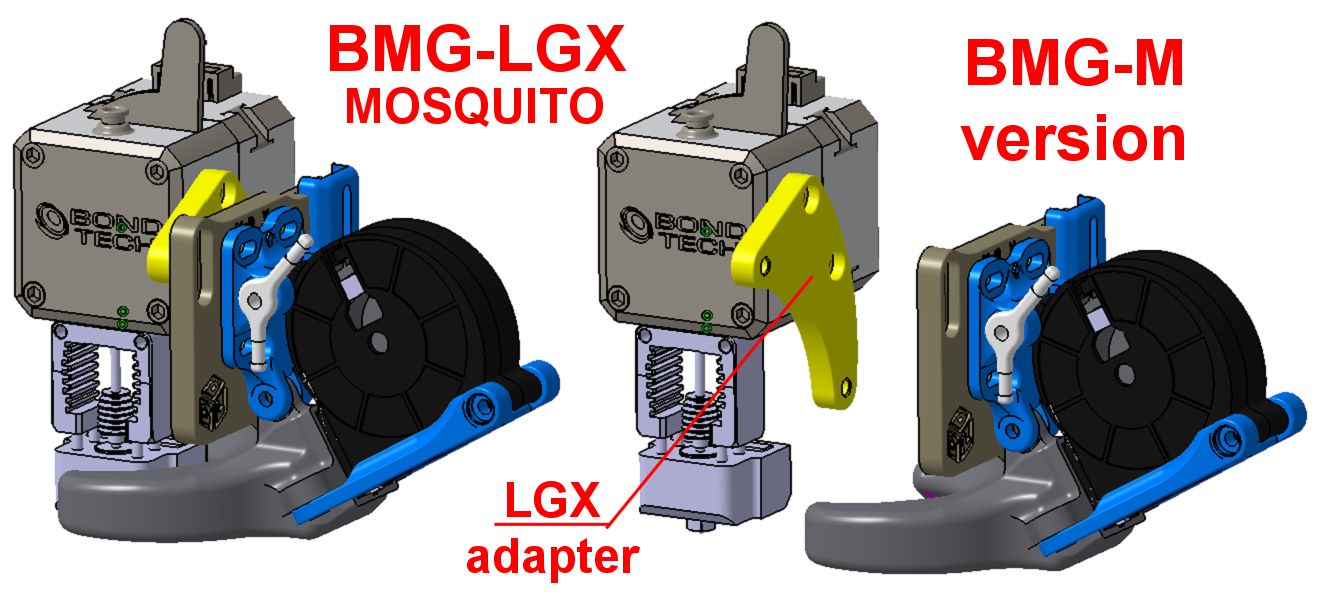

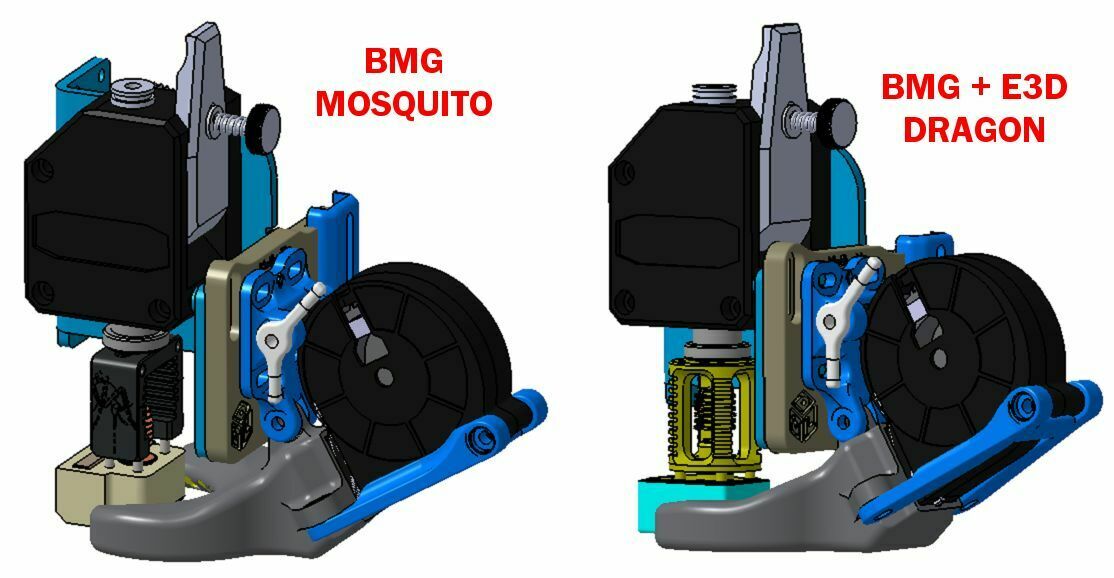

- Supports BMG + Mosquito OR BMG + Dragon

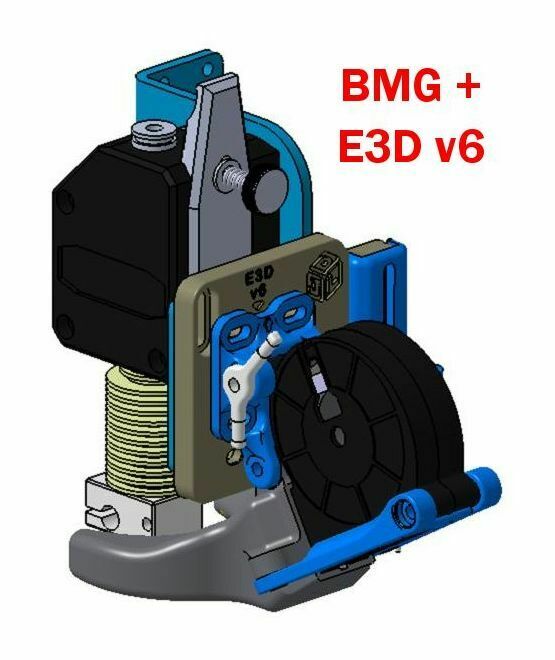

- Supports Stock Volcano+Titan

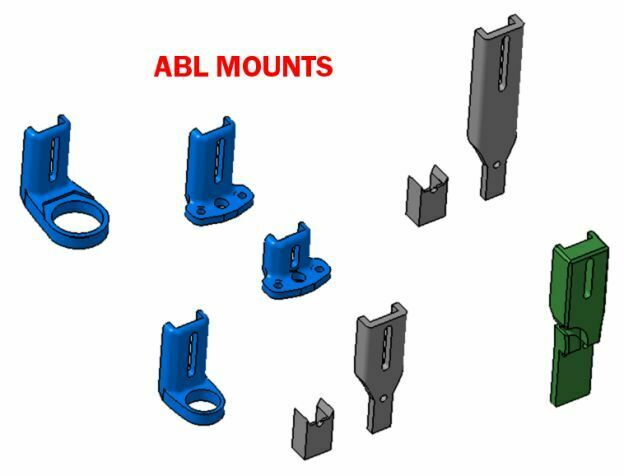

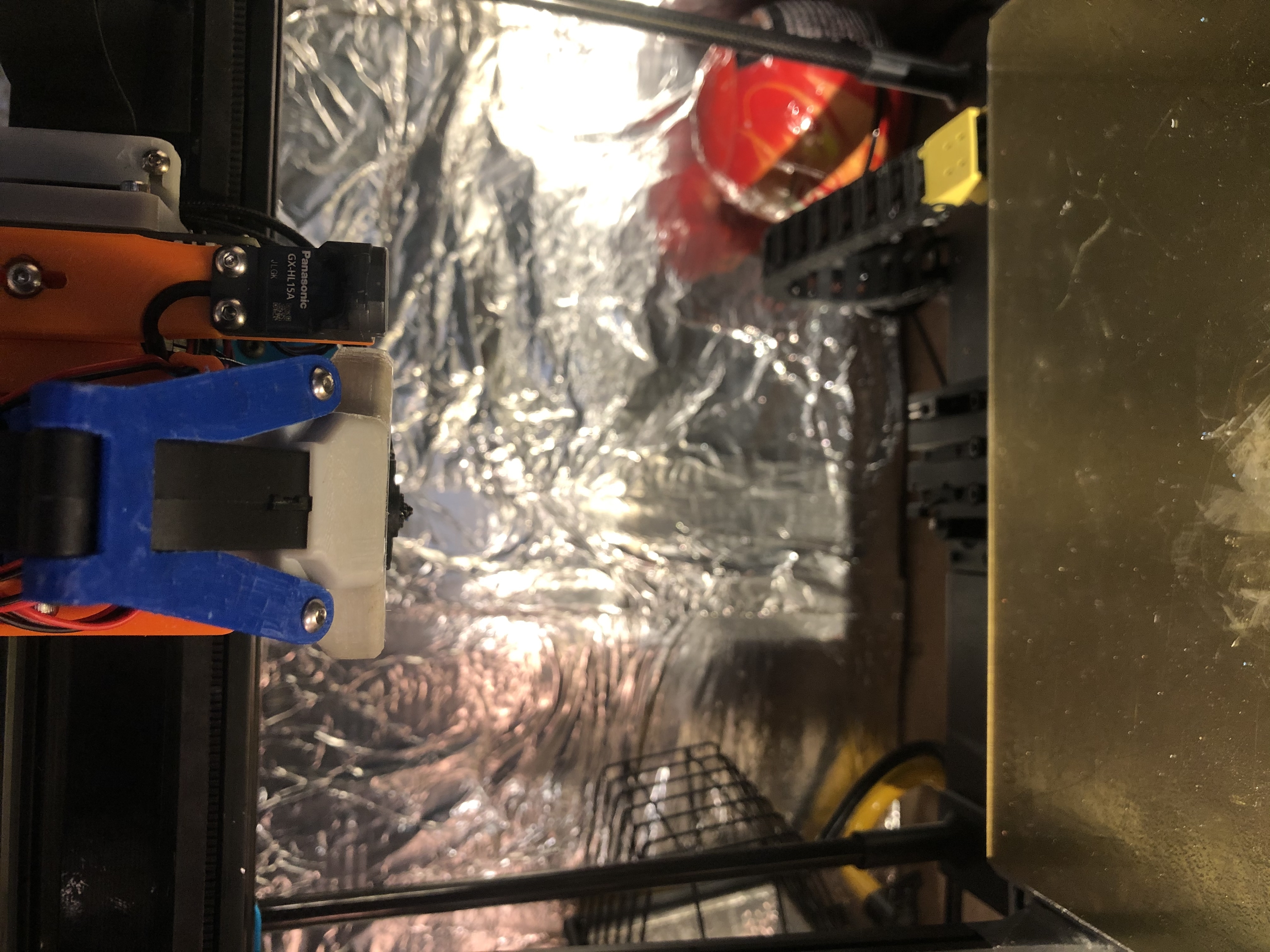

- Multiple ABL mounts (BLtouch, Stock endstop, M12 & 18 inductive, and more)
- Hex Nut or Threaded Insert Versions (both included as .zip)

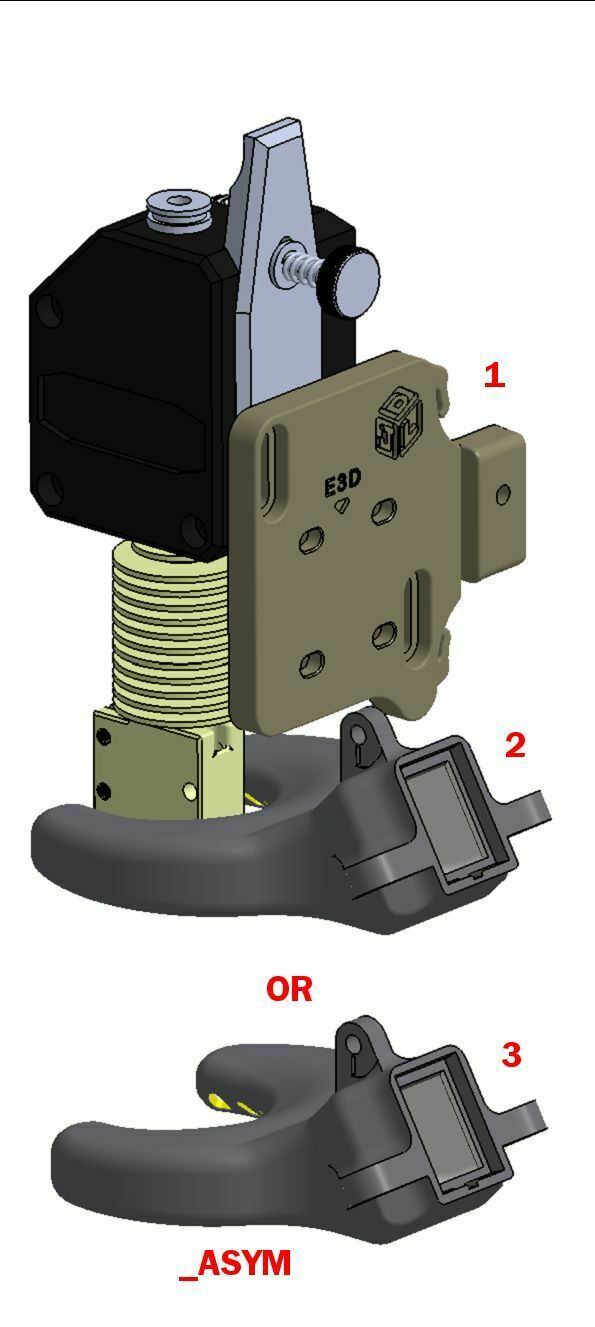

Printed Parts:
-Duct
-Bottom Pivot Bracket
-Pivot Bracket

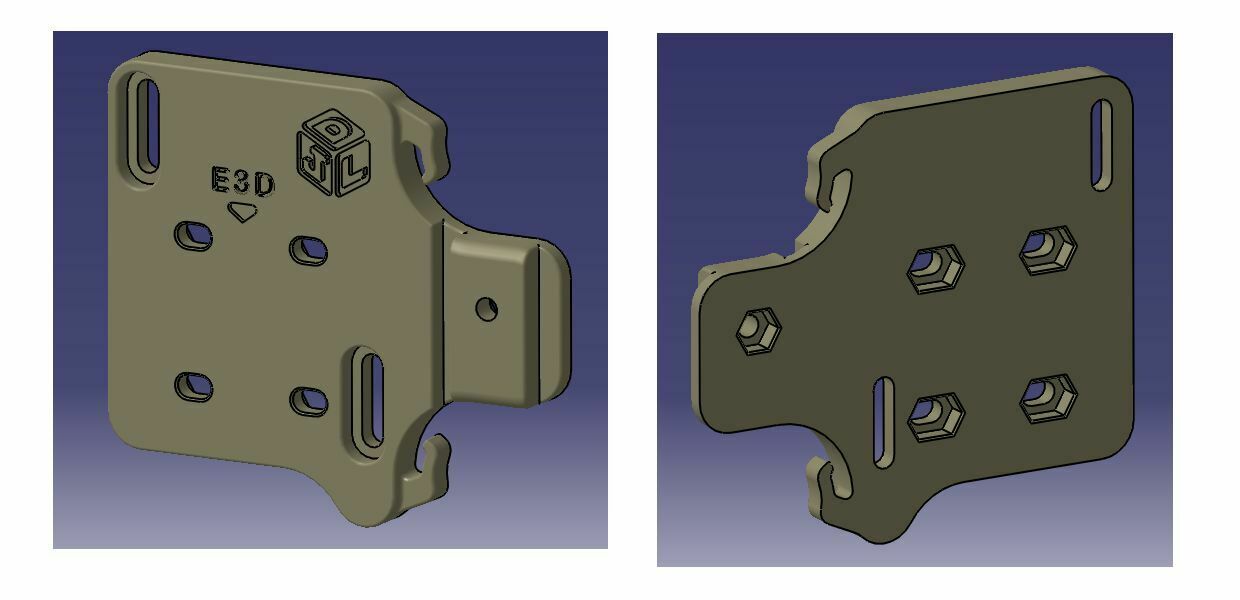

-ABL Adapter Bracket
-Wire Tie
-ABL mount (optional)
-TPU Vibration Dampener insert (optional)
- 1x https://www.thingiverse.com/thing:2994065 (mosquito only)
- 1x https://www.thingiverse.com/thing:4415649 (endstop extender)

What's needed:
(1) 5015 Fan
(4) M3 nuts for mounting adapter bracket
(8) M3x8 screws
(2) M3x14+ screws
(1) M3x25+ screw
(1) M3x30+ screw
(6) threaded inserts or M3 nuts

Assembly Instructions:
1.) Insert your brass inserts or M3 nuts into the parts with heat gun or soldering iron (for inserts only)
2.) Mount the sliding pivot plate to the ABL mounting bracket using 4 M3 nuts and M3x8 screws
5.) Attach bottom pivot bracket to the fan duct using 2 M3x8 bolts
& insert fan securing with M3x25
6.) Insert Wire Tie Clip into Sliding Bracket
7.) Attach your fan to the sliding bracket with M3x30 & M3x14 bolts
8.) Secure fan wire to wire tie clip and plug into X1 daughter board port
9.) (Optional) Attach your ABL probe to the ABL bracket and then to the ABL mounting bracket using a M3x14 bolt
10.) if using mosquito or dragon, you will need to print an endstop extender, link posted above. Follow Thingiverse instructions for attaching.

NOTE: you will need to set your new Z-offset in your firmware
NOTE2: you will need to update your ABL offsets in your firmware to match below

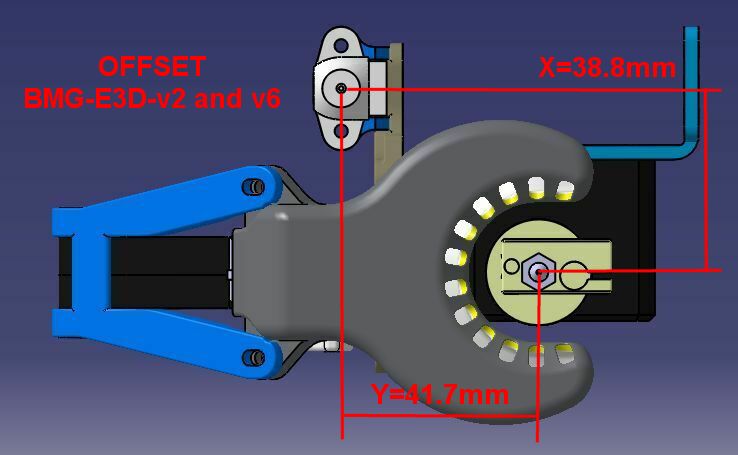

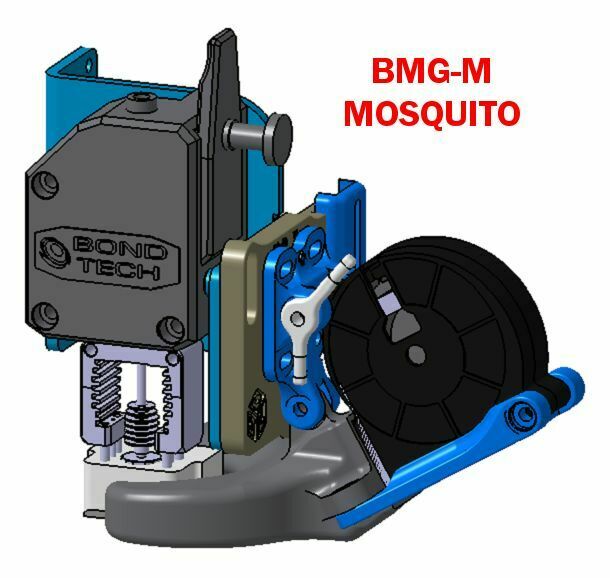

ABL offsets Mosquito & BMG-M: X=+38, Y=-41

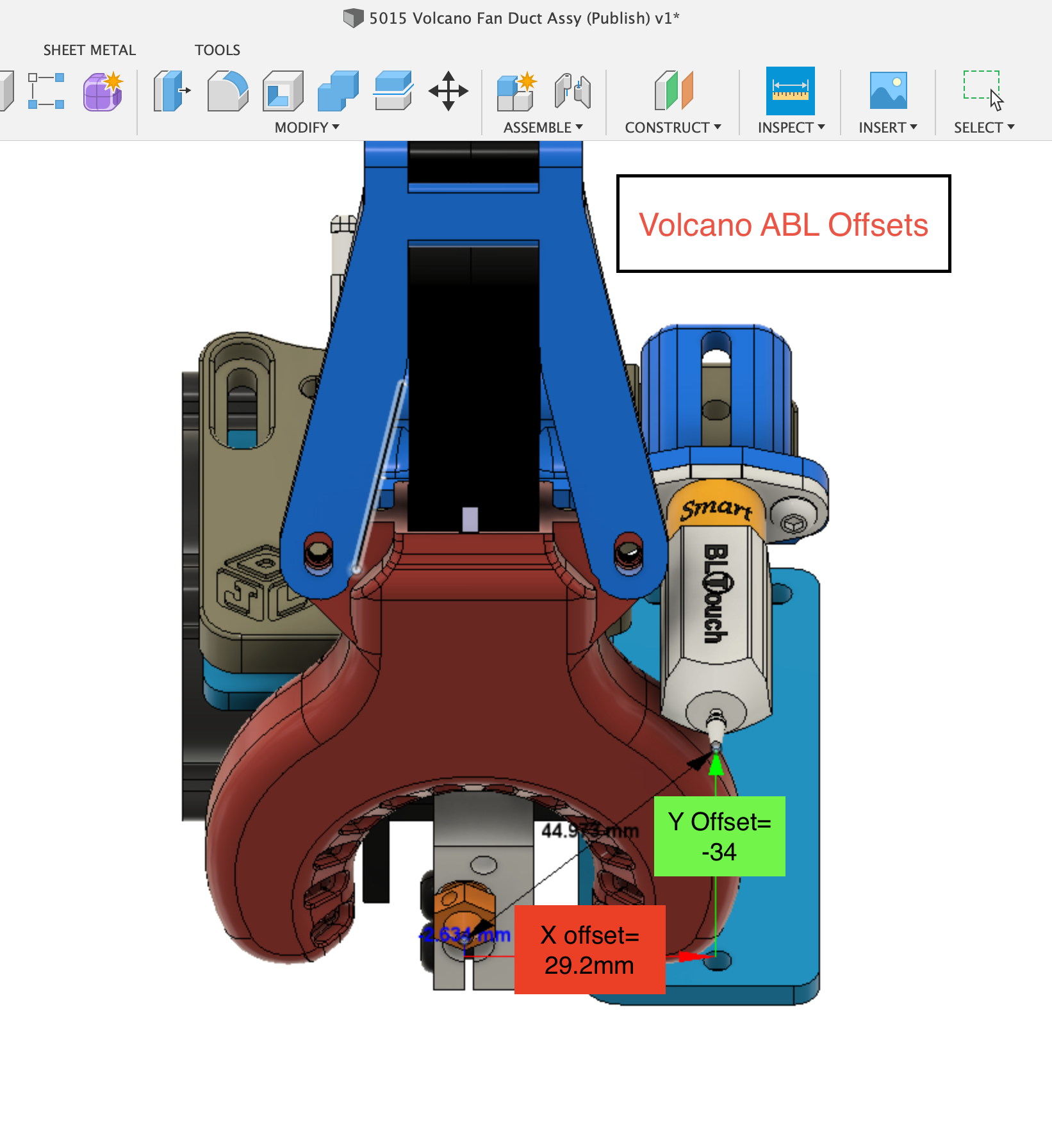

ABL offsets Volcano: X=+29, Y=-34

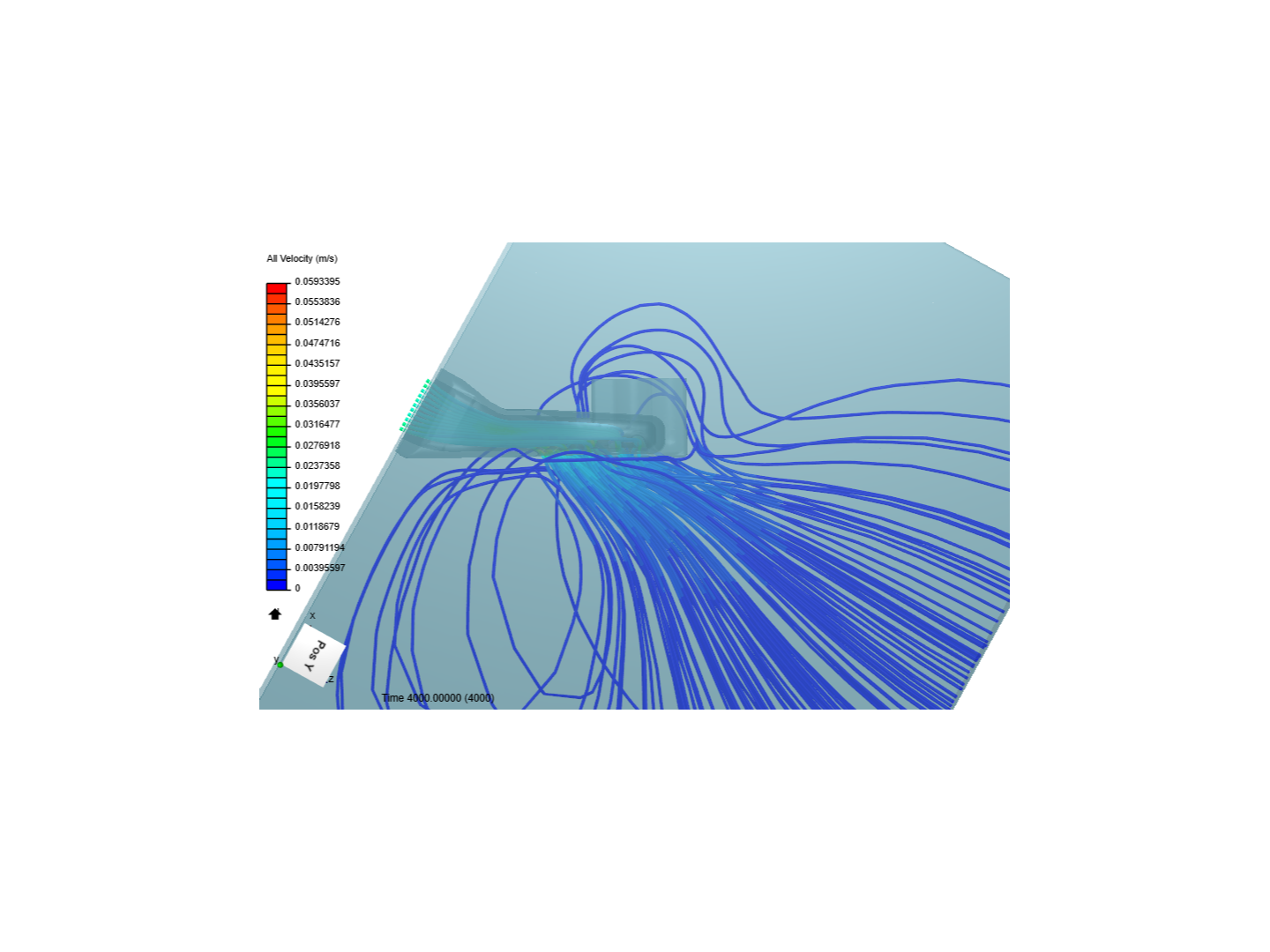

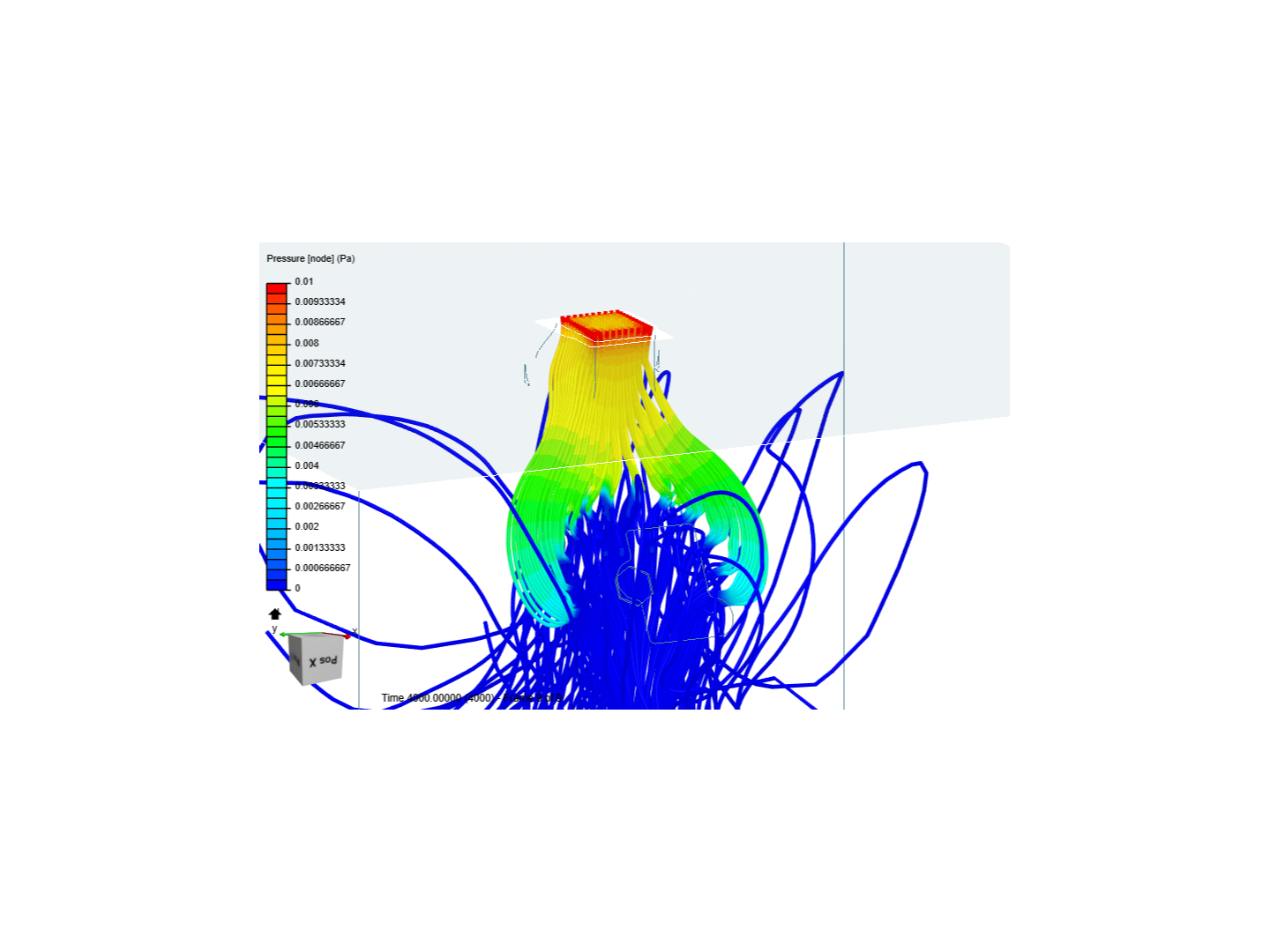

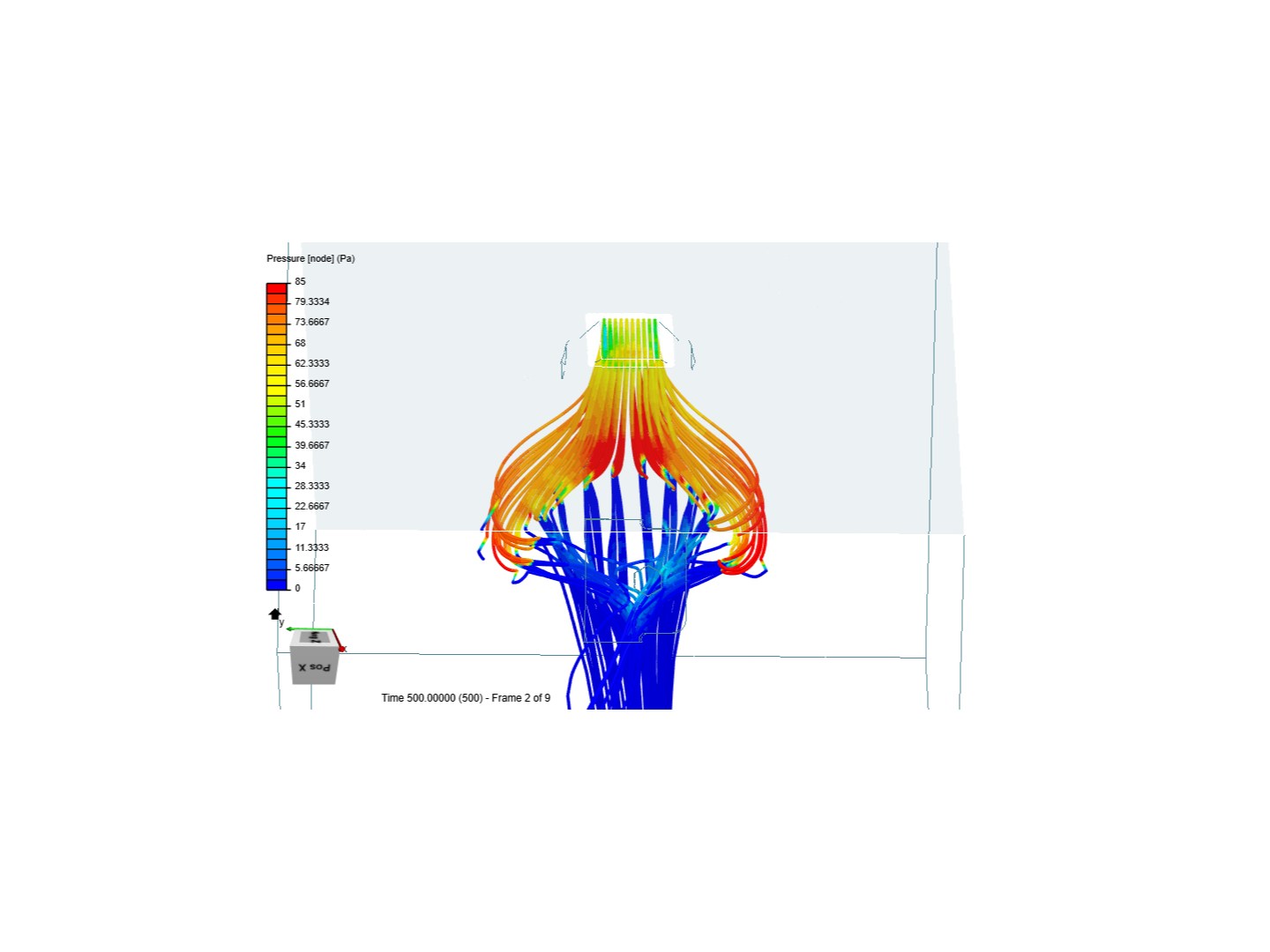

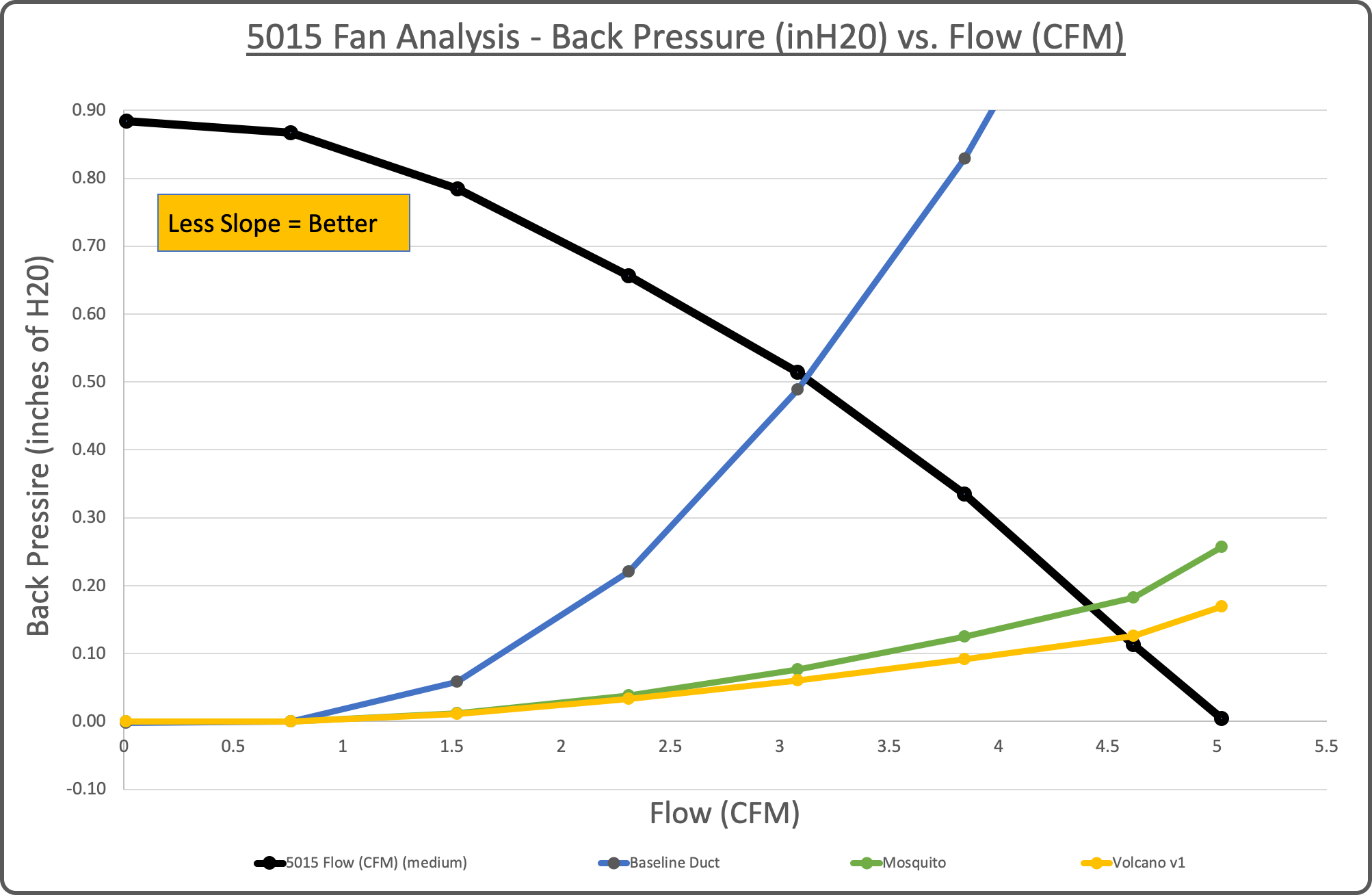

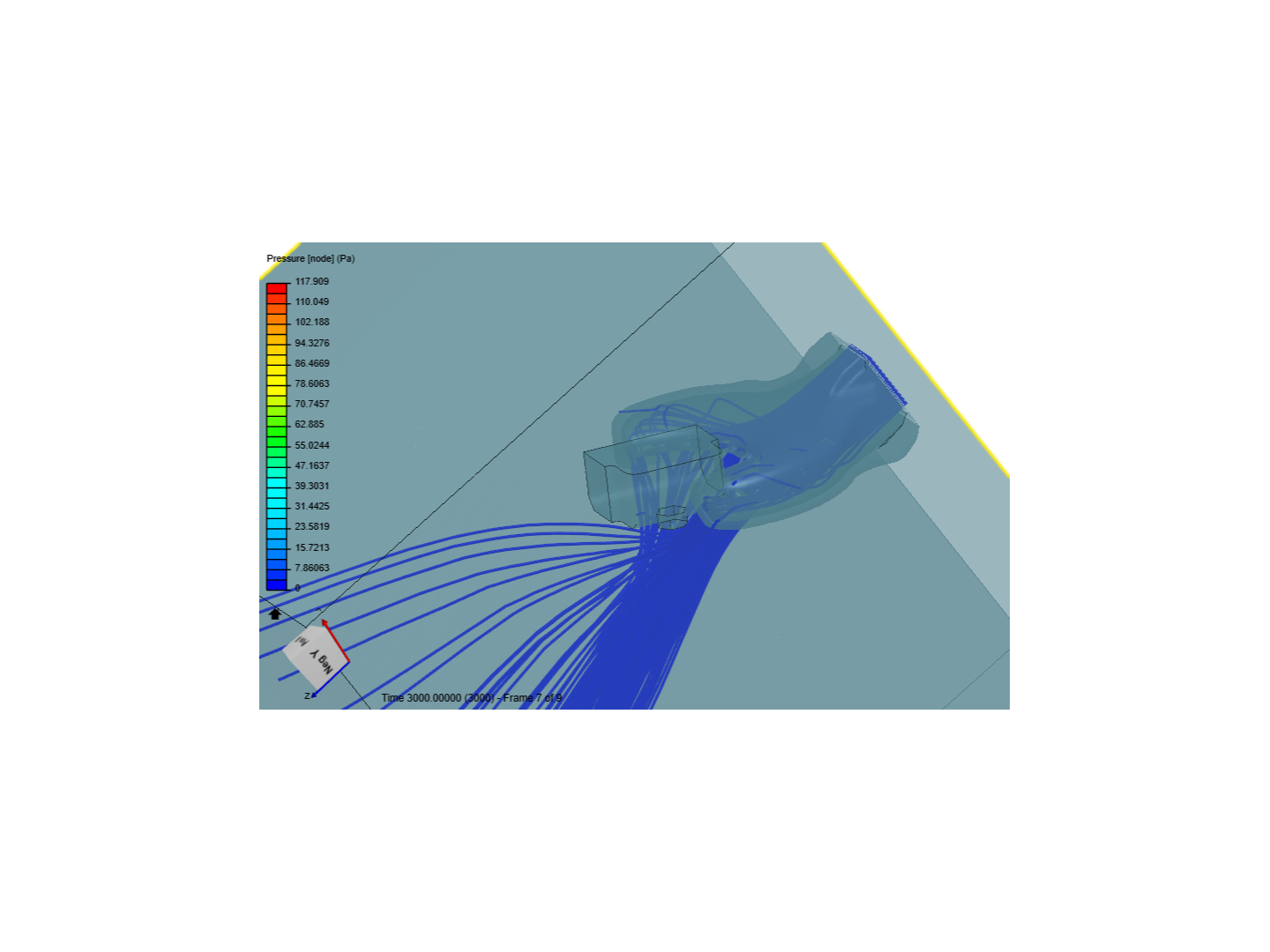

Also, if you are curious the baseline duct we used for the CFD comparison is this one:
https://www.thingiverse.com/thing:3939198

We also have other ducts you can view the full collection here!
https://cults3d.com/en/users/JLDesigns3D/creations

3D printing settings

1.) Preferred Materials: ABS, PETG, or PC recommended due to heat exposure to hotend
1a.) TPU Vibration Dampener insert should be printed in TPU, softer = better

2.) 0.4mm nozzle or 0.6mm nozzle

3.) NO support needed
