3D printed orthotic swimming fin

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 4.2k views
  • 22 likes
  • 88 downloads

3D model description

Two industrial designers from Barcelona have created a swimming fin to accelerate the rehabilitation of Pedro, a 16-year-old boy who suffered a stroke, which paralyzed half part of his body.

Pedro is a sixteen years old guy from Barcelona who loves sports. In August 2012 he suffered a stroke, a left ganglion basal hemorrhage, which paralysed half part of his body. After a long period of rehabilitation, Pedro recovered a great part of the mobility, except in his right hand, affected by spasticity. Spasticity is a disorder of the central nervous system that causes an increase of the muscular tone hindering totally or partially the movement of the affected muscles.

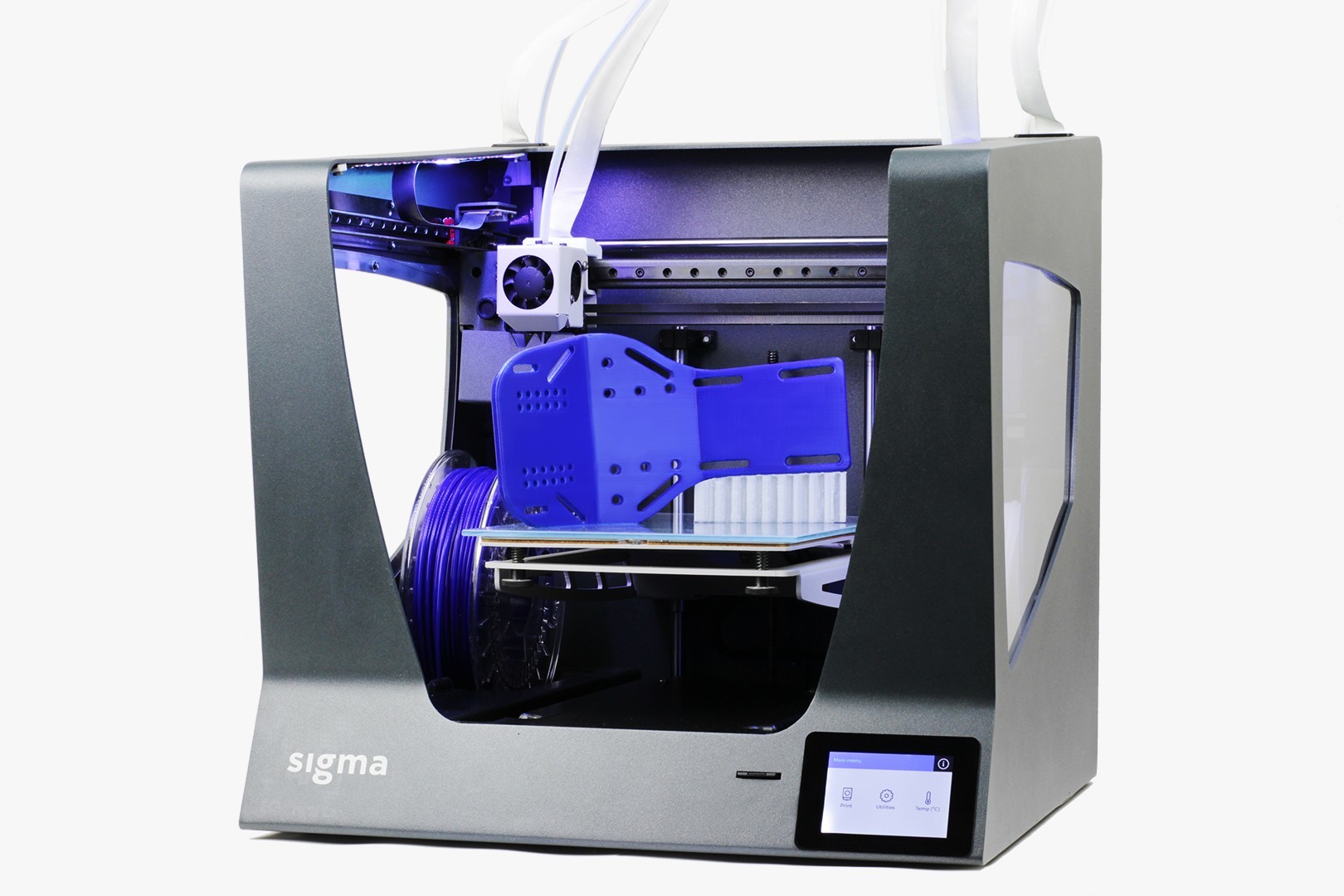

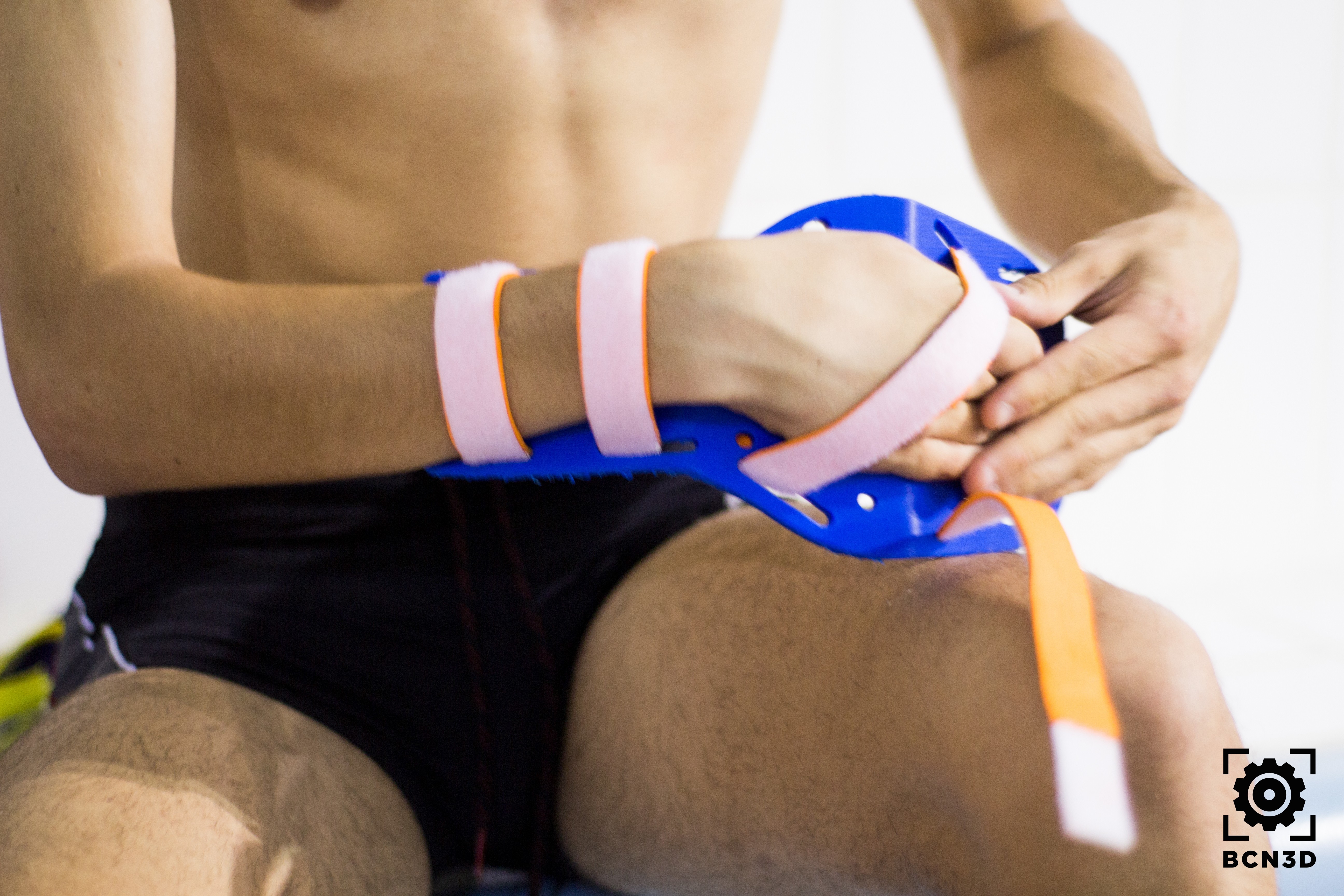

By using the BCN3D Sigma 3D printer, industrial designers created a customized orthotic swimming fin enterly designed for anthropometric measures of Pedro's hand.

BCN3D Sigma 3D printer: https://www.bcn3dtechnologies.com/3d-printer/bcn3d-sigma/

Thanks to the immediacy that 3D printing offers, Pedro had his personalized 3D printed swimming fin in a very short period, generating, among others, the following advantages:

Improvement in body position, facilitating stroke and movement.
An increase of the musculature in the upper part of the body.
Due to the improvement in the swimming position, Pedro spent more time in the pool without getting tired. That improved muscle tone throughout the body.


Read the full article in our website: https://www.bcn3dtechnologies.com/3d-printed-fin-stroke-rehabilitation/


Follow us through our social media channels in order to get more information about BCN3D:

BCN3D Facebook: https://www.facebook.com/bcn3dtechnologies/
BCN3D Twitter: https://twitter.com/bcn3dtech
BCN3D Instagram: http://instagram.com/bcn3dtech
BCN3D Google+: https://plus.google.com/u/2/106660239696256442101

About BCN3D Technologies - https://www.bcn3dtechnologies.com


3D printing settings

Materials: Nylon with PVA supports.

Printed with the BCN3D Sigma and BCN3D Filaments. Sliced with BCN3D Cura 2.0.1

3D printer file information

  • 3D design format: STL Folder details Close
    • Swimming Fin_BCN3D Technologies.stl

    Learn more about the formats

  • Publication date: 2018/06/14 at 13:22

License

CC BY NC
