3D print infill percentage disks (MakerWare profiles)

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.3k views
  • 10 likes
  • 117 downloads

3D model description

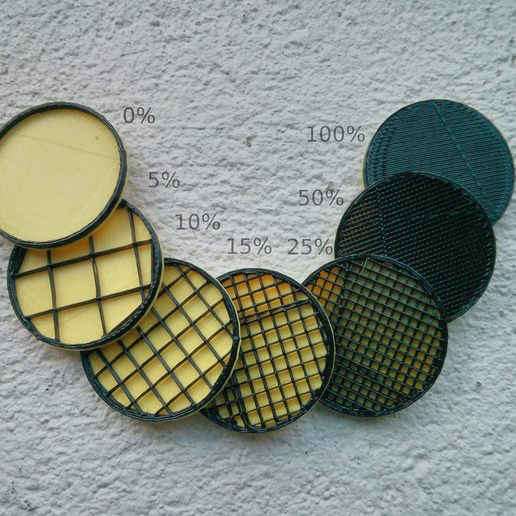

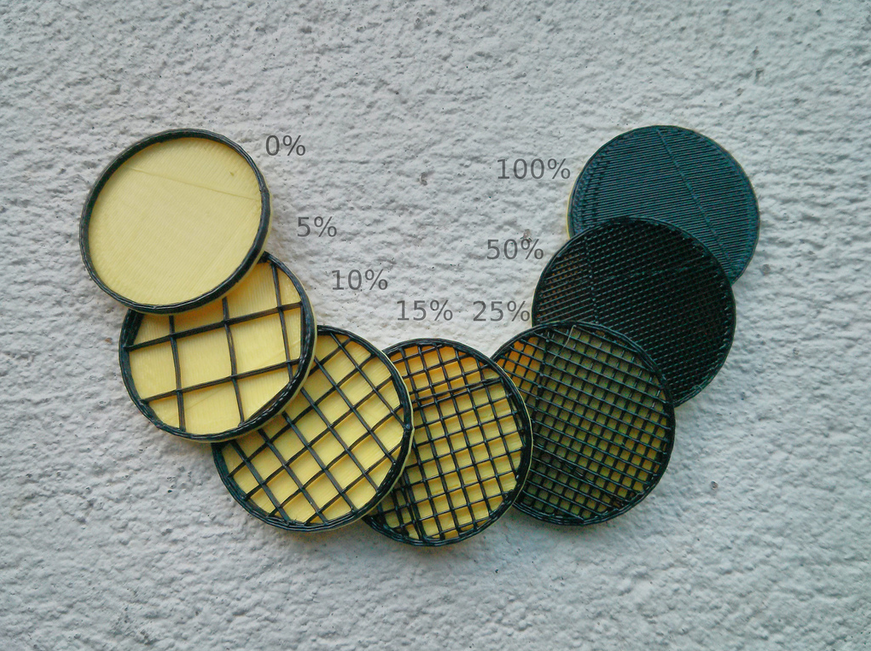

A set of 3D print profiles for MakerBot Slicer in MakerWare. The purpose is to easily visualise how dense the following different infill percentages
- No roof layer - 0% infill
- No roof layer - 5% infill
- No roof layer - 10% infill
- No roof layer - 15% infill
- No roof layer - 25% infill
- No roof layer - 50% infill
- No roof layer - 100% infill
The 3D model is simply a scaled-up (3 mm) version of the built-in large helper disk in MakerWare. (http://www.makerbot.com/makerware)
We attached the x3g print files which you can copy to an SD card and 3D print with PLA plastic on a MakerBot Replicator 2 3D printer.

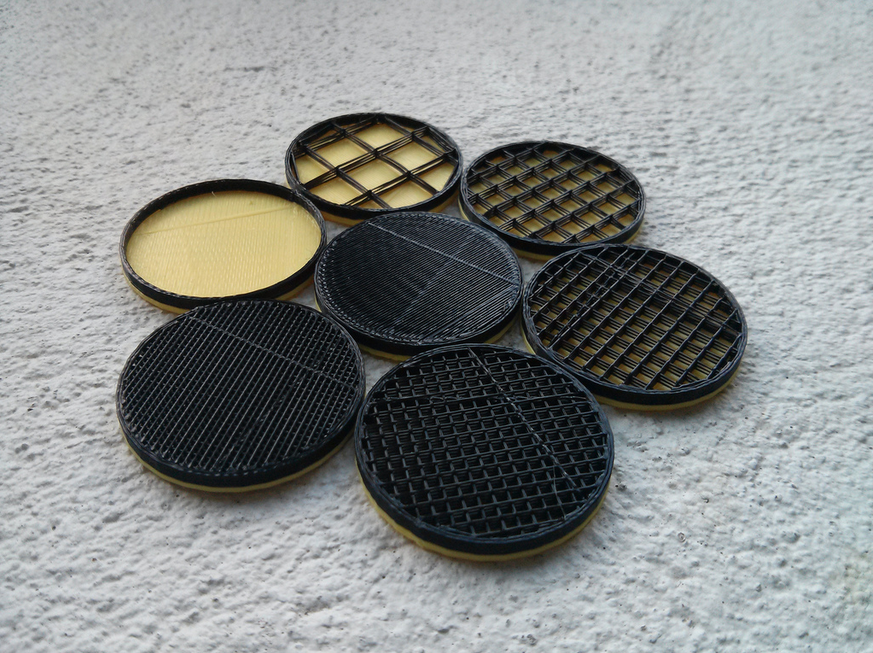

The ready-made 3D print profiles are adapted in MakerBot Slicer so that no roof is made. This leaves the top open and exposes the infill.
To achieve a clear visualisation the model was made of two contrasting plastic colours.


3D printing settings

3D printer file information

  • 3D design format: STL Folder details Close
    • Helper_Disk_Large_3_mm_height.stl

    Learn more about the formats

  • Publication date: 2014/10/29 at 15:18

License

CC BY SA

Tags

Creator

Creative Tools supplies software, hardware and training in all things 3D - such as 3D modelling, animation, rendering, workstations, 3D scanners and 3D printers.
Web: http://creative-tools.com
Twitter: https://twitter.com/CreativeTools
