3cm / 3.5cm / 4cm / 5cm Simple Bias Tape Maker, zakladac pasku

?
Creation's quality: 4.3/5 (5 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 9.7k views
  • 30 likes
  • 716 downloads

3D model description

#3DvsCOVID19

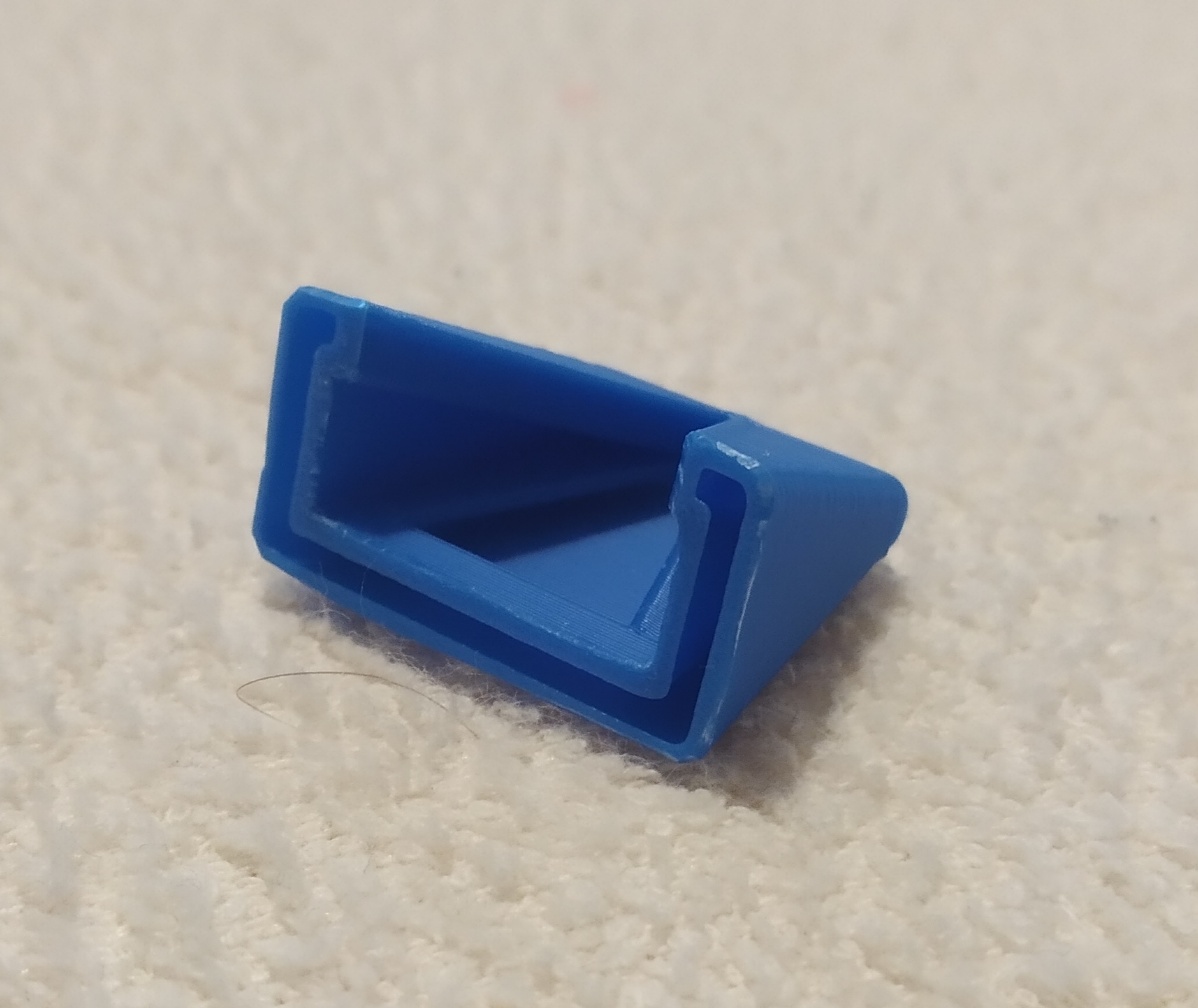

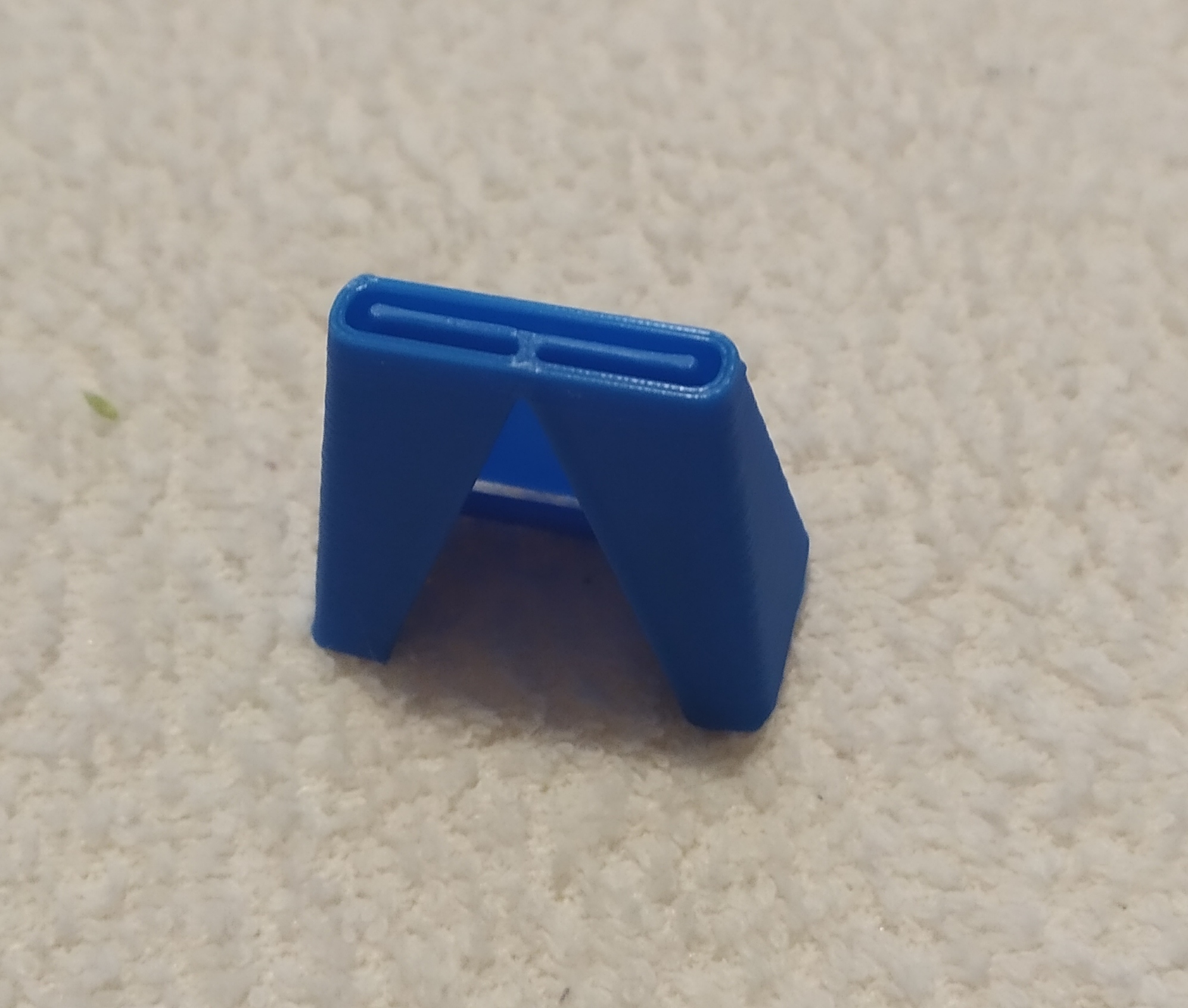

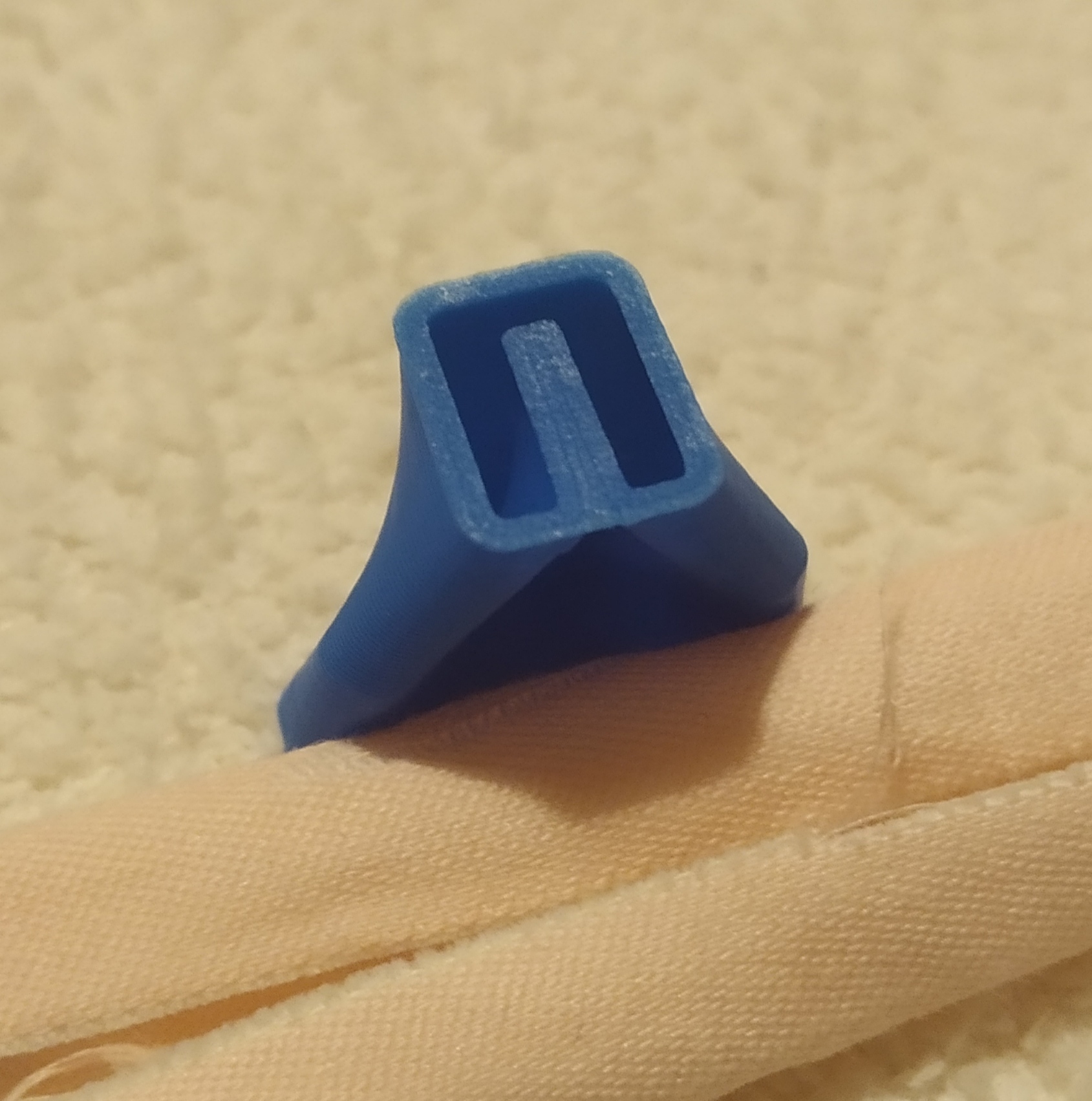

This is a minimalistic version of the tool for folding a cloth strip into a rope.
It is designed to be rapidly printed.
Disable Gap Fill in your slicer (helps with print speed):
In Slic3r or PE: Speed -> Gap Fill = 0 mm/s

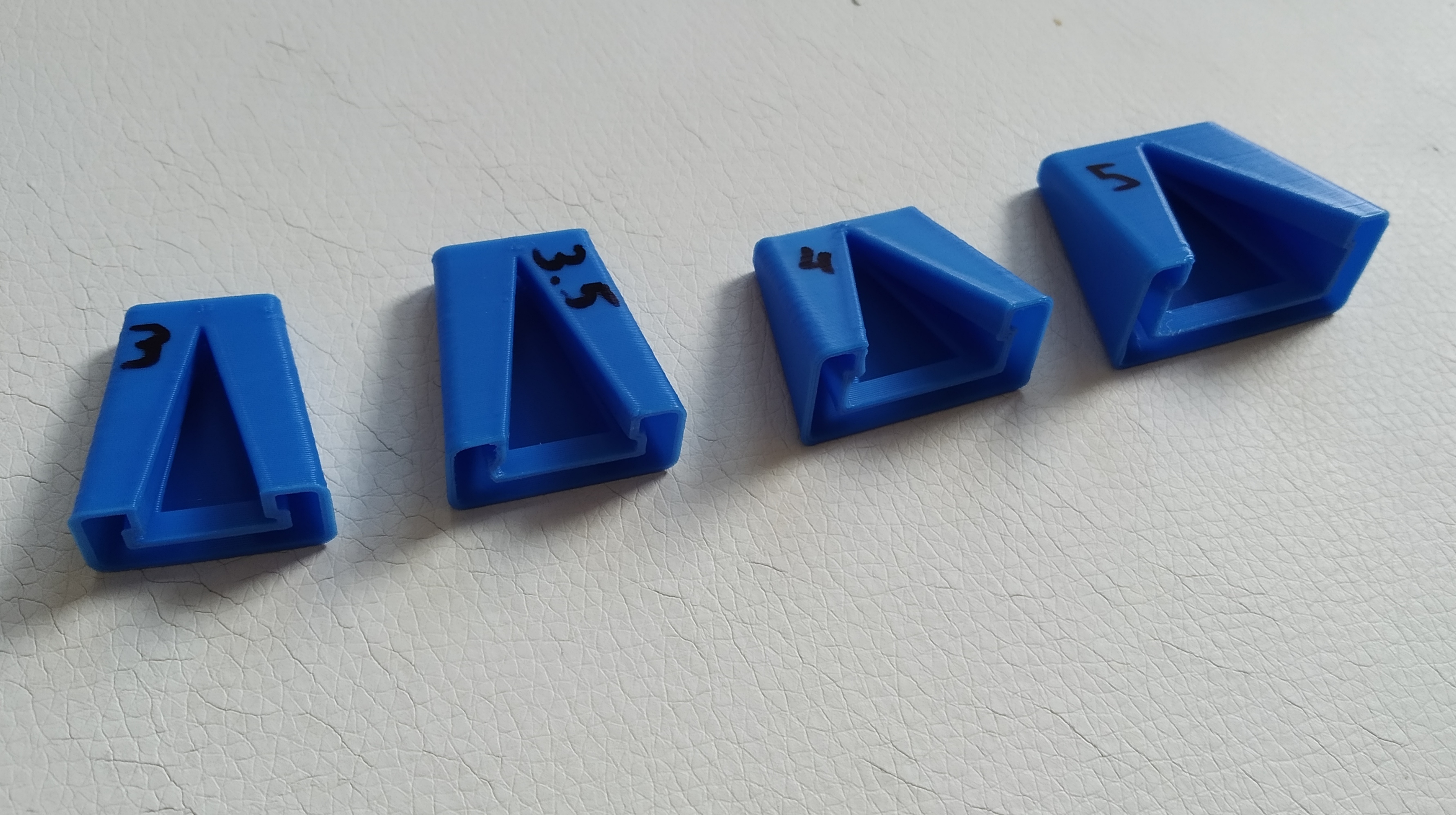

Available sizes:
- 3cm strip as input (dimensions: TBD)
- 3.5cm strip as input (dimensions: TBD)
- 4cm strip as input (dimensions: 28x15x24 mm)
- 5cm strip as input (dimensions: 33x17x27 mm)

All widths now with wings. Hooray!

Additional tools:

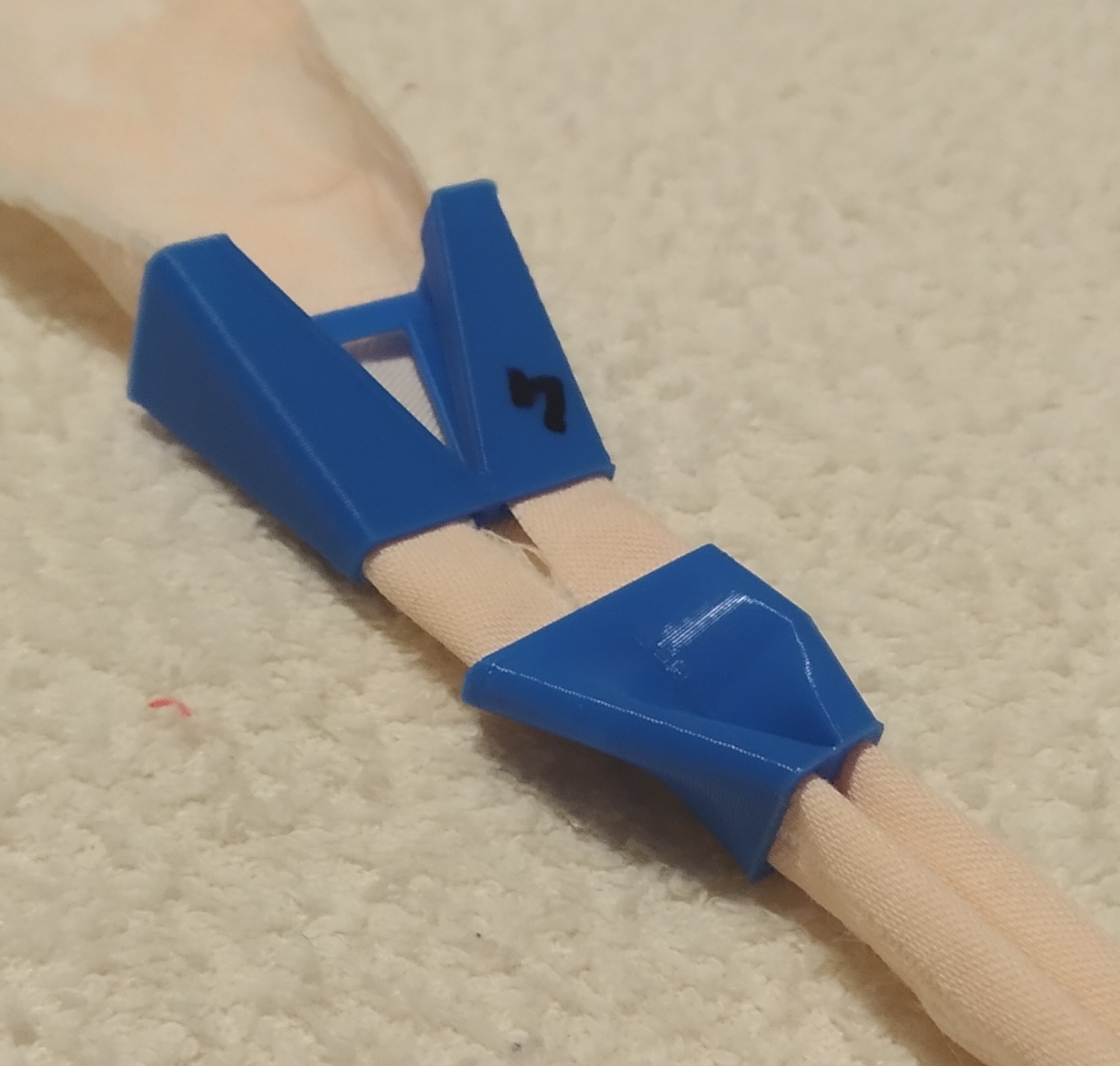

- 4cm Tape fold tool (helps with direct folding to U shape)

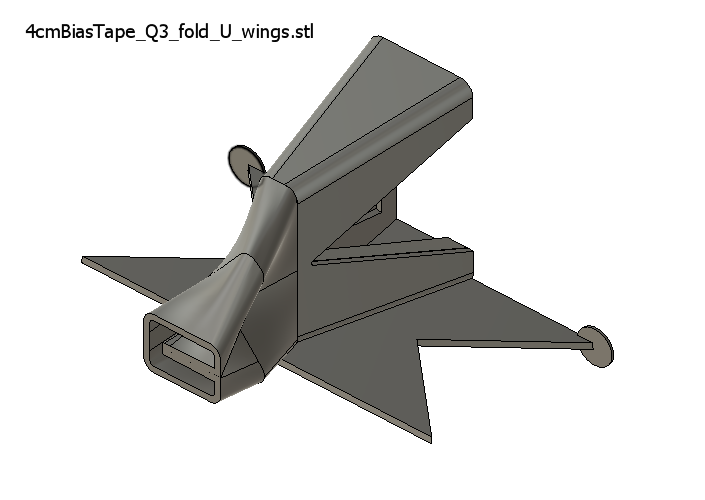

- Combined 4cm strip as input and Tape fold tool (now with wings also)

Added some small windows for better start.

Modifications:
Version Q2 has wider input slit.
Version Q3 has wider intermediate slit (for version U fold)

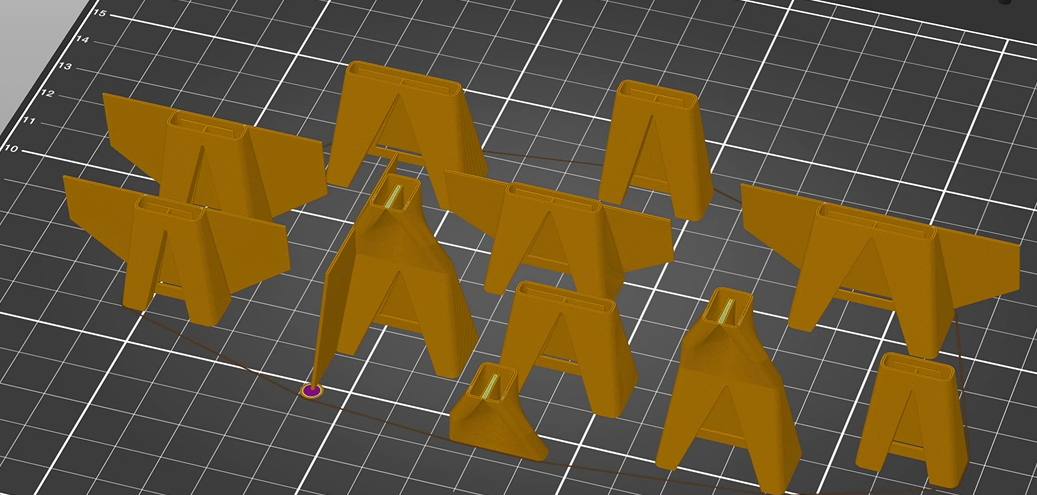

Overal view picture submited by Jindrich Kucera (thank you).

This model is heavily inspired by :
https://www.thingiverse.com/thing:3880491
(Oscarko)
Thank you for the idea.

3D printing settings

No infill is intended,
a brim shall not be needed

  • 3D file format: STL

Tags

Creator

License

CC BY
