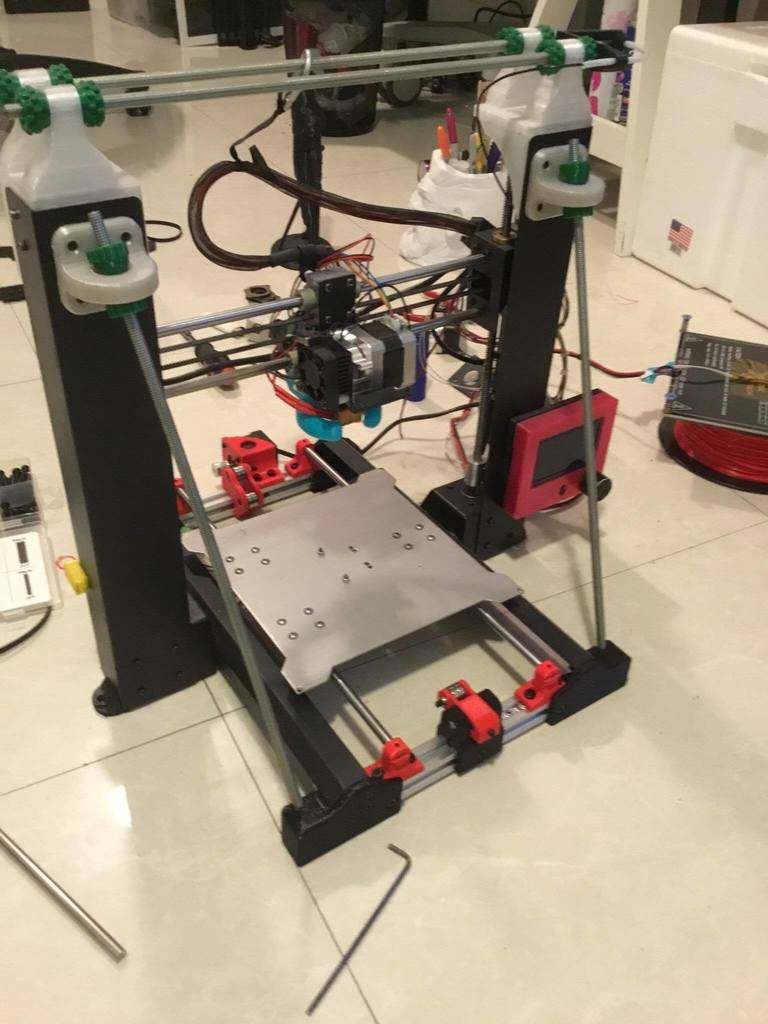

2020 Y upgrade for Wanhao Duplicator i3, Cocoon Create, Maker Select, and Malyan M150 i3 3D printers.

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 846 views
  • 1 like
  • 8 downloads

3D model description

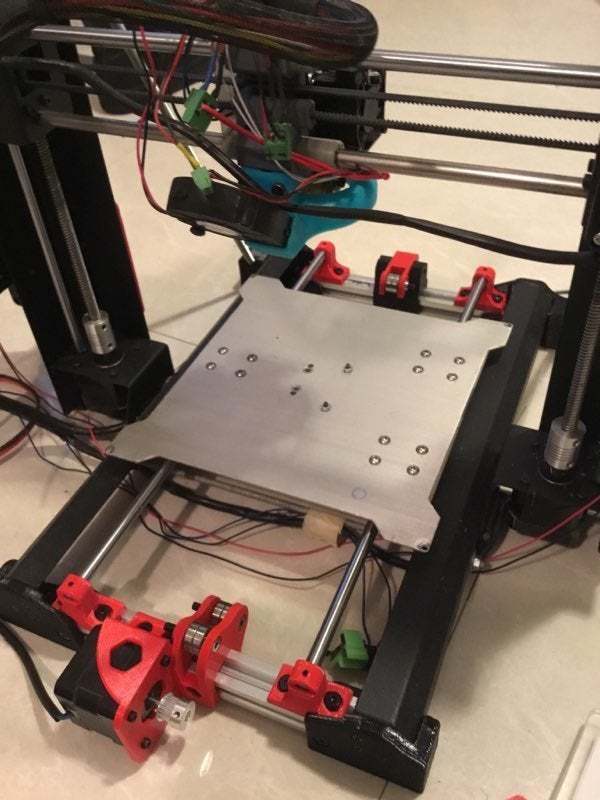

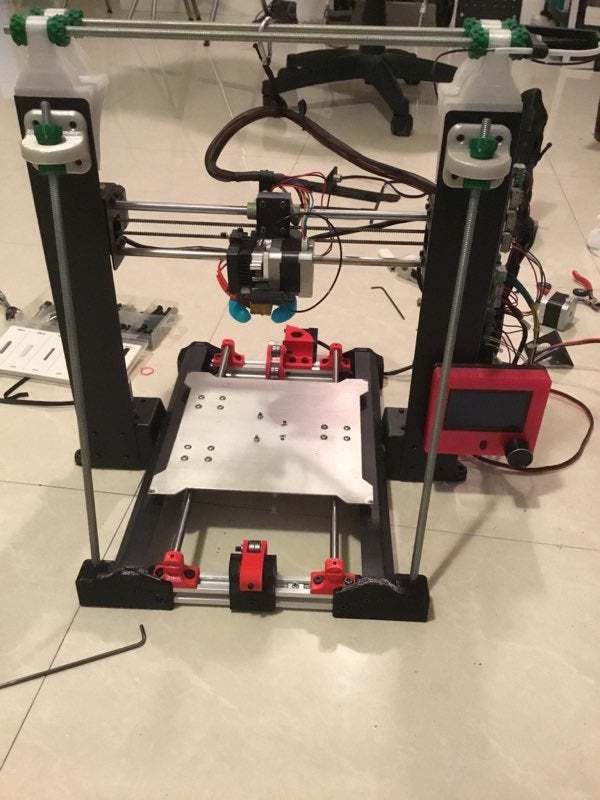

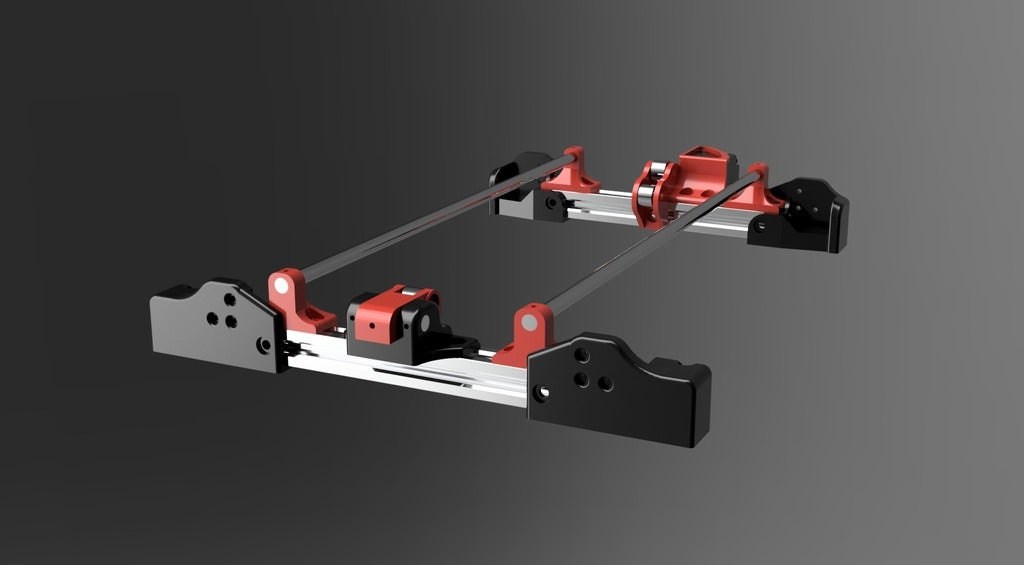

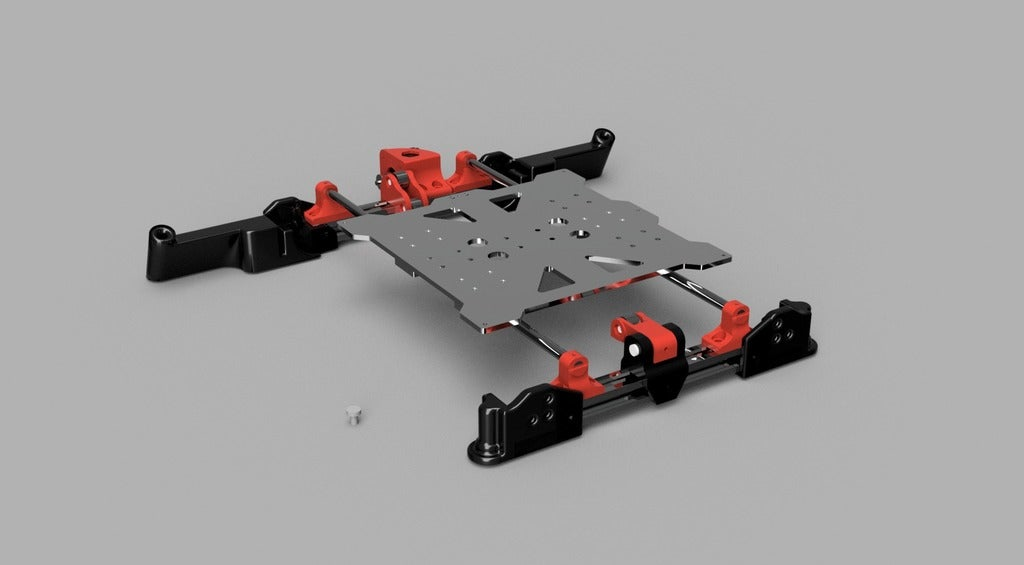

This is a upgrade mod to eliminate the front and back y-frame plates along with the cheap idler bracket and wimpy y-motor bracket.

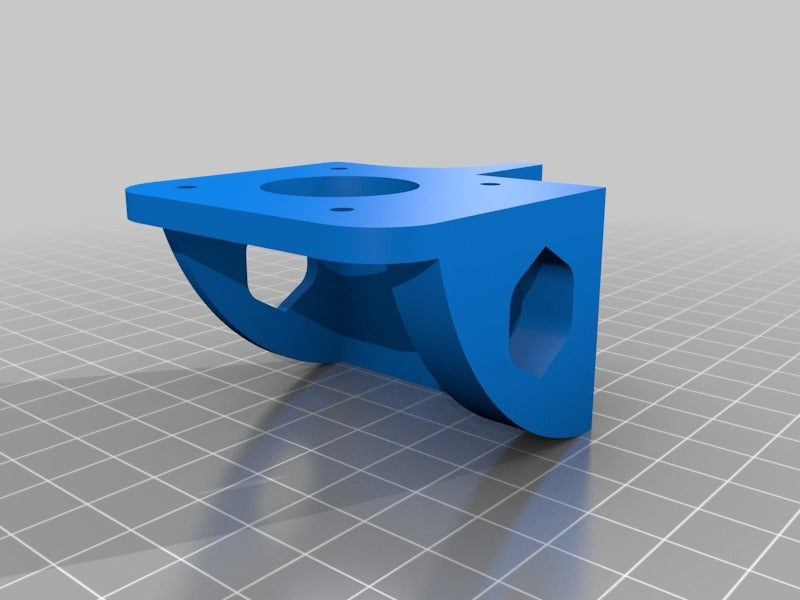

This mod gives you stronger y motor bracket and a better idler tension .
Also changes the belt path to be perfectly aligned and closer to the bed.
And the y motor now sits outside of the frame area making it easier to align your belt.

there are 2 mod versions to choose from.

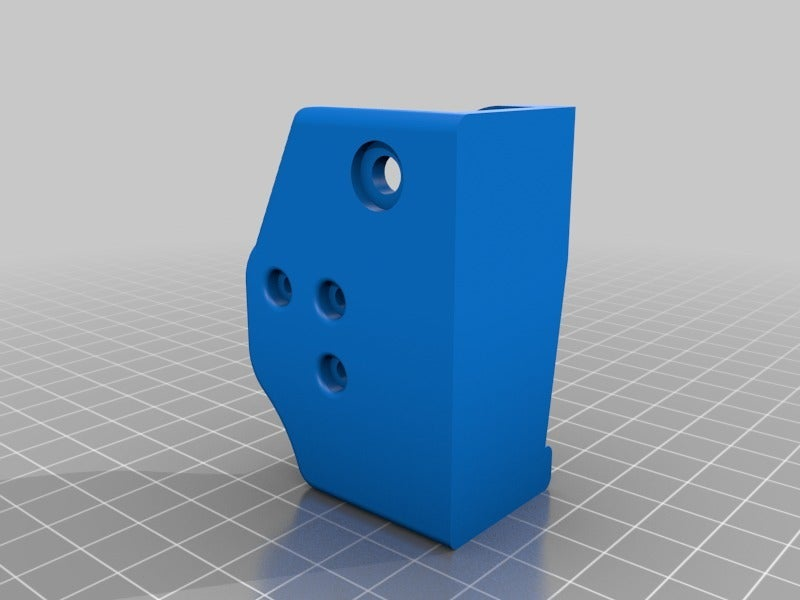

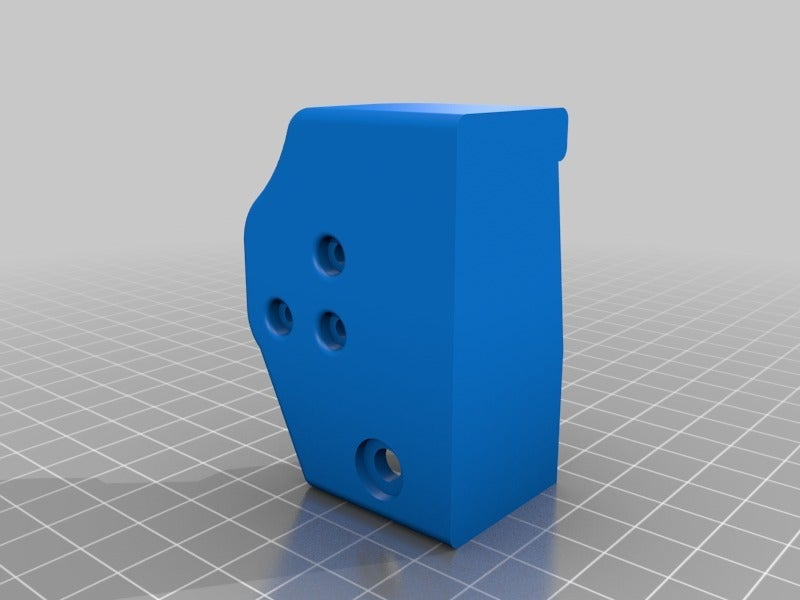

1 - azza z brace version with both types of feet.
2 - SWD2 rear mounted z brace.
I only uploaded the parts i modded and created.
The rest of the parts for the z braces can be found here:

azza z brace: https://www.thingiverse.com/thing:921948

SWD2 rear z brace: https://www.thingiverse.com/thing:2391089

B.O.M--
2020 Y frame upgrade Hardware needed:
2x-- 180mm 2020 extrusions
22x-- M5x6mm or M5x8mm
22x-- M5 tnut
5x-- M5x20mm ( 2 for belt guide-- 2 for bed belt bracket-- 1 for idle tensioner )
5x-- M5 nut ( 2 for belt guide-- 2 for bed belt bracket-- 1 for idle tensioner )
2x-- M4x10mm (for bed belt bracket ) -- (M4x8mm should work for stock y plate )
2x-- M4 nut (for bed belt bracket )

1x-- 8mmx40mm rod (or cut 40mm off a M8 bolt )
1x-- M3x16mm (for idle tensioner )
1x-- M3 nut (for idle tensioner )
2x-- M3 set screws (to lock down the m8x40mm rod for idle tensioner )
4x-- set screws to lock down y rods ( use original ones from your 3D printer )
4x-- M3x6mm ( for Y stepper motor )
6x-- Ball Bearing 625 2RS 5x16x5 ( 4 for belt guide-- 2 for idle tensioner )
6x-- 1mm Precision Shim ( 4 for belt guide-- 2 for idle tensioner )
1x-- new GT2 belt (For new stepper motor position and belt routing)

3D printer file information

  • 3D design format: STL Folder details Close

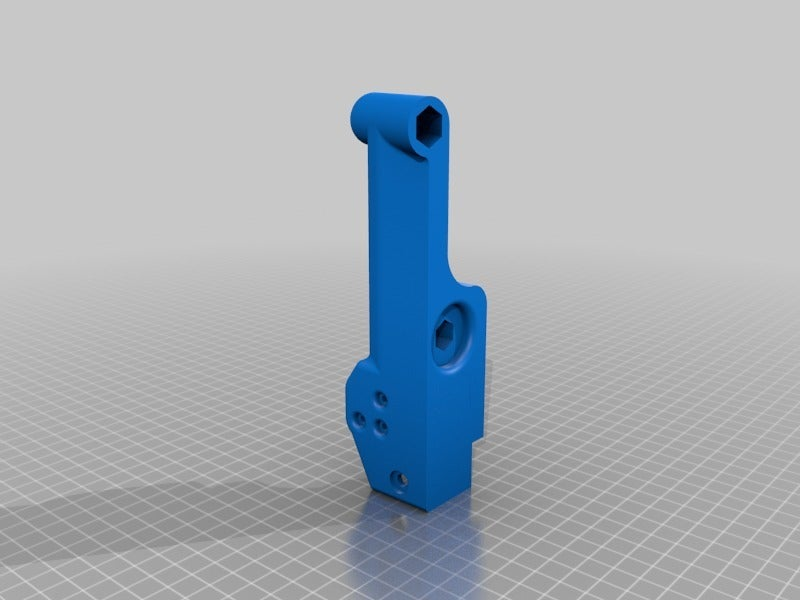

    • L_back_SWD2.stl
    • L_front_SWD2.stl

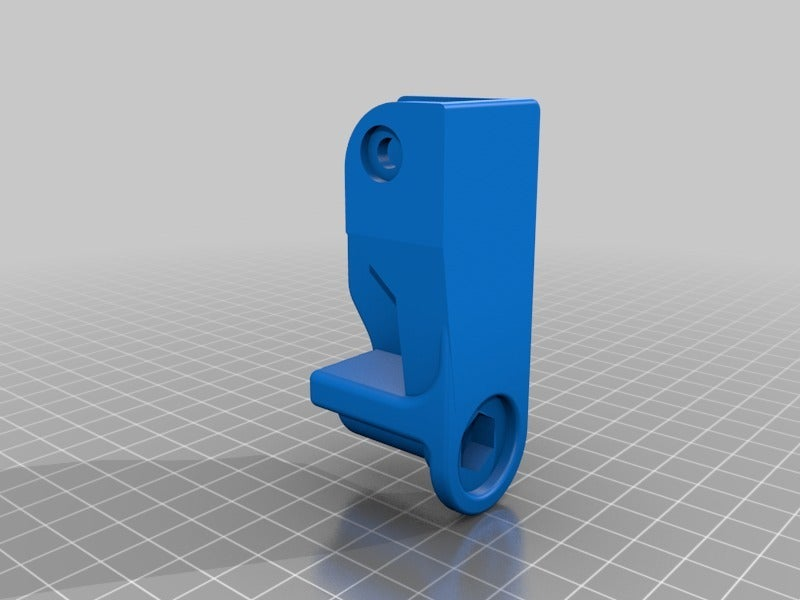

    • Lf_footForBalls_azza.stl

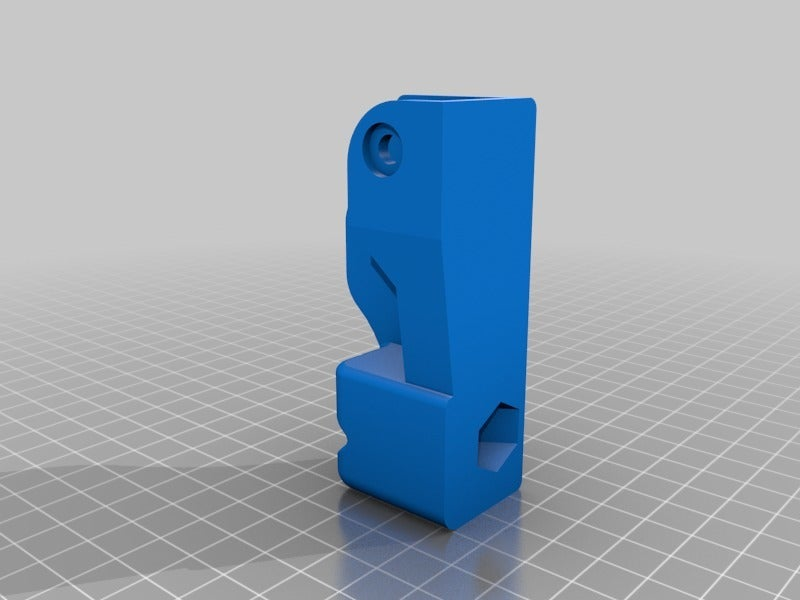

    • Lf_foot_azza.stl

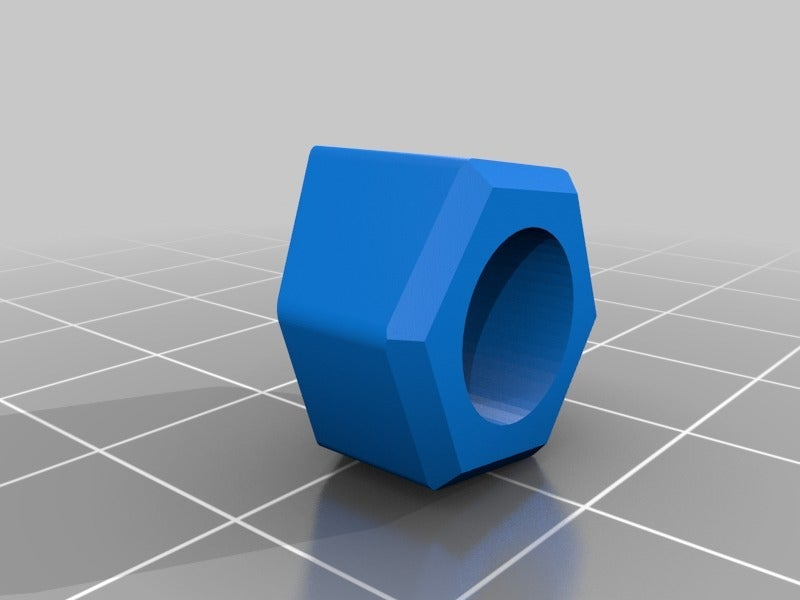

    • Lfoot_insert_azza.stl
    • Lr_foot_azza.stl
    • R_back_SWD2.stl
    • R_front_SWD2.stl
    • Rf_footForBalls_azza.stl
    • Rf_foot_azza.stl

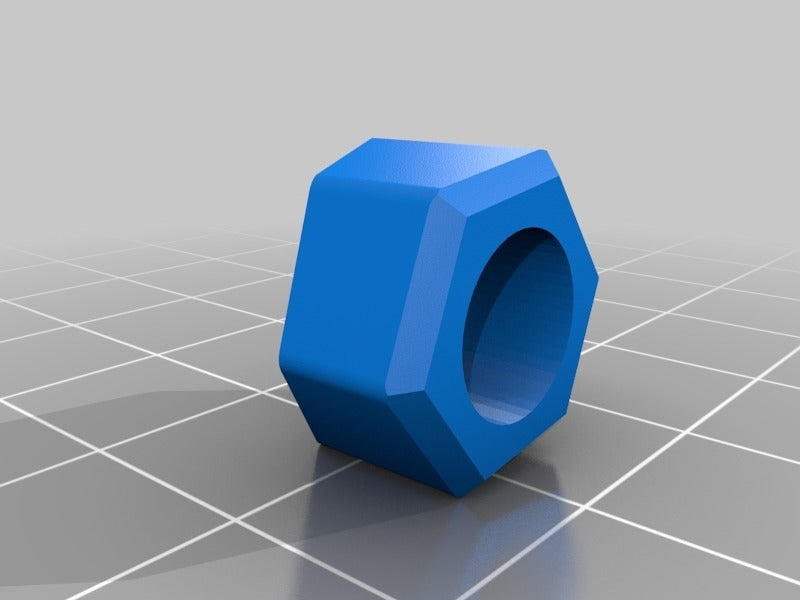

    • Rfoot_insert_azza.stl

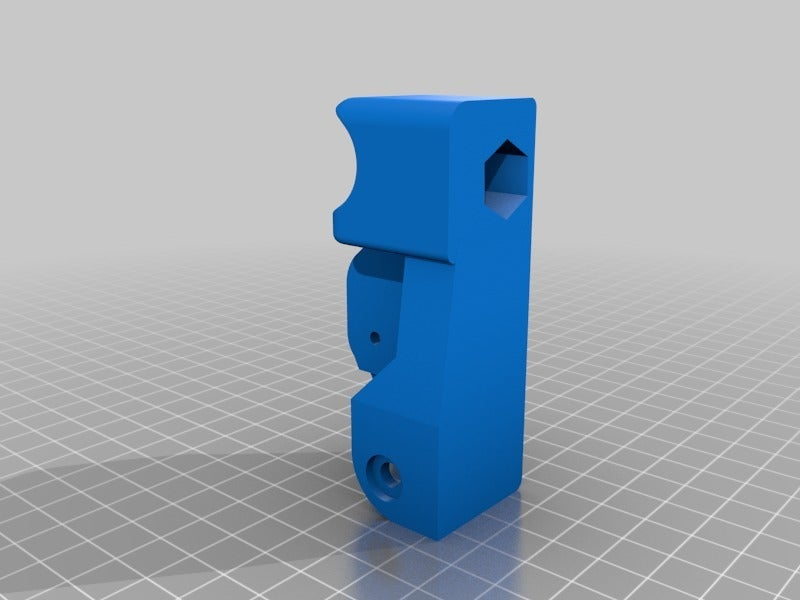

    • Rr_foot_azza.stl
    • belt_guide.stl

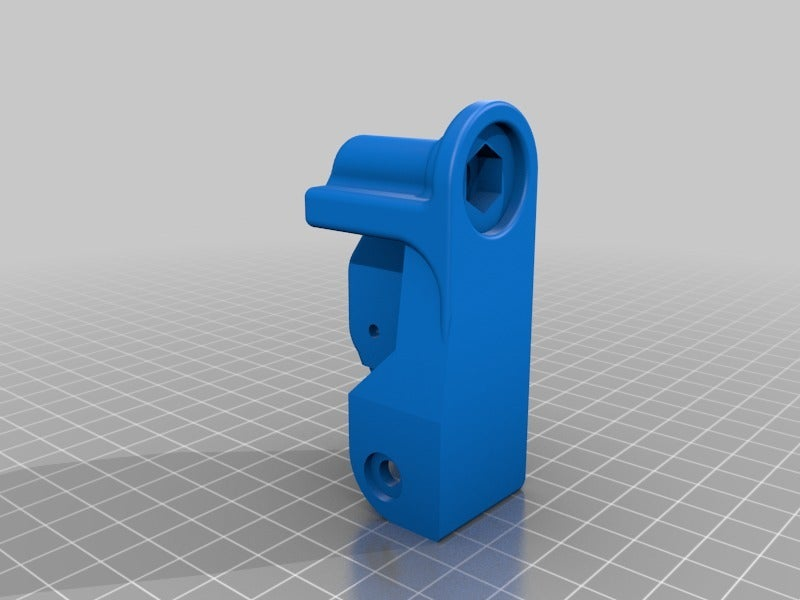

    • idle_tension_pully.stl

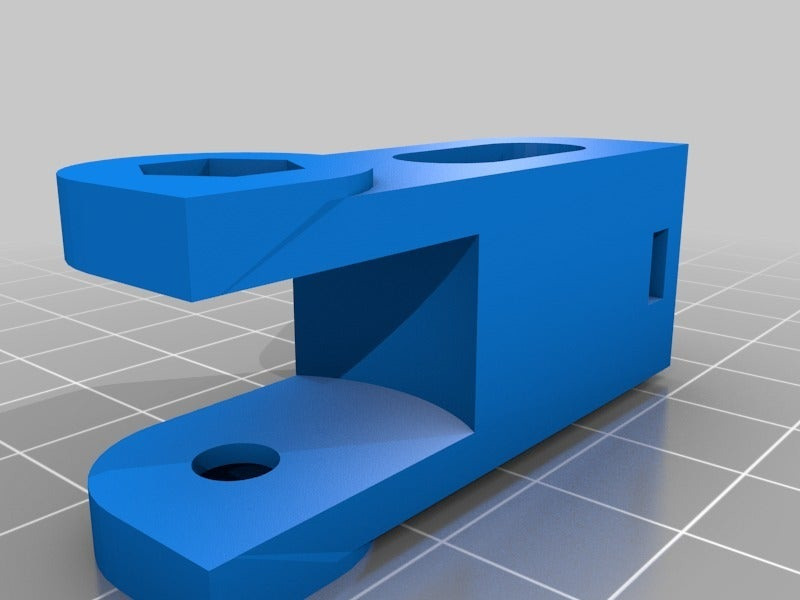

    • idler_base.stl

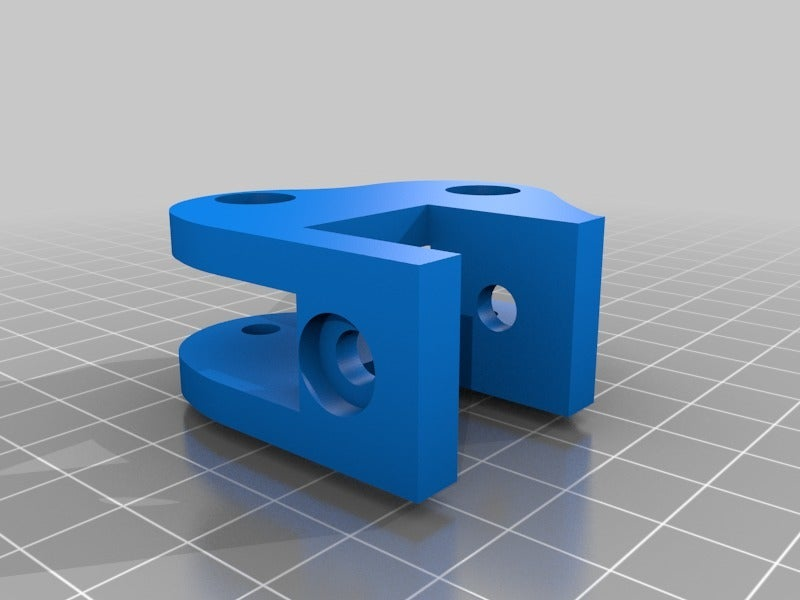

    • idler_base_v2.stl

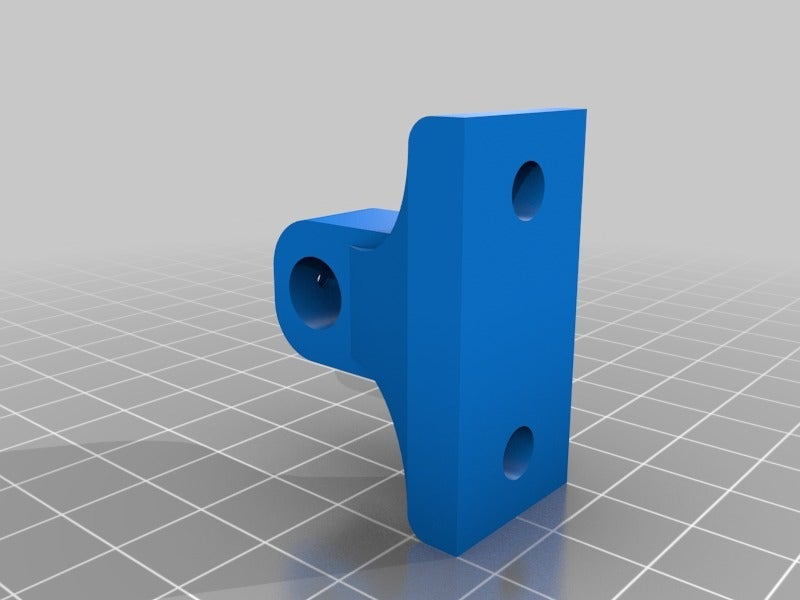

    • print_bed_y_belt_holder.stl
    • y_motor_bracket.stl
    • y_rod_ends.stl
