17 Ah 18650 Battery Pack ( 3S5P )
:strip_icc():blur(15):format(webp)/https://files.cults3d.com/uploaders/13399143/illustration-file/15a01c32-f500-4fd6-b04d-e5003a484105/Capture%20d%E2%80%99e%CC%81cran%202017-12-19%20a%CC%80%2018.23.34.png)
/https://files.cults3d.com/uploaders/13399143/illustration-file/15a01c32-f500-4fd6-b04d-e5003a484105/Capture%20d%E2%80%99e%CC%81cran%202017-12-19%20a%CC%80%2018.23.34.png)
/https://files.cults3d.com/uploaders/13399143/illustration-file/0a0fe7df-f6e7-4460-a546-8ac100ba3e2b/Capture%20d%E2%80%99e%CC%81cran%202017-12-19%20a%CC%80%2018.23.28.png)
/https://files.cults3d.com/uploaders/13399143/illustration-file/6af78245-7ed6-4600-8ce5-f19bc398ecd2/Capture%20d%E2%80%99e%CC%81cran%202017-12-19%20a%CC%80%2018.23.40.png)
/https://files.cults3d.com/uploaders/13399143/illustration-file/a3ce4b3d-66ca-4beb-8db3-06770ff2df9a/Capture%20d%E2%80%99e%CC%81cran%202017-12-19%20a%CC%80%2018.23.44.png)
/https://files.cults3d.com/uploaders/13399143/illustration-file/a99b2537-ca14-465b-b6df-39dee9294555/Capture%20d%E2%80%99e%CC%81cran%202017-12-19%20a%CC%80%2018.23.48.png)
/https://files.cults3d.com/uploaders/13399143/illustration-file/fed689ad-f556-4dbe-a72e-69a58b8831e7/Capture%20d%E2%80%99e%CC%81cran%202017-12-19%20a%CC%80%2018.23.53.png)
/https://files.cults3d.com/uploaders/13399143/illustration-file/93a747ed-0b4b-4fdd-92c4-3f7638823b6c/Capture%20d%E2%80%99e%CC%81cran%202017-12-19%20a%CC%80%2018.23.57.png)
?
Creation's quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 3.9k views
- 7 likes
- 108 downloads
3D model description

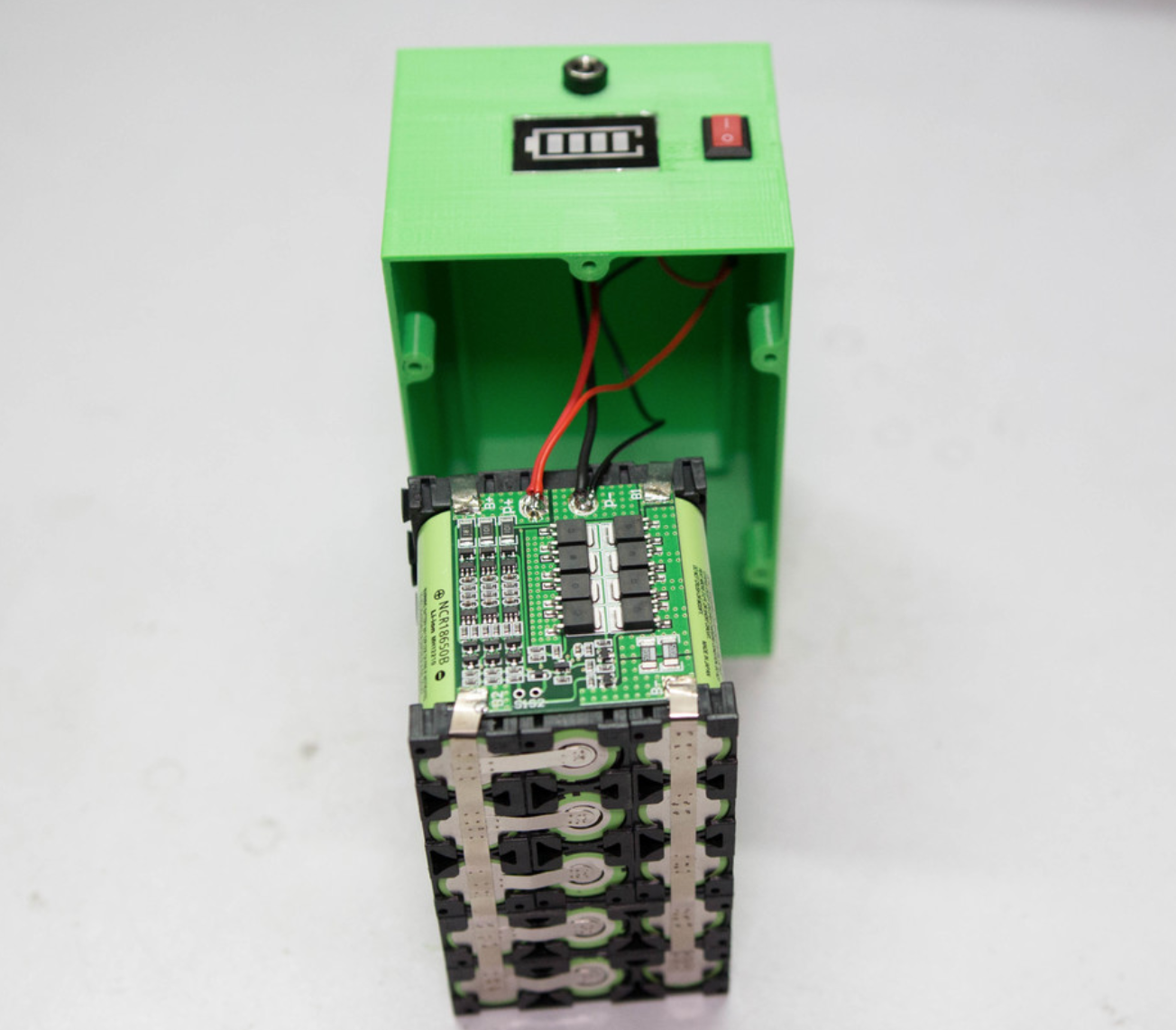

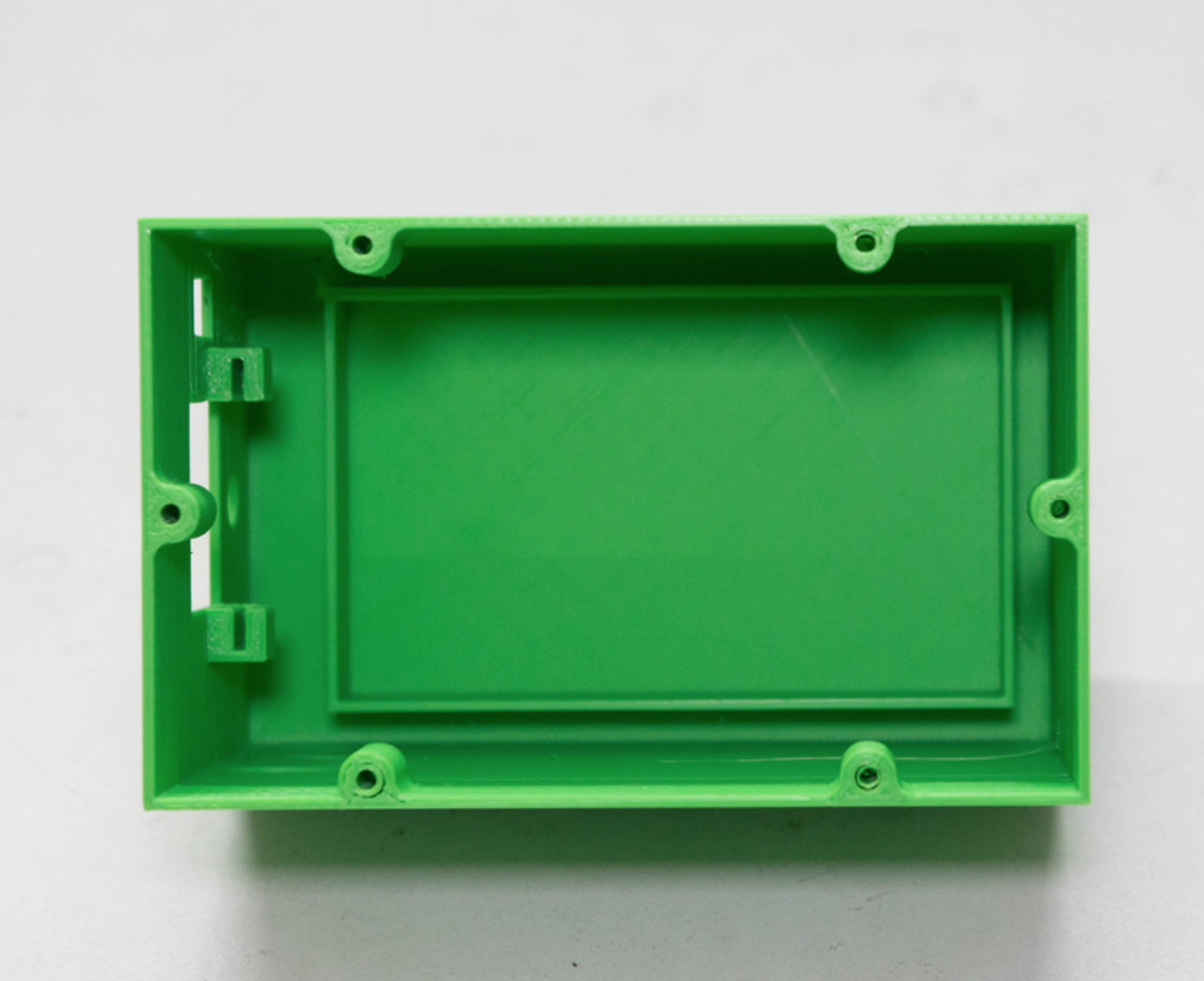

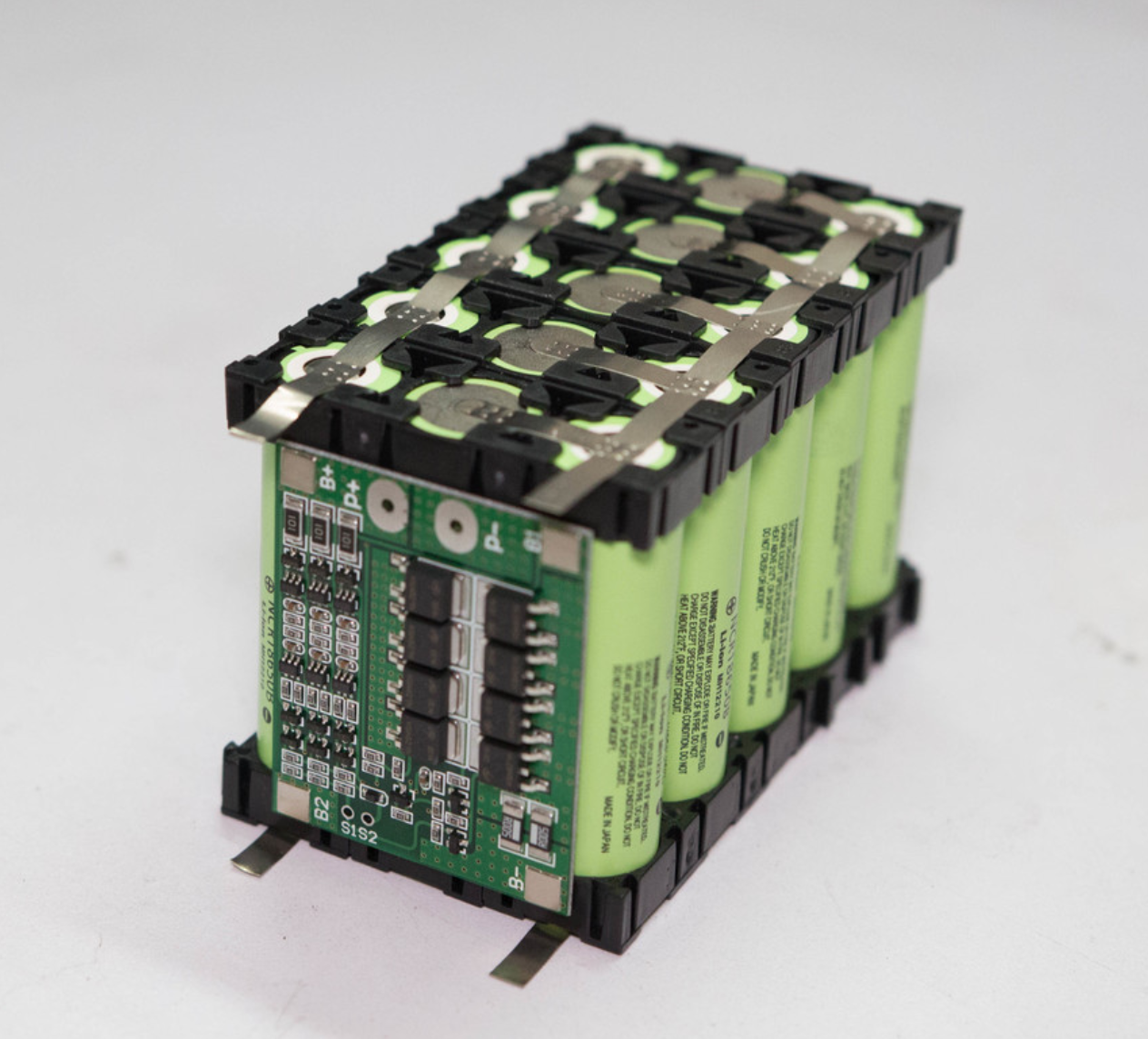

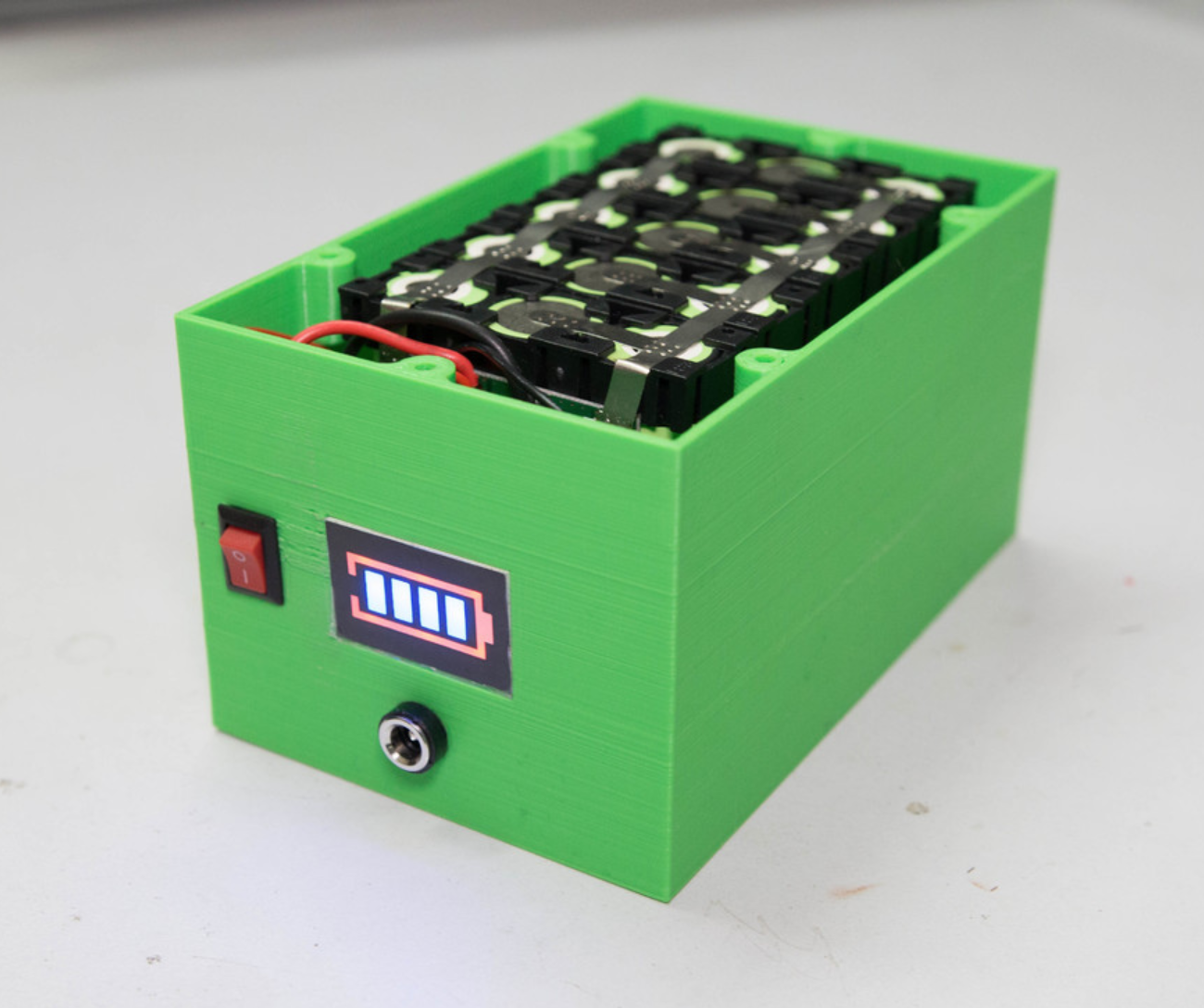

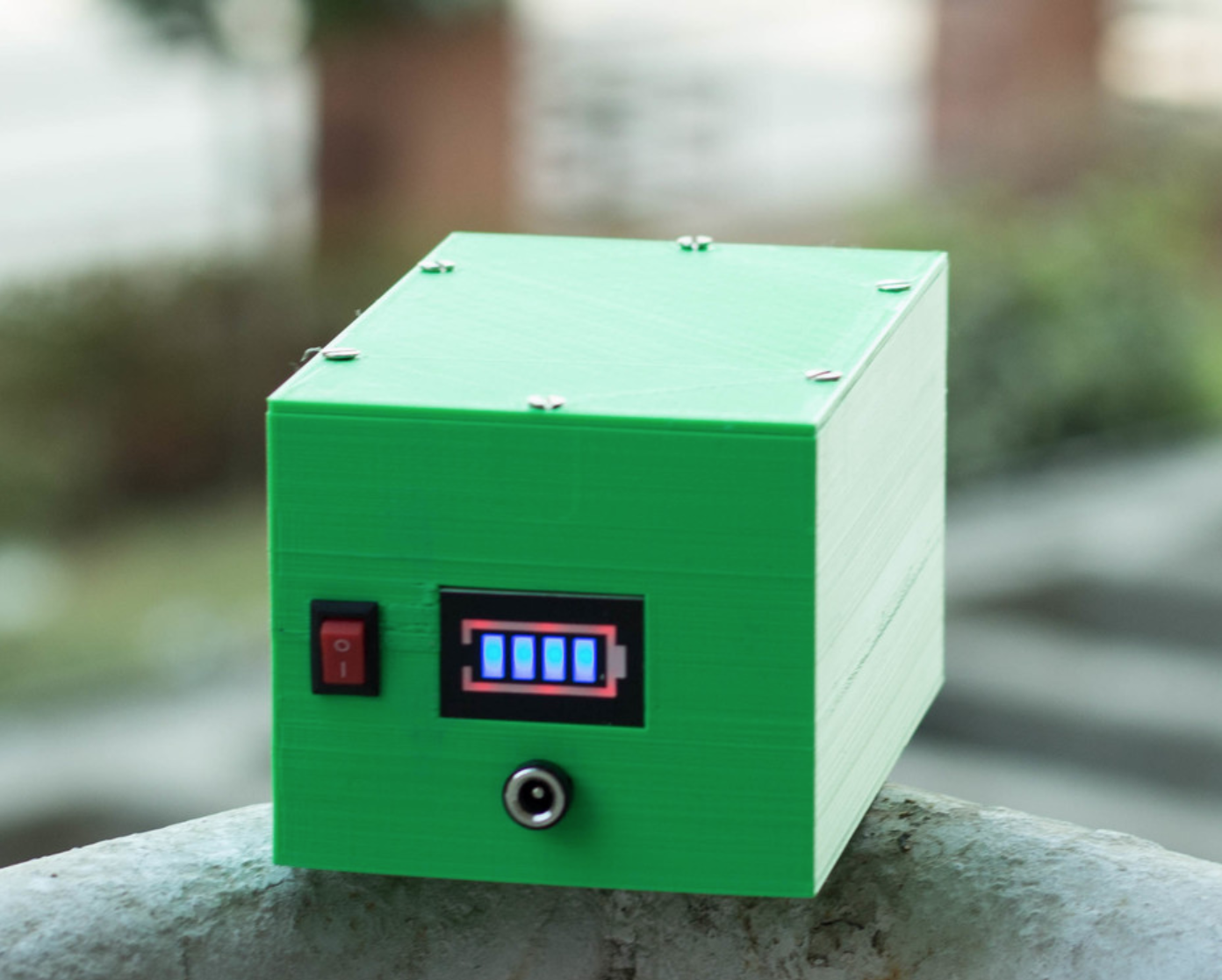

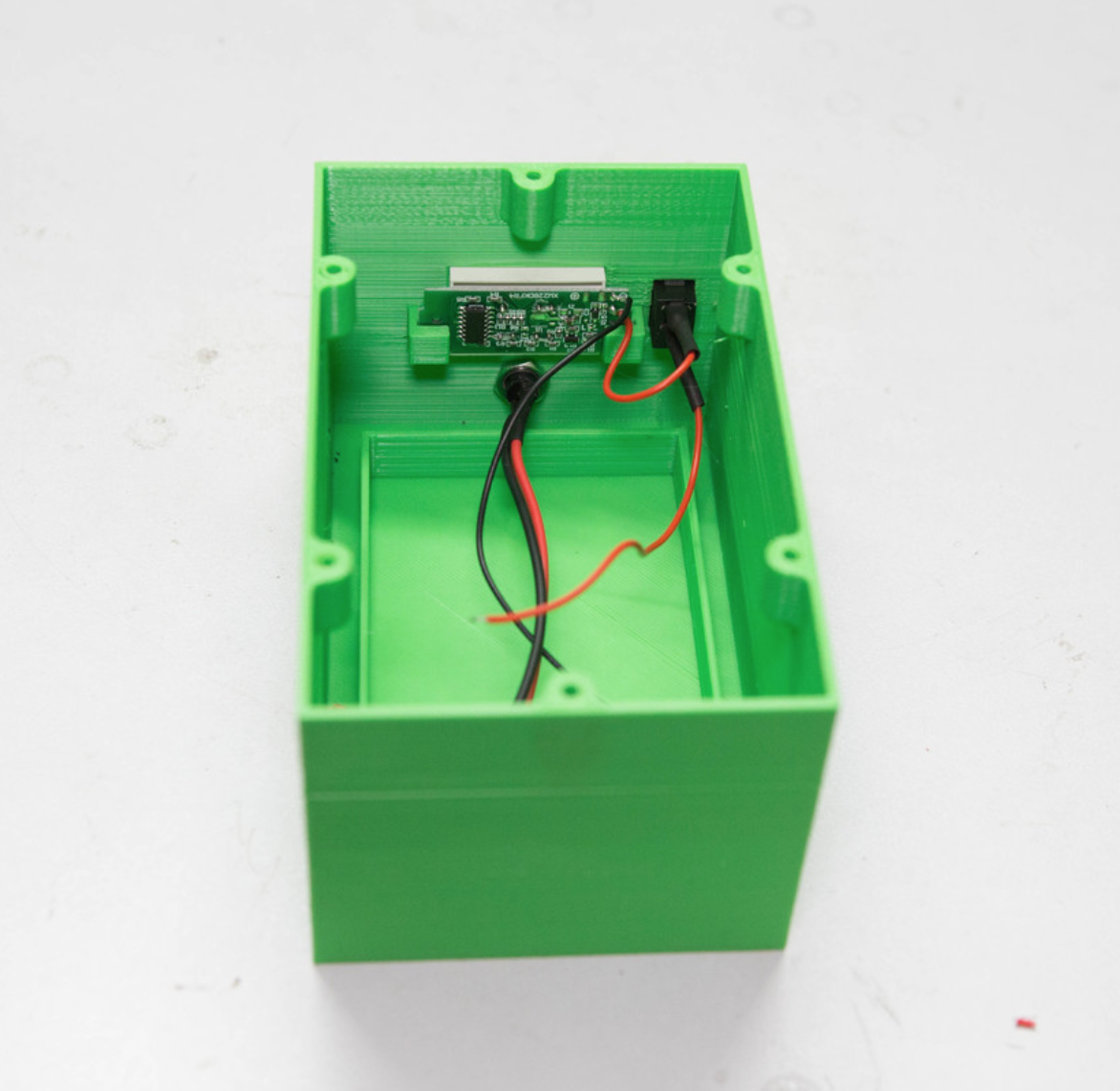

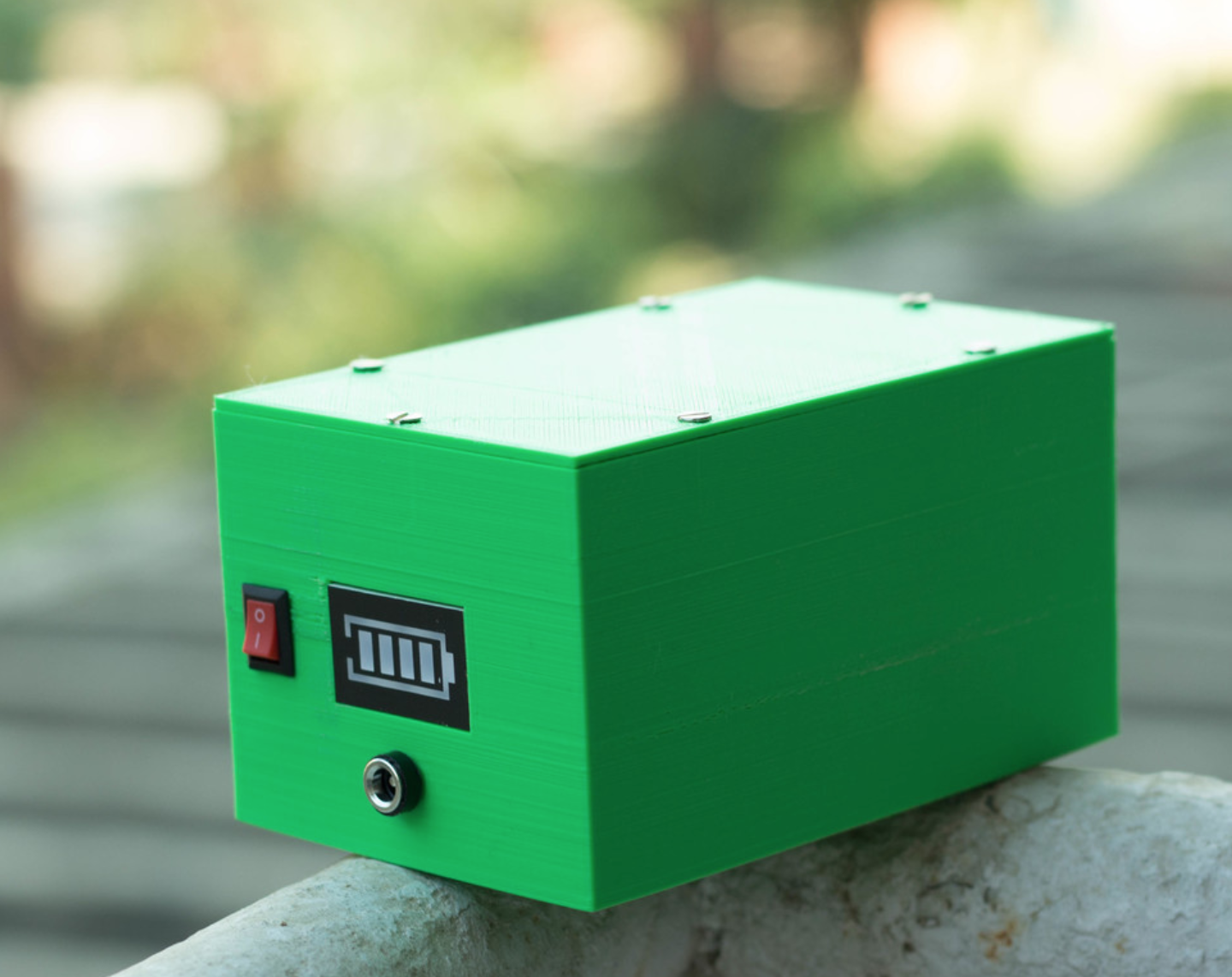

This a enclosure for 15 18650 cells to make a Battery Pack. I used 3400 mAh cells to make the 17Ah -11.1 V Battery Pack.You can see the full project on my Instructables.
https://www.instructables.com/id/DIY-Professional-18650-Battery-Pack/
3D printing settings
Printer:
Creality CR_10
Rafts:
No
Supports:
No
Resolution:
0.3
Infill:
100
Notes:
Print Speed : 70 mm/s
Fill Density : 100%
Extruder Temperature : 205 degC
Bed Temp : 65 degC
- 3D file format: STL
- Publication date: 2017/12/19 at 18:27
