15 amp Adjustable Voltage Regulator
:strip_icc():blur(15):format(webp)/https://files.cults3d.com/uploaders/13589525/illustration-file/2f511e81-5d11-409d-9041-f6398c357abe/2a1c8059061ee84cf985fa8c2c398044_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13589525/illustration-file/2f511e81-5d11-409d-9041-f6398c357abe/2a1c8059061ee84cf985fa8c2c398044_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13589525/illustration-file/bd63e12f-5d4f-4a66-8c40-f092629f1b26/5f511c42f5593bd407c0466b000ba760_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13589525/illustration-file/e02735ad-63c0-4bc8-bbb2-187c4d92fbfe/d93bba12d81e5d16903288b0e2feab4f_preview_featured.jpg)
/https://files.cults3d.com/uploaders/13589525/illustration-file/bd114528-ff18-45d1-a804-92c4155b58e0/f145940170a0221cc96f40a4a81cef7b_preview_featured.jpg)
?
Creation quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 1k views
- 1 like
- 15 downloads
3D model description

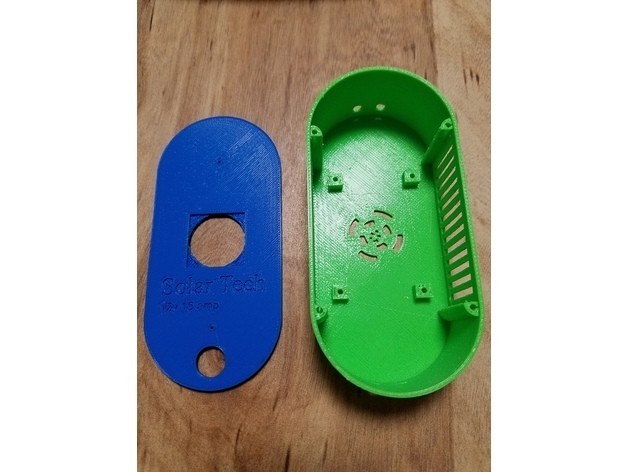

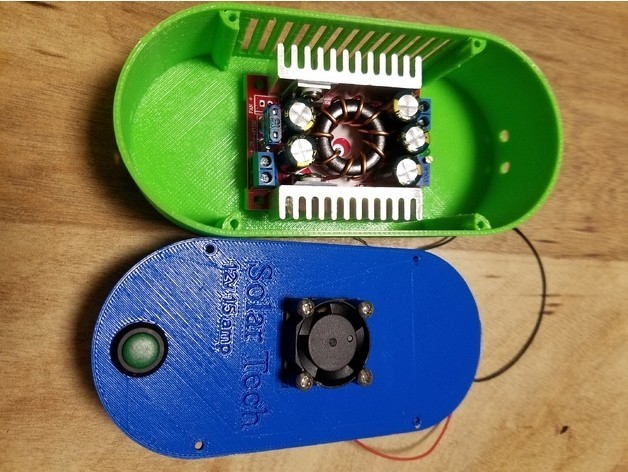

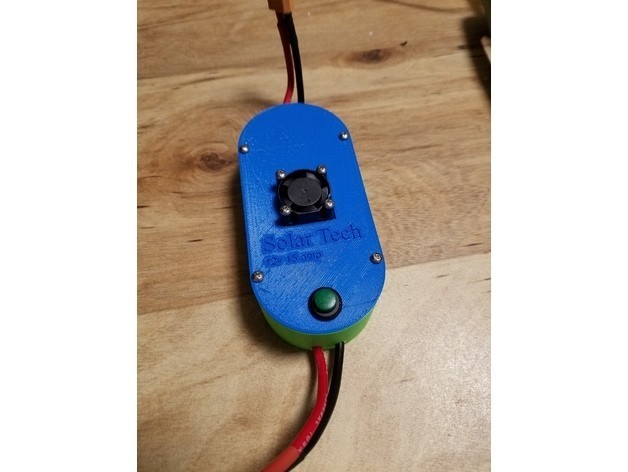

I designed this original to run 12v devices on my 20v solar panels, but it can be used to step down voltage up 36v. I can charge my RC batteries on my Graupner charger with my 160w panel only. Most solar chargers require a battery but this solar controller does not.
15 amp Adjustable Voltage Regulator: http://amzn.to/2ihlcVl
Parameters:
Input voltage: 4-32V (36V Max)
Output voltage: 1.2-32V (adjustable,default output 5V)
Min voltage difference: 1V
Output current: 0-15A(10A for long-term work)
Input fuse: 15A
Operating temperature: -40°c to +85°c
Working frequency: 150KHz
Conversion efficiency: up to 98%
Module size: 60mm x 51mm x 22mm
Installation: 4x 3mm screws
12 v 25mm X 25mm fan: http://amzn.to/2AfallE
YouTube: https://youtu.be/NA1xcfWmSeM
