1/4"-18NPT Tap - Thread Chase Handle

Download free STL file 1/4"-18NPT Tap - Thread Chase Handle • Model to 3D print, ThinkSolutionsDownload free STL file 1/4"-18NPT Tap - Thread Chase Handle • Model to 3D print, ThinkSolutions
Download free STL file 1/4"-18NPT Tap - Thread Chase Handle • Model to 3D print, ThinkSolutions

Did you 3D print this model?

3D model description

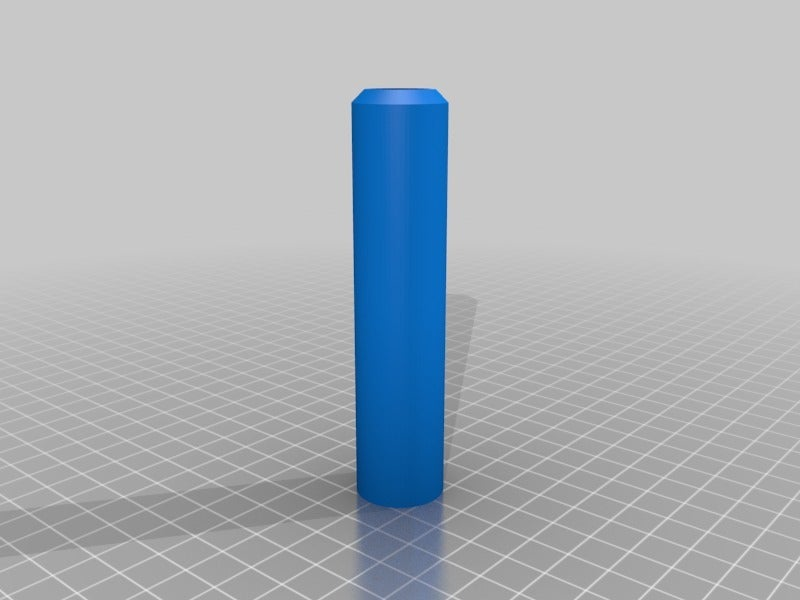

This handle is meant as a light weight extension to standard 1/4" Tap socket for the purpose of cleaning dirty threads. Designed for Plug Tap #8203 by Irwin / Hanson, with a barrel diameter of .565 inch, and flat to flat side of .42 inches.
I may post a version with a measurement of 1 unit flat to flat, for easy scaling to other tap sizes.

  • 3D file format: STL
  • 3D model size: X 22.4 × Y 22.4 × Z 100 mm

Tags

Creator

Designs 34
Downloads 1384
Followers

I believe 3D printing and design sharing can reduce the environmental impact of product packaging and shipping, save countless hours of engineering time, and accelerate innovation.

...and it is a lot of fun!!!

License

CC BY
