Flower box (with ring holder insert)

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2k views
  • 11 likes
  • 135 downloads

3D model description

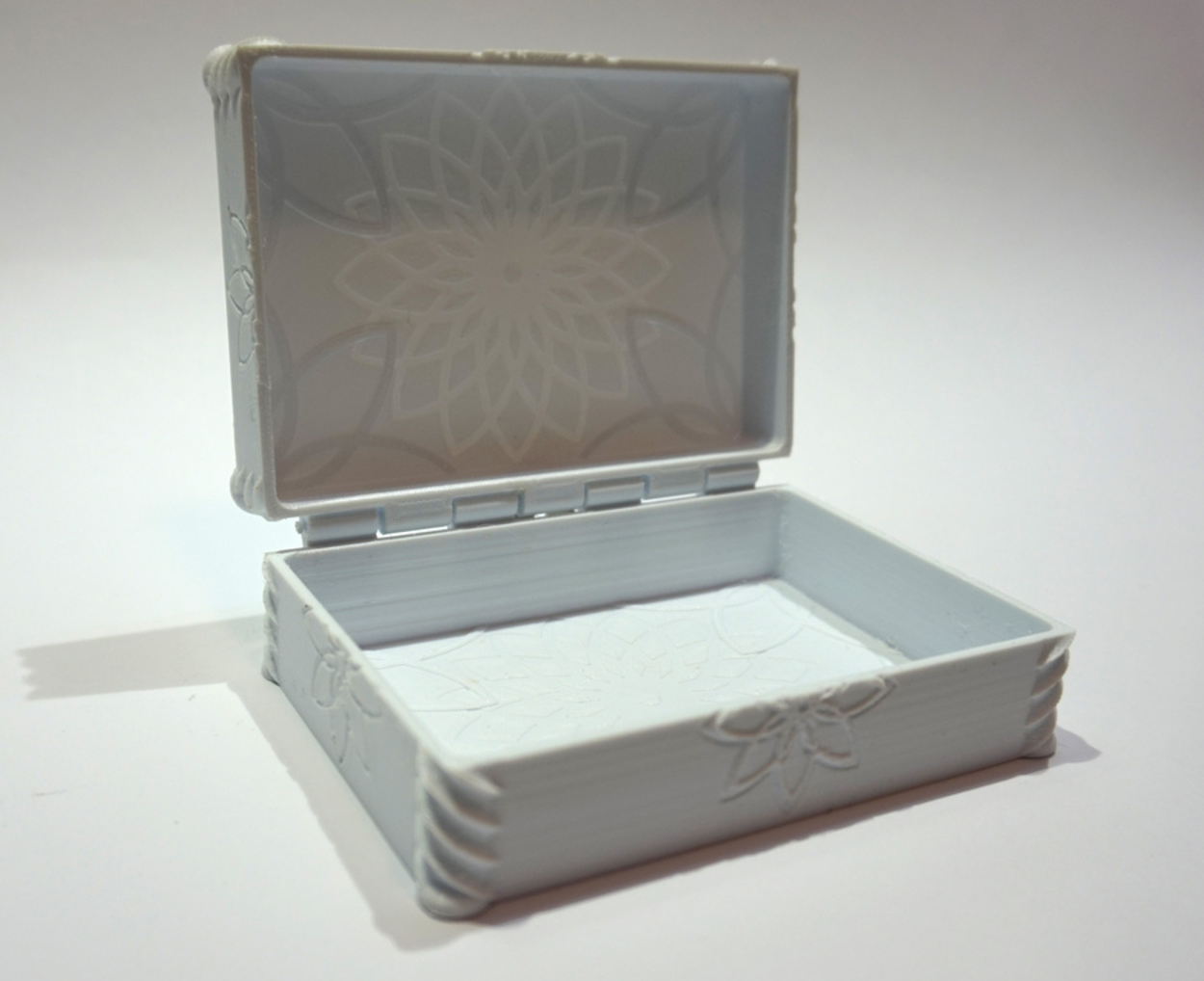

Box for storing jewelry or other small items. Pattern in the lid gives a very nice see-through effect when backlit.

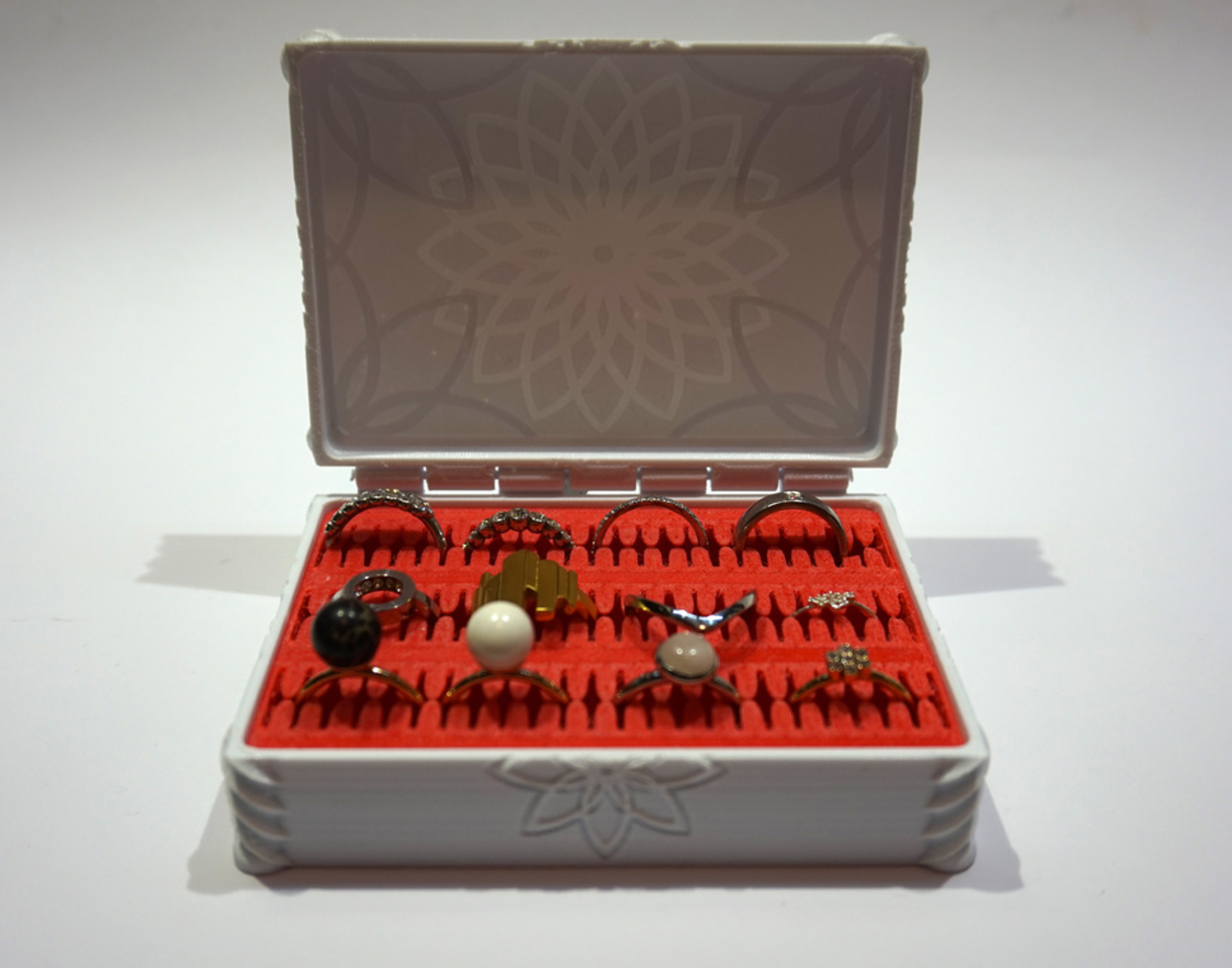

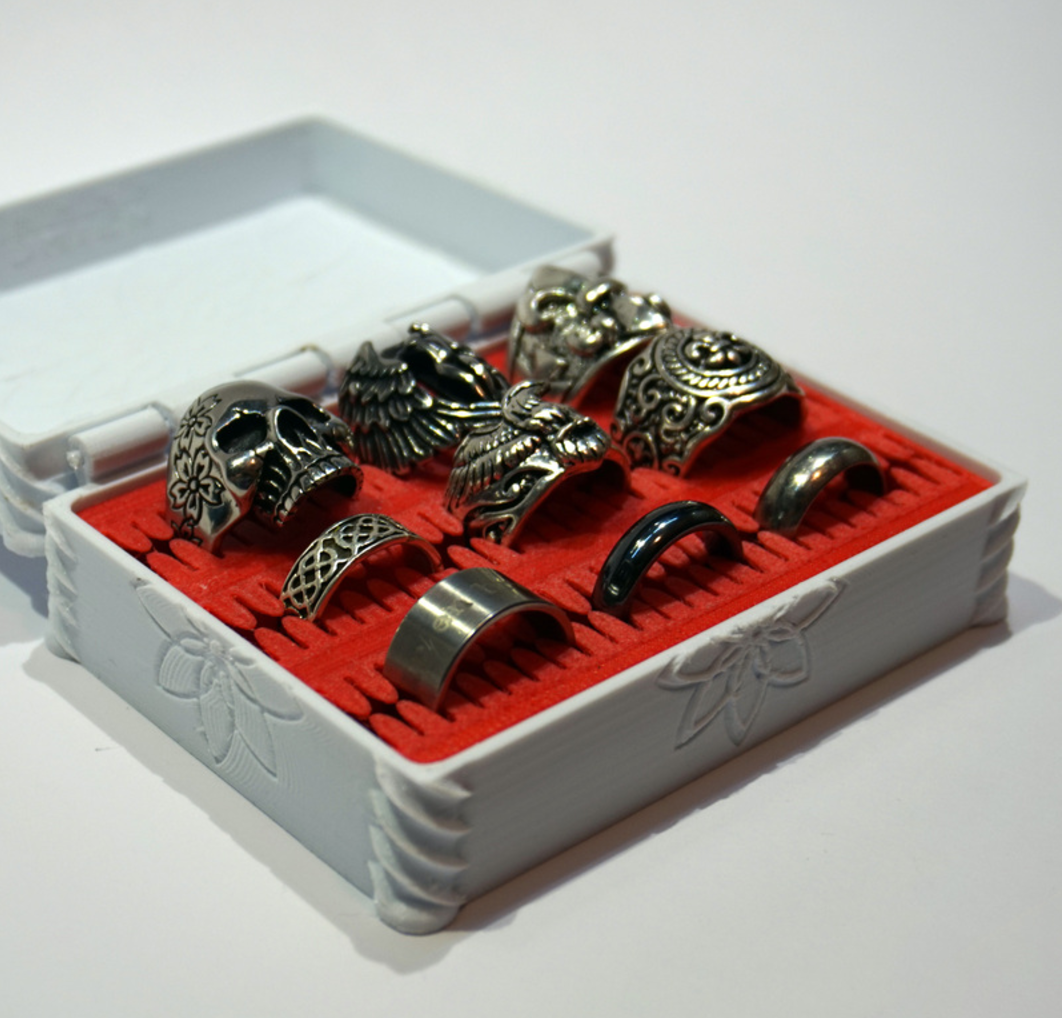

An optional ring insert can be printed to give a very good overview of your fingerwear of all sizes.

Other things that will fit (without scaling the model up): A deck of cards, memory cards, coins, membership cards, rusty nails, earplugs, breath mints, batteries, a miniature giant space hamster, post-it notes, paperclips, matches and those small wooden pencils you get at IKEA.


3D printing settings

Resolution: 0.1mm
Supports: No
Rafts: No

Bottom
The bottom will benefit by having a higher infill than the top to increase the weight and risk of tilting when open. Still, 30% is plenty.

Top
25% infill should be enough.

Ring insert
Needs to be printed in TPE, NinjaFlex or other flexible/elastic material. This should be printed upside-down, and is designed to be printed without supports.

Lower infill can be an advantage for more flexibility. I used 20% with TPE filament, but could probably have gone down to 10%.

Make sure that the bottom 3-4 layers where the "tongues" are located are solid in order for them to stick to the model properly.

The Hinge

The hinge is designed to use a 1.75 mm filament as center (for 3 mm filament, scale the model to 171%). Heat and slightly flatten the ends of the filament using a soldering iron, wood burning pen or even a flat screwdriver heated with a lighter.

Aside from filament, you can use a thick steel wire, a piece a metal coat hanger or an 1.8 mm bicycle spoke as hinge center. Drill the holes up if needed, or simply scale the model up when printing.

3D printer file information

  • 3D design format: STL Folder details Close
    • flower_box-BOTTOM.stl
    • flower_box-RING_INSERT.stl
    • flower_box-TOP.stl

    Learn more about the formats

  • Publication date: 2016/12/21 at 11:48

License

CC BY NC

Creator

Designs 45
Downloads 9.6k
Sales US$92
Followers 83

Hi! I'm a tinkerer, designer and maker from Sweden. If you like my designs, feel free to leave a comment. :)
