air pipe cover (inner diameter of the pipe = 100 mm)

20180512_8896.jpg Download free STL file air pipe cover (inner diameter of the pipe = 100 mm) • 3D printer model, kleinerELM 20180512_8897.jpg Download free STL file air pipe cover (inner diameter of the pipe = 100 mm) • 3D printer model, kleinerELM 20180512_8898.jpg Download free STL file air pipe cover (inner diameter of the pipe = 100 mm) • 3D printer model, kleinerELM
mosquito_net_frame.stl Download free STL file air pipe cover (inner diameter of the pipe = 100 mm) • 3D printer model, kleinerELM Pipe.stl Download free STL file air pipe cover (inner diameter of the pipe = 100 mm) • 3D printer model, kleinerELM Cover.stl Download free STL file air pipe cover (inner diameter of the pipe = 100 mm) • 3D printer model, kleinerELM
Make
?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 649 views
  • 4 likes
  • 50 downloads

3D model description

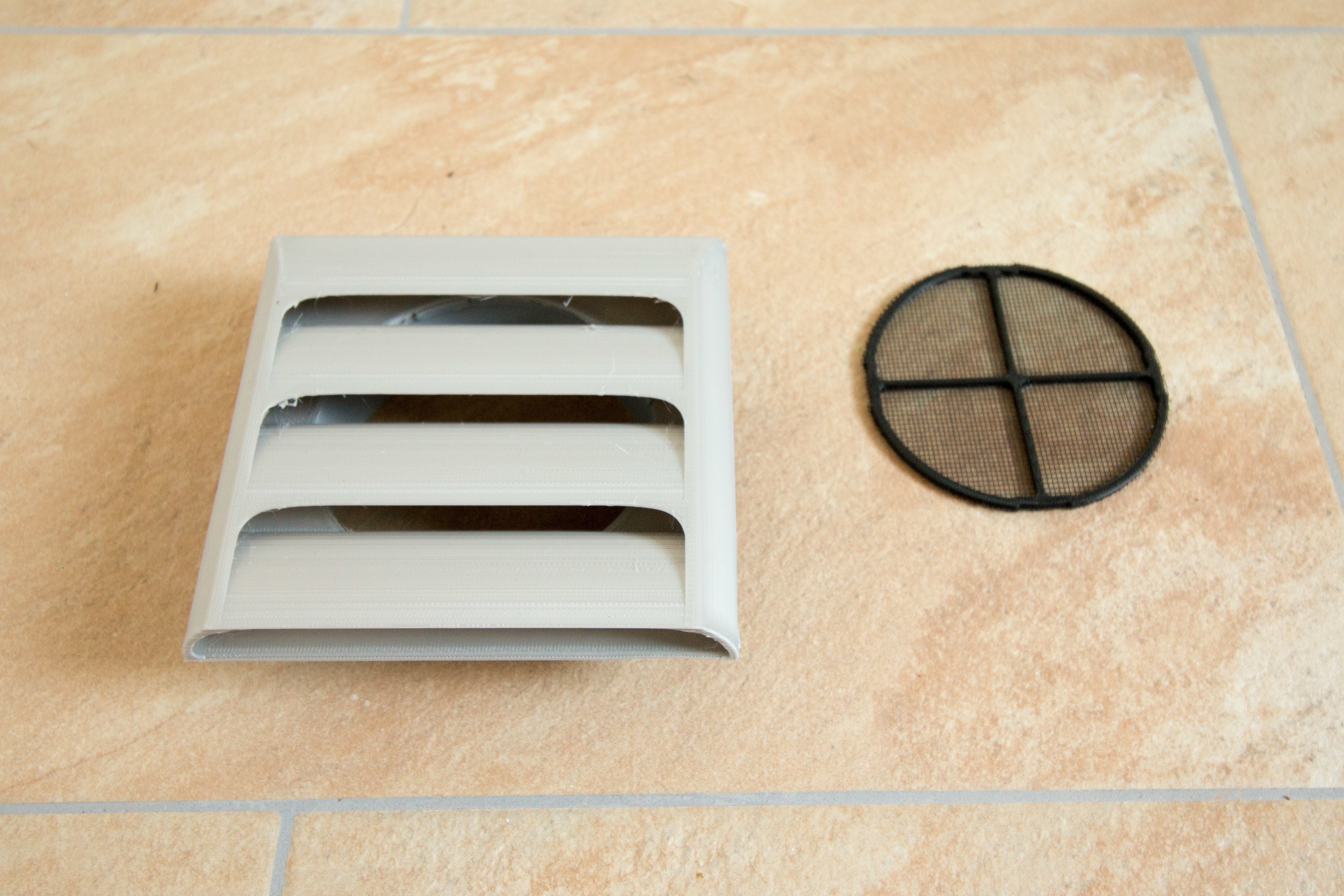

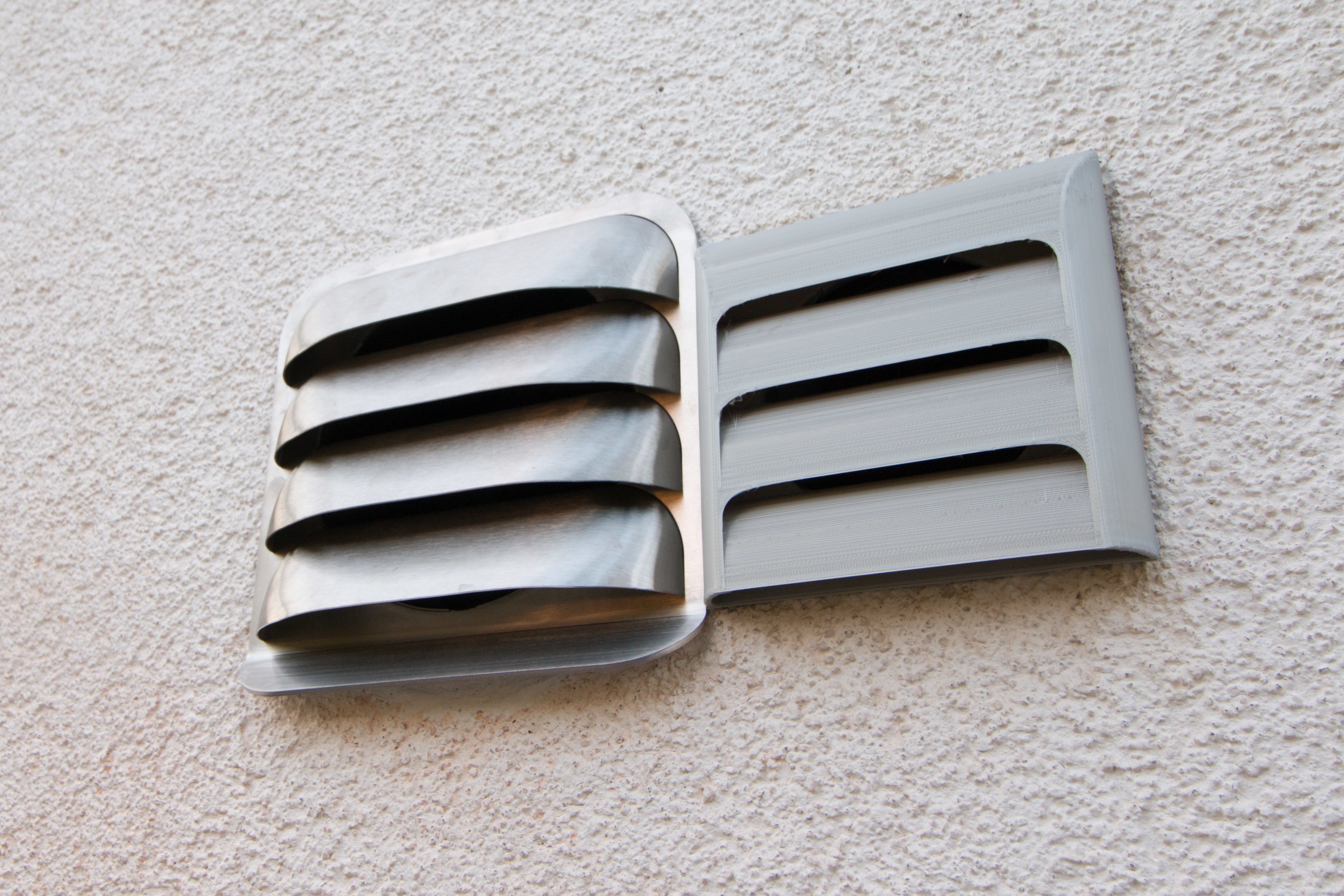

The old cover was very dirty and the plastics were breaking apard so I needed a new one. Since a new exhaust was installed I tried to adapt its design.

It is designed to fit in pipes with an inner diameter of 100 mm.

The Fusion 360 file can be downloaded here: https://a360.co/2IAUDFJ

3D printing settings

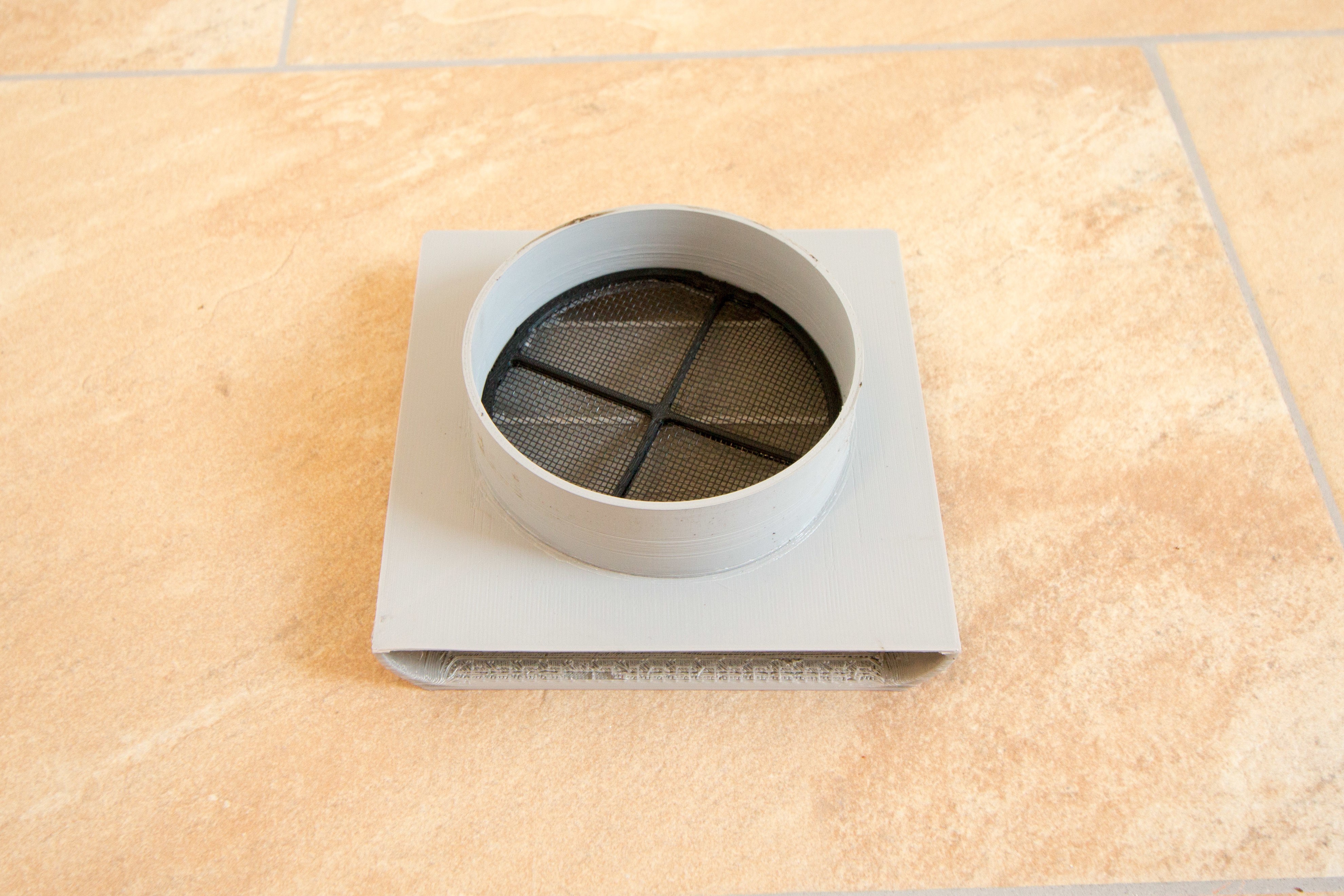

The pipe and the cover have to be glued together and can be fixed within the exhaust pipe using silicone.

You will need a mosquito net which has to be glued on the frame. It is a very tight fit and may be warped but at least there won't be any gaps.

Pinted the fist 18 mm of the cover using a resolution of 0.25 mm and the last 2 mm using a resolution of 0.15 mm.

Infill: 15 %

  • 3D file format: STL
  • Publication date: 2018/05/13 at 14:57
