wire holder for DIN rails

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

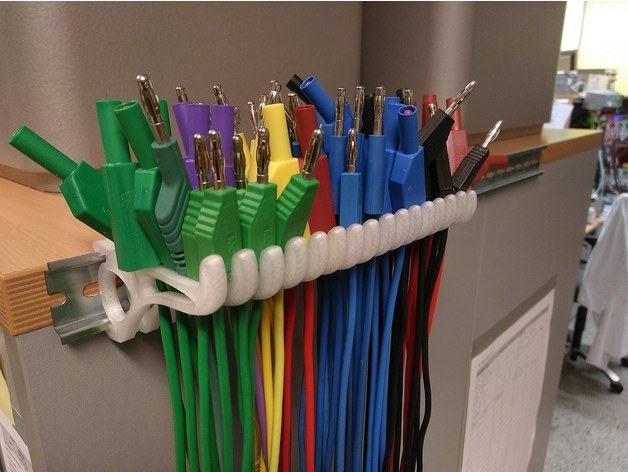

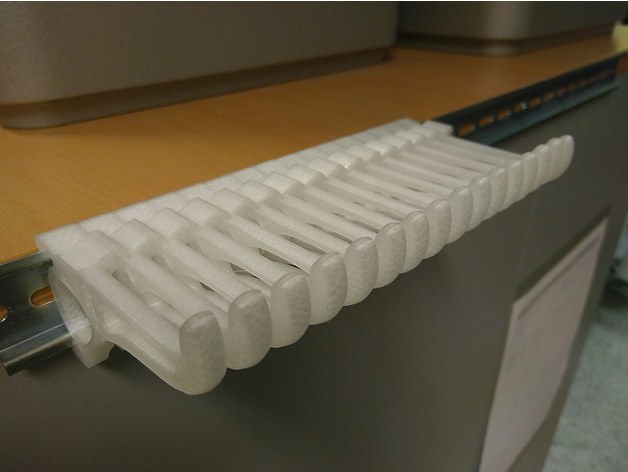

This is a wire holder for measurement probes (test leads) because those available for sell usually suck and come with non-standard rails.

Features:
) you can make your wire-wall in any lenght you like
) they snap quite well
) fits deep and shallow DIN rails
) they attach to each other and keep the distance
) reasonably easy to remove

I made the hangers with a 5mm spacing - if you'd like to have that changed just tell me and I can adjust it easily.


3D printing settings

Printer Brand:

Wanhao

Printer:

Wanhao Duplicator i3 V2

Rafts:

No

Supports:

Yes

Resolution:

0,1mm

Infill:

30%

Notes:
Printed in PETG. I'm not sure if it will flex enough without breaking when printed in PLA.

Use a tiny amount of support for the "hook" that snaps into the next hanger.

3D printer file information


License

CC BY NC SA

Tags

Creator

This is just a synchronized thingiverse account.

So there might be some weirdness going on with missing texts or pictures and outdated files (e.g. I don't see that my overly extensive printing recommendations get synchronized).

Here's the real thingi: https://www.thingiverse.com/unwohlpol/designs
