Waterpump

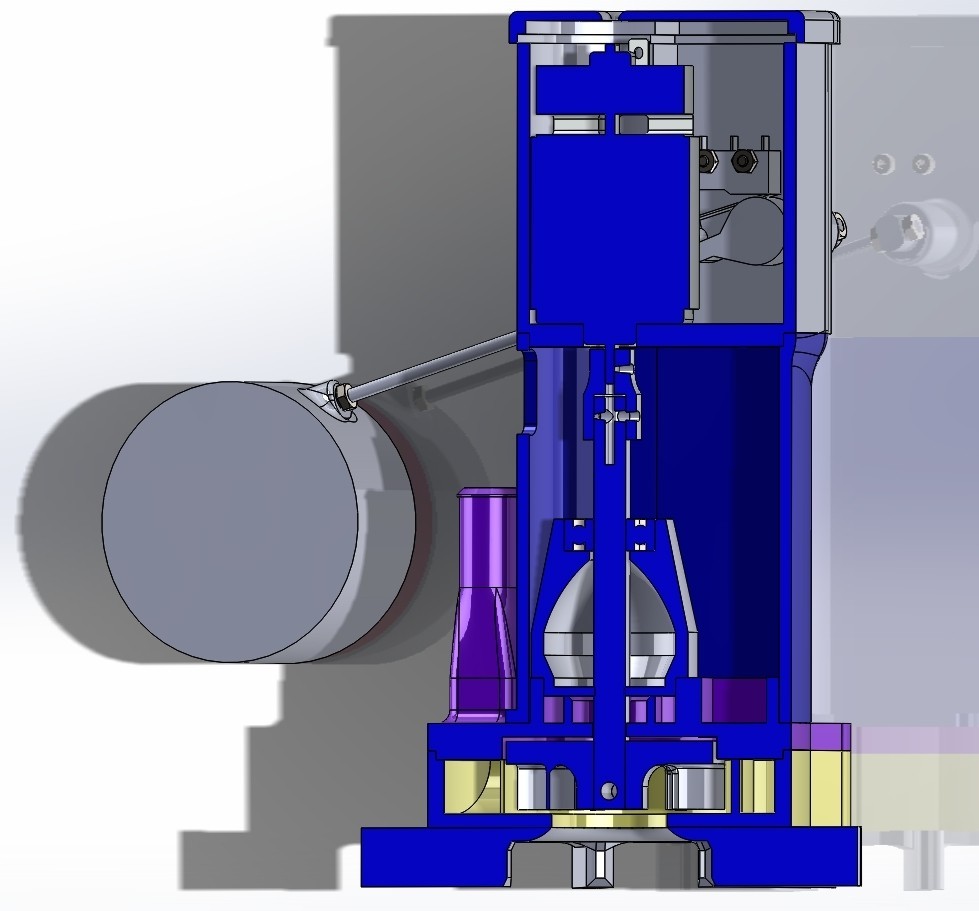

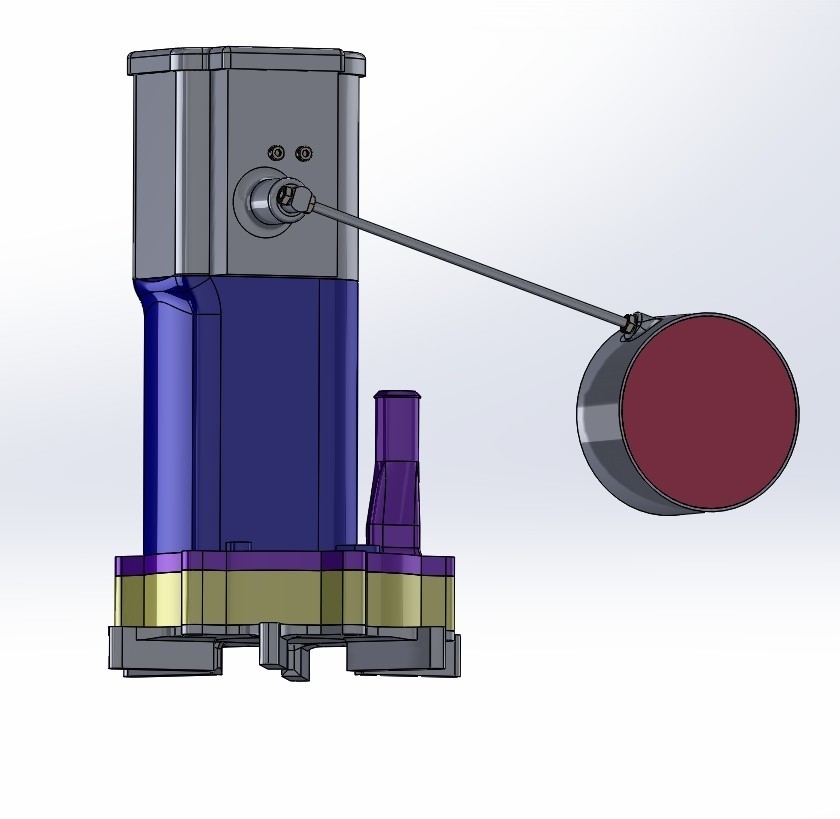

pump.jpg Download STL file Waterpump • 3D print design, toto44 section1.jpg Download STL file Waterpump • 3D print design, toto44 section2.jpg Download STL file Waterpump • 3D print design, toto44
Baugruppe1.STL Download STL file Waterpump • 3D print design, toto44 bearing holder.STL Download STL file Waterpump • 3D print design, toto44 bottom housing.STL Download STL file Waterpump • 3D print design, toto44 coupling.STL Download STL file Waterpump • 3D print design, toto44 cover floater.STL Download STL file Waterpump • 3D print design, toto44 deckel.STL Download STL file Waterpump • 3D print design, toto44 float part 1.STL Download STL file Waterpump • 3D print design, toto44 impeller.STL Download STL file Waterpump • 3D print design, toto44 lever.STL Download STL file Waterpump • 3D print design, toto44 motorhousing bottom.STL Download STL file Waterpump • 3D print design, toto44 motorhousing top.STL Download STL file Waterpump • 3D print design, toto44 stand.STL Download STL file Waterpump • 3D print design, toto44 upper housing.STL Download STL file Waterpump • 3D print design, toto44 cherry db2c a1rc.STL Download STL file Waterpump • 3D print design, toto44 shaft.STL Download STL file Waterpump • 3D print design, toto44 3mm wire.STL Download STL file Waterpump • 3D print design, toto44
Make
?
Creation's quality: 4.5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.3k views
  • 2 likes

3D model description

I created this pump for my home heating system. From the heater itself and from the exhaust comes a small amount of kondensate. It simply drops into a small reservoir. Inside the reservoir I place the pump. When the level of kondensate reaches a certain level, the motor gets switched on by the float, and pumps out the water.
You will need a 550size electric motor,8mm shaft, a 22x8mm ball bearing, a cherry db2 switch,a 3mm threaded shaft and a seal to finish it.
By bending the 3mm threaded wire, you can adjust the switching point.
