Wall Electrical Box Blank Plate - Extremely Flat

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.2k views
  • 3 likes
  • 25 downloads

3D model description

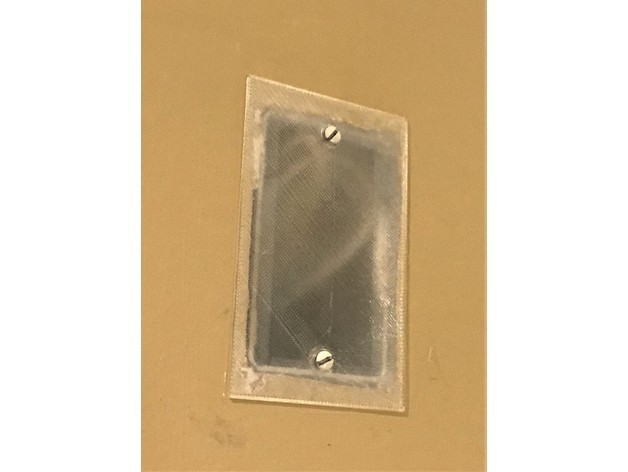

This is a cover for a US standard "single" wall box. In my case, the box holds past-use audio and video cables. I want to hang items on that wall without the old plate getting in the way.

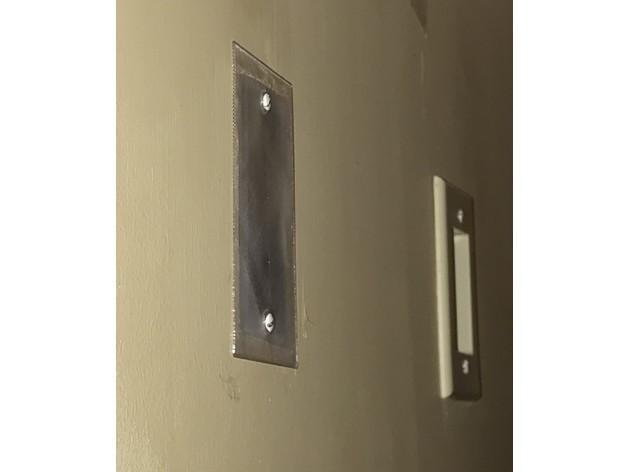

I needed a very flat blank plate that I could paint over so that it would be much more hidden than the standard thicker (5mm thick) plate. The thinnest design that I came up with is 0.5mm thick.

Per the Home Depot website, my design is a replacement for the thicker "1-Gang Midway Blank Nylon Wall Plate".

Caution: I do not recommend using this design to cover boxes containing high voltages or high power. For safety sake, you should always use the regulatory approved equipment as required in your locale.

I provide two models:

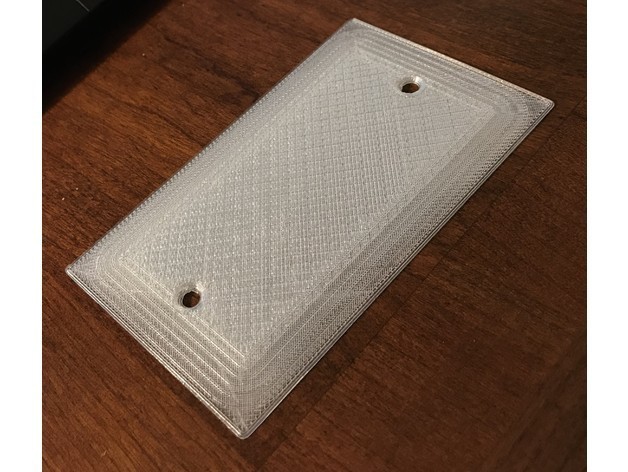

1) Flat face - This is the model that I ultimately used. It has a completely flat face -- 0.5mm thick when measured from the wall surface. Printed in PETG, this print is somewhat flexible and you would not want to use it if your were concerned about something jamming into the plate. This prints face down.

2) Rounded (or sloped) face - This model is 1.6mm thick when measured from the wall surface. It is more rigid than the other model. This prints face up.

The overall size of both models is 69mm wide, 114mm tall.

3D printing settings

Printer Brand:

Prusa

Printer:

i3 MK2S

Rafts:

No

Supports:

No

Resolution:

0.2mm

Infill:

20%

Notes:
Material used: PETG

  • 3D file format: STL
