UFO table lamp

?
Creation's quality: 4.8/5 (3 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 2k views
  • 38 likes
  • 18 downloads

3D model description

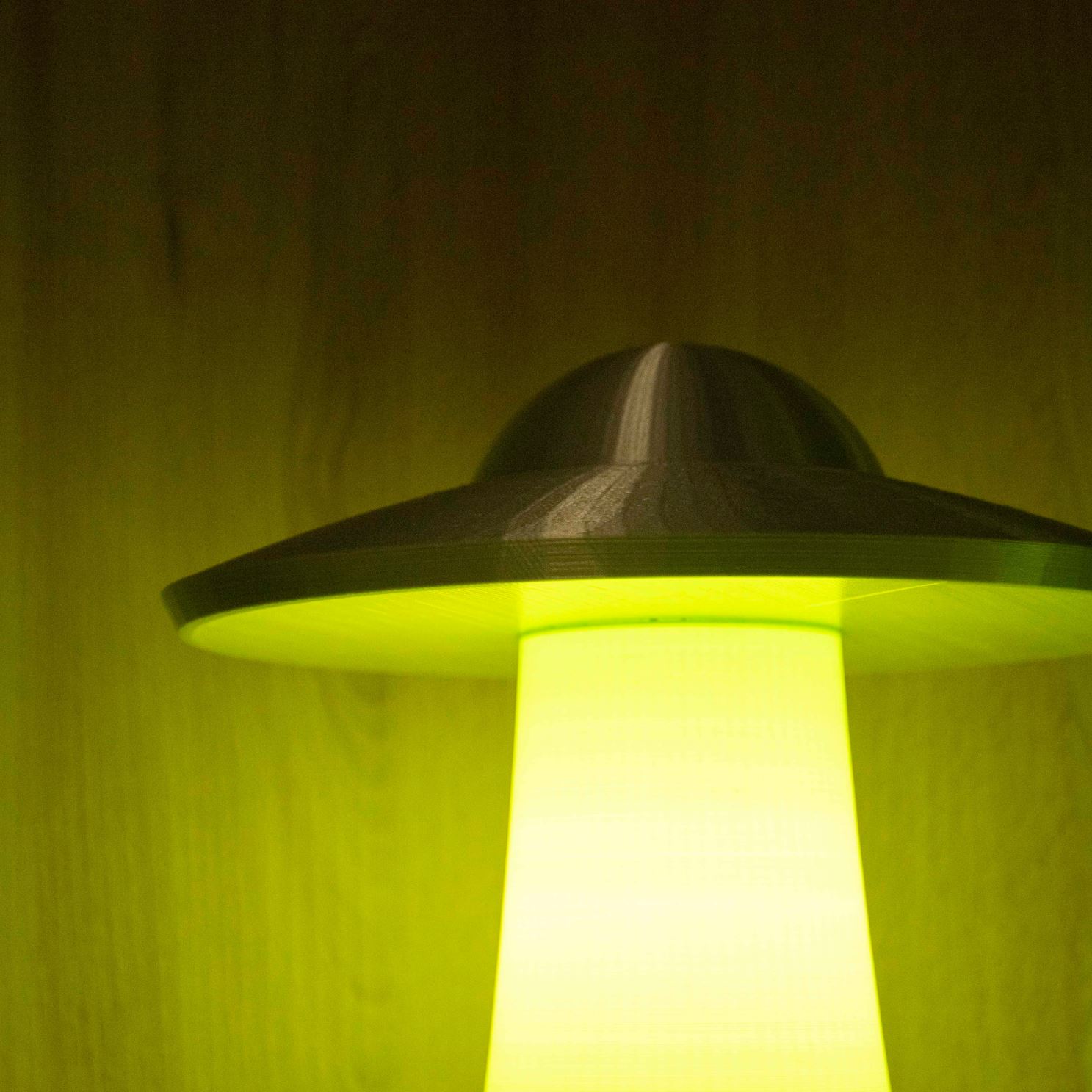

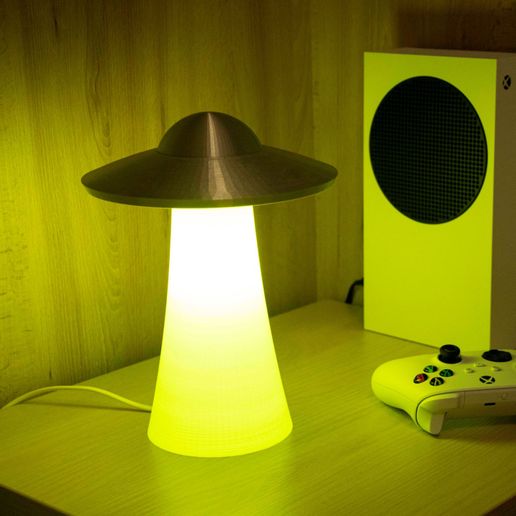

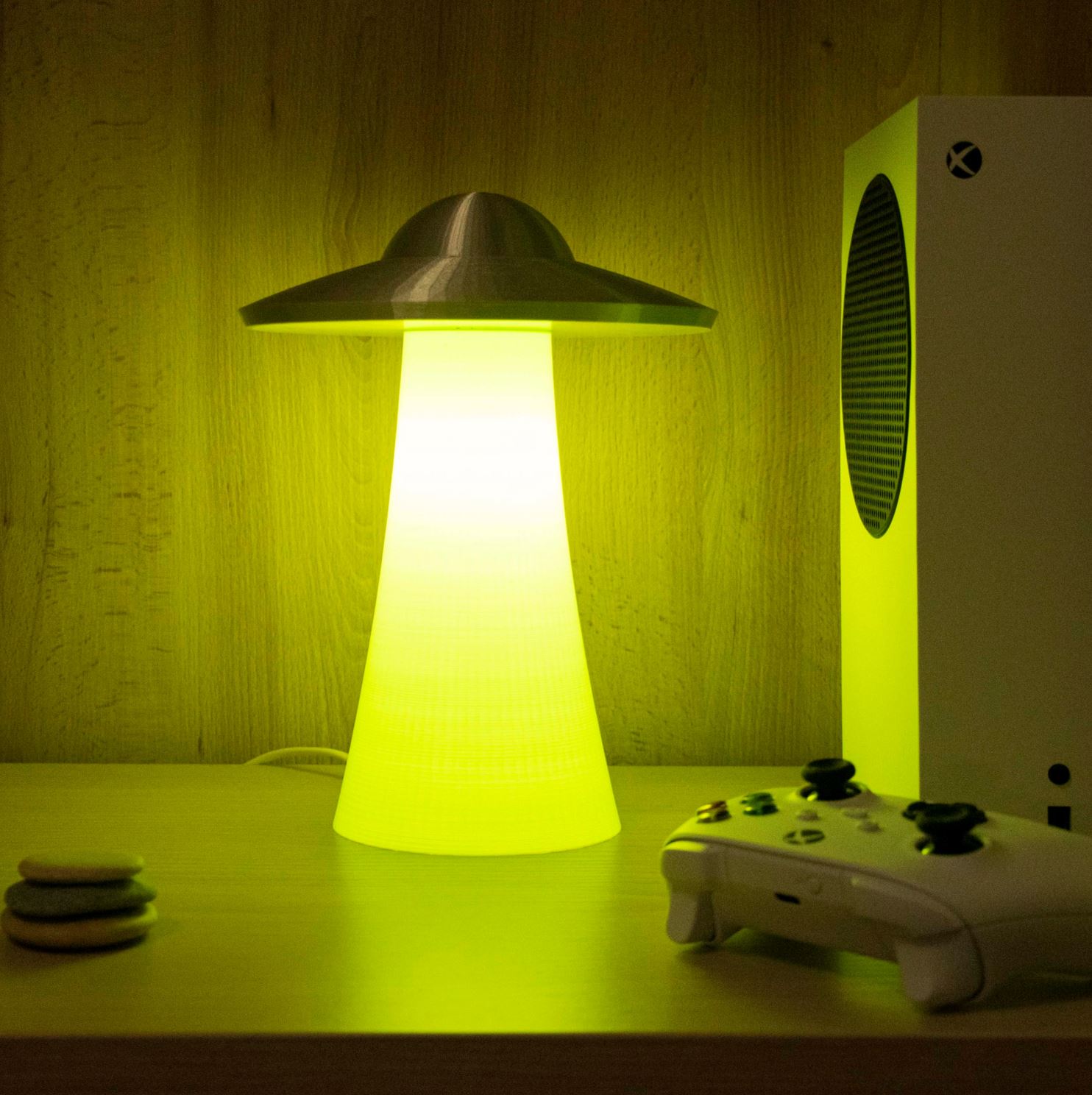

UFO is a table lamp a lamp that will invade your home and will try to drag you with it into deep space.

No power cables in sight, just a floating alien ship.

It spreads a very powerful ray that emits light capable of illuminating your space, but beware of radiation.

Dimensions when assembled: 195 x 195 x 260 mm
A 200x200x200 printing volume will be enough.

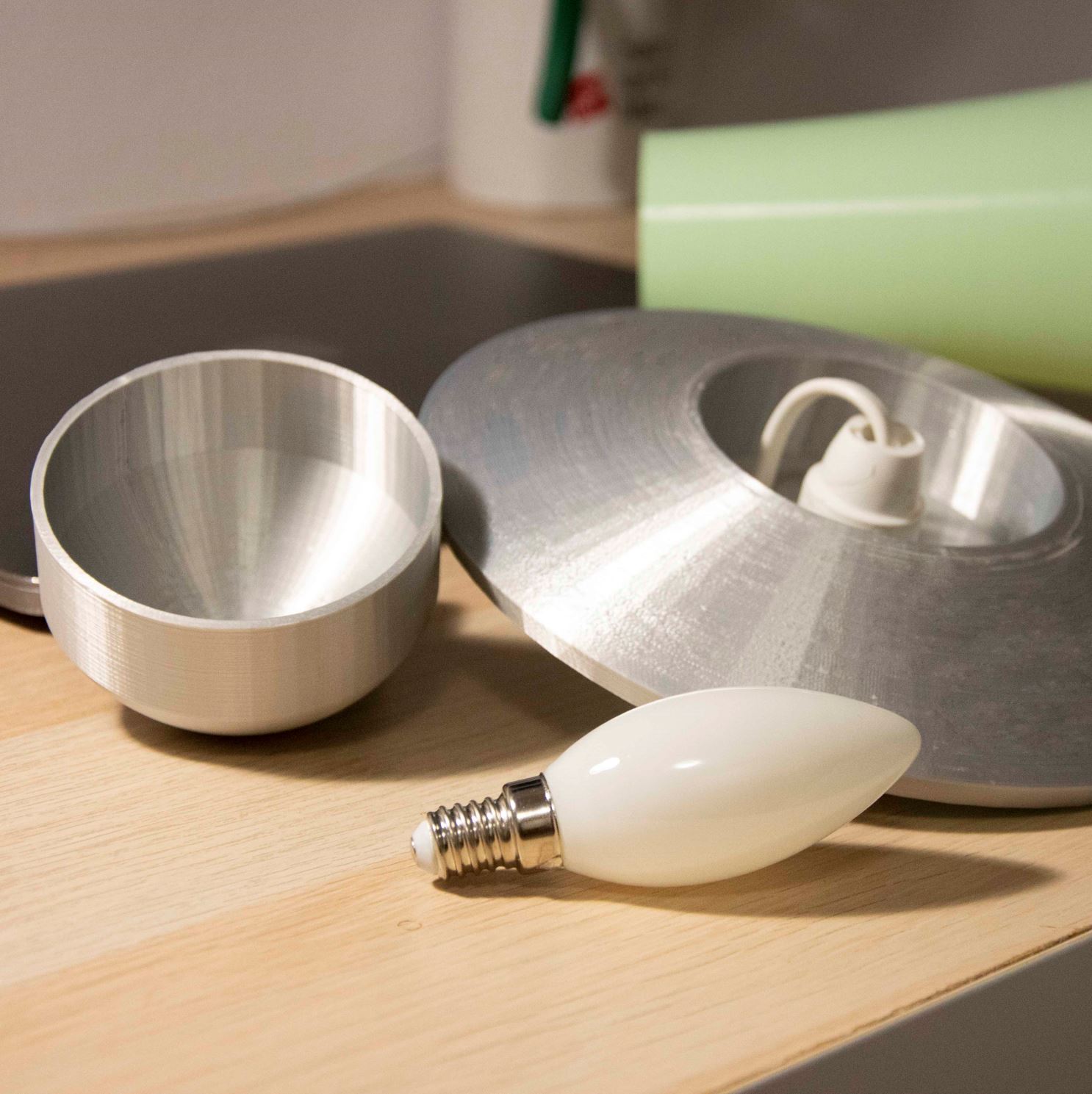

The lamp is composed of 3 components.
For the lighting effect, I’ve used a light green PLA to make the diffuser. The two components of the alien ship are made of silk silver PLA.

Material is PLA, but any other option should work too.
Don't stretch the model, it requires a specific hole diameter to fit the socket.

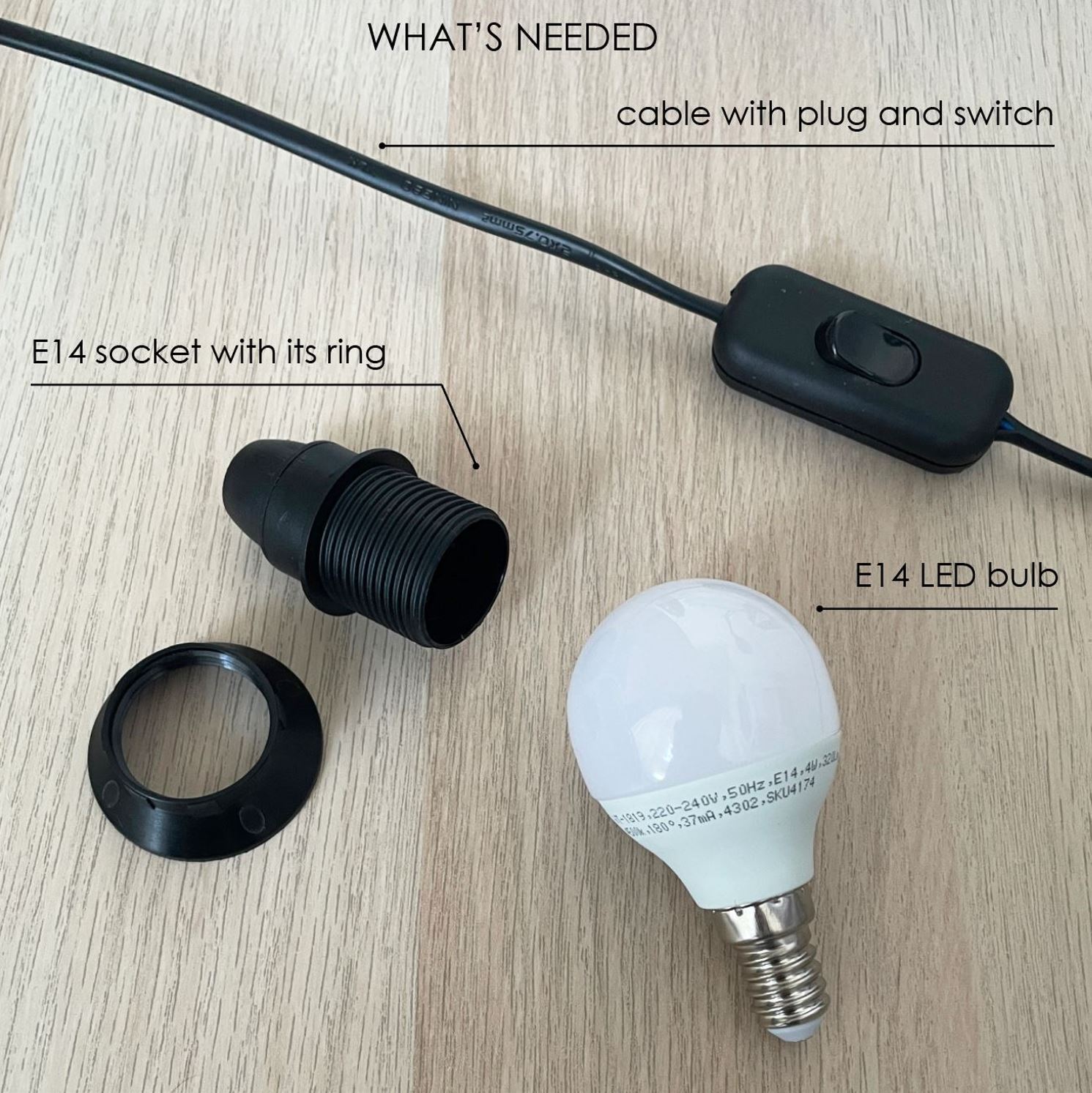

To be completed, it just requires an E14 socket and an E14 Led Bulb.

What's simpler?

Check the rest of the collection on my profile!


3D printing settings

Nozzle temperature: 200°.

Thermal bed temperature: 58°.

Nozzle diameter 0.4 mm.

Layer: 0.2mm.

Infill: No for diffuser (It’s just walls), 5% for Main Body, 100% for Cockpit (it’s fast).

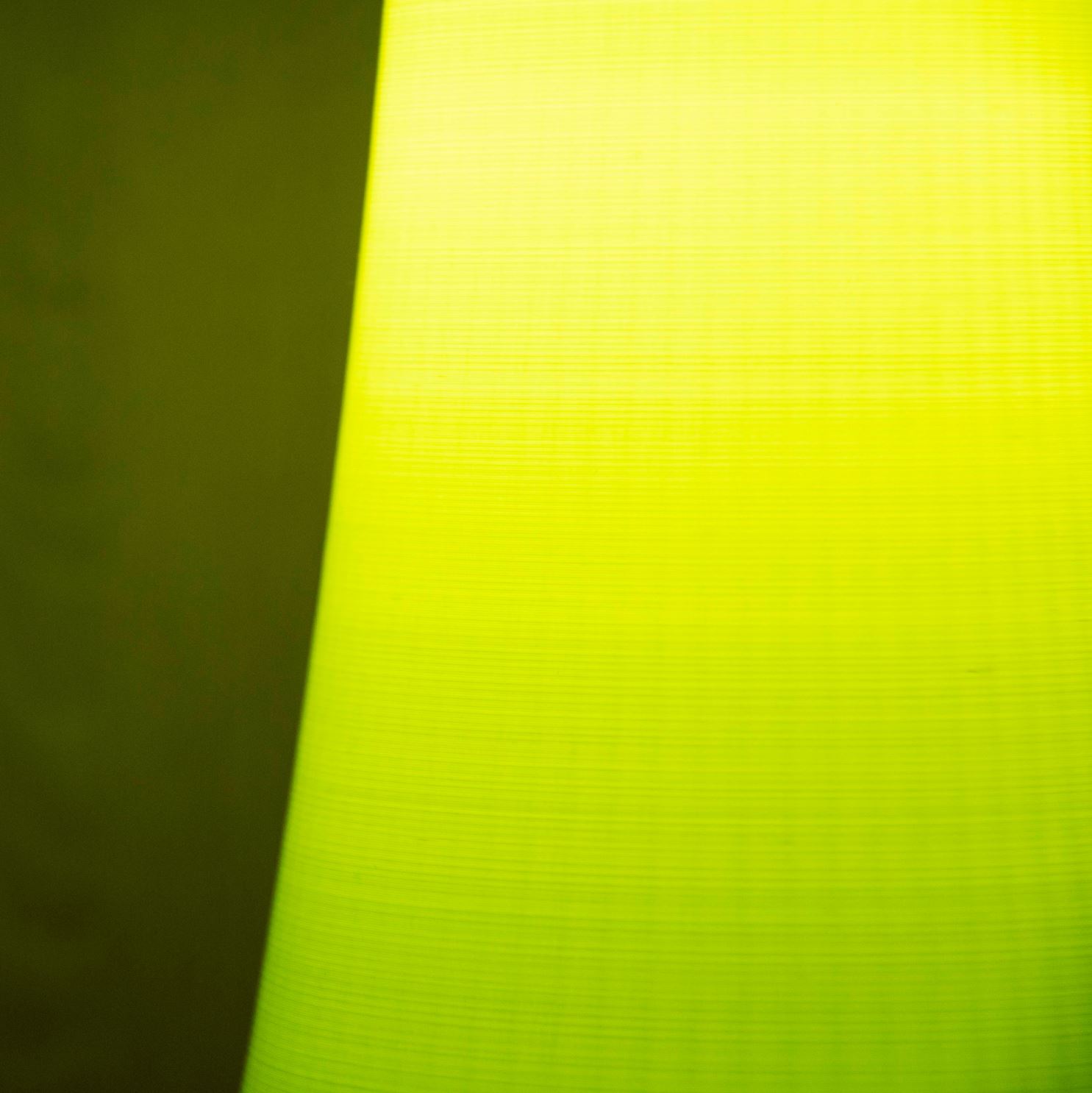

Model thickness for the diffuser is 0,8 mm, so you can use white PLA or a different color, like a light green, light yellow, light blue.

For a good lighting result it is suggested to generate the wall with wall line count: 2, using a 0.4 mm nozzle and a layer height of 0.2 mm.

At least for the diffuser, is important to set the seam in only one point, so as to have a very clean surface.

A simple support will be required just for the semi-spherical cockpit.

No post-printing is required.

3D printer file information

  • 3D design format: STL Folder details Close
    • UFO_Cockpit.STL
    • UFO_Diffuser_0.8.STL
    • UFO_Main_Boody.STL

    Learn more about the formats

  • Publication date: 2022/01/13 at 09:11

Copyright

©

Tags

Creator

Issue with this design? Report a problem

Makes created by the community

Best sellers of the category Home


Add a comment

2 comments

Just purchased, can you give me a link for the socket and cord you used?

  • 1 like

This is dope. Great job!

  • 1 like
