Two week pill container / medication dispenser Mk. II

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 458 views
  • 2 likes
  • 16 downloads

3D model description

Pill container and medication dispenser with mechanical stops capable of holding two weeks' worth of pills.

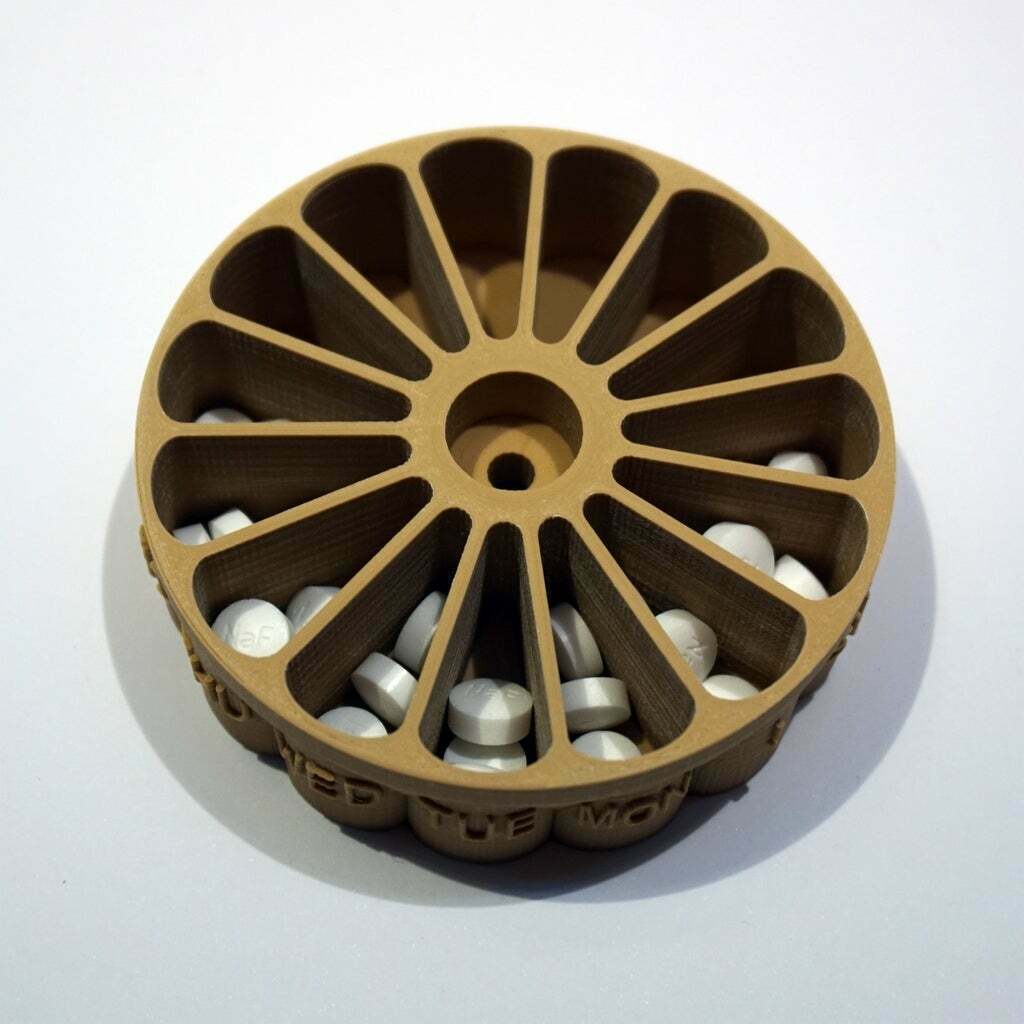

Each slot is clearly marked with a weekday, making it easy to see if you have taken your daily pills. There is also one extra slot marked "!" for special circumstances such as pain relief, heart- or allergy medicine.

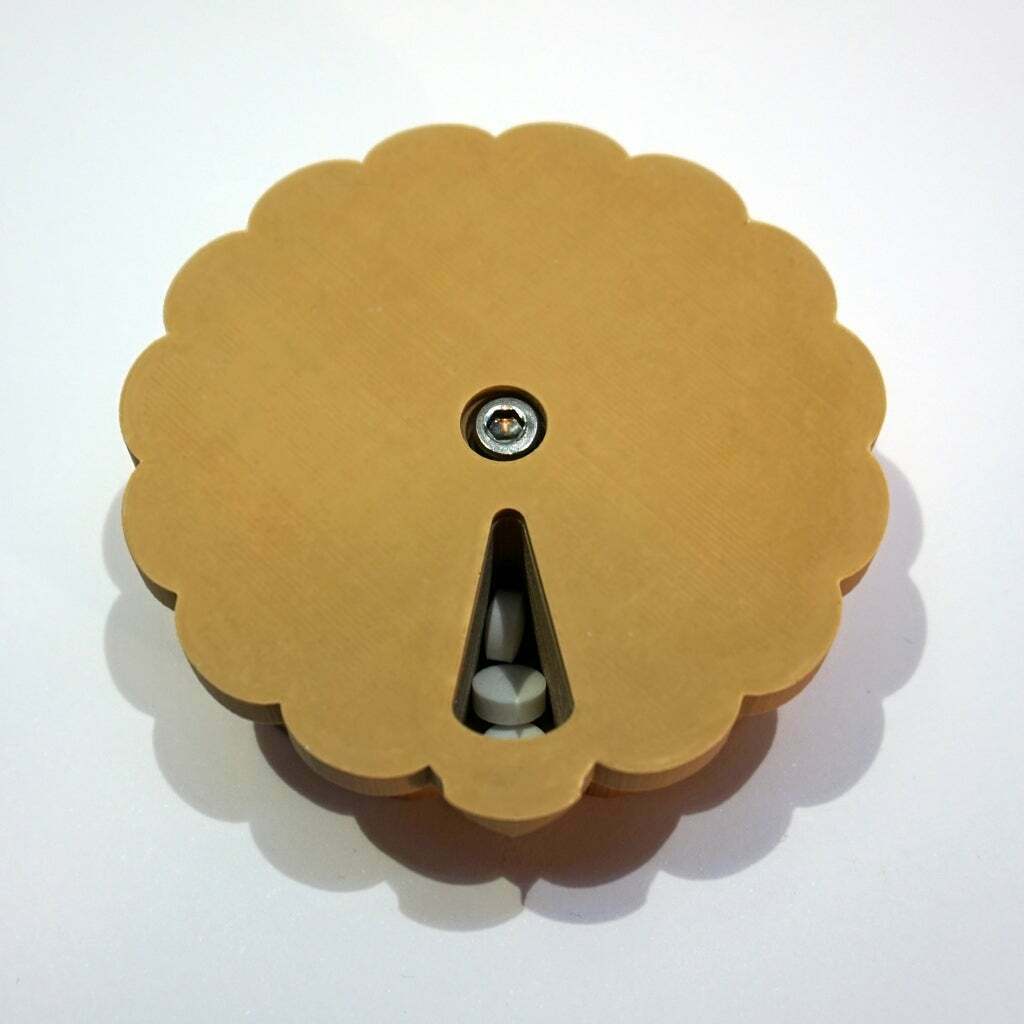

The dispenser has an simple but efficient two-function turn mechanism, which prevents you from turning the lid in the wrong direction, and will snap the lid in position for every day with an audible "click". This effect can be adjusted with the center bolt; If you have very weak hands, loosening the bolt will make the lid easier to turn. If you are travelling, slightly tightening the bolt will prevent it from accidentally turning in your bag.

The lid forms a lip around the container edges to prevent light from interfering with light-sensitive medicines - for those I also recommend printing with a high infill to block as much light as possible.

The grip-friendly shape of both the container and the lid makes it easy to turn, even with weak hands. The rounded flower seed shaped slots prevent pills from getting stuck in the corners.

Only 90mm wide including the lid, but still capable of holding more than 130 medium-sized (9x5mm) pills.

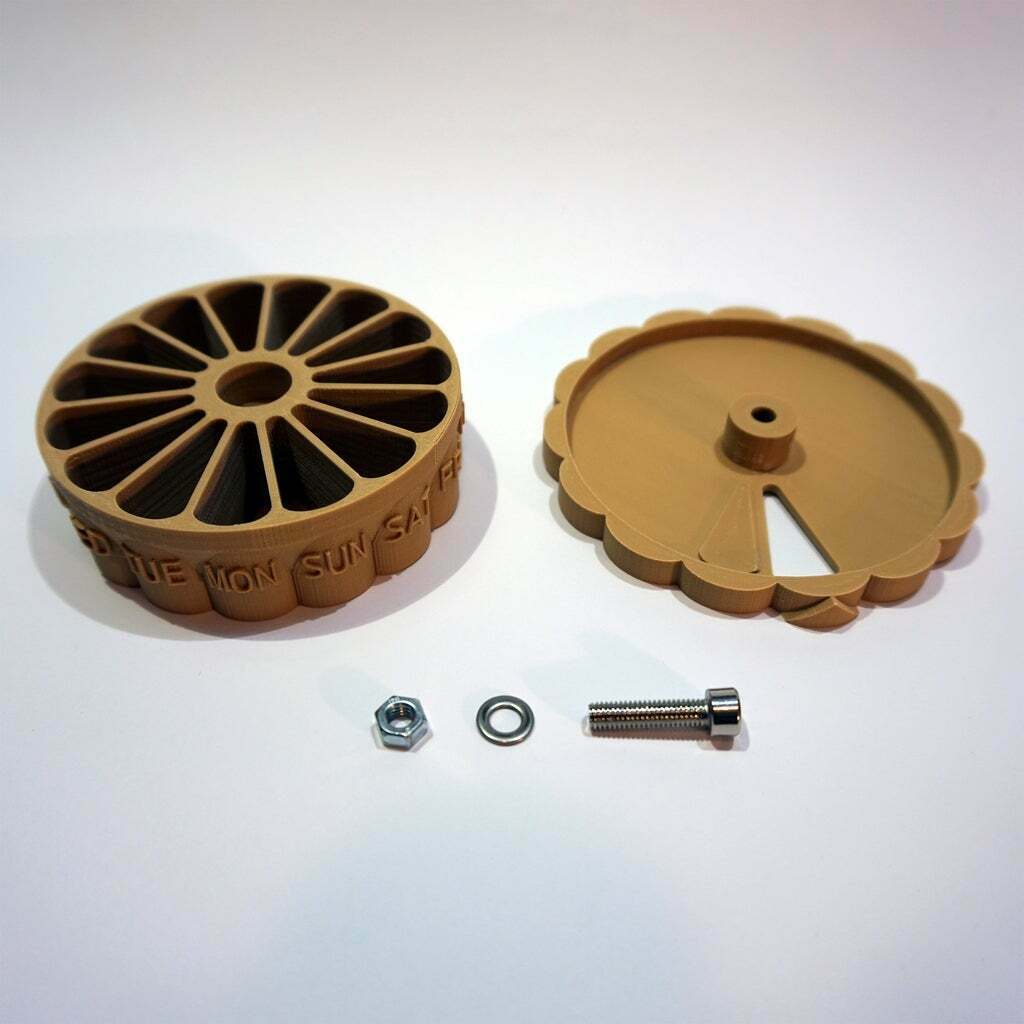

Uses a single 20mm (excluding head) M5 bolt, a matching nut (regular or locking) and a 10mm washer (optional but recommended). In the photos I'm using a socket head bolt, but I've designed the opening large enough to use wider head bolts as well.

UPDATE 2017-04-11

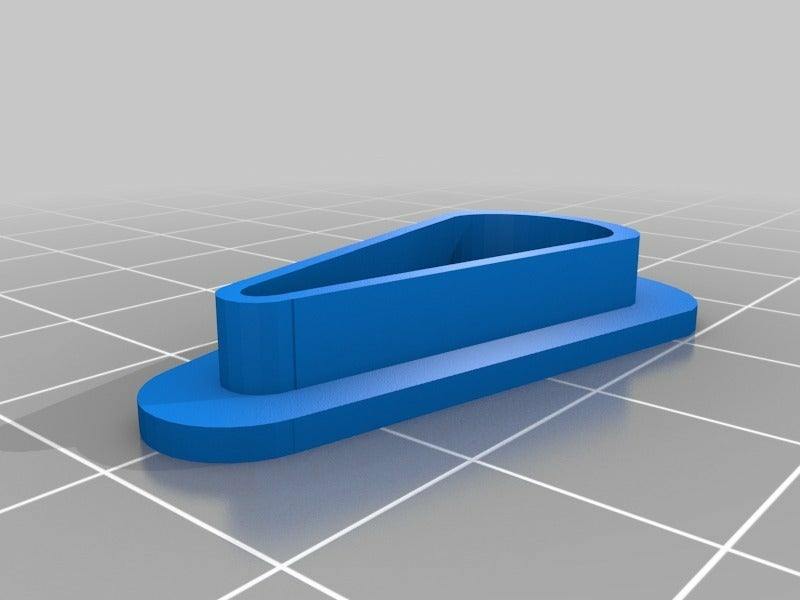

Added an optional plug that will prevent dust from getting into the open slot, as well as locking the lid to prevent it from turning. Credit for the plug idea goes to 58webbing as can be seen in his make.

If you like this and want to support my designs, please consider leaving a tip or buy the logo-free version of this model on http://cults3d.com/en/home/two-week-pill-container-medication-dispenser (it's only 2 bucks). The logos in this free version will not be visible when assembled.
