The Light Sky Bird Temple

3D model description

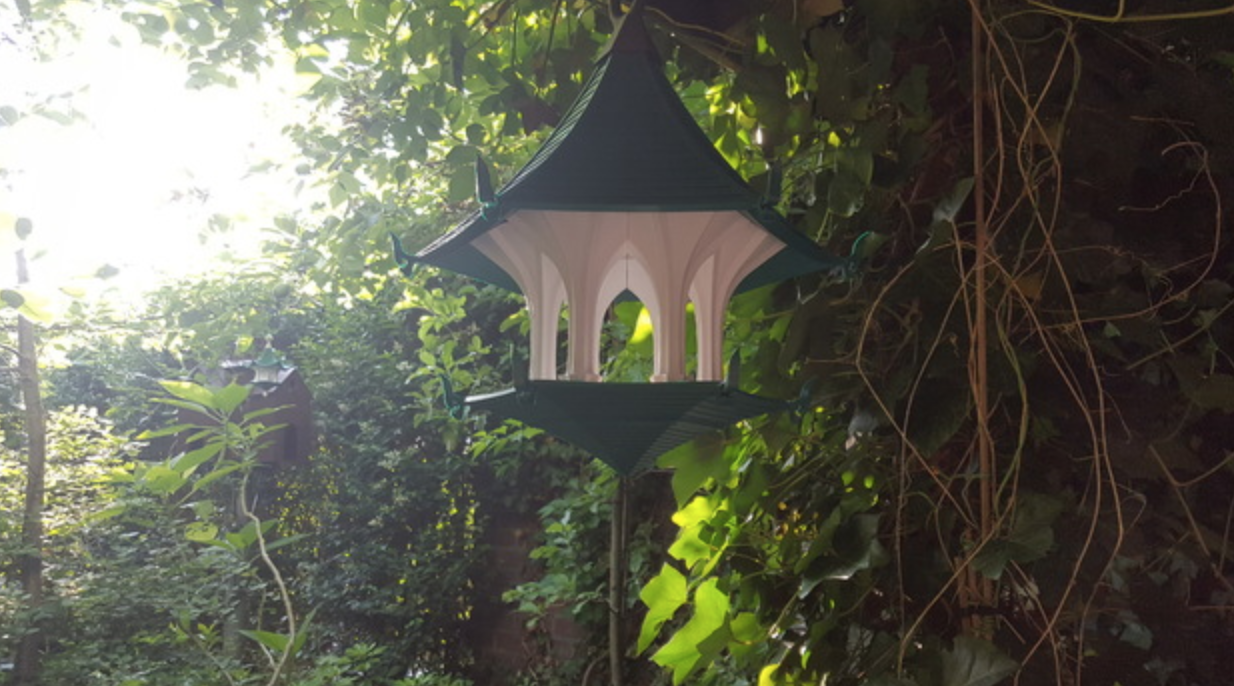

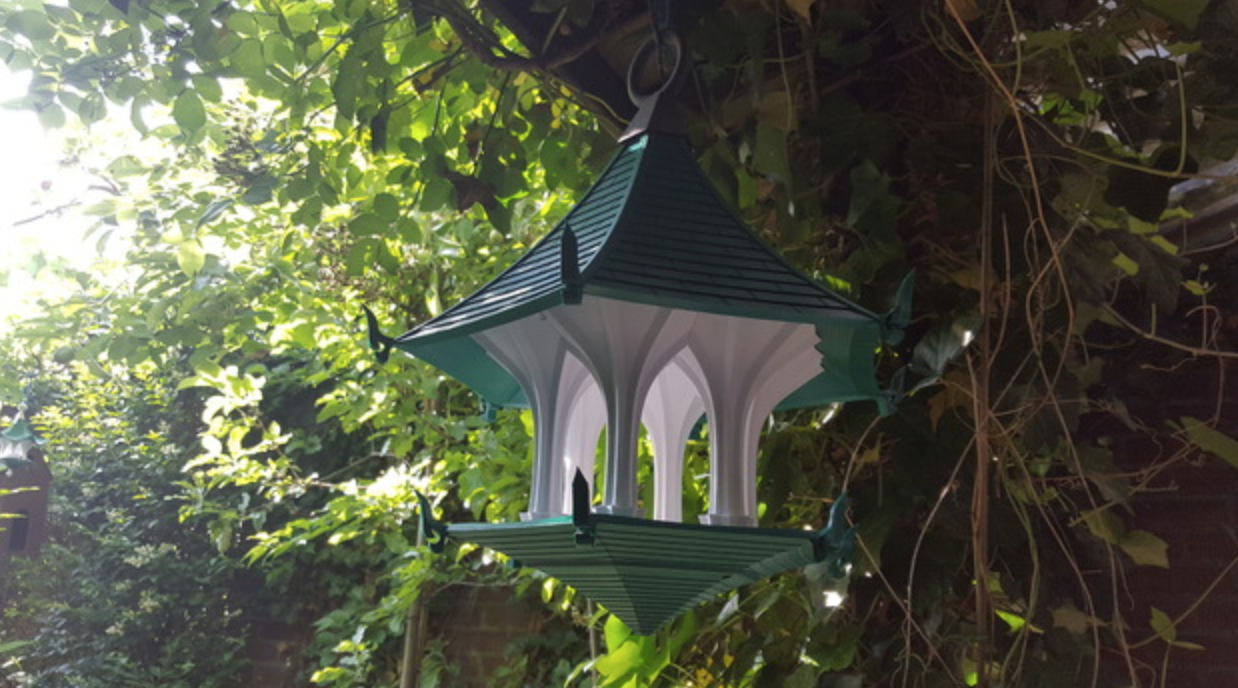

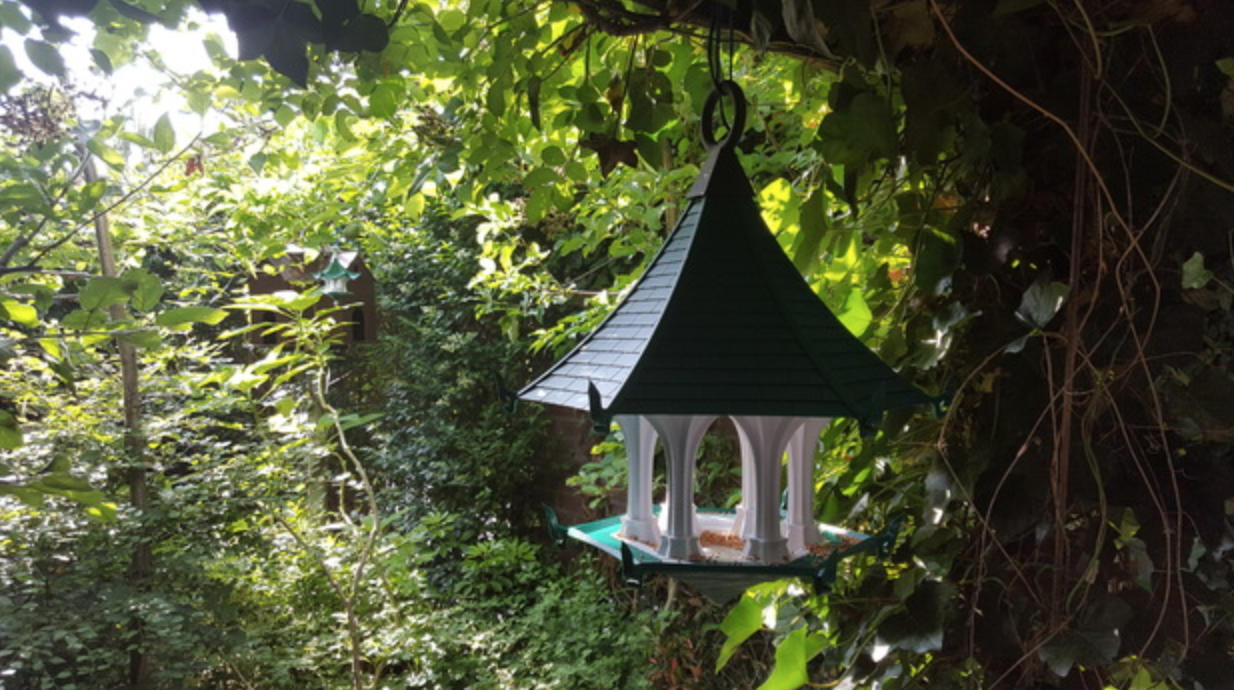

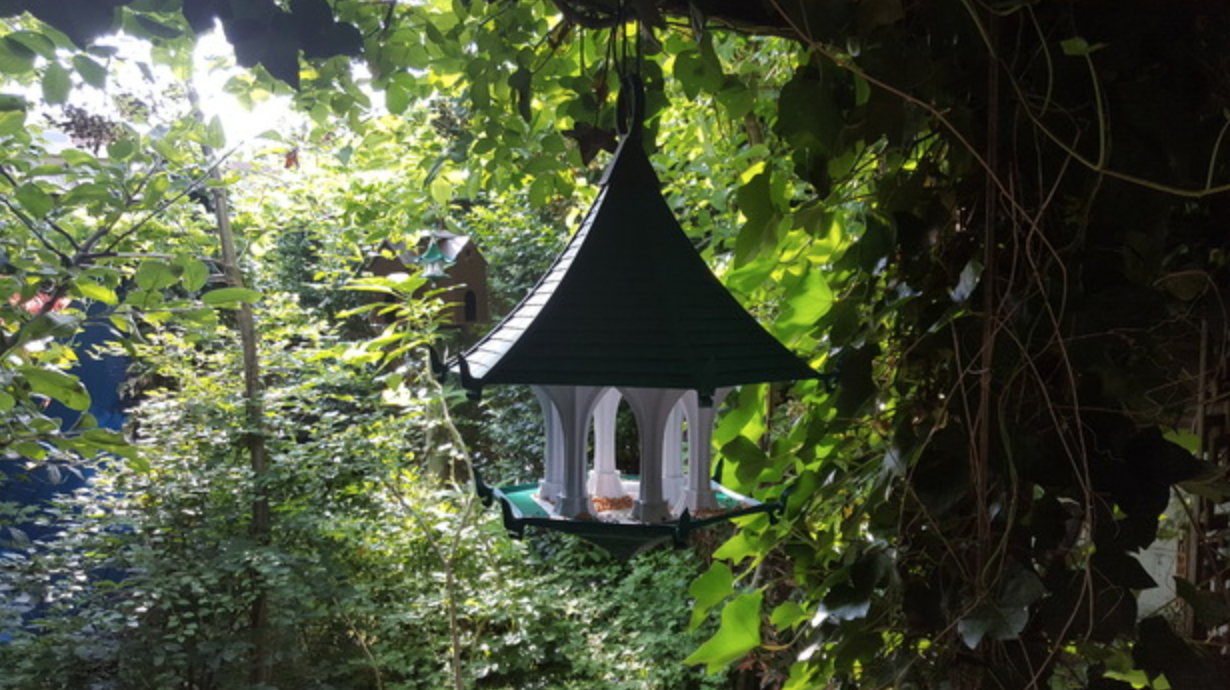

Jet another Bird Feeder that came into my mind :-) I tried to copy over that image into my computer. It became : The Light Sky Bird Temple :-)

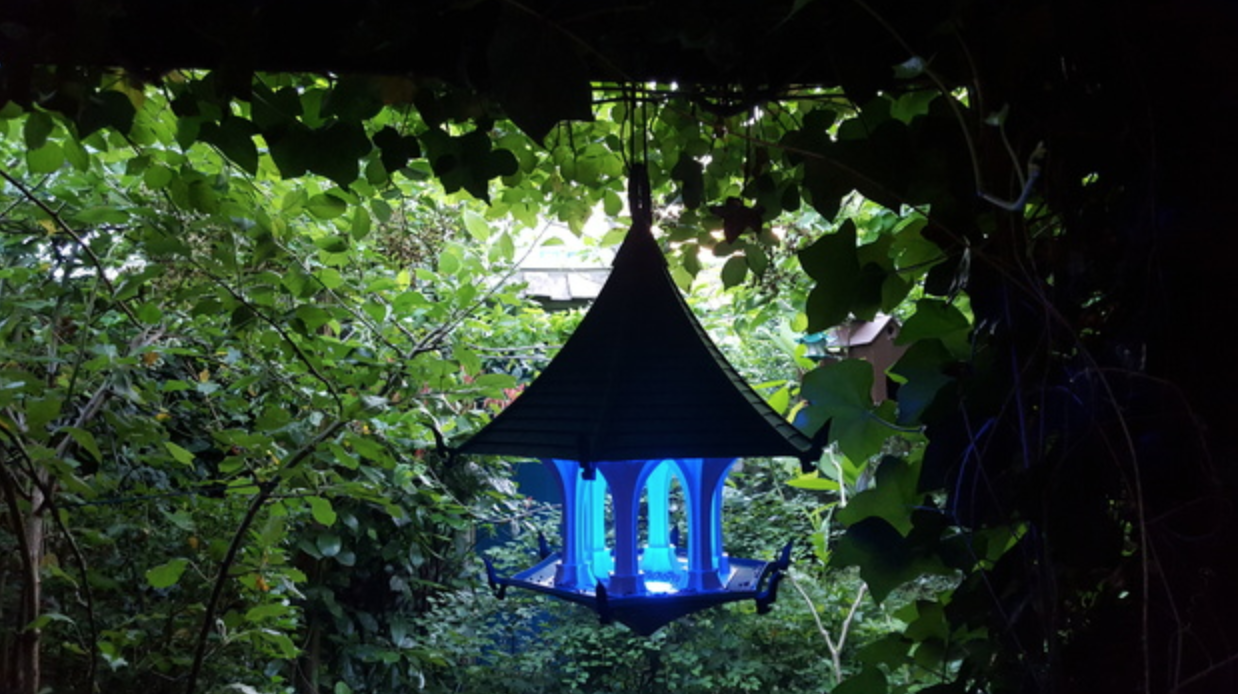

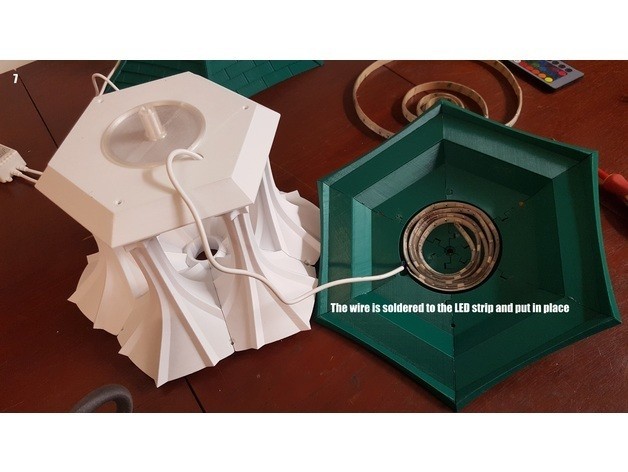

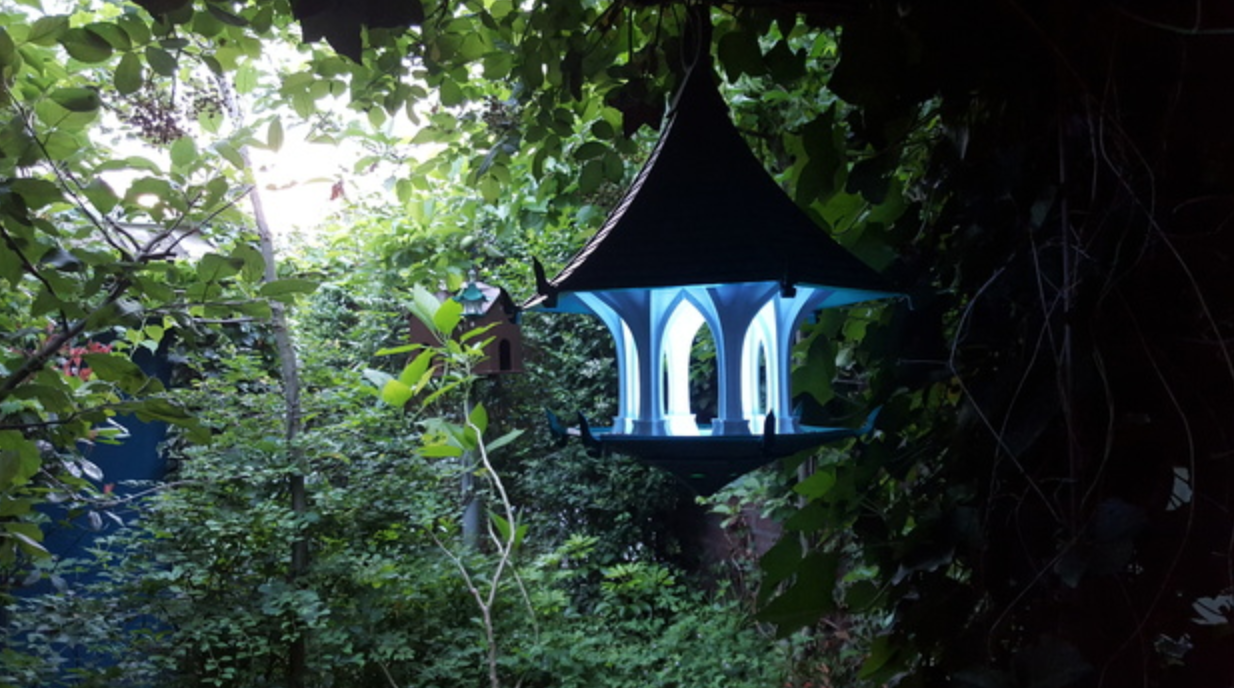

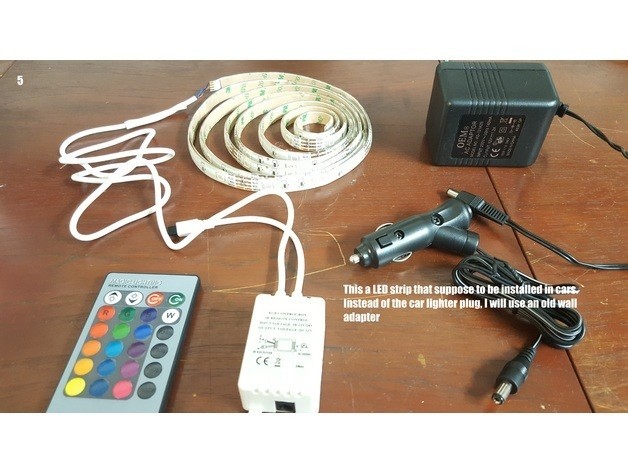

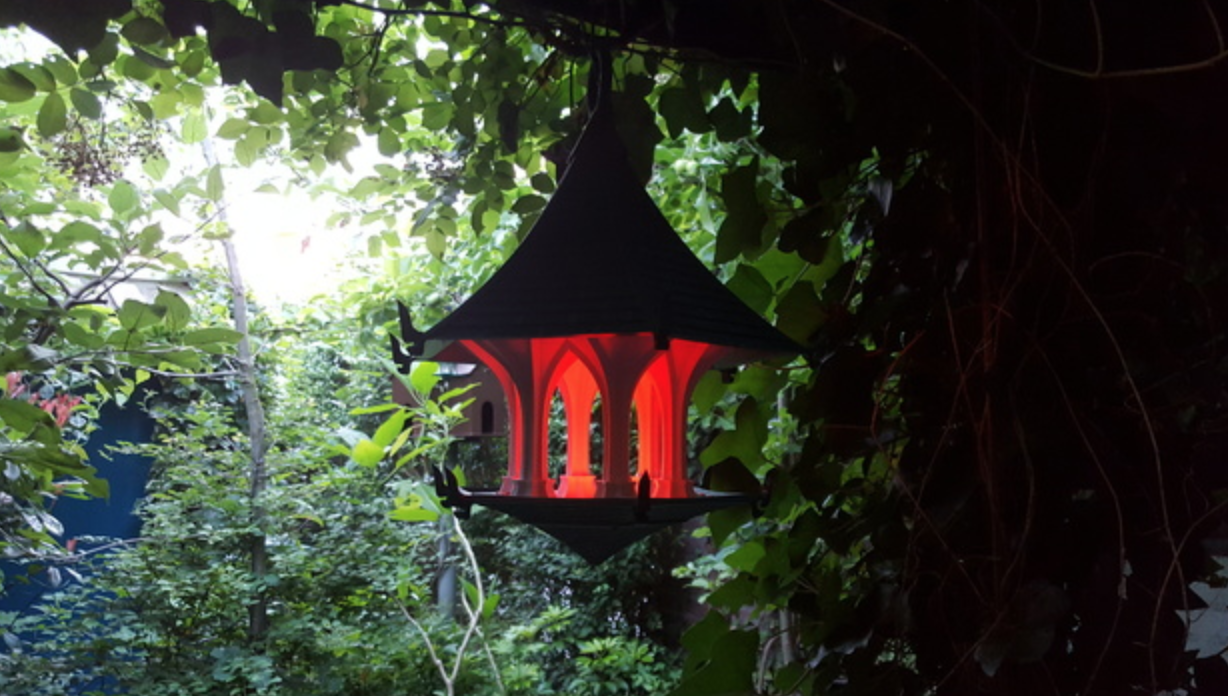

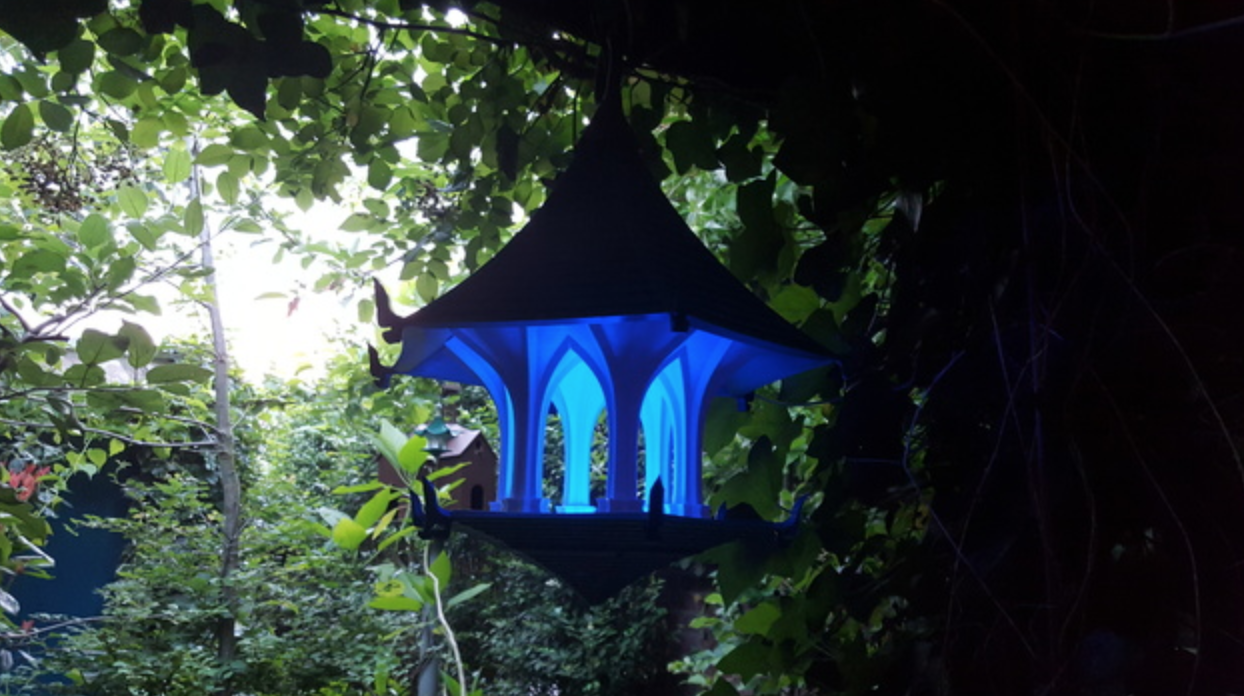

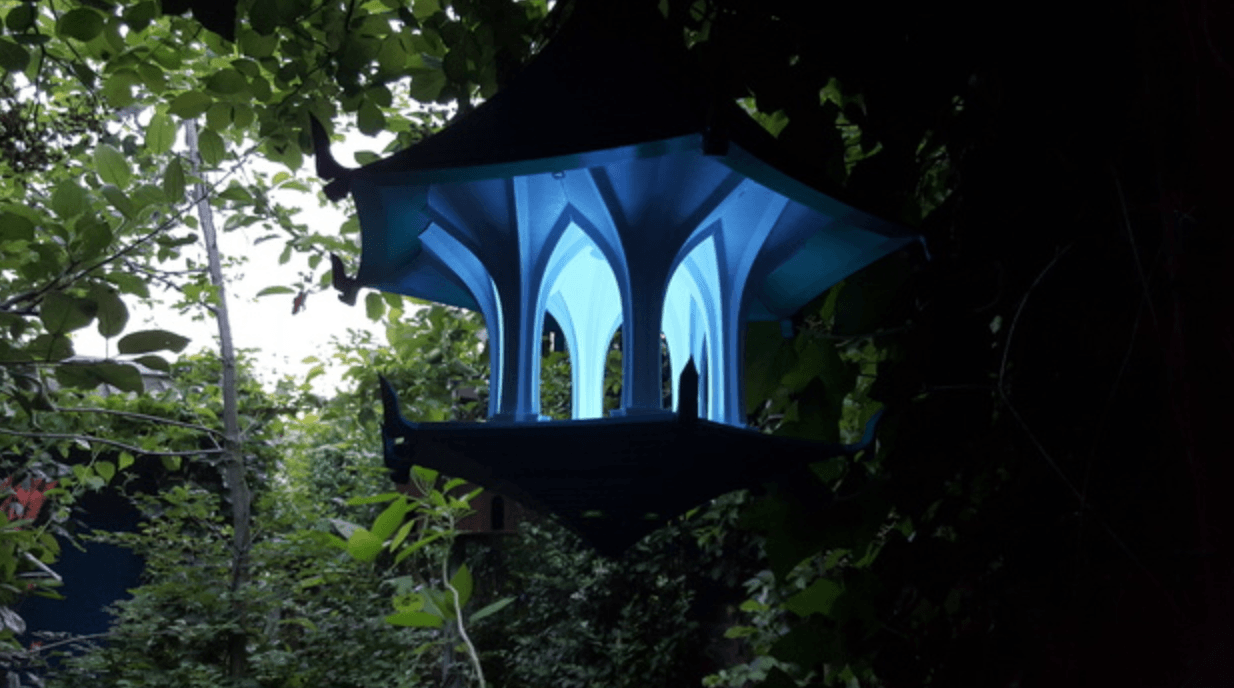

This one has a build in lamp. The lamp sits in the feeder part and shins up. The Lamp is actually a RGB LED strip, so it can change colors also. But I like the white light the best myself.

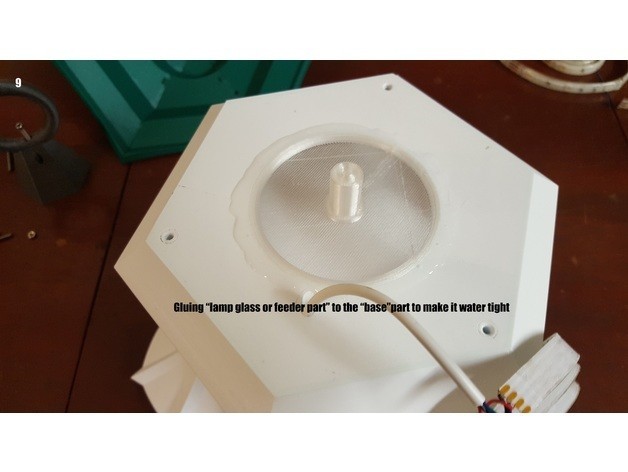

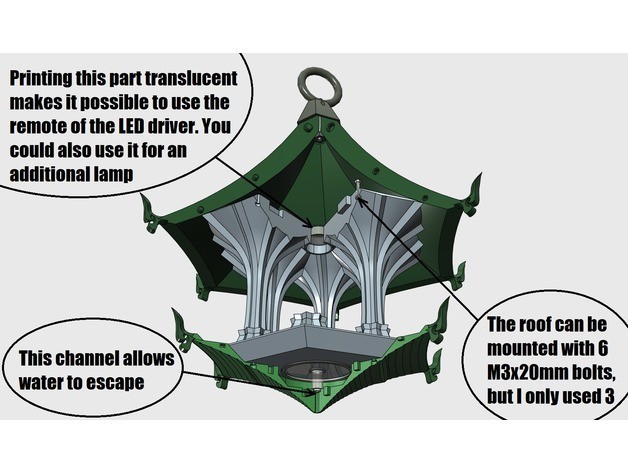

I tried to make the feeder part in such a way that water can easily escape trough an build in channel. Because there is a lamp inside it's possible to take this one apart for fixing purposes in the future. Some parts are glued, others are bolted together. See pictures.

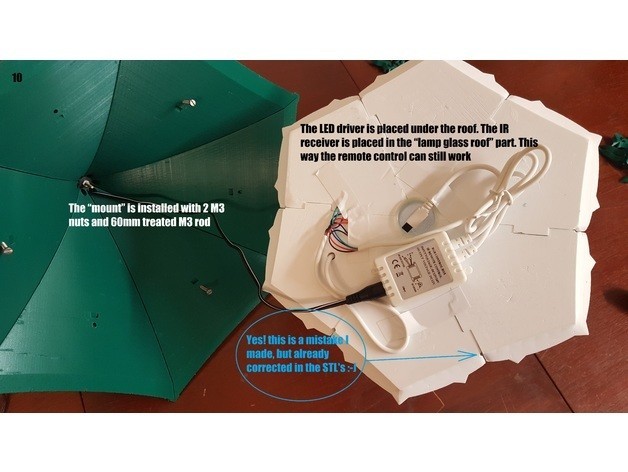

In the center of the pillars sits a “translucent PET-G printed” cylinder (lamp glass roof.stl) wherein the IR receiver is placed. This way the remote can still be used :-). If you do not have a remote, you can also use this part to place a second lamp :-)

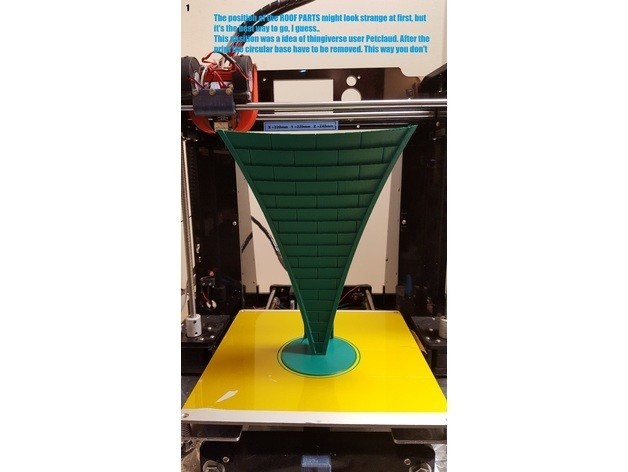

The position of the “ROOF PART with cable bore.stl” might be strange but works very good.

3D printing settings

Printing details for people who like a guide line:

base.stl is printed with 30% infill and 4 wall, bottom & top lines/layers in PLA
foundation parts are printed with 10% infill and 4 wall, bottom & top lines/layers in PLA
lamp glass or feeder part.stl is printed 25% infill, 3 wall lines, 3 Top layers & 2 bottom layers in PET-G
lamp glass roof.stl is printed 25% infill, 2 wall lines, 3 Top layers & 2 bottom layers in PET-G
mount STL's are printed 35% infill and 4 wall, bottom & top lines/layers in PET-G Carbon
the pillars are printed 10% infill and 4 wall, bottom & top lines/layers in PLA
the roof parts are printed 10% infill and 4 wall, bottom & top lines/layers in PLA
the spikes are printed 20% infill and 4 wall, bottom & top lines/layers in PLA (the heat bed temp must kept as low as possible to prevent warping on the spiky tips/ends)
What you need to assemble this object the way I did:

1X base.stl
1X foundation part with bore for cable to the baseA.stl
1X foundation part with bore for cable to the baseB.stl
2X foundation partA.stl
2X foundation partB.stl
1X lamp glass or feeder part.stl
1X lamp glass roof.stl
1X mount second peace.stl
1X mount with bore.stl

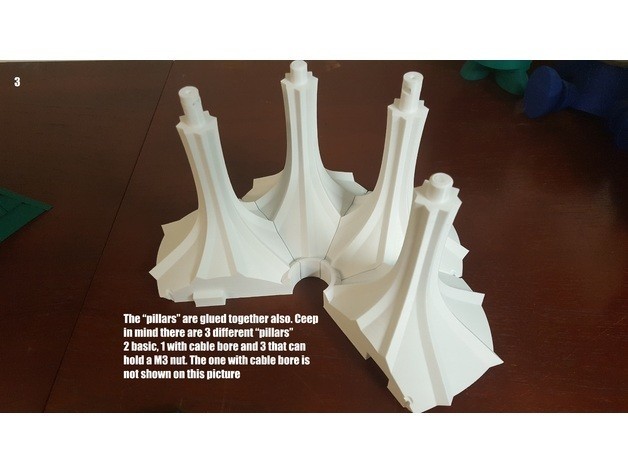

1X pillar with bore for cable to the base.stl
3X pillar with mounting for base.stl
2X pillar.stl
6X ROOF PART with cable bore.stl
6X spike foundation part.stl

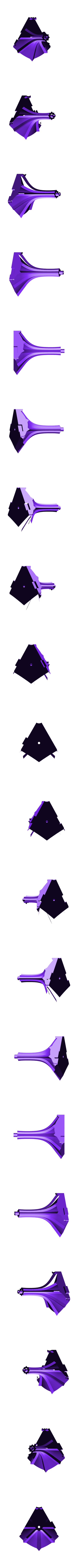

6X spike roof.stl

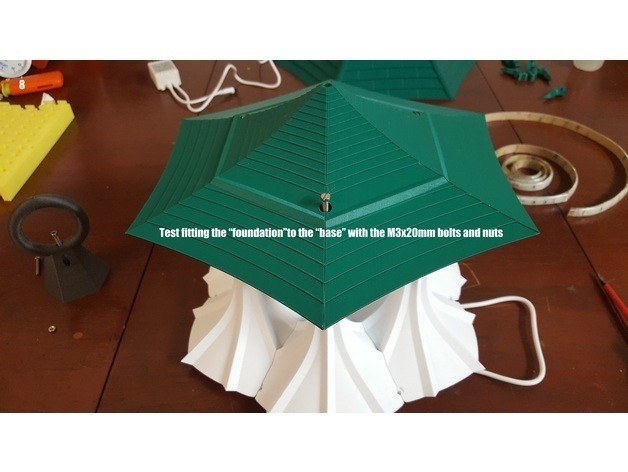

6X M3x20mm bolt & nut (3 extra ones are optional for roof)
1X M3x60mm bolt & nut (or 2 nuts and 60mm treated rod as I did)
1X Lamp or LED to mount inside.
Super Glue & Universal Glue for the base feeder part

If you have any questions, feel free to ask
If you think I made a mistake or made some other kind of error, please inform me :-)
