The HIVE - Stackable Hex Drawers

?
Creation quality: 4.3/5 (6 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

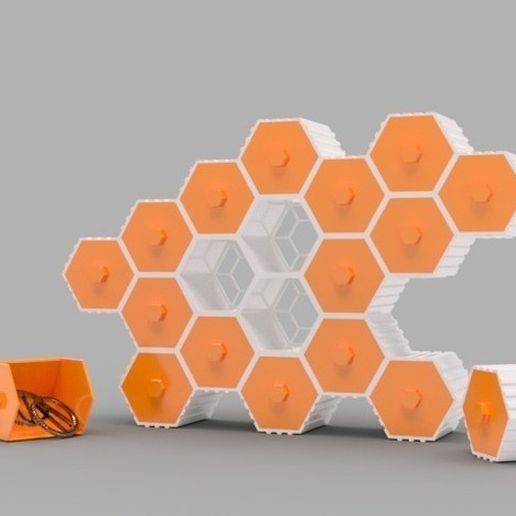

My HIVE modules are a honeycomb inspired modular drawer system

Print module at 101%-102%

Print drawers at 100%

Thanks for the blog post Adafruit!
Thanks for the blog post lays147!


3D printing settings

Printer:
Maker Select V2

Rafts:
Doesn't Matter

Supports:
No

Resolution:
150-250 microns

Infill:
5%

Notes:

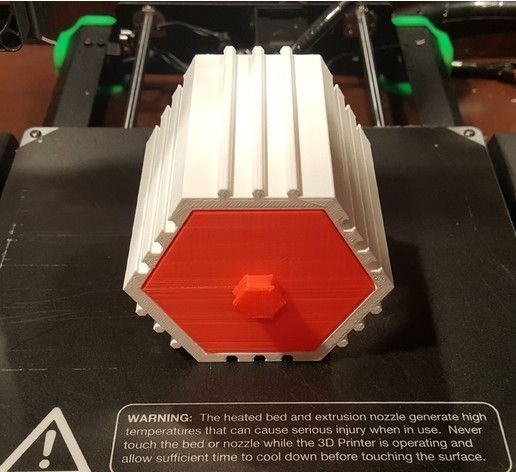

Print module at 102% in order for the drawers to fit! Rafts are important for the drawers. Without the raft the drawer will have a square-ish bottom and you will need to sand it in order for it to fit in the module. Rafts are important for the module too. The tests I did without rafts produced a bad first layer.

My Settings:
Print module at 102%
Print drawer at 100%
Shell Thickness: 1.2mm
Printing Temperature: 208C
Bed Temperature: 60C
Time: about 5 hours 40 minutes

3D printer file information

  • 3D design format: STL Folder details Close
    • HIVE_Drawer_Half_Size.stl
    • HIVE_Drawer_Insert.stl
    • HIVE_Drawer_Label.stl
    • HIVE_Drawer_with_Removable_Knob.stl
    • HIVE_Module_V3.stl
    • Hex_Drawer_Divider_FIXED.stl
    • Hex_Drawer_Divider_Small_FIXED.stl
    • Hex_Drawer_FIXED.stl
    • Hex_Drawer_Knob_FIXED.stl
    • Hex_Drawer_Removable_Knob_FIXED.stl
    • Wall_mounting_bracket.stl
    • drawer_fit_test.stl

    Learn more about the formats

  • Last update: 2020-12-05 at 15:46
  • Publication date: 2017-09-21 at 18:47

Copyright

©

Tags

Creator

I am Daniel O'Connell, a Maker from Philadelphia. My philosophy is that every model must be as useful as it is beautiful.

For business inquiries please contact o3dofficial@gmail.com

Interested in selling my designs? Contact me before listing on Etsy or other sites. I will have your listing taken down if I did not grant you permission.
