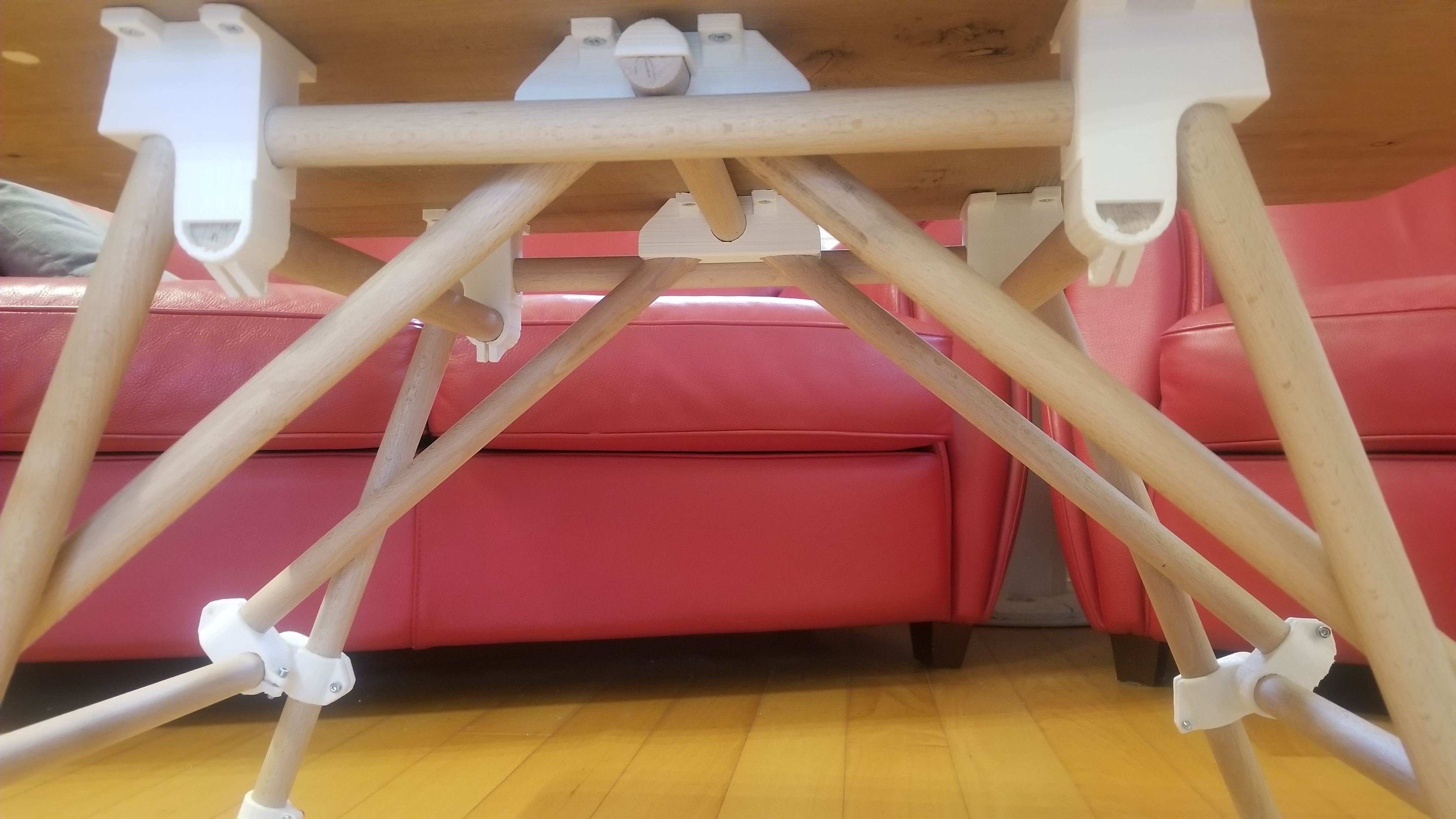

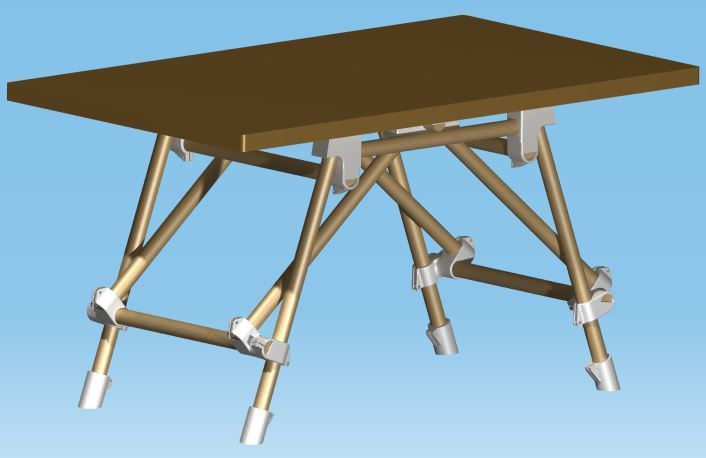

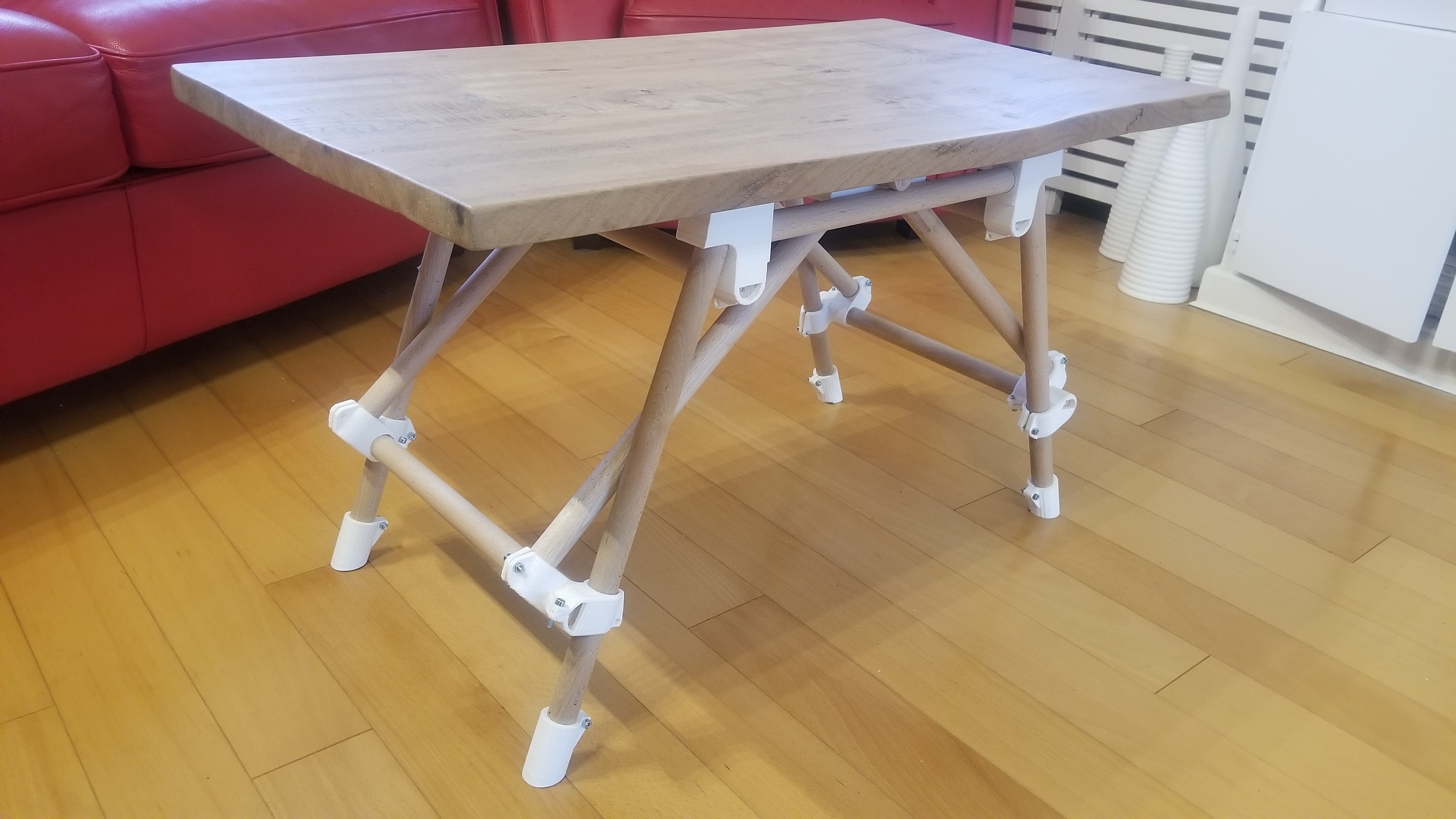

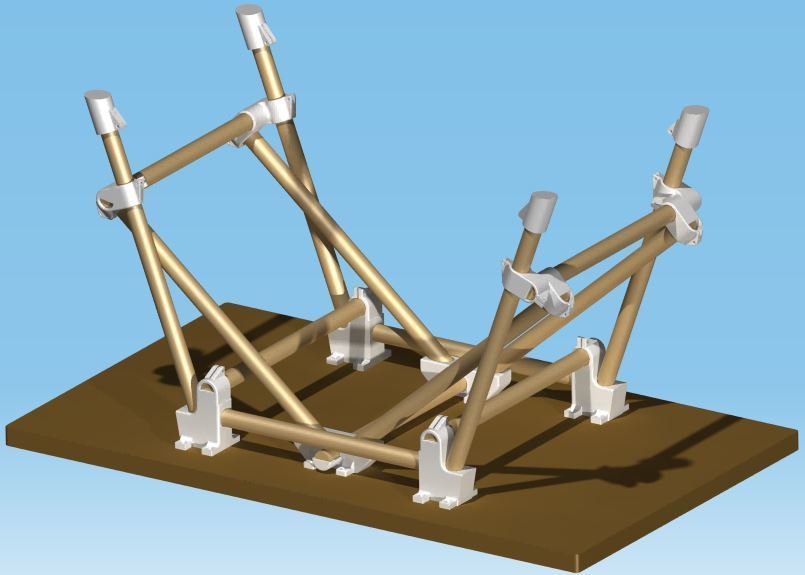

Da Vinci coffee table (Low table)

3D model description

The original idea comes from "Hyphen" Link below:

https://cults3d.com/en/3d-model/home/hyphen-table

I've resized the table's junctions to make it more compact.

Height = 430 mm

Length = 800 mm

Width = 470 mm

This table is composed of:

  • Fir cylinder Diameter 21.5 mm

  • 20 CHC Screws M4x15 + Nuts M4

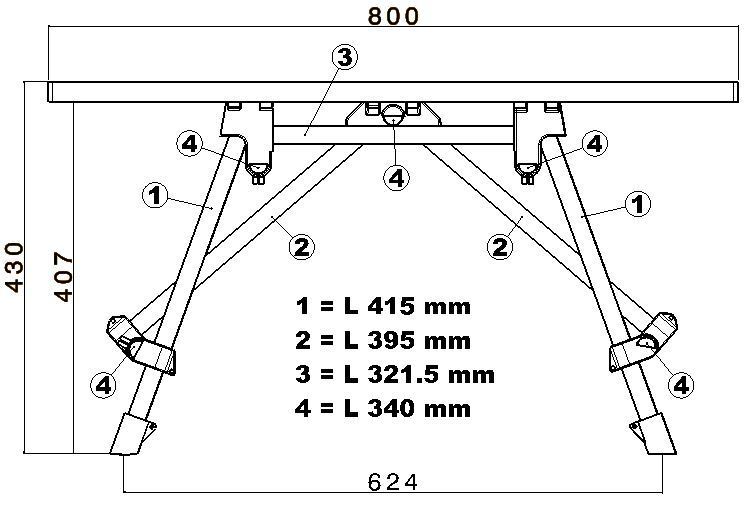

All the dimensions of the components are on the attached diagram.

3D printing settings

PLA

Printing: Fast 0.2 mm

Support only required for the connection part

  • 3D file format: STL

Tags

Creator

License

CC BY NC SA
