Shelf system

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

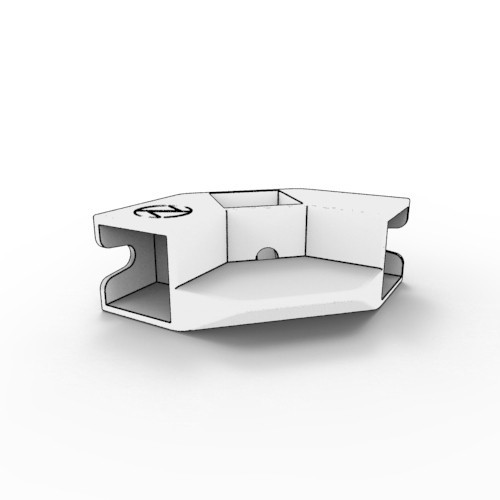

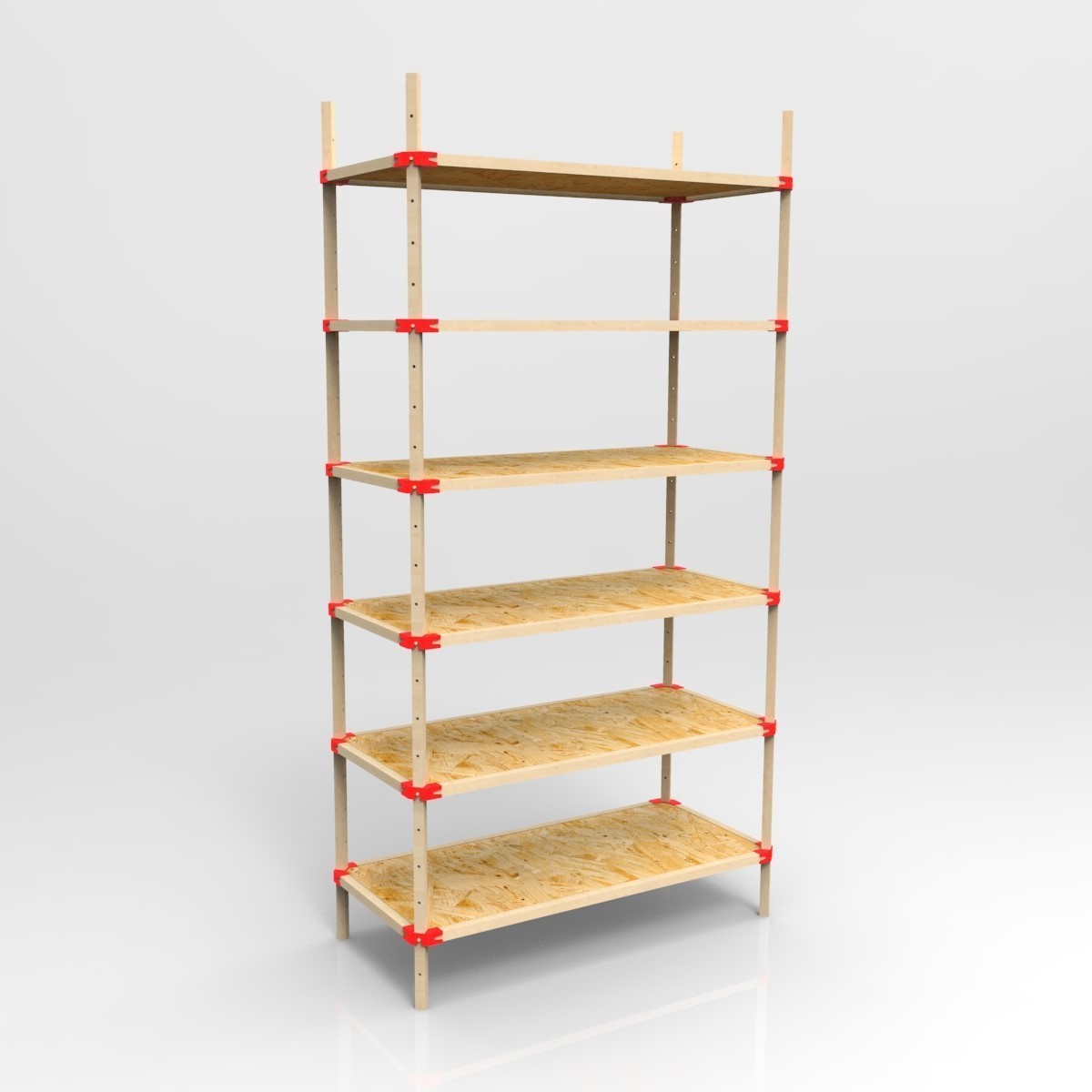

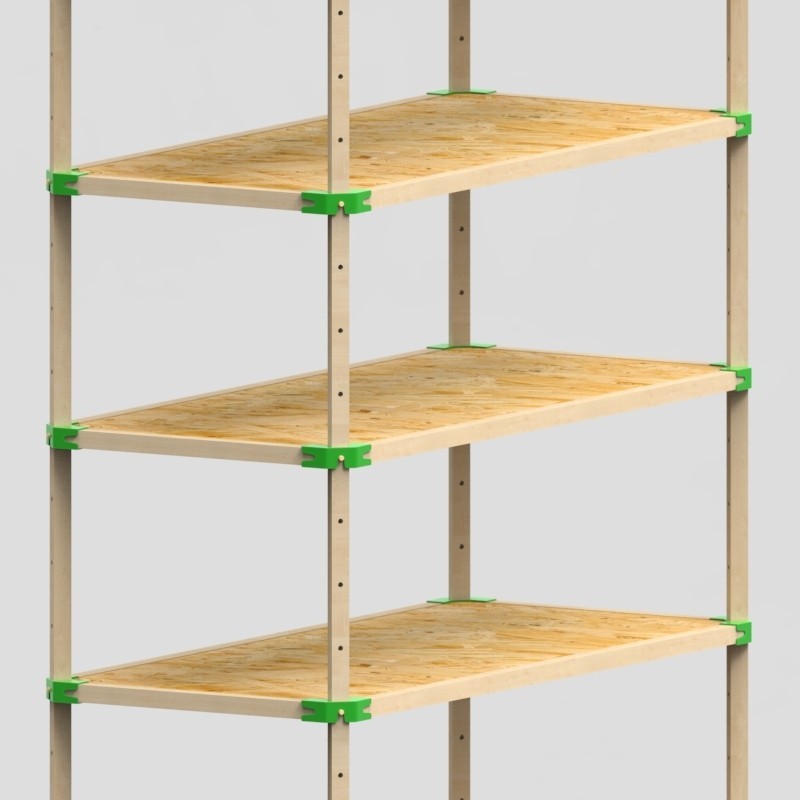

Assembly element to create a screwless shelf system.

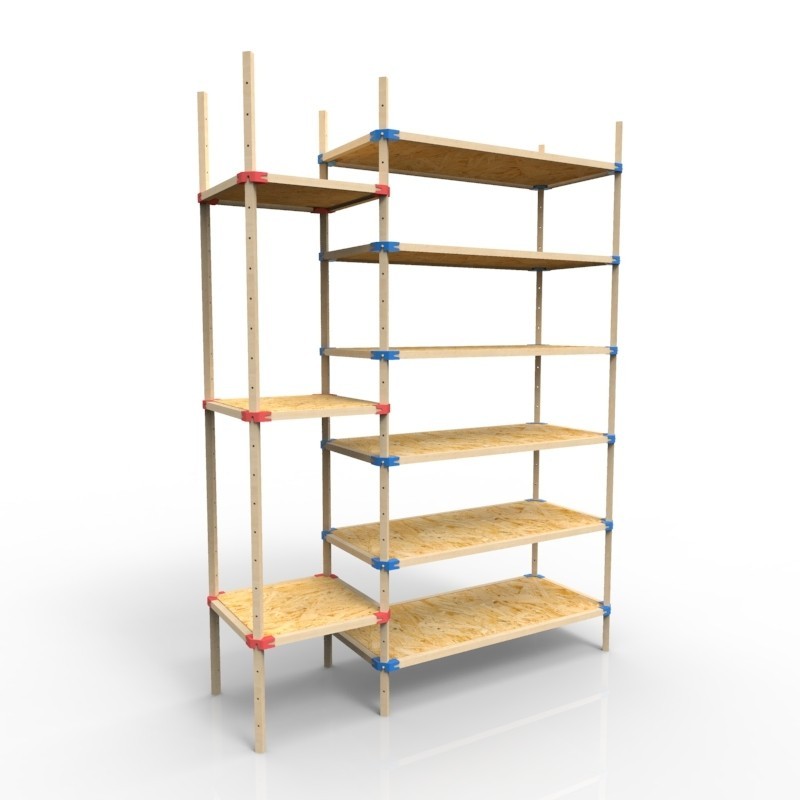

Choose your own dimensions and modify your layout as you wish without risk of damaging your structure.

Materials required :

4 strips of 27x27mm section to be drilled (you can use the template provided to place the Ø8mm drilling markers) to create your posts.

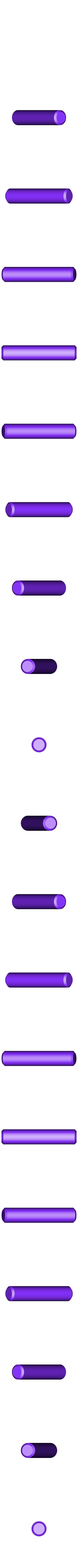

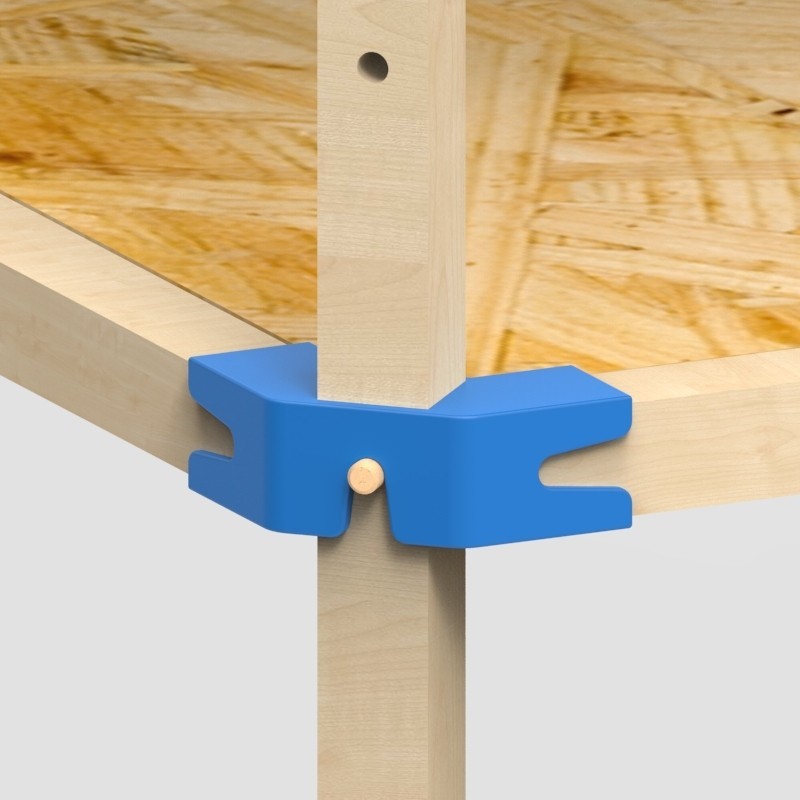

A package of wooden dowels 8X40mm (or print them, they are supplied in STL format)

Other cleats of the same section to create your shelf frames and consolidate your uprights.

15mm thick wooden panels (recommended) to create your shelf trays.

3D printing settings

Recommended print height 0.2 or 0.1.

Filling 20% or more

  • 3D file format: STL
  • Last update: 2018/10/29 at 23:11
  • Publication date: 2018/07/23 at 00:02



Designs 2
Downloads 4
Sales US$5
Followers 9
