Triple holder for Dyson V6 accessories

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.9k views
  • 5 likes
  • 10 downloads

3D model description

This is a wall bracket designed to store your Dyson V6 vacuum cleaner accessories. This holder is designed for 3 different tips.

A pen spring must be provided for the holding clip to work properly. A single spring cut in three will suffice for the support. The ends where the coils are tightened are normally held perfectly in the cross provided for this purpose. For the central piece of the spring cut into three sections, the coils must be tightened at least on one end. For my part, I tightened them slightly and then fixed the spring with a point of glue because this piece of spring did not fit as well on the cross as the 2 ends.

It is also possible to operate the clips without a spring, but on the one hand it is necessary to lock the clip while holding the accessory to be fixed and on the other hand, the clip tends to open as soon as you lift the accessory a little. It may then happen that you accidentally unhook an accessory by taking another one... That's why I finally decided to sacrifice an old pen to add springs to my stand!

The support is provided by a wall mounting with 2 screws but you can also use a double-sided adhesive as I did in order not to damage the door on which I fixed it. Take care to sand the back side of the substrate to make it rougher before gluing it to the double side because this side is otherwise so smooth that the adhesive can be easily removed. For my part, I used a double-sided foam adhesive designed for mirror attachment, if you have any other recommendations, do not hesitate to share them in your comments.

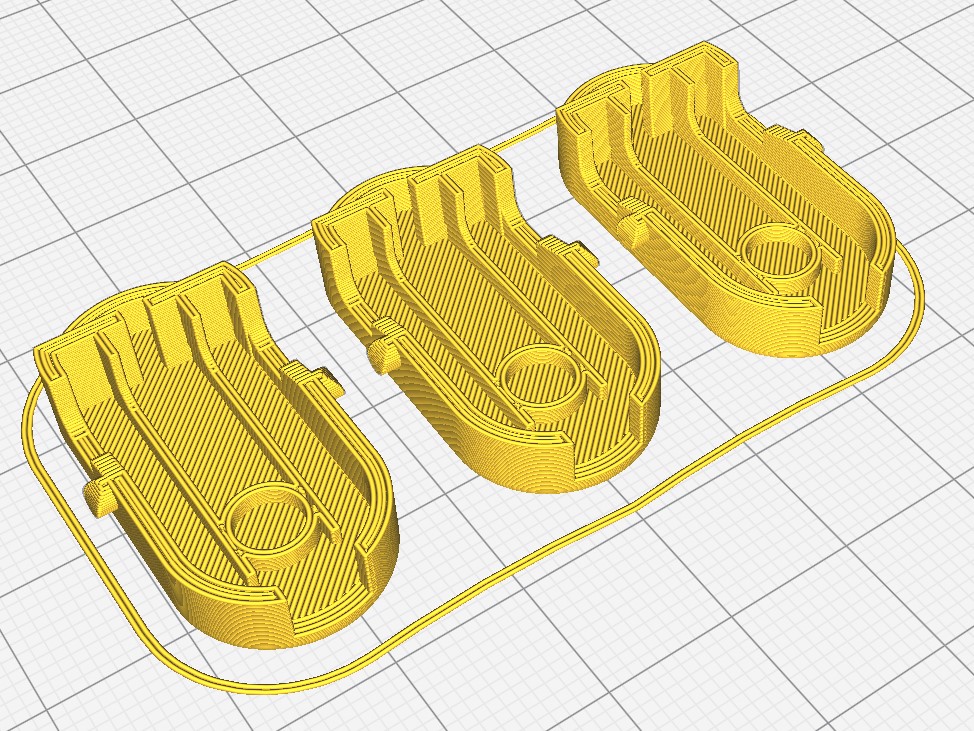

3D printing settings

PLA

Printing without support in 0.15 mm layers

Wall Thickness 1.2 mm

Bottom/Top Thickness 0.6 mm for the body and 1.2 mm for the clips

10 or 20% filling

About 8 hours of printing

  • 3D file format: STL
