Skateboard wall mount with backlighting

Download 3D printing templates Skateboard wall mount with backlighting, ledieu_jonathanDownload 3D printing templates Skateboard wall mount with backlighting, ledieu_jonathanDownload 3D printing templates Skateboard wall mount with backlighting, ledieu_jonathanDownload 3D printing templates Skateboard wall mount with backlighting, ledieu_jonathanDownload 3D printing templates Skateboard wall mount with backlighting, ledieu_jonathanDownload 3D printing templates Skateboard wall mount with backlighting, ledieu_jonathan
Download 3D printing templates Skateboard wall mount with backlighting, ledieu_jonathan

Did you 3D print this model?

3D model description

It is a Skateboard support for wall presentation integrating a small battery powered backlight system to sublimate your boards and make at the same time a small atmosphere.

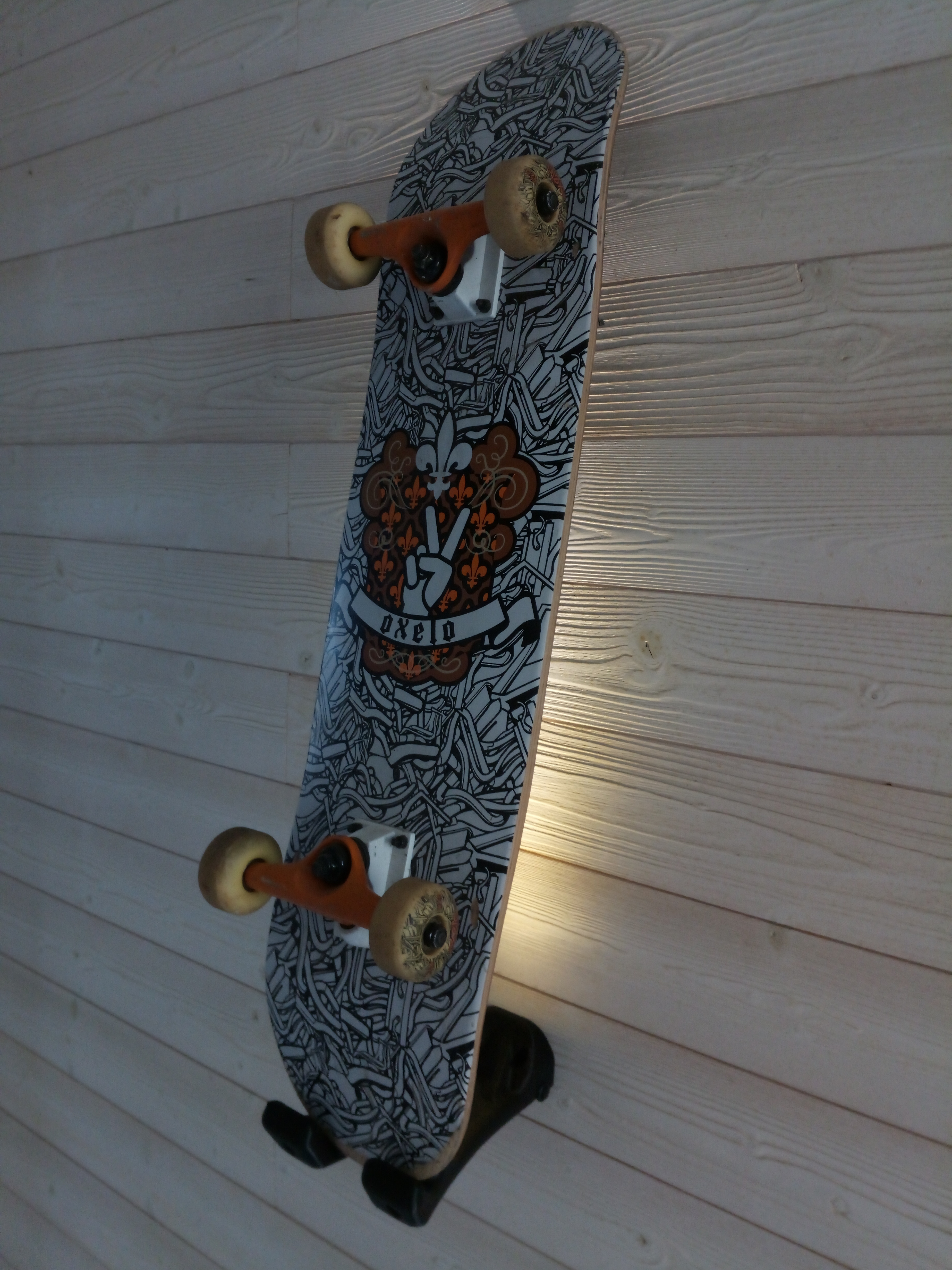

This support has the particularity of presenting the board vertically and showing the underside of the skate (the most aesthetic and personalized).

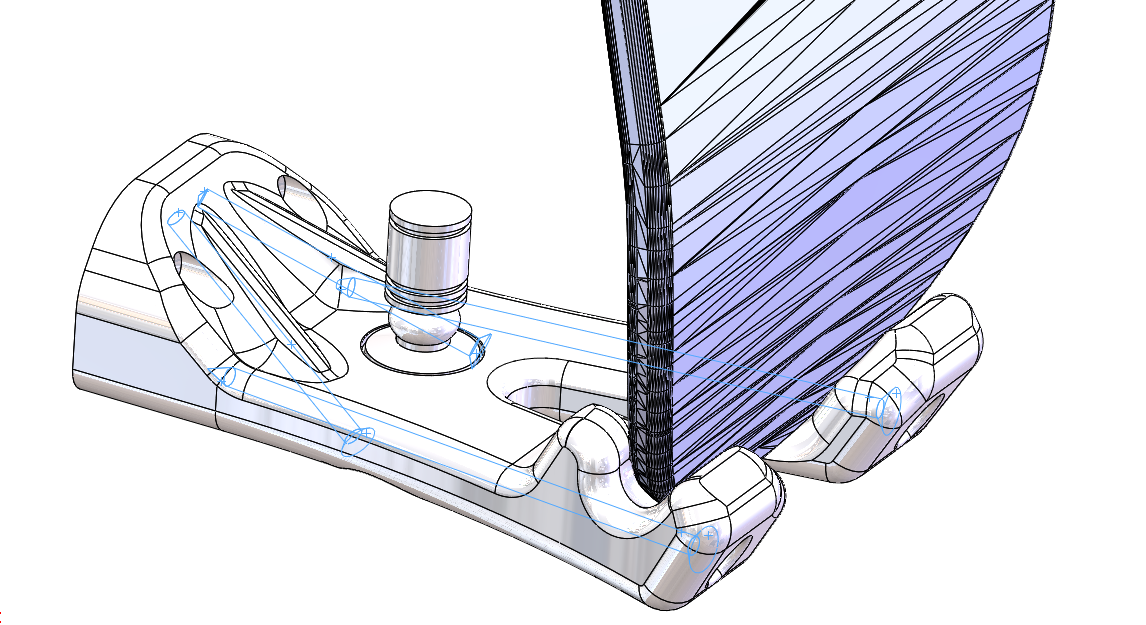

Because of the large overhang, I decided to reinforce the structure by adding metal screws. This has the effect of reinforcing the material and improves the mechanical bending strength (especially with PLA). Adjustments are set to tighten the material without splintering the fiber. These are standard screws purchased in bulk (DIY store) with the dimensions specified below:

  • 2 Screws (burnished steel plated): L140mm ØExt thread 4.7mm

  • 2 Screws (electro-galvanized steel wood screws): L80mm ØExt thread 4.7mm

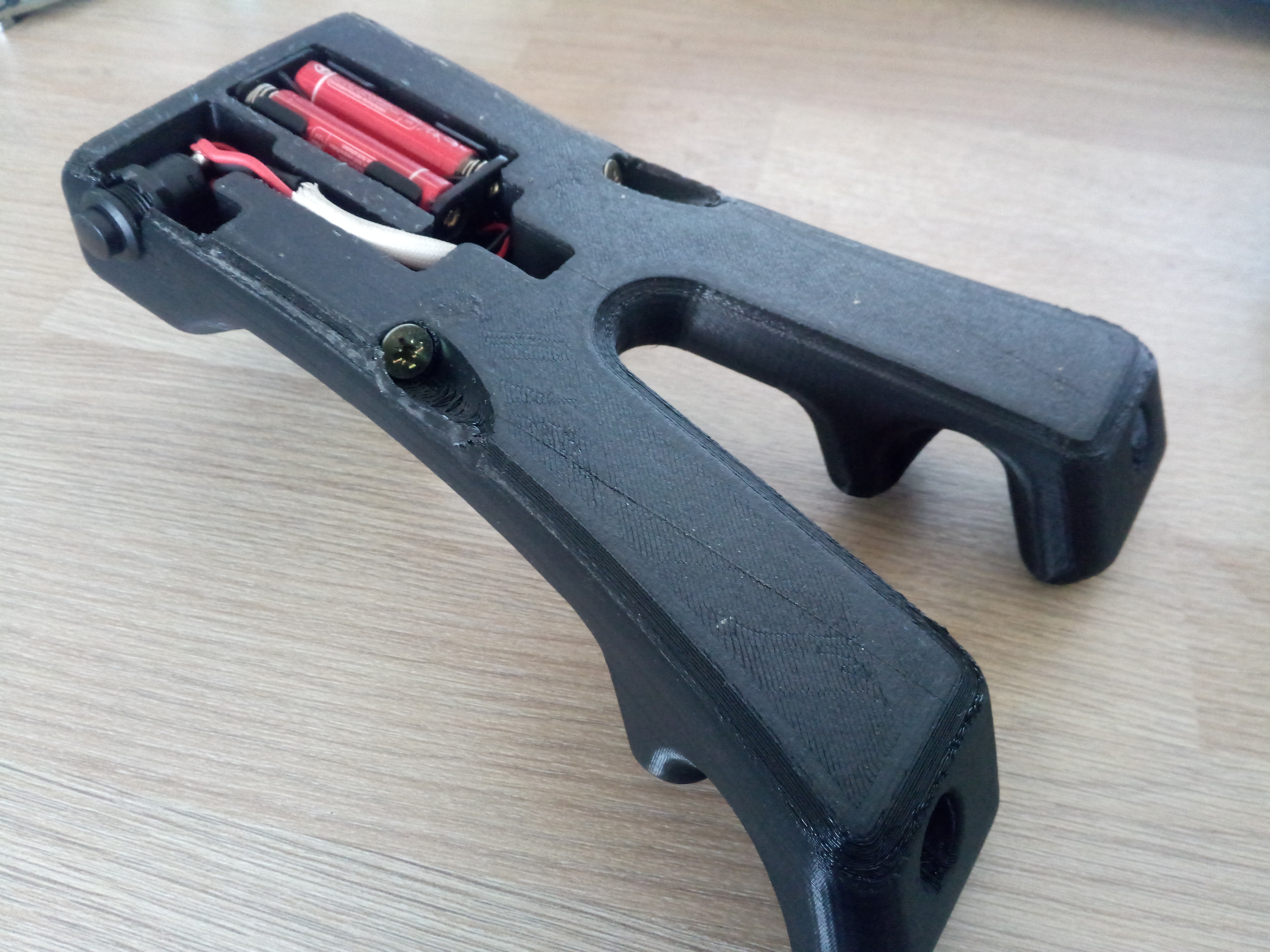

  • 2 AAA batteries (R03 of 1.5V)

  • Battery holder 3V (2x1.5V AAA R03 of 1.5V) (H13mmxW25mmxW53mm) with wires

https://amzn.to/3iBoaOU

  • Push button 12mm On-Off single (black)

https://amzn.to/2C7Lfba

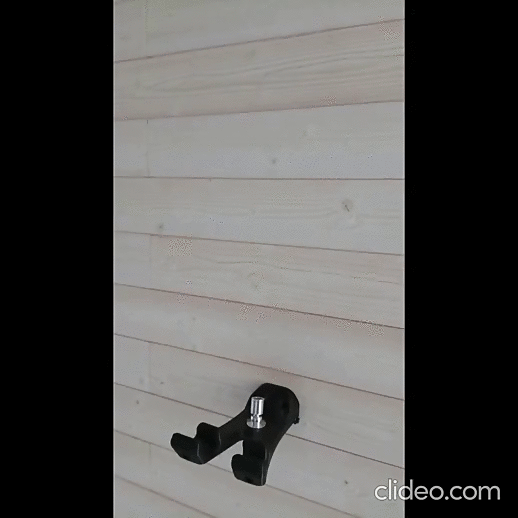

  • Adjustable LED spotlight 1W 3V (Transformer not used)

https://amzn.to/2BBXcWS

3D printing settings

Material: PLA for me (Best Mechatronic resitance in PETG)

Layer height: 0.2mm

Wall thickness: 0.8mm

Brackets: yes

Filling: 30% (concentric, to have longitudinal fibers and maximize mechanical resistance in cantilevered applications).

  • 3D file format: STL
  • 3D model size: X 140 × Y 49 × Z 196 mm
