Lamp holder

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.3k views
  • 9 likes
  • 83 downloads

3D model description

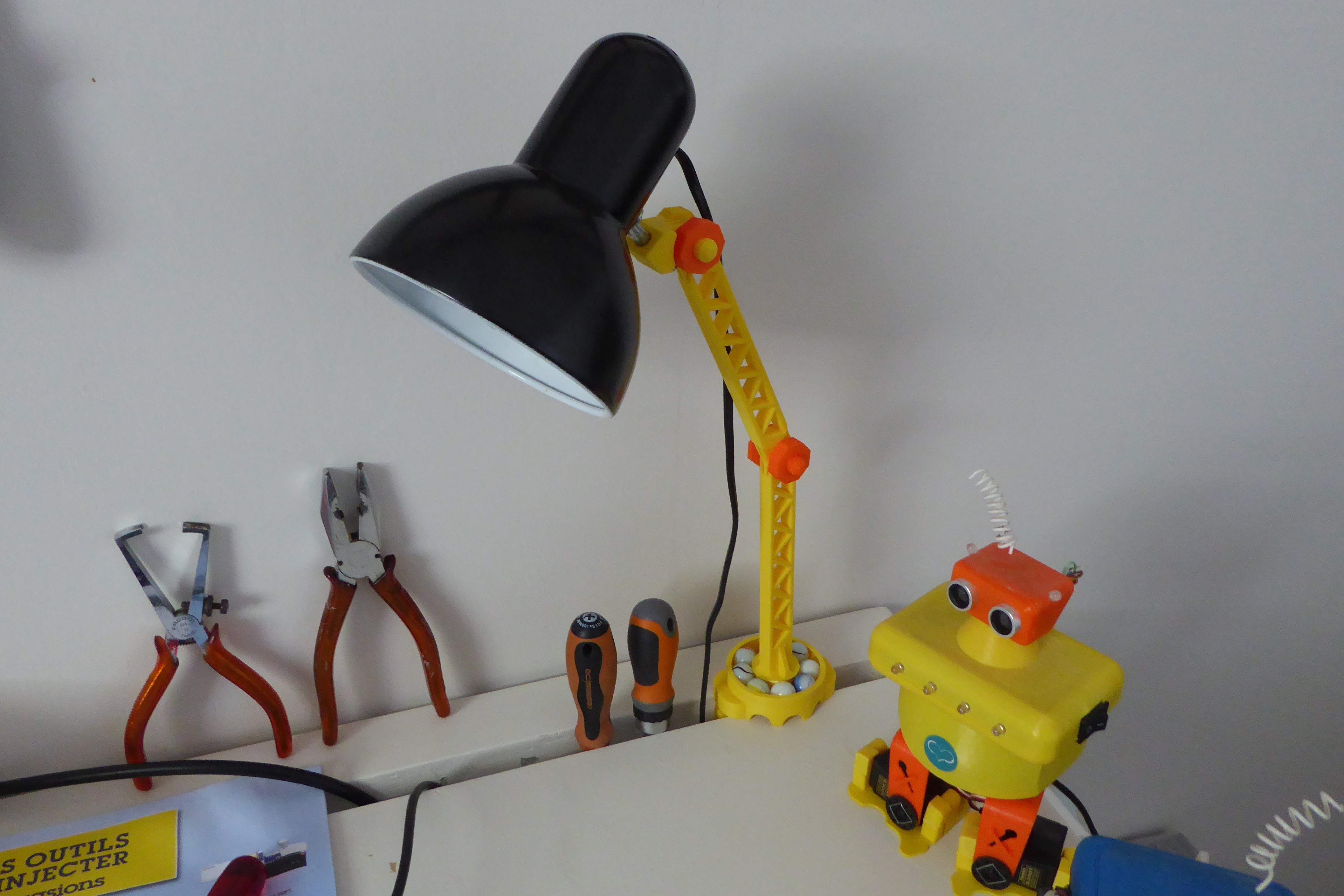

Replacing a broken lamp holder

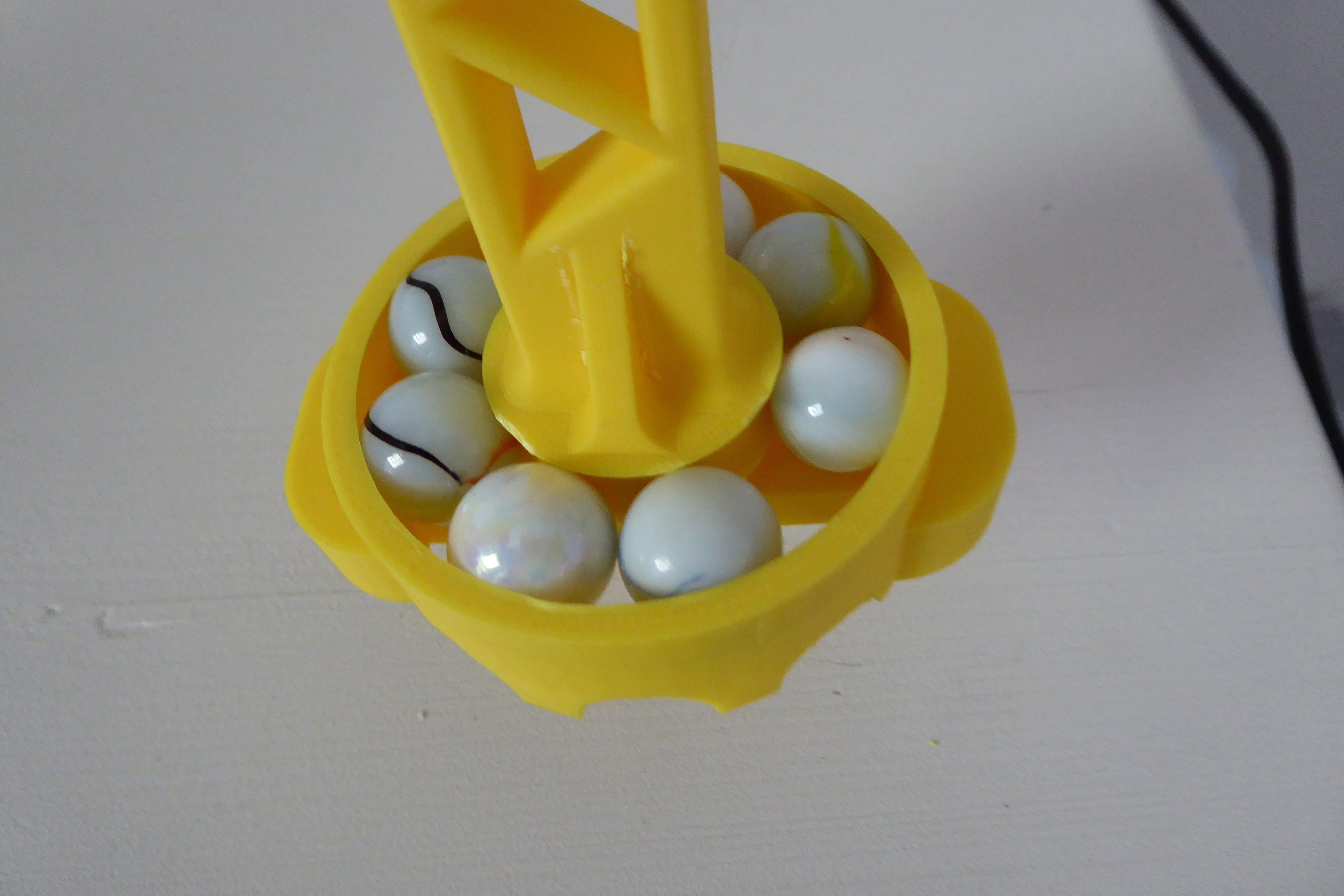

The balls are used to rotate the arm.

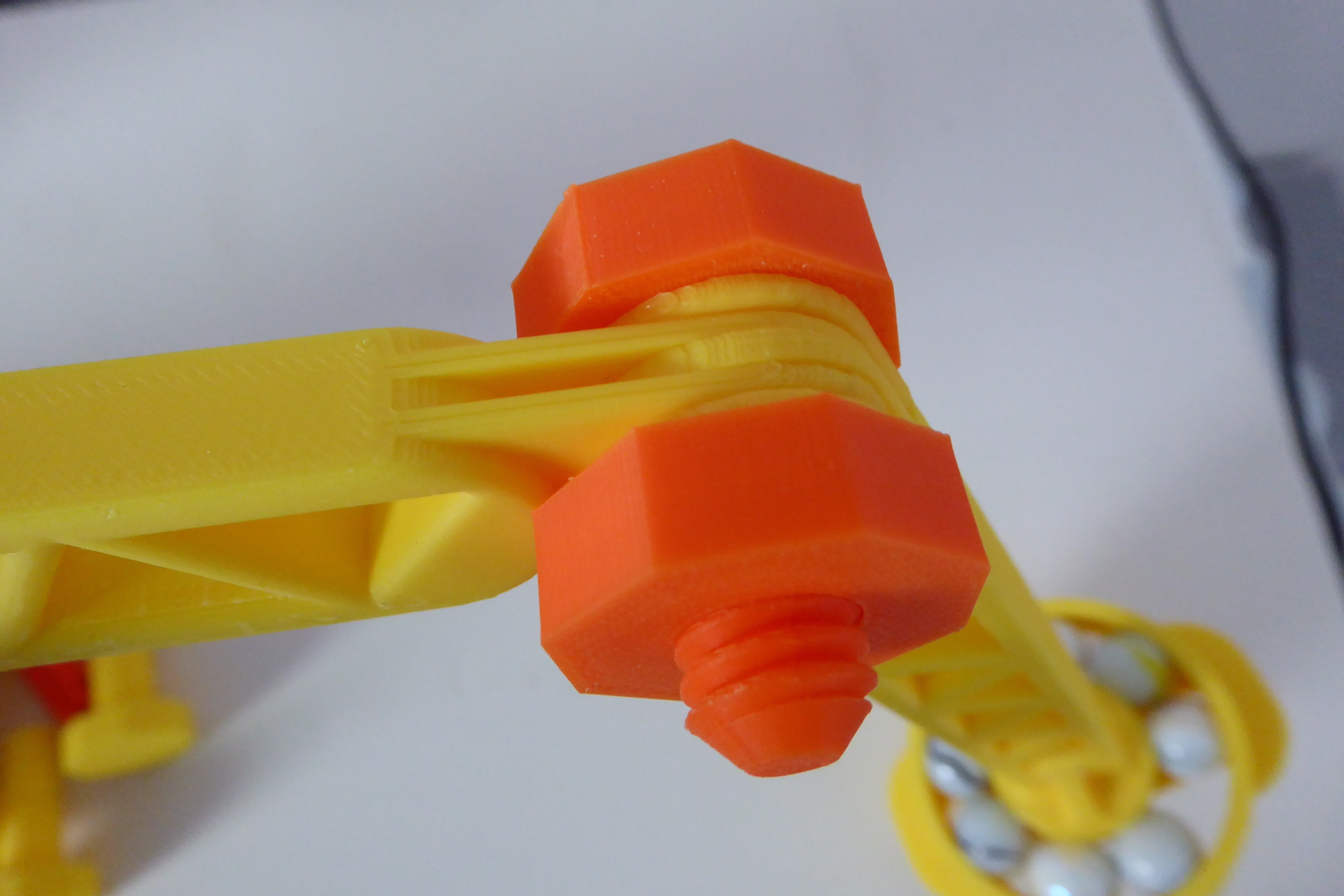

2 joints with screw/nut connection.

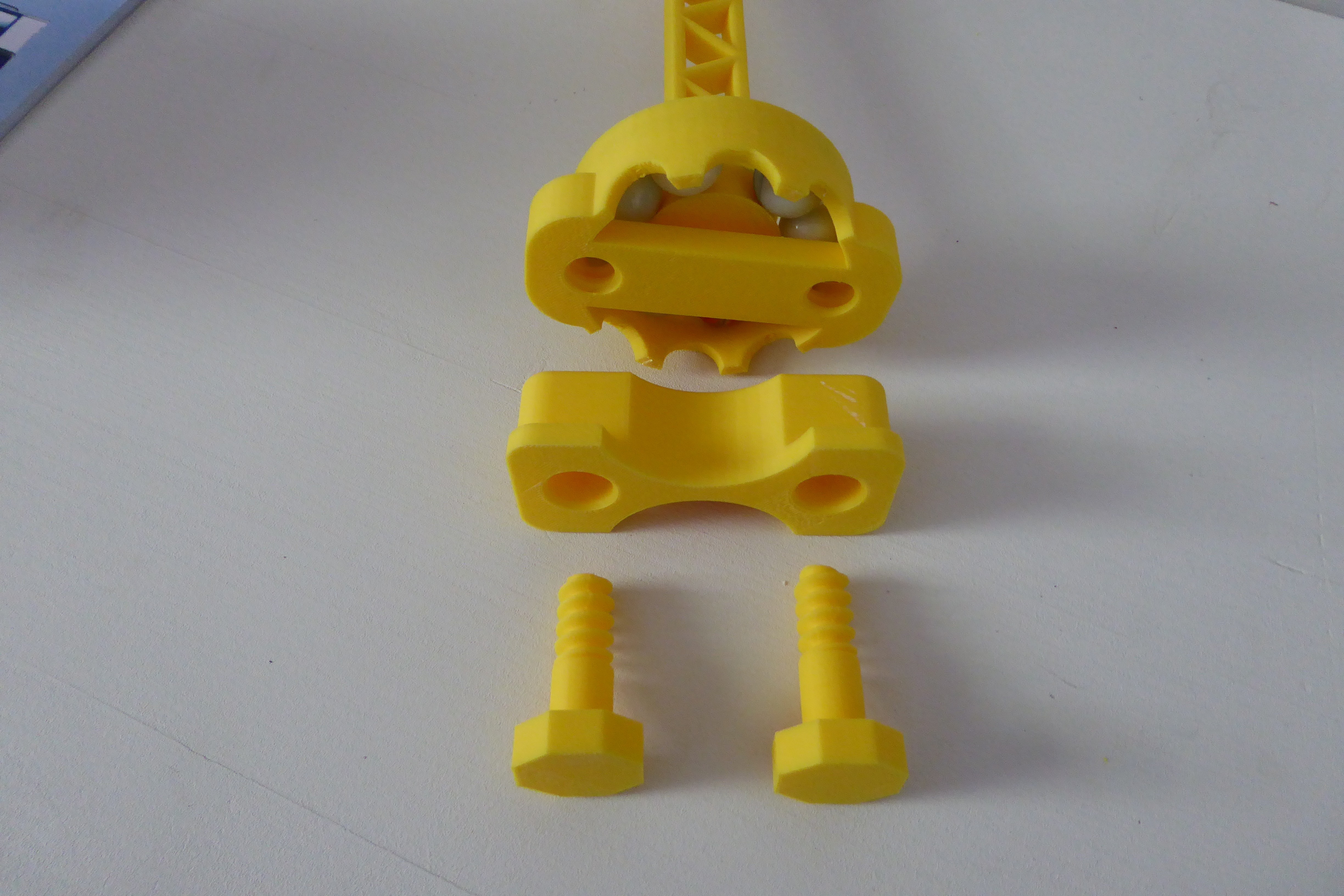

The whole is screwed by a vice connection in the housing of a workbench (width 20mm)

1x Vise.stl

2x ScrewStay.stl

1x Base.stl

8x Ball D16mm

1x Bra.stl

1x AvantBras.stl

1x Handle.stl

2x VisBras.stl

2x Nut.stl


3D printing settings

Printer: Zortrax M200

Profile: Last settings

Material: Z-ABS

Layer: 0.14 mm

Quality: High

Infill: 30%

Fan speed: Auto

Seam: Normal

Outer contours: 0.00

Holes: 0.00

Surface layers Top: 7

Surface layers Bottom: 4

Support Lite: No

Smart bridges: Yes

3D printer file information

  • 3D design format: STL Folder details Close
    • Etau.stl
    • Poignee.stl
    • VisEtau.stl
    • avantBras.stl
    • base.stl
    • bras.stl
    • ecrou.stl
    • epaule.stl
    • visBras.stl

    Learn more about the formats

  • Publication date: 2018/05/13 at 17:02

License

CC BY NC
