Steampunk Mechanical Light Switch

2017-09-27 11.05.24.jpg STL file Steampunk Mechanical Light Switch・Model to download and 3D print
2017-09-27 11.00.45.jpg STL file Steampunk Mechanical Light Switch・Model to download and 3D print
20170523_214054.jpg STL file Steampunk Mechanical Light Switch・Model to download and 3D print
20170523_214107.jpg STL file Steampunk Mechanical Light Switch・Model to download and 3D print
20170523_214127.jpg STL file Steampunk Mechanical Light Switch・Model to download and 3D print

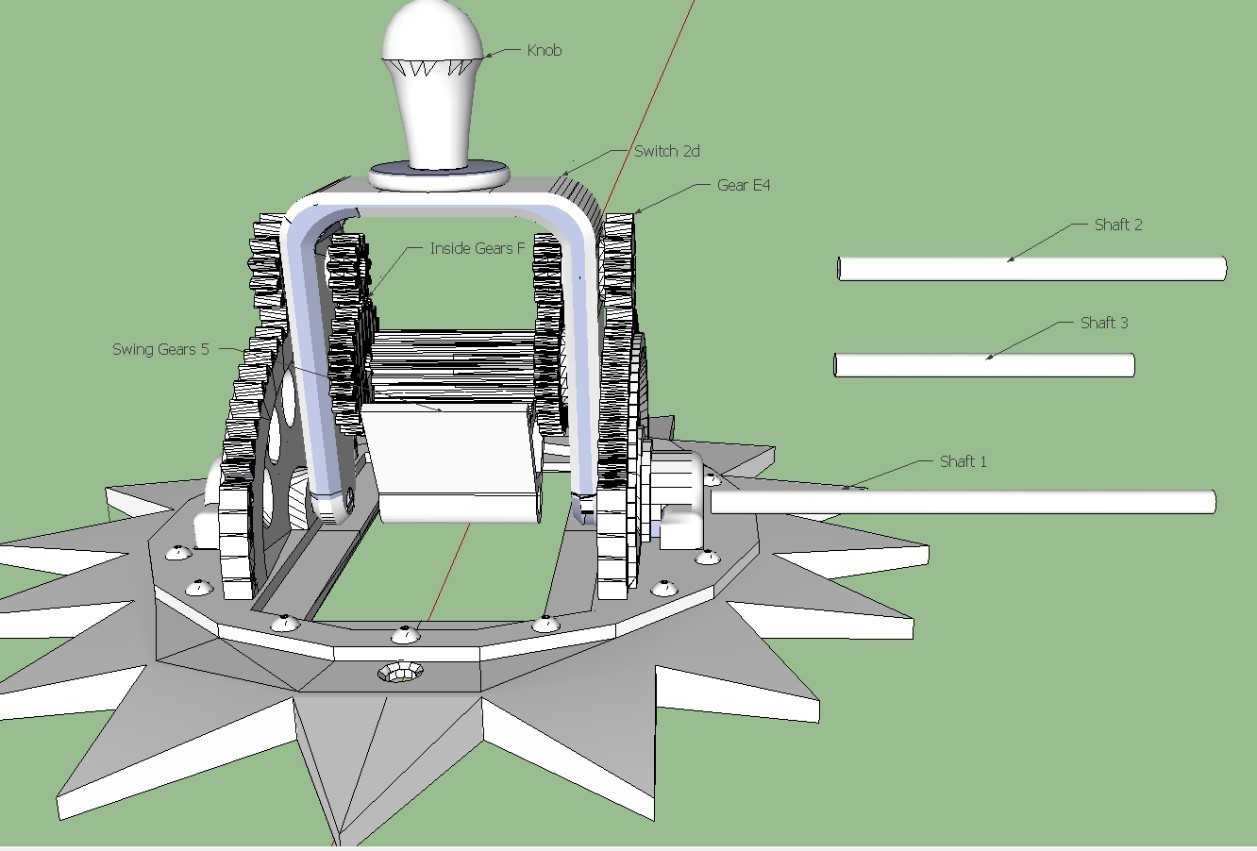

Assembly.jpg STL file Steampunk Mechanical Light Switch・Model to download and 3D print
SU pic 1.jpg STL file Steampunk Mechanical Light Switch・Model to download and 3D print
switch 2d.stl STL file Steampunk Mechanical Light Switch・Model to download and 3D print
swing gears 5.stl STL file Steampunk Mechanical Light Switch・Model to download and 3D print
STL combine wo plate.stl STL file Steampunk Mechanical Light Switch・Model to download and 3D print
Shaft 3.stl STL file Steampunk Mechanical Light Switch・Model to download and 3D print
Shaft 2.stl STL file Steampunk Mechanical Light Switch・Model to download and 3D print
Shaft 1.stl STL file Steampunk Mechanical Light Switch・Model to download and 3D print
Light plate 6 needs support.stl STL file Steampunk Mechanical Light Switch・Model to download and 3D print
Knob 2.stl STL file Steampunk Mechanical Light Switch・Model to download and 3D print
Inside Gears F.stl STL file Steampunk Mechanical Light Switch・Model to download and 3D print
Gear E4 .stl STL file Steampunk Mechanical Light Switch・Model to download and 3D print
Share
Add to
Make
?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

Breezor

Breezor

3D model description

Fiat lux! Your mind will be filled with brilliant ideas as you illuminate your abode using this modern contraption, designed to transform the mundane act of turning the lights on and off into a mystical, almost religious experience. Man's greatest discovery since the mastery of fire was the harnessing of electricity. Today we neglect this colossal achievement. But it doesn’t have to be this way. Behold the Steampunk Mechanical Light Switch. Celebrate the harnessing of electrons the way they would want it to be.
Disclaimer: some individuals may be compelled to non-stop usage; short breaks for sleeping and feeding are highly recommended.

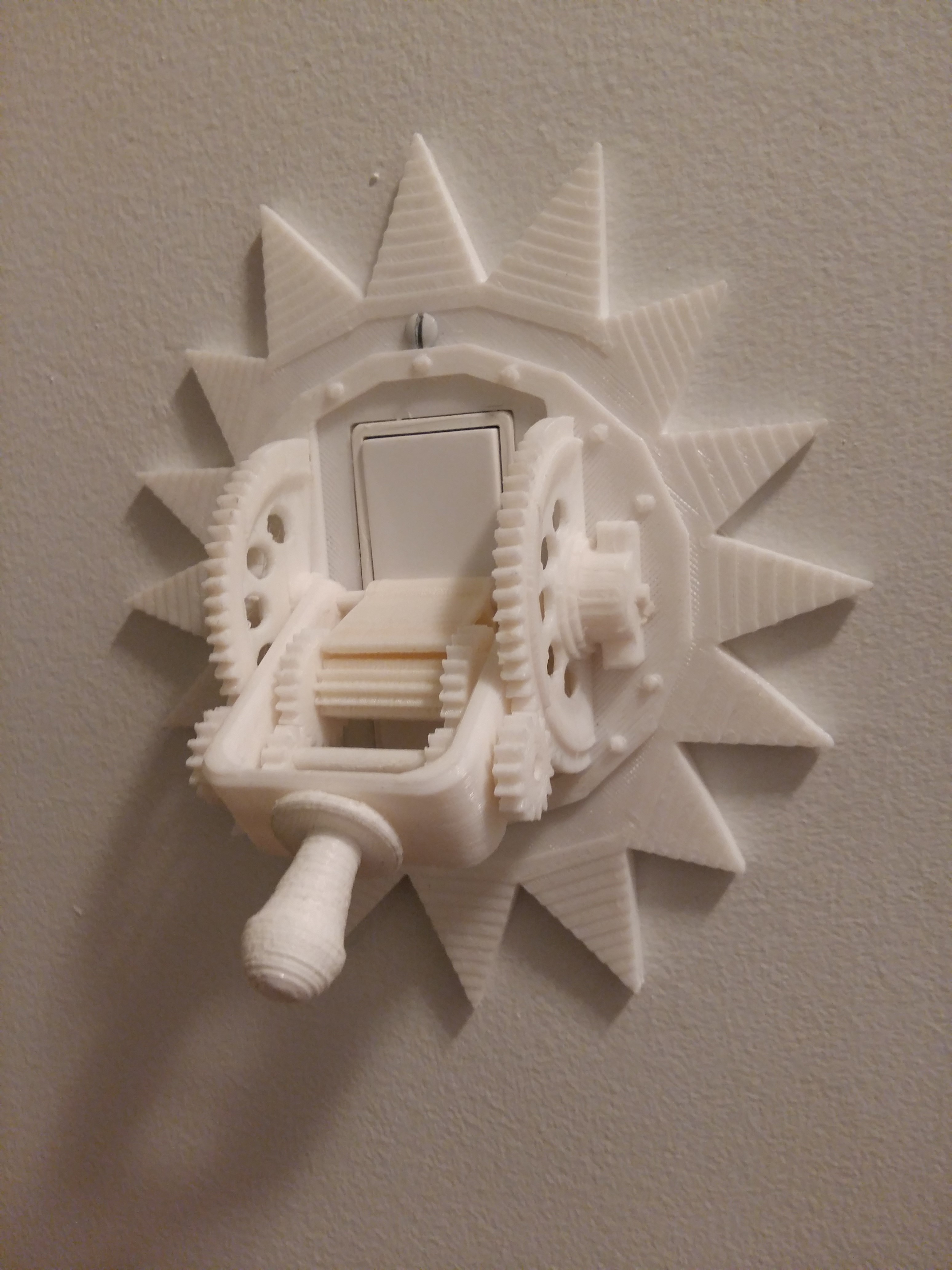

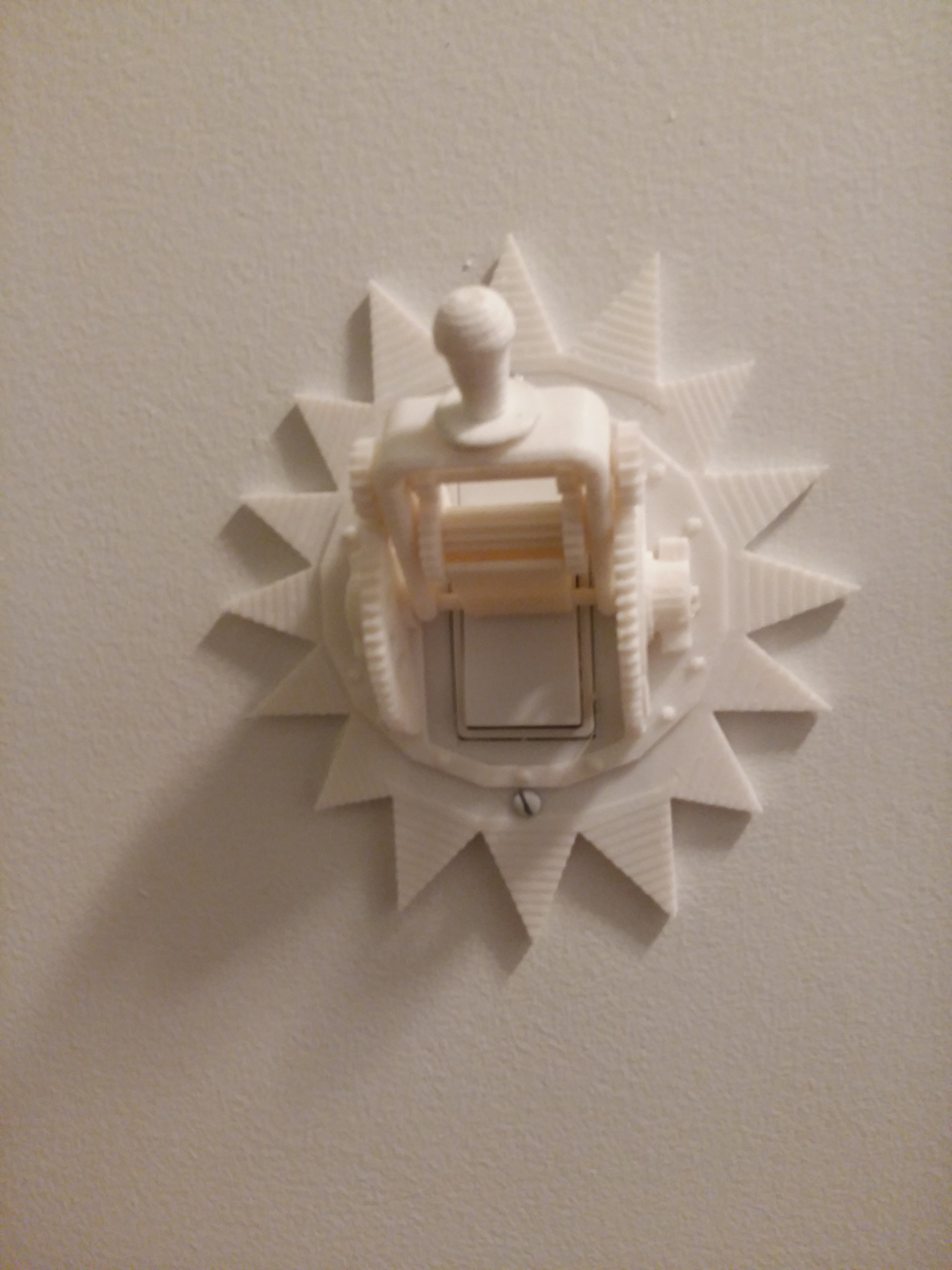

Fits over a standard rocker light switch.

You Tube https://youtu.be/pUUZwQRIiiA

3D printing settings

All parts print at .3 mm settings. Finer finishes of course achieved with .2 and beyond.

-Axles require a little sanding and fitting to work appropriately unless your printer is perfect.

-One 3 mm x 10 mm screw required for the knob.

-Two sets of Inside Gears F need to be made
-Two Gears E4 need to be made
-Light plate needs support on bottom only
-Or print combined file and one switch plate.

3D printer file information

  • Design number: 15450
  • 3D design format: STL Folder details Close
    • Gear E4 .stl
    • Inside Gears F.stl
    • Knob 2.stl
    • Light plate 6 needs support.stl
    • STL combine wo plate.stl
    • Shaft 1.stl
    • Shaft 2.stl
    • Shaft 3.stl
    • swing gears 5.stl
    • switch 2d.stl

    Learn more about the formats

  • Last update: 2019-07-12 at 05:29
  • Publication date: 2017-09-30 at 21:49
