SQUARE LED LAMP

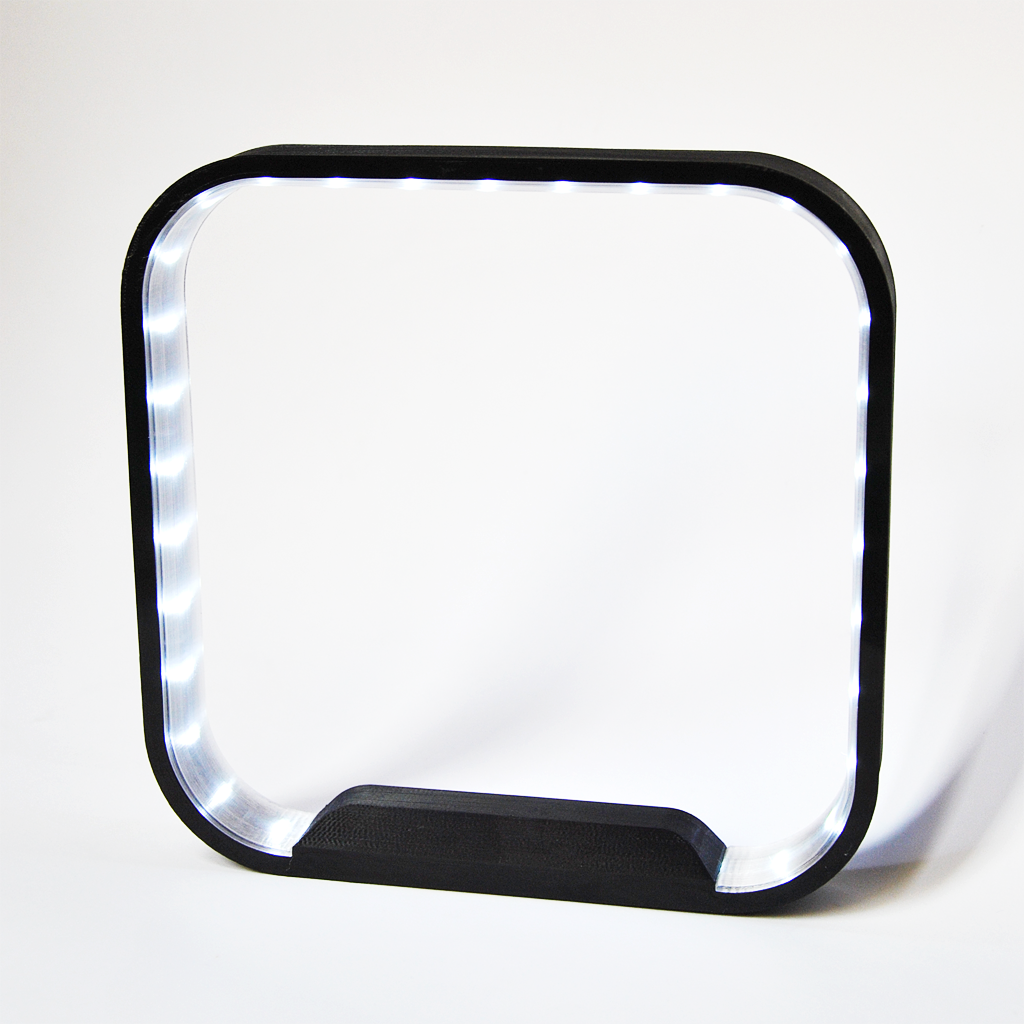

pic_1.png Free STL file SQUARE LED LAMP・3D print model to download

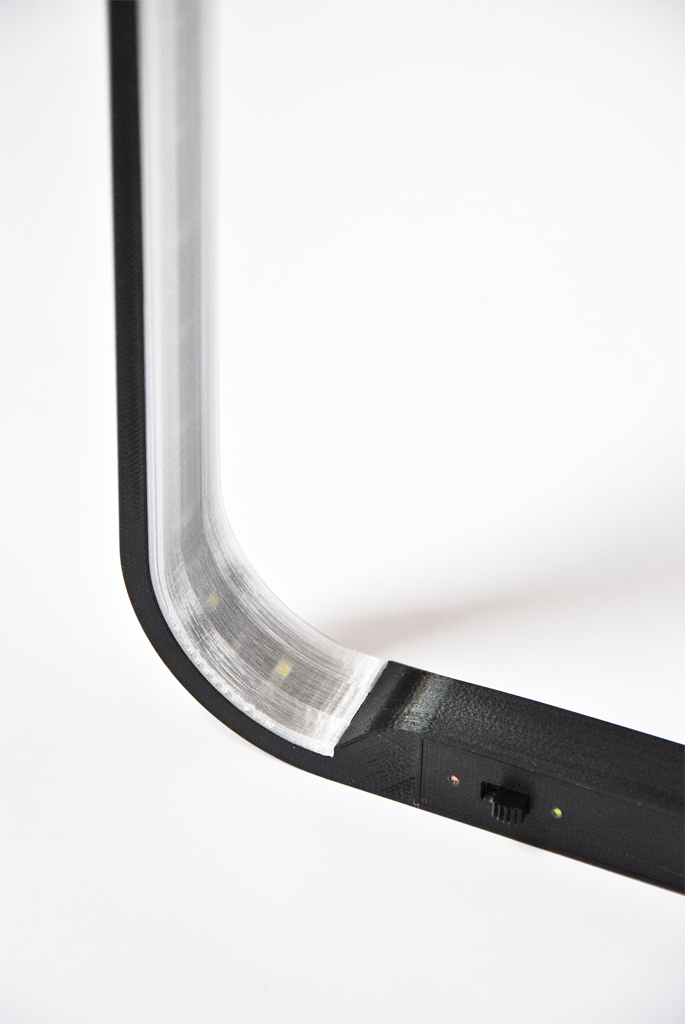

pic_2.png Free STL file SQUARE LED LAMP・3D print model to download

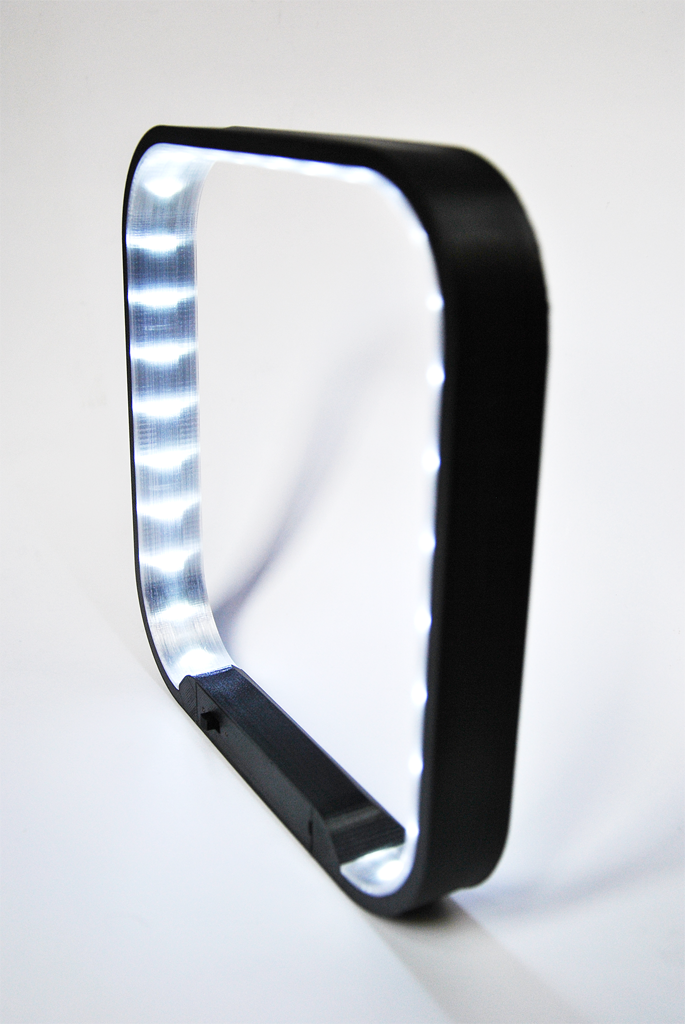

pic_3.png Free STL file SQUARE LED LAMP・3D print model to download

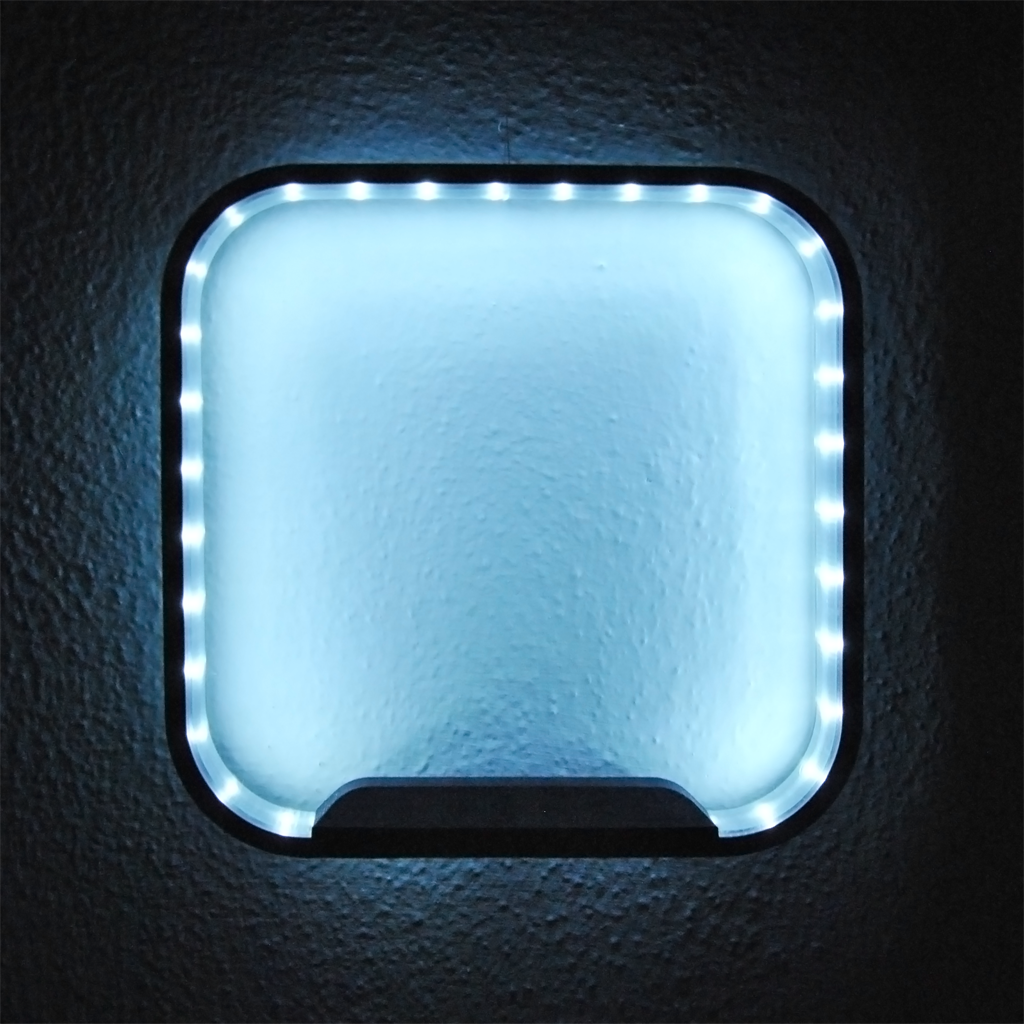

pic_4.png Free STL file SQUARE LED LAMP・3D print model to download
LED_1.stl Free STL file SQUARE LED LAMP・3D print model to download
LED_2.stl Free STL file SQUARE LED LAMP・3D print model to download
LED_XT.stl Free STL file SQUARE LED LAMP・3D print model to download
Share
Add to
Make
?
Creation quality: 4.5/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

HelderSantos

HelderSantos

3D model description

This elegant LED LAMP was designed for a 60 cm 12V LED strip. It includes a battery holding compartment and a On/Off switch mount. Optimised for the best printing quality on FDM Printers, Support Free and doesn't need glue to be assembled.

3D printing settings

INSTRUCTIONS

The small battery case cover is assembled with a snap-fit system (doesn't need screws). The small gap is designed to insert the on/off switch.

The interior ring is supposed to be printed in a translucid material like ColorFabb Transparent XT. It is mounted in the exteriore ring just by snapping together.

PRINTING SETTINGS

Print Resolution: 150 Micron
Print Speed: 60 mm/s - Rings
Print Speed: 30 mm/s - Battery Case Cover

  • The interior Ring can be printed using the spiralize option in Cura slice engine ( it prints just a thin exterior wall of the 3dmodel).

3D printer file information

  • Design number: 2134
  • 3D design format: STL Folder details Close
    • LED_1.stl
    • LED_2.stl
    • LED_XT.stl

    Learn more about the formats

  • Last update: 2016-07-29 at 17:31
  • Publication date: 2015-03-09 at 15:24

License

CC BY-NC-ND - Attribution - Non commercial - No derivatives
