SPRINGO STOOL

3D model description

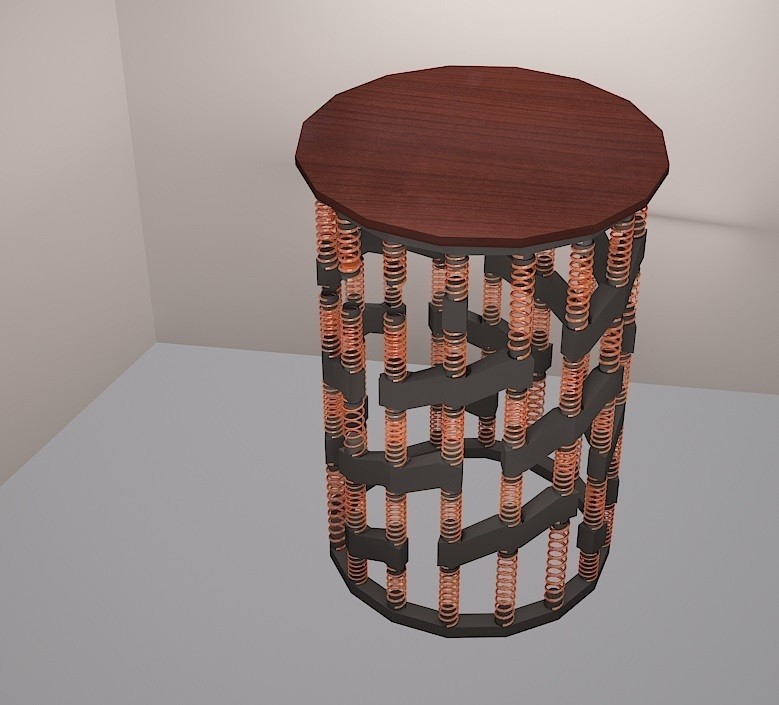

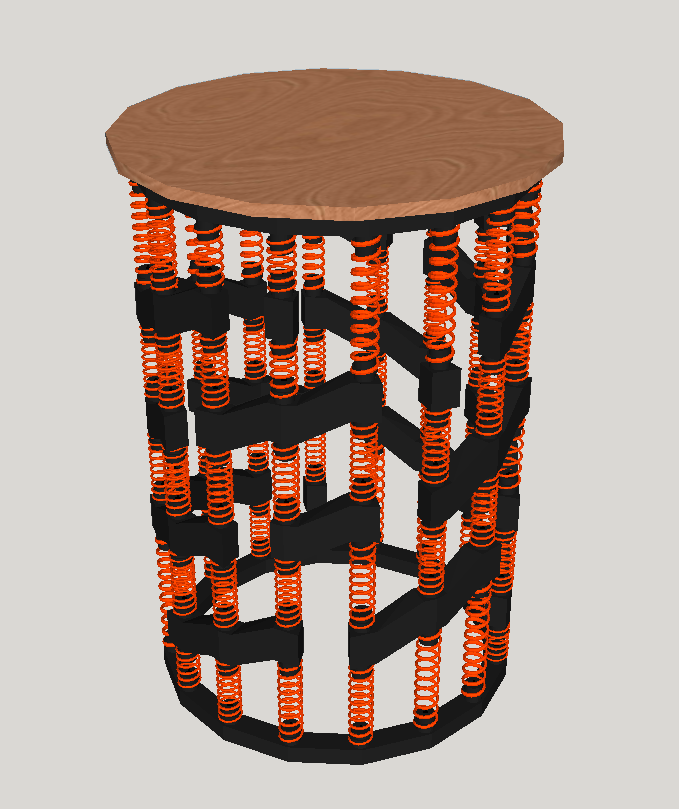

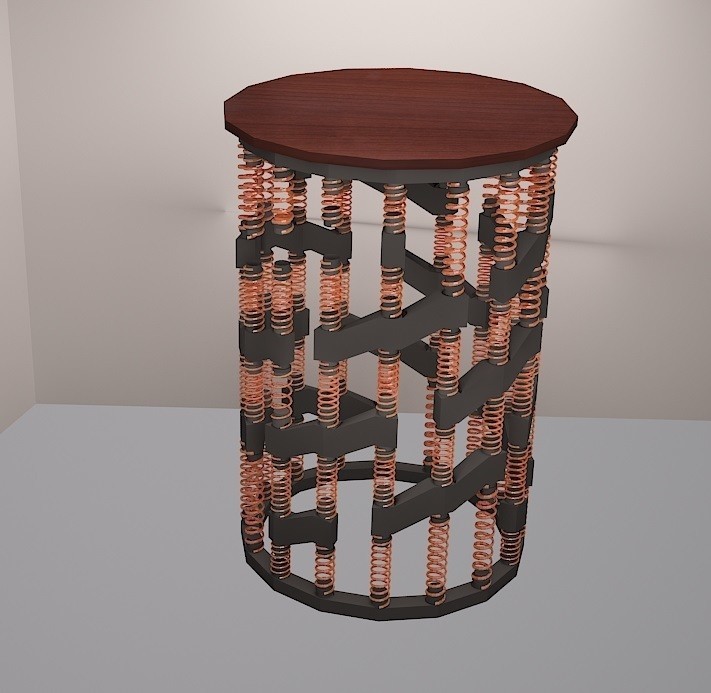

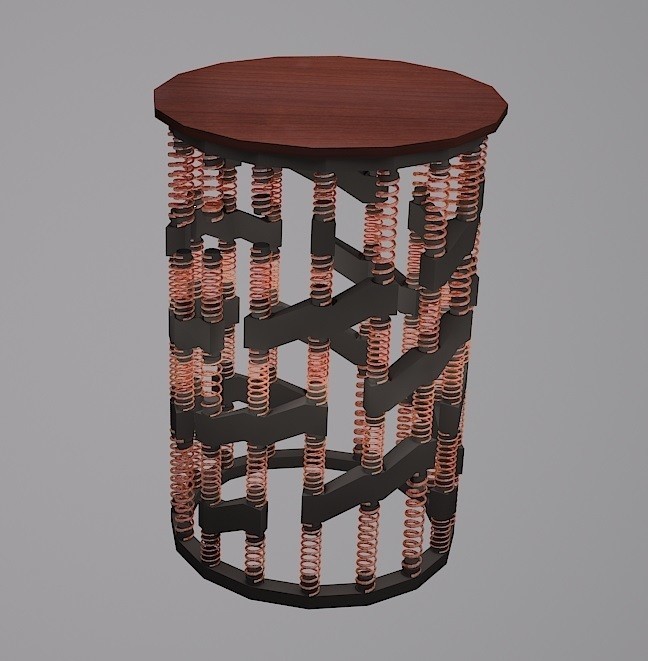

This is a modular 3D Printed Stool.
1. It is easy to assemble
2. Comfortable (Use of springs)
3. One can increase or decrease the height according to preference (By removing or adding 3D Printed parts).
4. The Stool slightly Bends according to your Body Movement...Hence Relieving the strain caused due to sitting for Long hours!

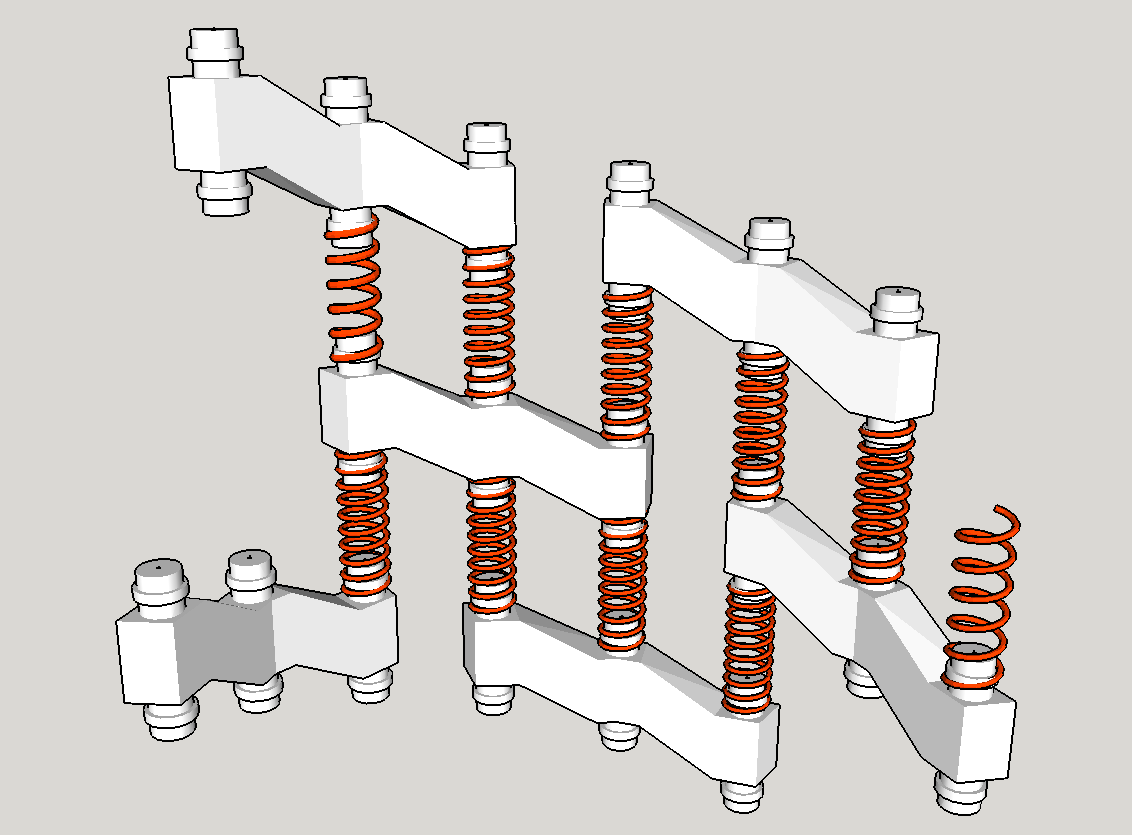

The Springs snugly fit into the 3D Printed parts.

You need to PRINT :
16 PIECES OF A
2 PIECES OF B
4 PIECES OF C
8 PIECES OF D

Springs ( Inner dia : 20mm) and hieghts : 7cm, 9cm, 11.5cm, 14cm.
And a Circular wooden Board of dia : 44cm and thickness : 1.2 to 1.5cm.
Screw the Wooden Board to the top 4 D Brackets.

This can be printed on most printers of print bed 210x240mm minimum.
Or you can divide the D Parts into halves and Print!

#DAGOCULTS

HAPPY PRINTING!

3D printing settings

Infill: 50%
Layer Thickness : 0.3mm (300 microns)
Support material required on Build Plate only (For parts A,B & C).
NO Support for D Parts.

  • 3D model format: STL
