Spice Rack For Larger Bottles

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.3k views
  • 9 likes
  • 59 downloads

3D model description

This is a spice rack for larger bottles up to 54mm.
I had printed another one that I found here on Thingiverse but it didn't really fit most of my spice bottles, so I made this one instead.

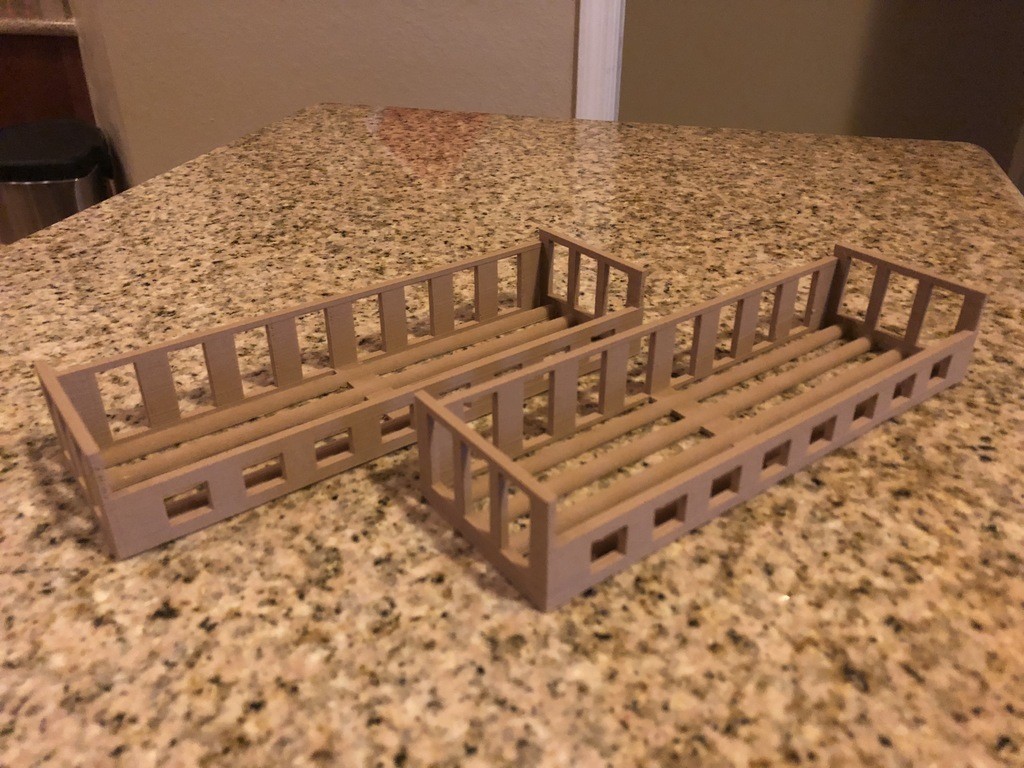

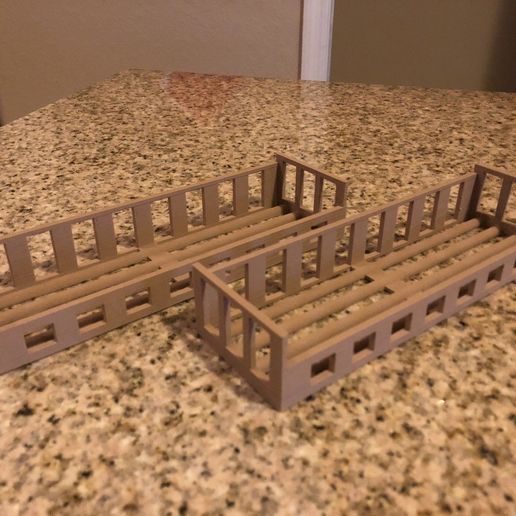

Measurements are 195 x 60 x 35mm so it will fit on a small printer. I made the bridges in the openings only 12mm long, so the printer should be able to clear them cleanly without any supports as long as its printed with a cooler temperature. This was printed with a brim to keep it nice and flat, cleanup was pretty easy since its all straight lines.
Printed with my favorite material Hatchbox wood PLA.

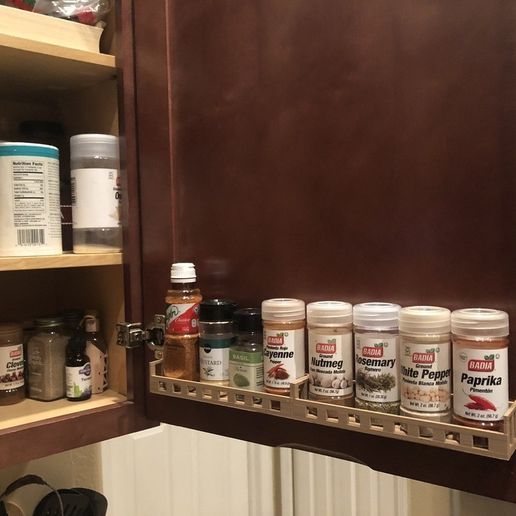

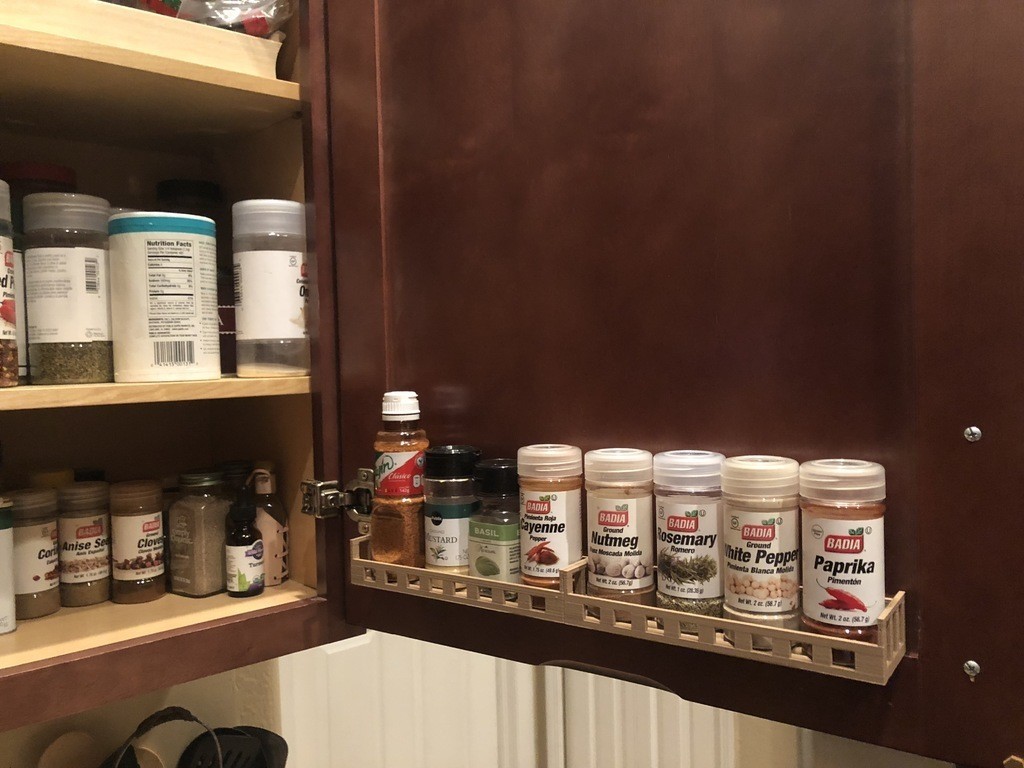

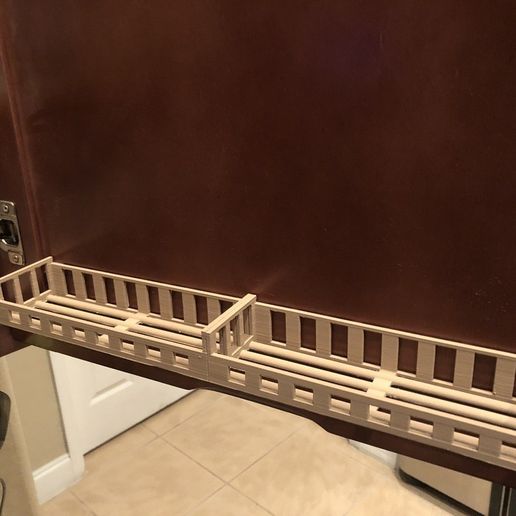

It'll hold up to a 54mm bottle, can or jar and is meant to be mounted with double sided tape on the solid beams on the rear.
I made the bar on the front fairly low, so labels are easily visible. They stay put for me, but if you tend to slam the cabinet door shut, you might want to put only plastic bottles on it, tie a rubber band across the front, or you can remix the file to raise the front up pretty easily.

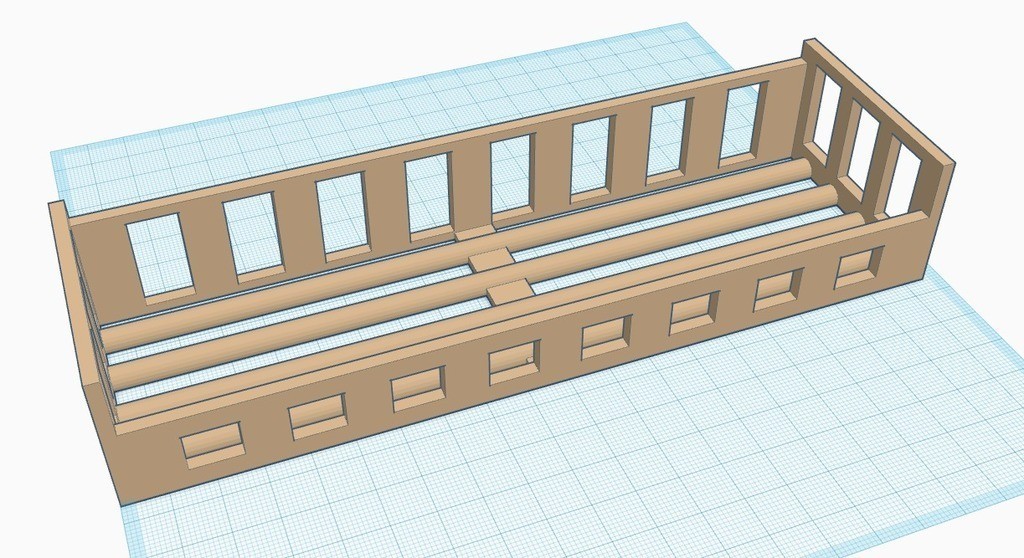

The source file can be found here:
https://www.tinkercad.com/things/0erNBLDi6zI
Please share a pic or remix if you make one. Thanks!

  • 3D file format: STL
  • Publication date: 2018/08/09 at 14:29
