Edit: I'm slowly documenting new versions and updates of my custom printer here: http://www.reprap.org/wiki/Valentia

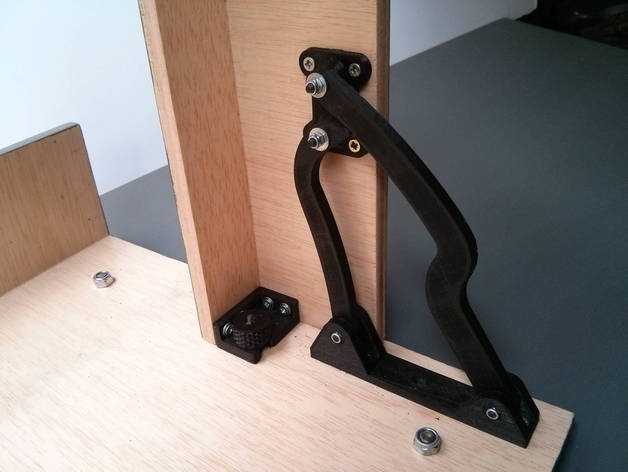

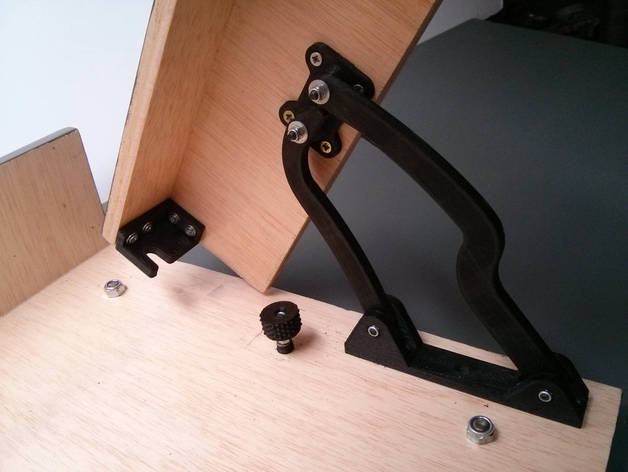

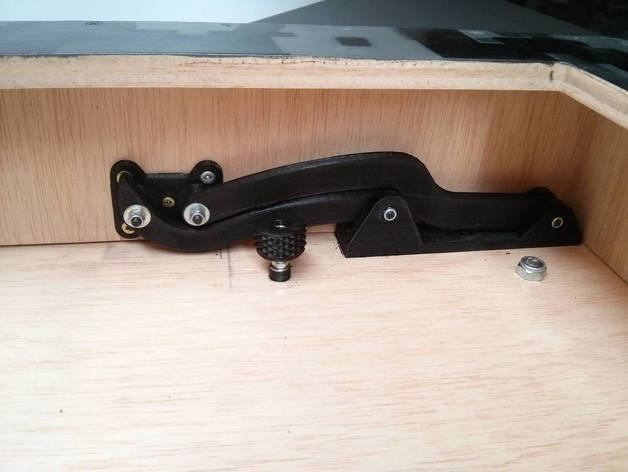

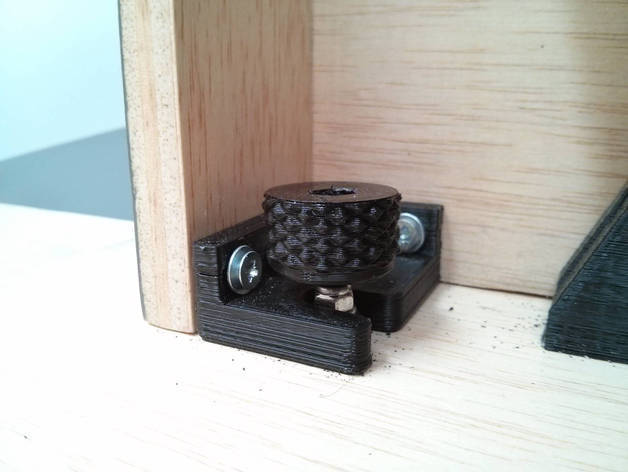

Screws, washers and nuts are all M4, except for the screws that fix the hinges to the wood, which are 3-3.5mm diameter 16-20mm long screws for wood.

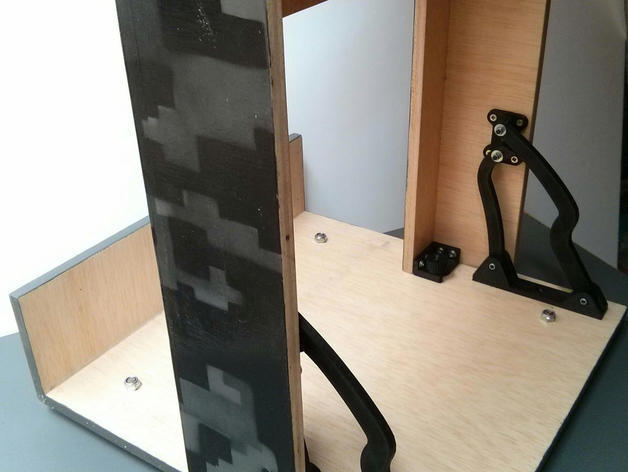

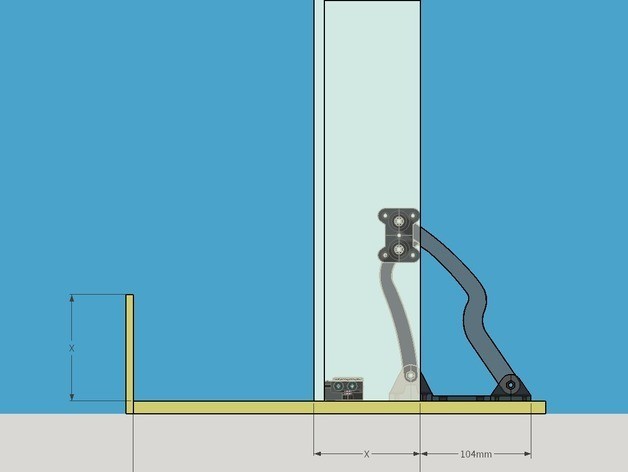

Make sure dimension marked as "X" in one of the pictures doesn't exceed 200mm, in my case's case X=102mm.

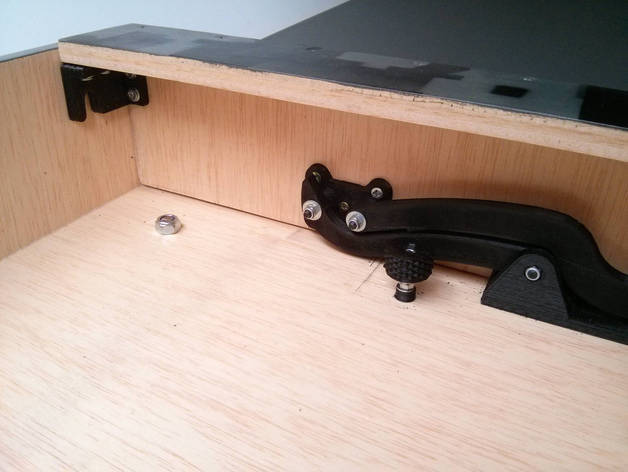

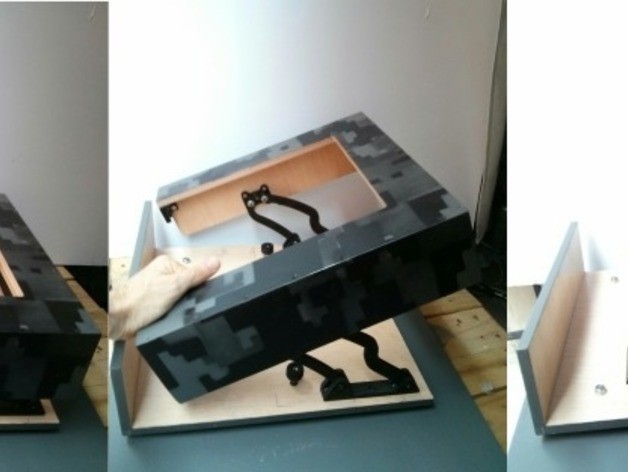

This is for my ongoing version of jlguil's case-rap, where I want to test some experimental designs trying to reduce weight and cost.

You can choose two different hinge arms widths: 7mm or 12mm.

Licensed under The TAPR Open Hardware License
