SodaStream Cap

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 2.3k views
  • 6 likes
  • 107 downloads

3D model description

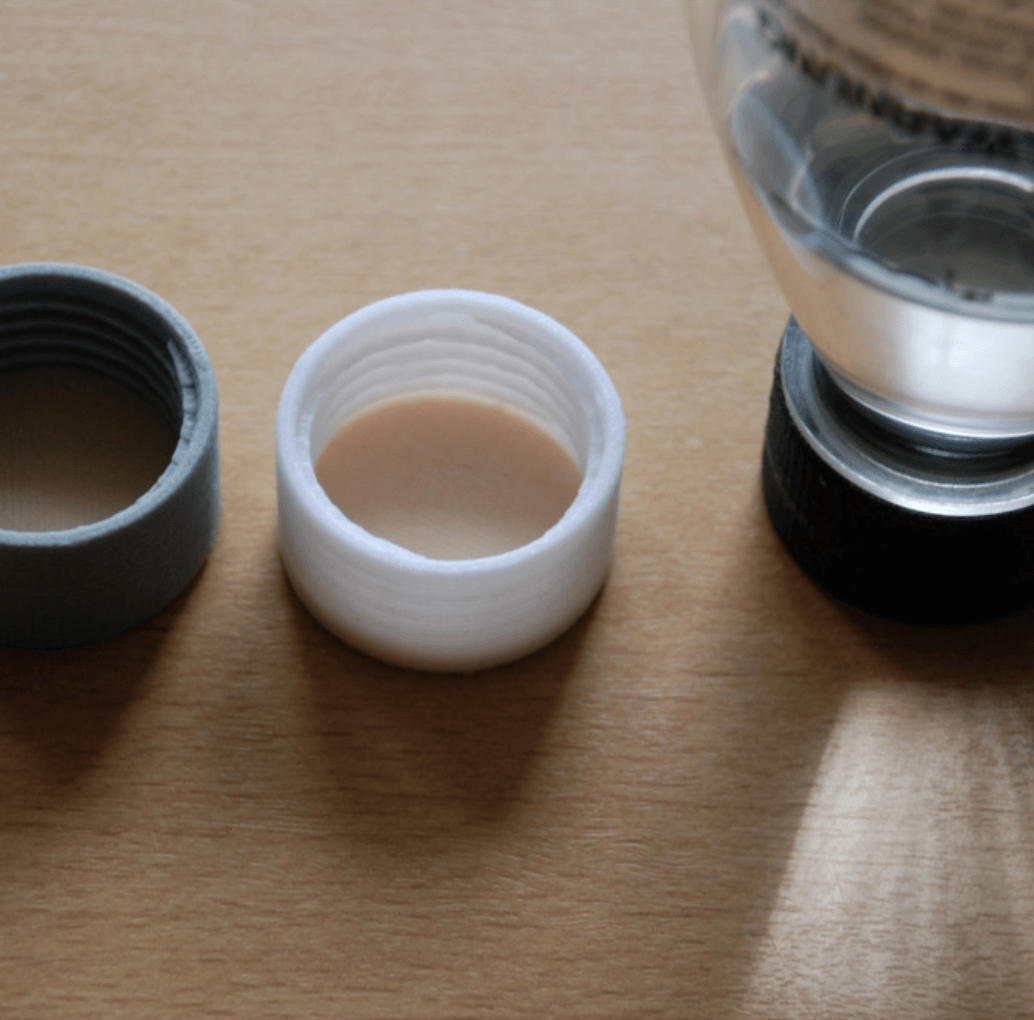

A cap for bottles from "SodaStream".
Its waterproof...see my notes under "Print Settings".


3D printing settings

Printer:

Velleman K8200

Rafts:

Doesn't Matter

Supports:

Doesn't Matter

Resolution:

0.25mm

Infill:

30% (or...for stronger caps...100%)

Notes:
(V3) The first four millimeters should be printed with enough filament flow - to have it waterproof (for my printer settings, a value of "120%" was needed).
(V3 & V4) Set the fan to high speed, when the thread begins to be printed.

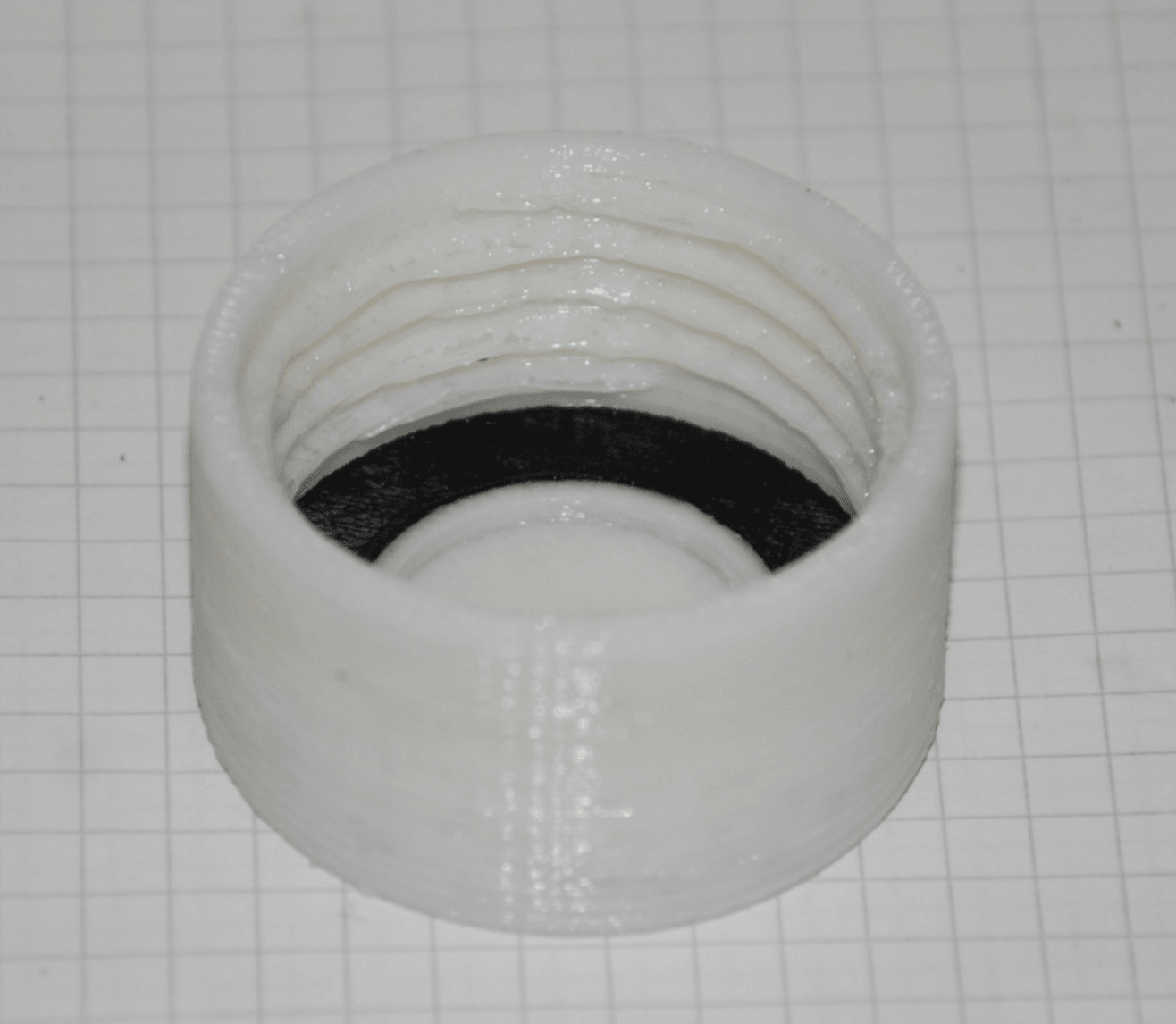

The sealing washer has to be printed with Flex-PLA.

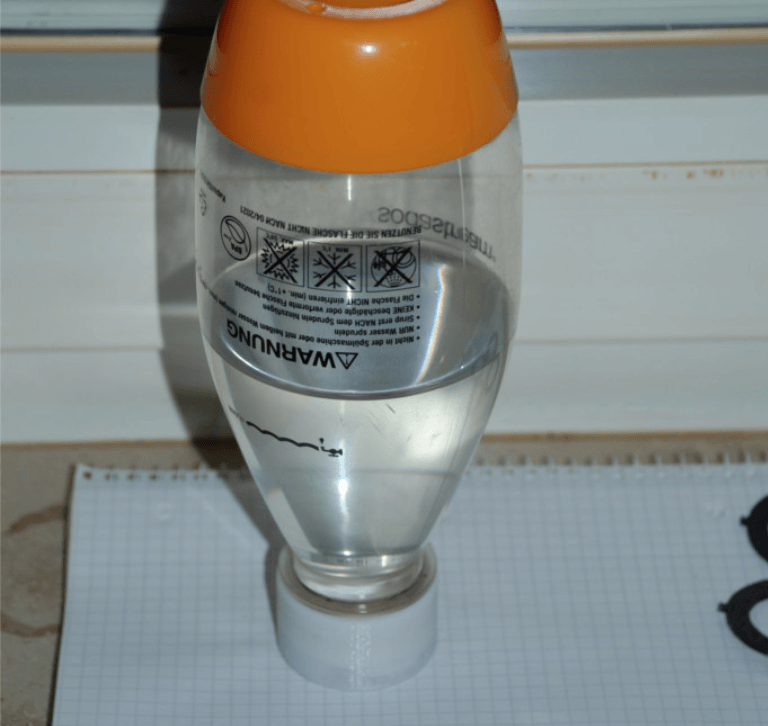

V4 is more easy to print because the cap does not need to be waterproof - here, the washer is doing that job.

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • Archive.zip
    • SodaStreamDeckel_v3-6xDichtungsring.stl
    • SodaStreamDeckel_v3.stl
    • SodaStreamDeckel_v4.stl
    • SodaStreamDeckel_v4_-_6xDichtung.stl

    Learn more about the formats

  • Publication date: 2018/04/18 at 11:19

License

CC BY

Tags
