Self-righting Gimballed drinks holder

?
Creation's quality: 4.9/5 (5 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 36.5k views
  • 172 likes
  • 2.3k downloads

3D model description

I have just released my 2020 version which holds a pint glass

https://cults3d.com/en/3d-model/gadget/self-righting-gimballed-drinks-holder-2020-pint-glass-version

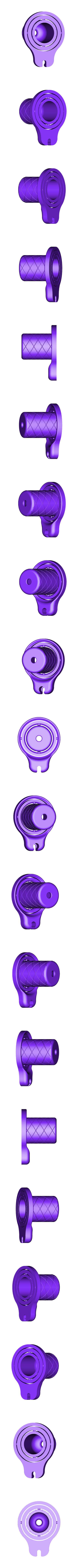

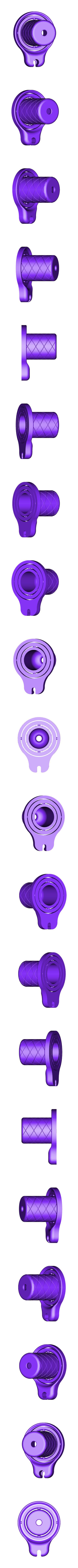

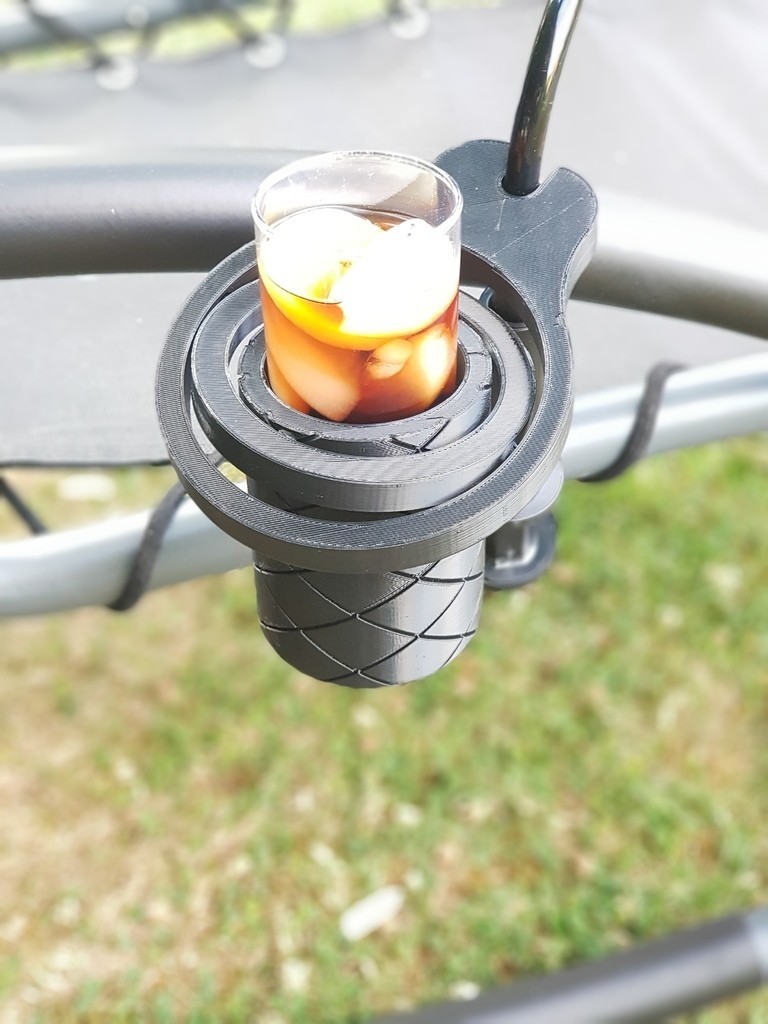

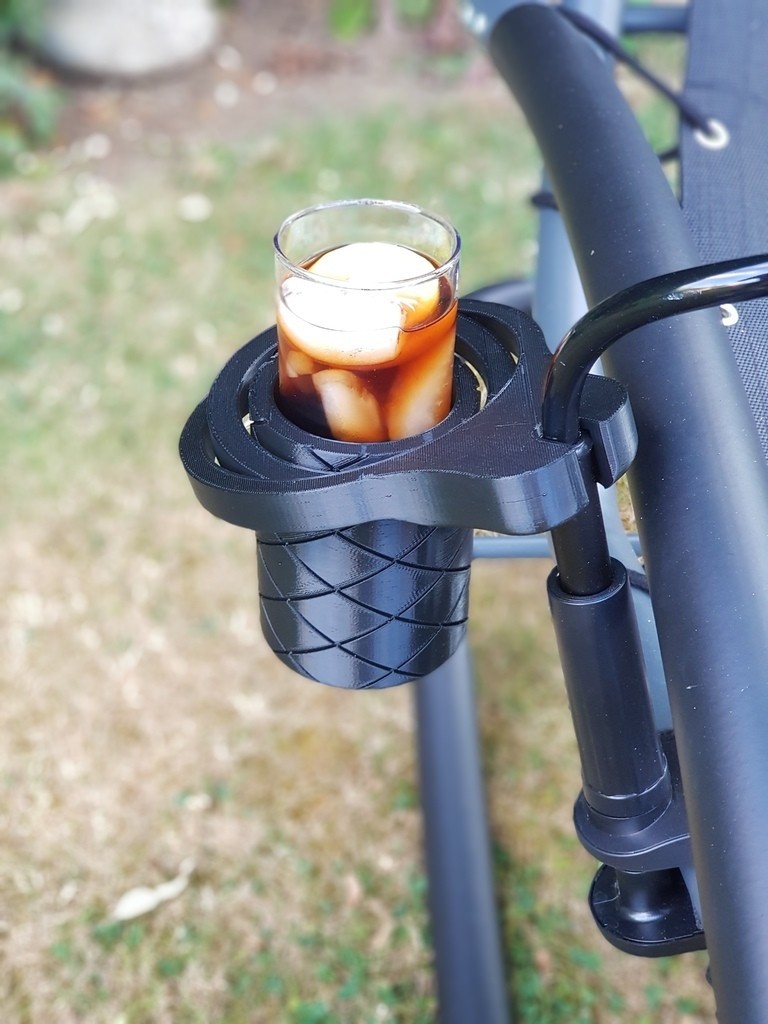

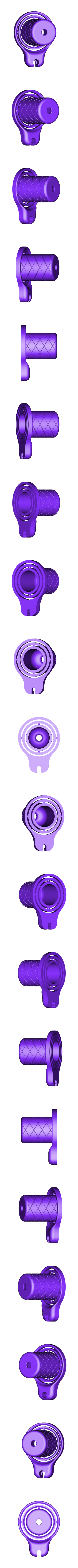

This is a simple but effective drinks holder using gimbals. It will fit a standard 330ml can or anything of the same or smaller diameter.

It will print in place in without supports

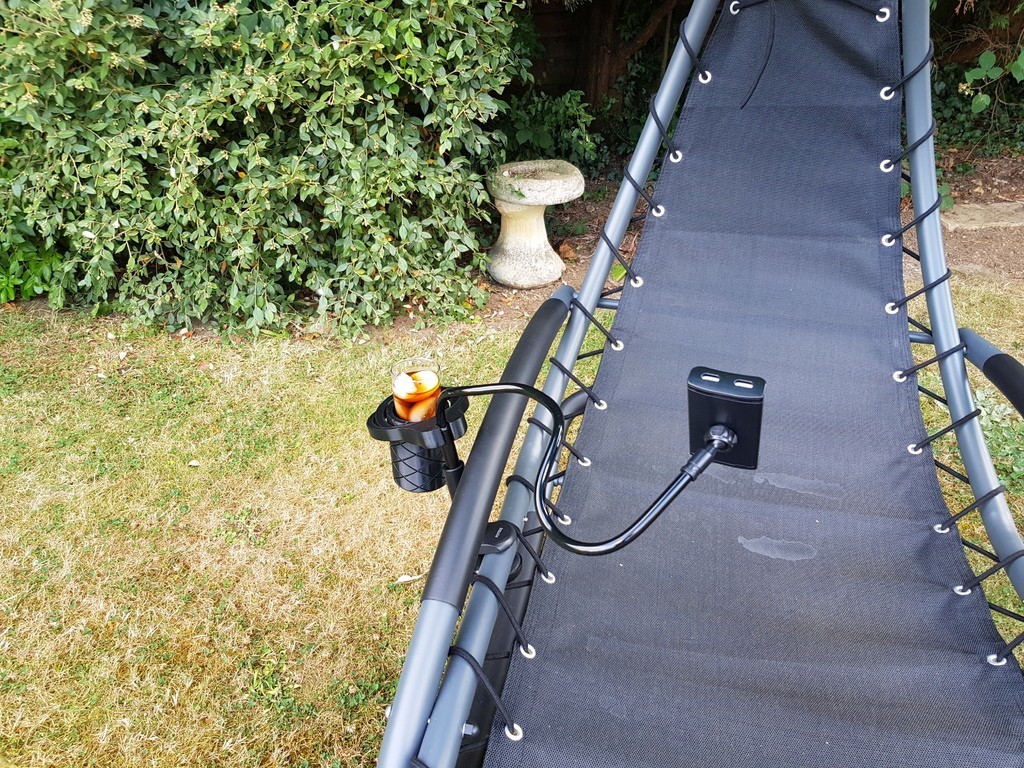

I have designed it to fit my tablet holder (https://www.amazon.co.uk/gp/product/B077HM6LCR/) but I plan to use the same fitting to create other mounts.

A sparse infill also provides good insulation.

Update: I've now uploaded the grouped model which makes things much easier to align

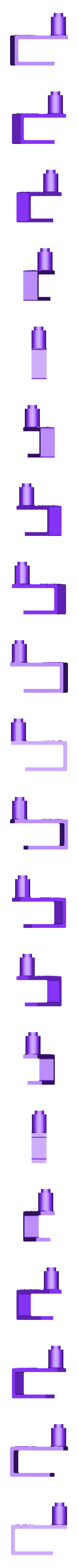

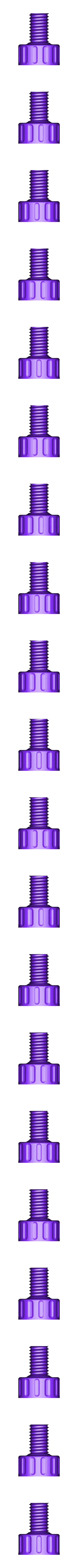

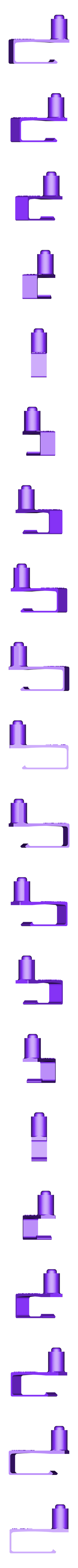

Update 2 : I have created the first two alternative mounts. One is a clip-on one to fit a garden chair (obviously you'd have to have precisely the same ones I have). The second is a clamp on one which screws to the arm of a chair. Both have printed successfully. You may prefer to use ABS for these for the extra strength/durability

Update 3 (20/08/18): I have uploaded another version with a slightly larger diameter centre to make it fit a 300ml can more easily. The original was OK but a little tight. The newer one is 2mm wider.

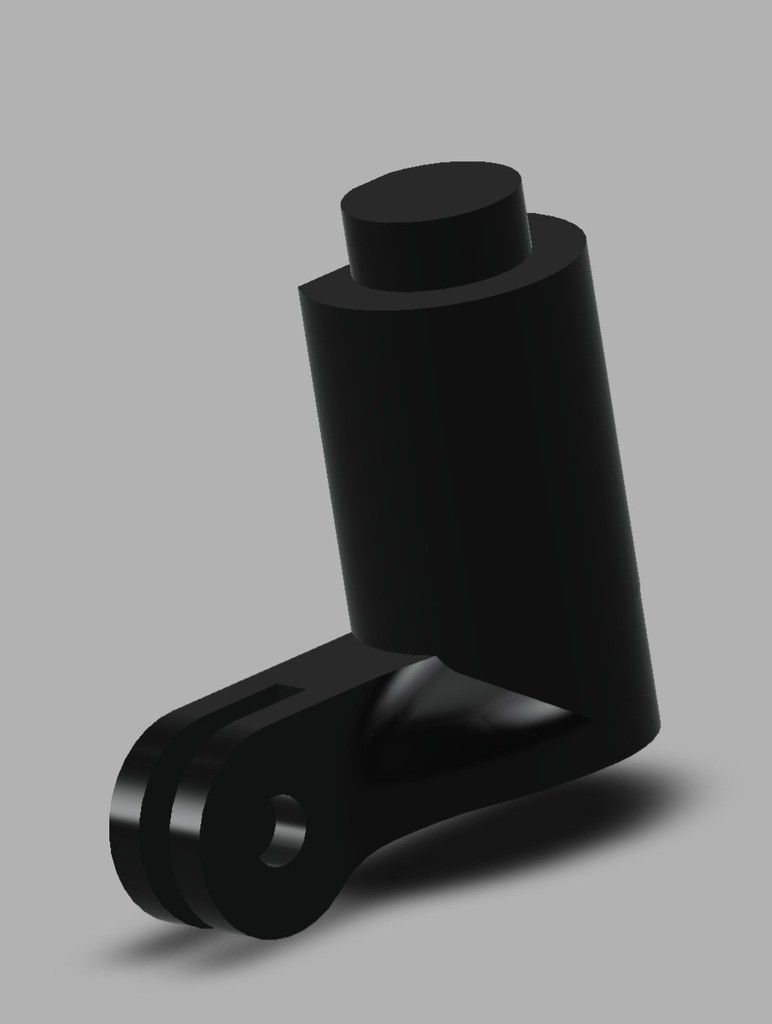

Update 4 (28/08/18): I have created a mount which will interface with a GoPro mount which should give many options for clamps etc. NB - it will require support between the two mounting plates.

3D printer file information

  • 3D design format: STL Folder details Close
    • Centre.stl
    • Clip_on_folding_chair_mount.stl
    • GoPro_Mount.stl
    • Grouped_Model.stl
    • Grouped_Model_Expanded_200818.stl
    • Middle.stl
    • Outer.stl
    • Screw-on_Mount.stl
    • Screw.stl

    Learn more about the formats

  • Last update: 2020/04/14 at 19:36
  • Publication date: 2018/09/07 at 14:27

License

CC BY

Tags

Creator

Designs 130
Downloads 6.8k
Sales US$171
Followers 71

I am very much an enthusiastic amateur when it comes to designing. My designs tend to have two things in common

1) They serve a purpose. I like to design functional objects which have a real-world use. 3D printing for art is fine, but it's its real-world application which will take the technology forward
2) Wherever possible I design to be easy to print and try to eschew supports or complex printing; modifying the design where necessary and possible to achieve this.
