Door holder with magnets

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 572 views
  • 1 like
  • 10 downloads

3D model description

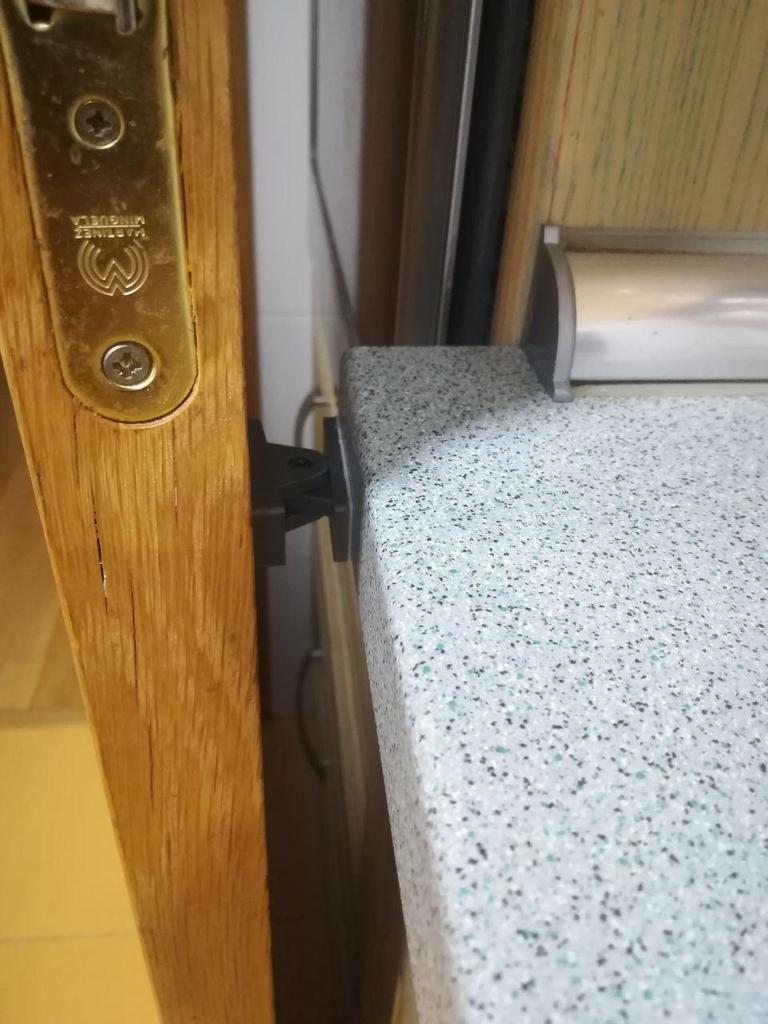

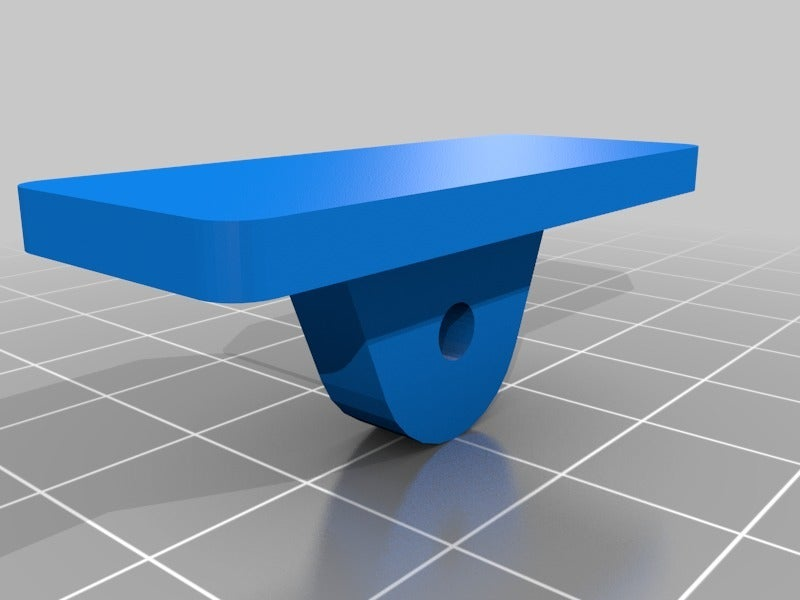

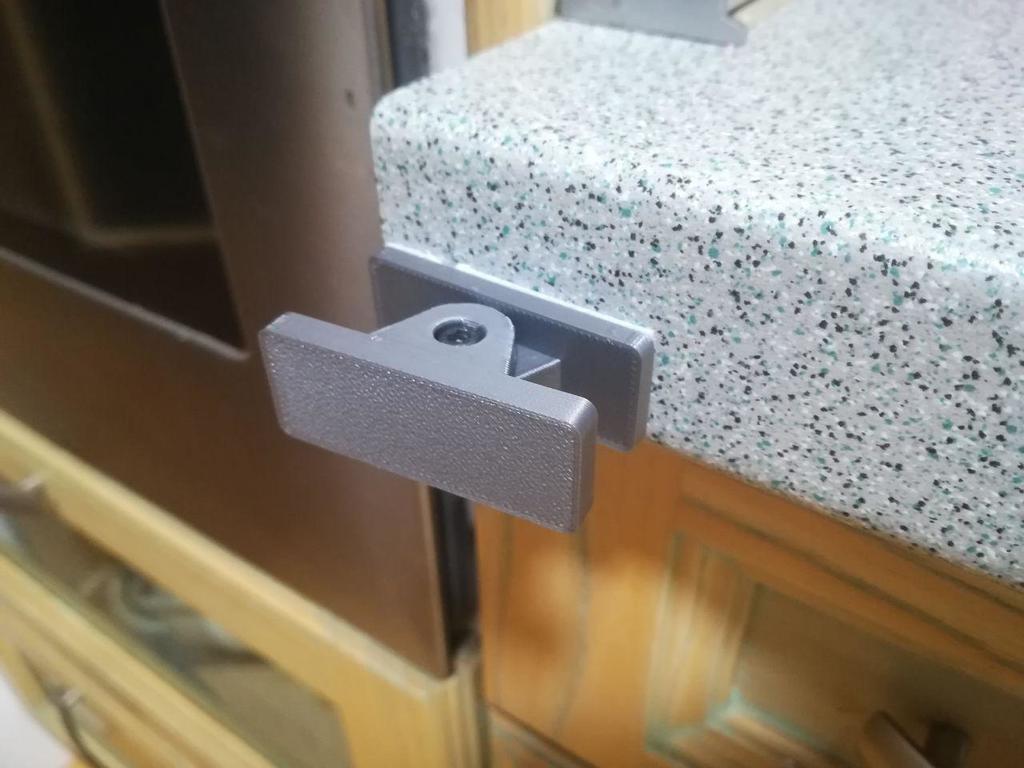

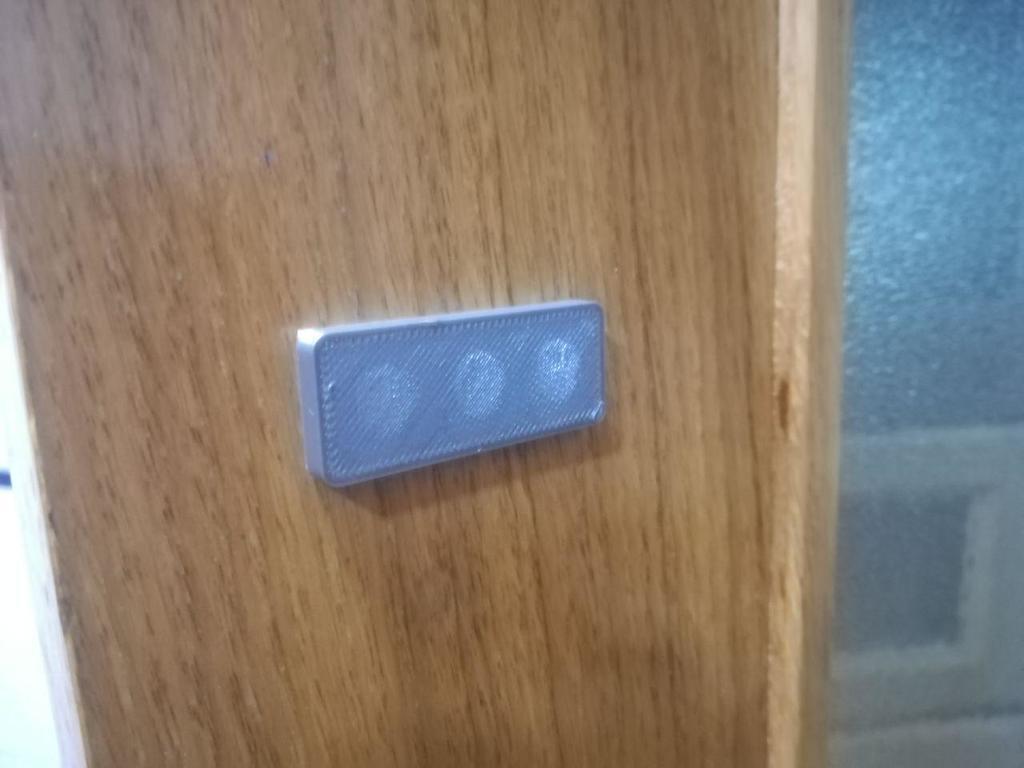

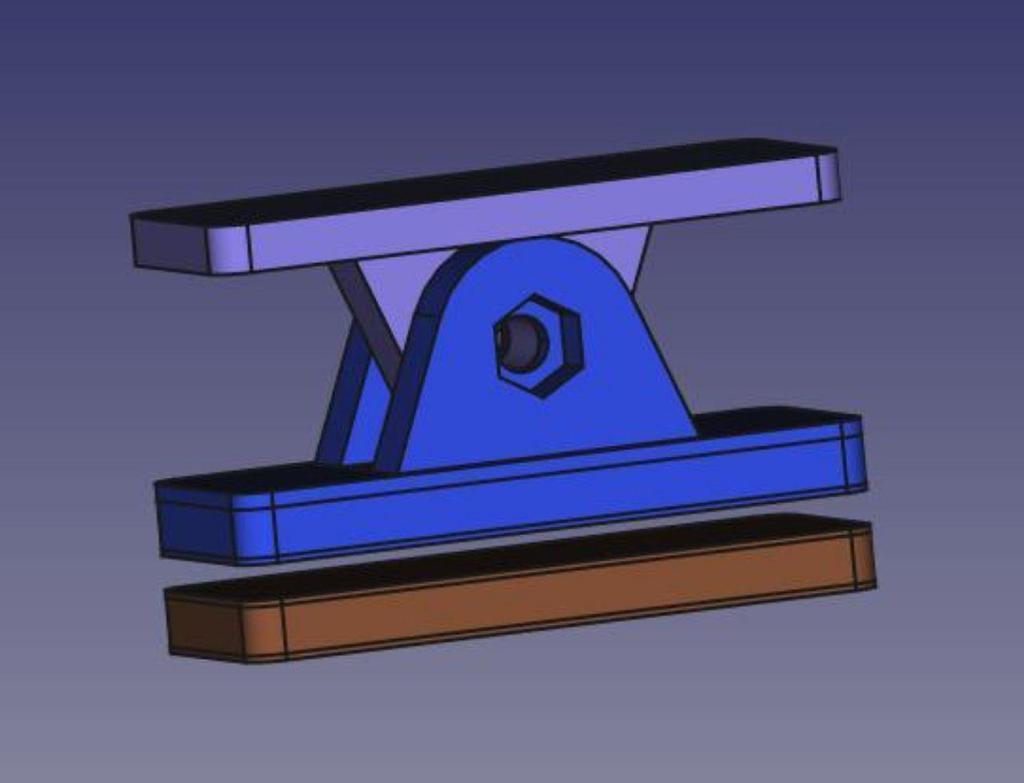

Magnetic system to hold the doors.

It is necessary for its assembly:

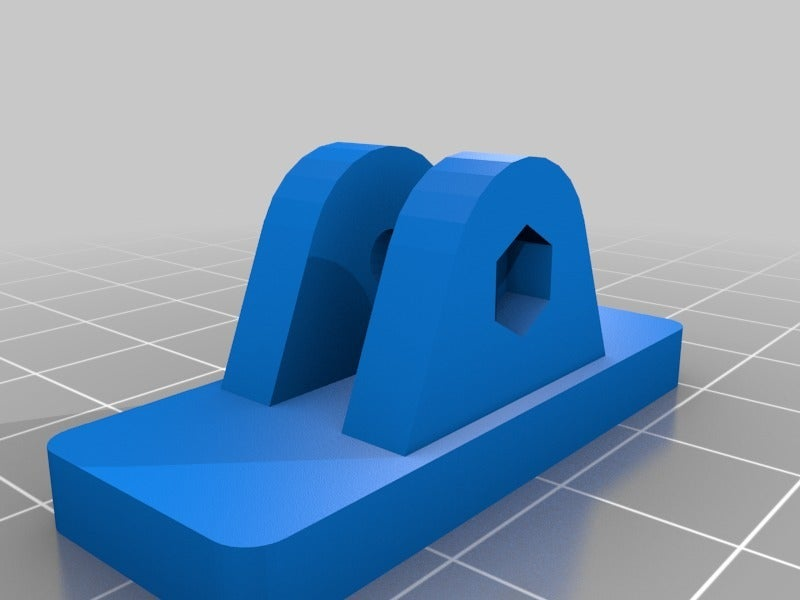

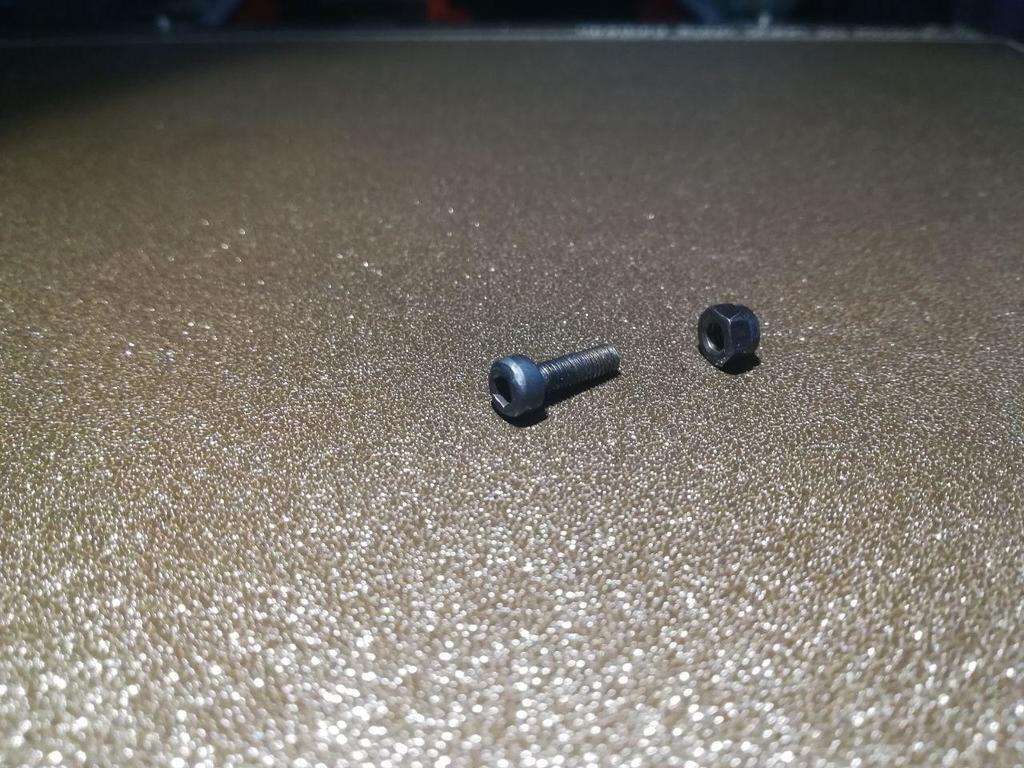

  • 1 M3 (3mmØ) and 14mm long Allen screw

  • 1 M3 (3mmØ) self-locking nut

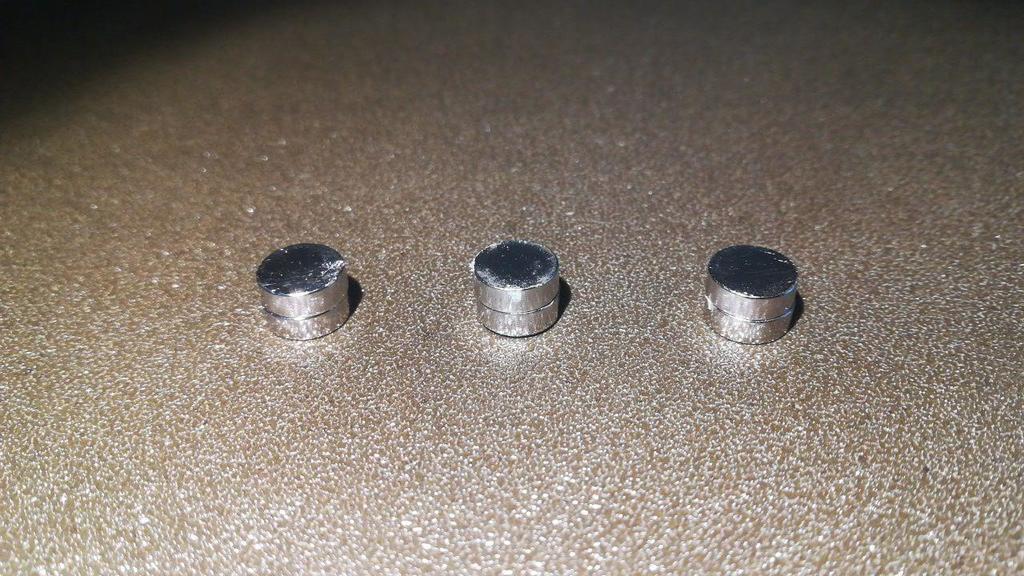

  • 6 Cylindrical magnets 8mmØ 3mm high

  • Double-sided adhesive tape

FCStd file is attached so that the design can be edited with Freecad.

VERY IMPORTANT

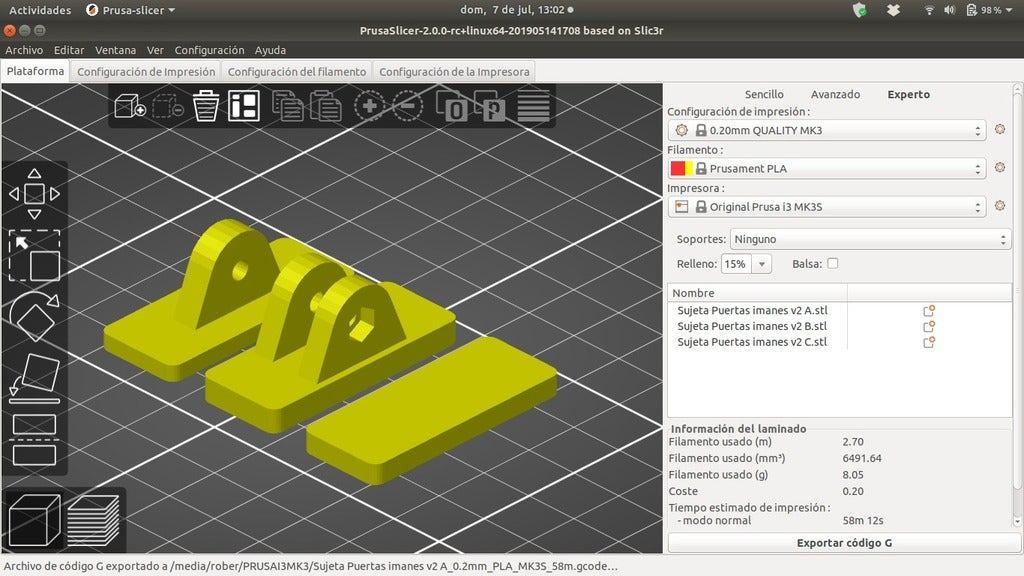

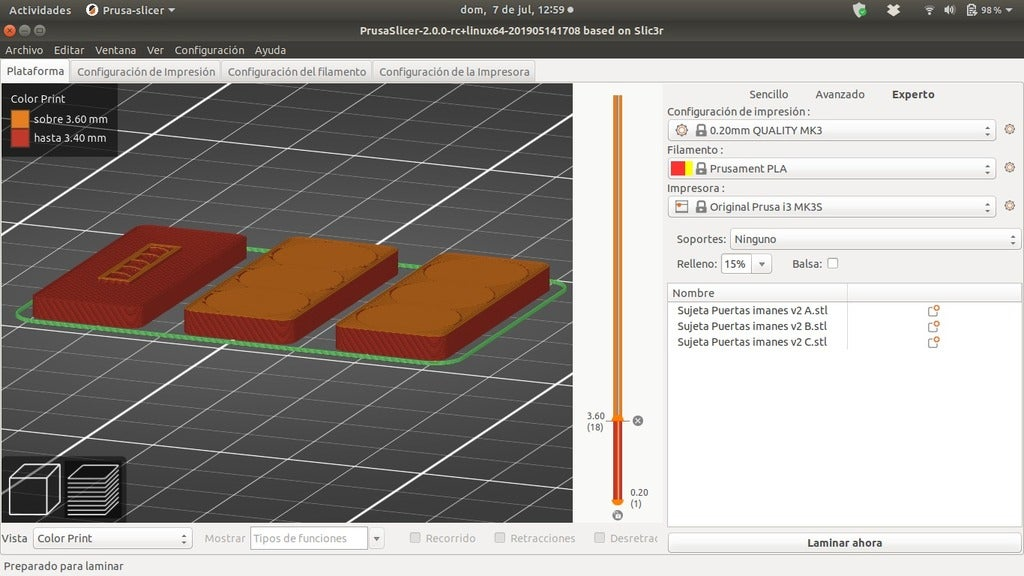

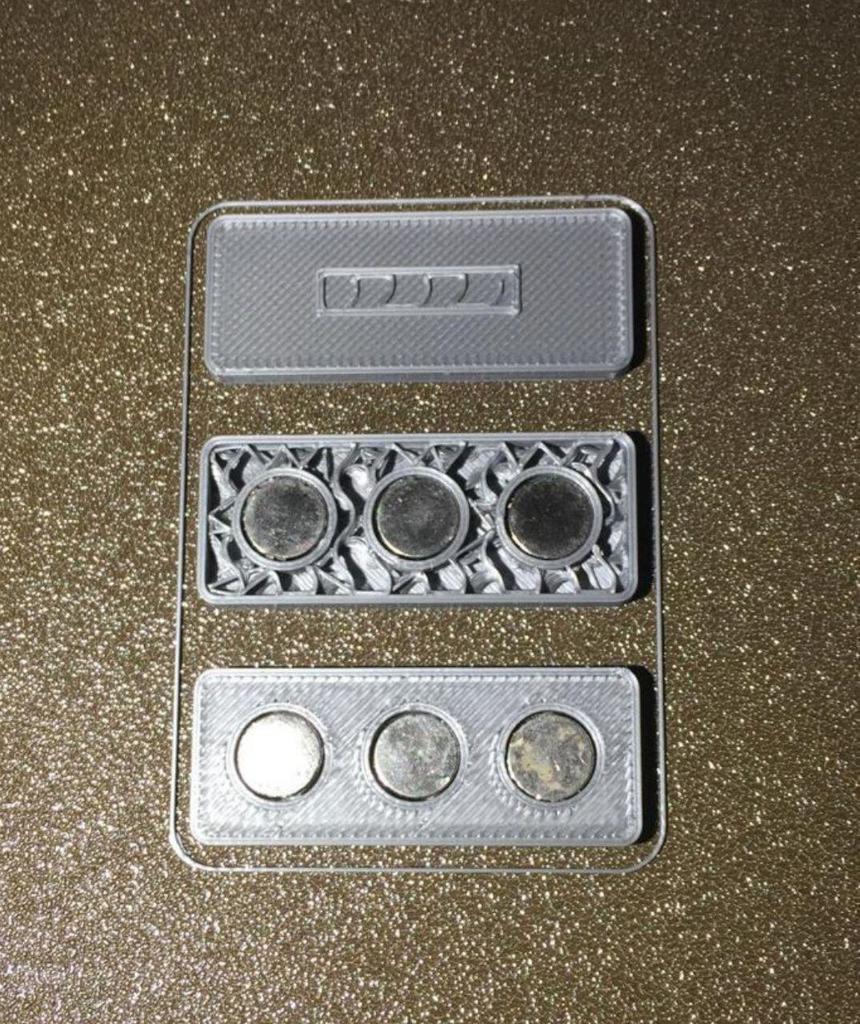

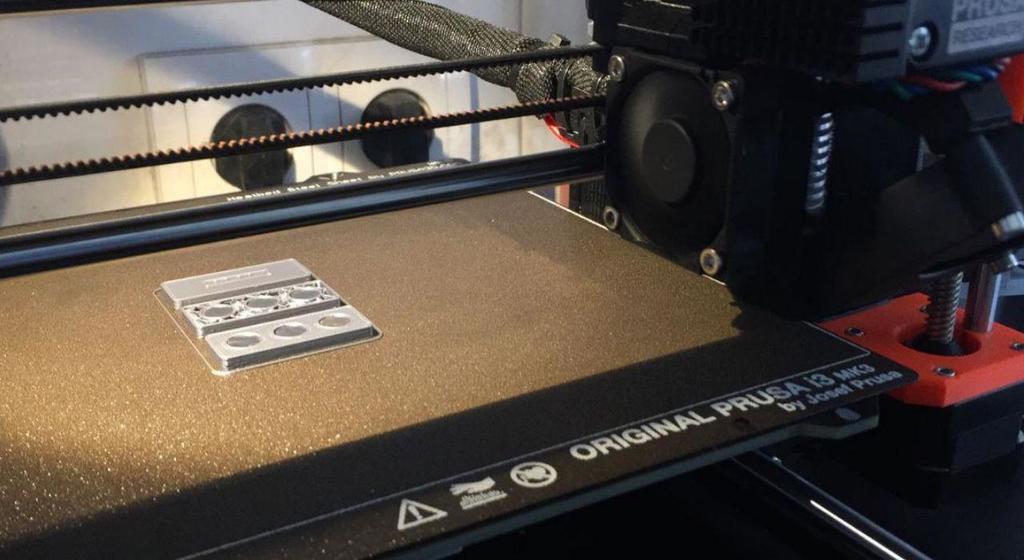

This design has magnets inserted/embedded inside the pieces so by doing a lamination at layer 0.2 height we have to make a change of filament in layer 18, this allows us to introduce inside the piece the magnets (in my case I put the same filament again so that everything is the same color)

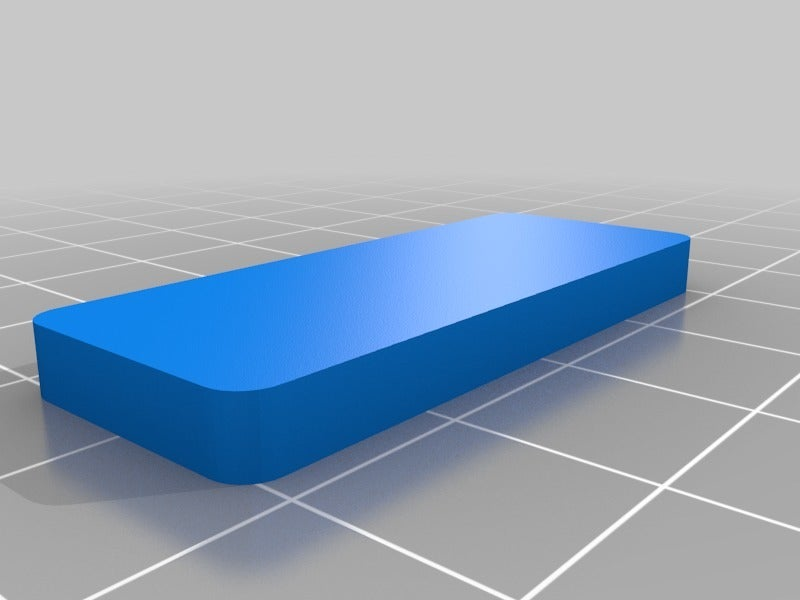

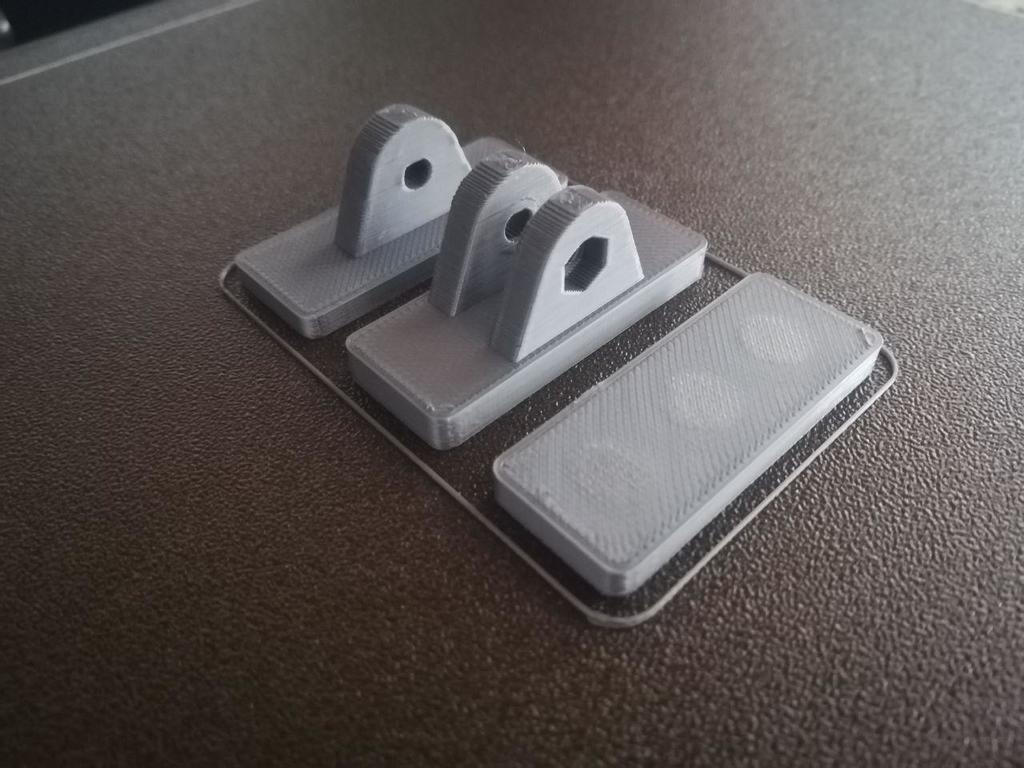

Position the magnets so that they do not repel each other once the piece is finished (piece A and B must be glued together)

  • 3D file format: STL
  • Publication date: 2020/04/07 at 15:23

Tags

Creator

Designs 19
Downloads 241
Sales US$1
Followers 1

License

CC BY
