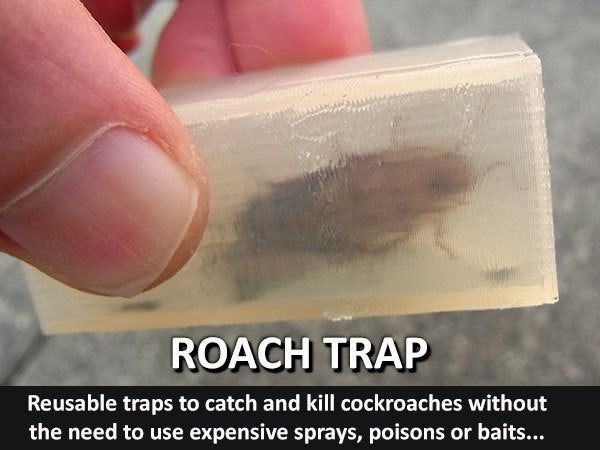

Roach Trap...Reusable trap to catch and kill cockroaches

Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

It's safe to say most people have a dislike ( ...hate ... are scared) of cockroaches. If you're in this group and have the odd roach problem then this could be your solution.

We were regularly getting cockroaches sheltering in our letterbox. All too often this meant you carried them inside the house hidden amongst the mail... particularly the junk mail. Sprays and baits inside the letterbox never seemed to have any effect (...although that's not to say they didn't wander away to die elsewhere?)

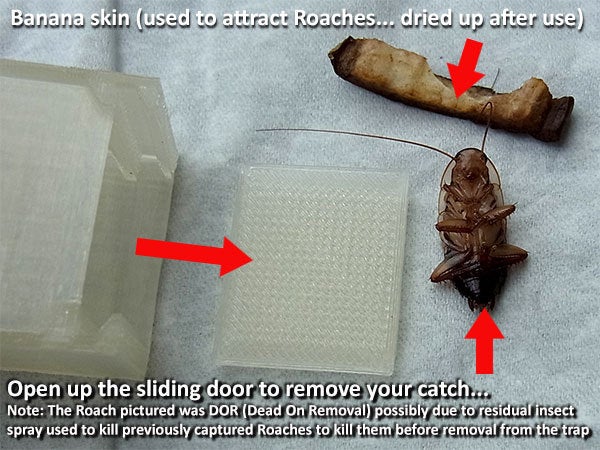

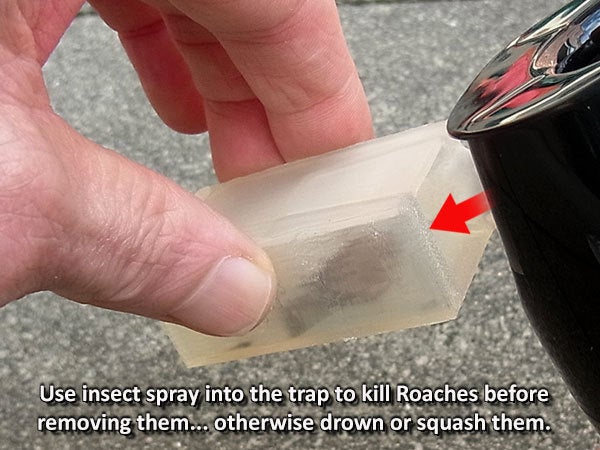

Baits aren't cheap and the idea of spray coated mail didn't exactly appeal either so I developed a small reusable 'Roach Trap' that has proven to be effective at catching cockroaches. How you deal with them after they are trapped inside is up to you... spray insect spray up the entry, drop it all into water until they drown... or just open the end sliding door, knock them out and squash them. However you decide to deal with them at least you have a corpse so you know there's one less roach to annoy you.

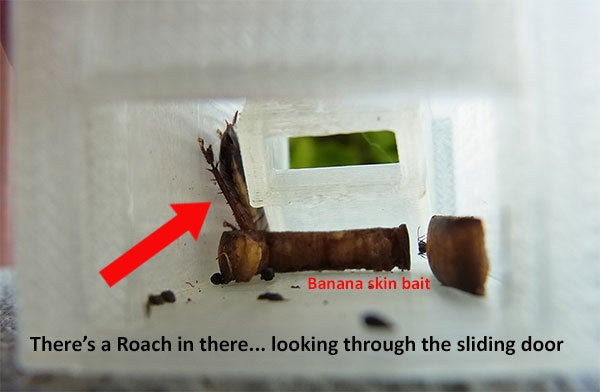

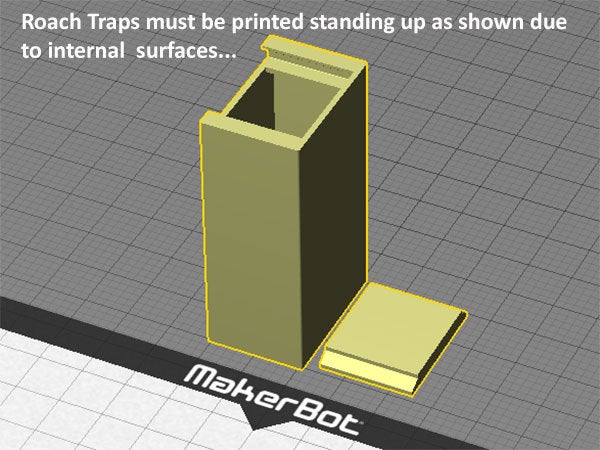

This is a simple print with no support required and they don't use a lot of filament. Print with translucent filament so you can see through the thin walls and see if there's a roach inside ( can shake it and they often start scuttling around). Use 2 shells but high infill (50%) to make sure the walls are almost solid and strong... after all this is a Roach prison.

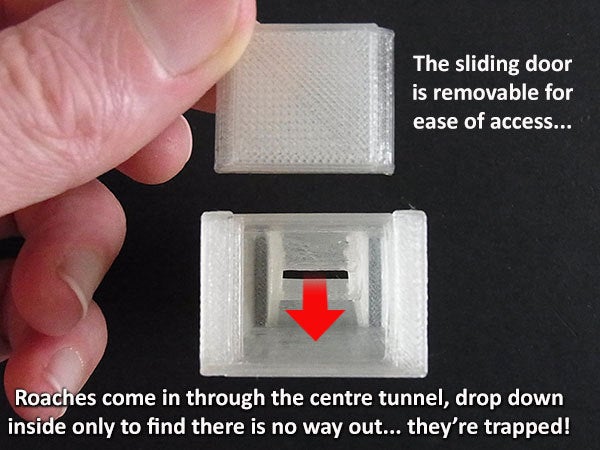

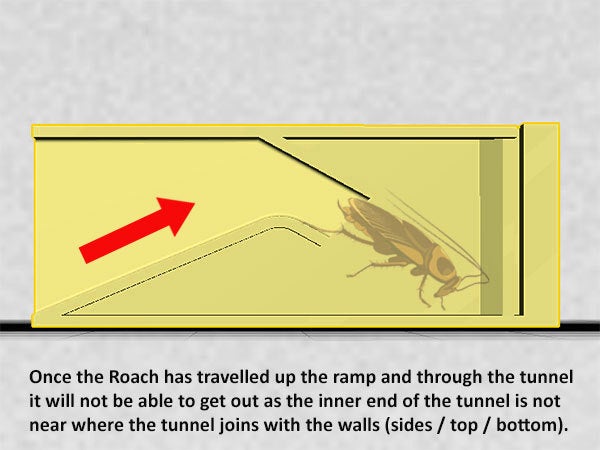

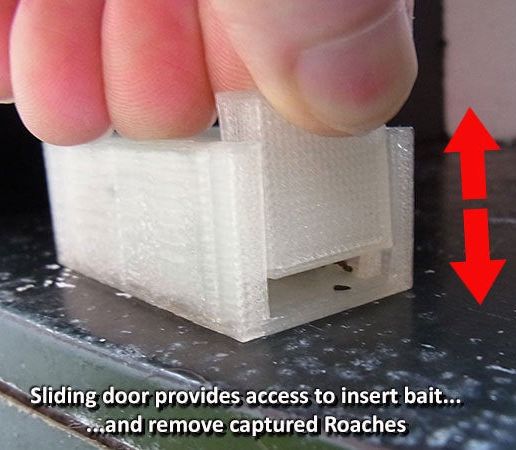

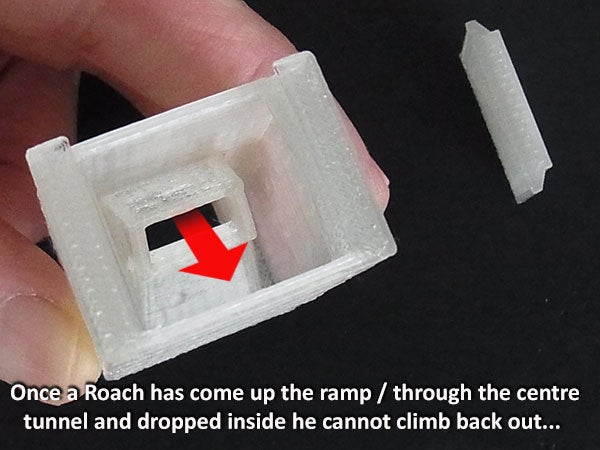

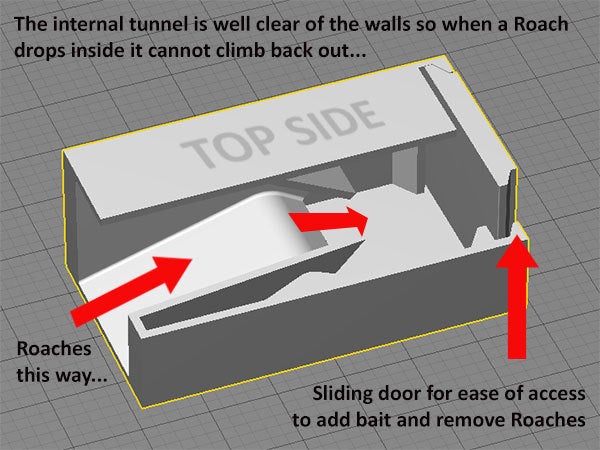

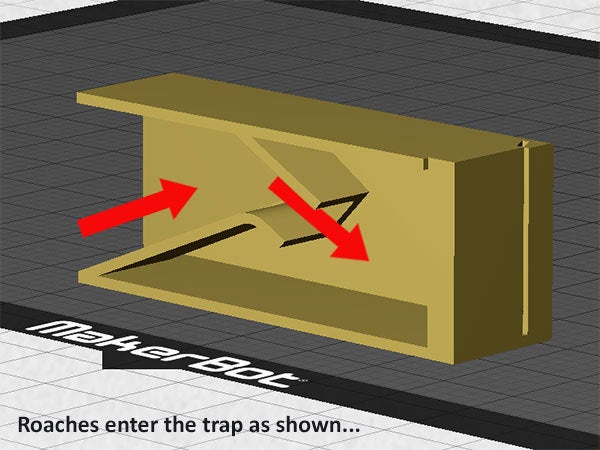

In operation, attracted to the trap by a tempting smell, there is a ramp that is easy for a cockroach to climb. At the end of the ramp there is a drop into the trap... they drop in only to discover there is no way out. The ramp is a tunnel / tube that has no walls / surfaces leading to the entrance that a cockroach can climb to escape. At the other end of the trap is a small sliding door. This is used to insert the bait and... remove trapped Roaches.

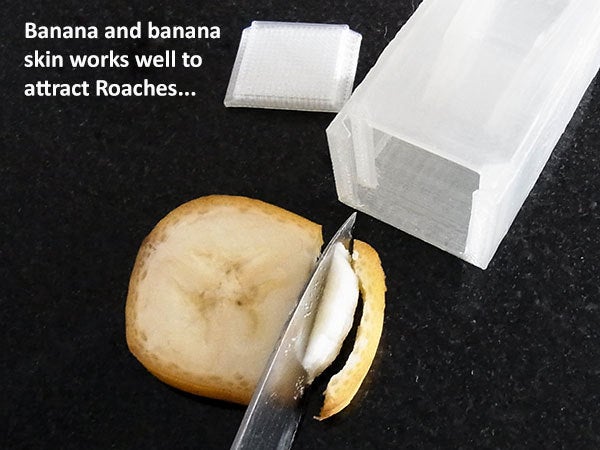

To attract cockroaches to your trap use something like a small piece of banana and banana peel inside the trap through the sliding door. Having searched online for things that attract cockroaches sweet/fragrant things like this seem to work well... just don't put too much as a cockroach could potentially climb over and get out.

This is a really simple little solution to an annoying problem most people have to deal with at times. The 'Roach Trap' is reusable, doesn't need any expansive baits or sprays so can save you money and the concern about poisons on surfaces around your home.

Give it a go... print one... catch a few and you'll print more!

To the best of my knowledge there is no similar commercial solution remotely like this.... at standard size they 'Roach Trap' measures 32mm (W) x 57.5mm (L) x 22mm (H). This works well with the Roaches in our area up to about 25mm long. Got bigger Roaches... just scale it up uniformly and it should work just as well. Scaling down is not recommended.

Please refer to the images and print instructions for additional information. Your Roach Trap must be used the correct way up to trap Roaches!

Note: If you like this check out the rest of my practical and fun designs.

3D printer file information

  • 3D design format: STL Folder details Close
    • roach_trap.stl

    Learn more about the formats

  • Publication date: 2019-07-05 at 15:52
    Published to Thingiverse on: 2016-03-27 at 03:23
