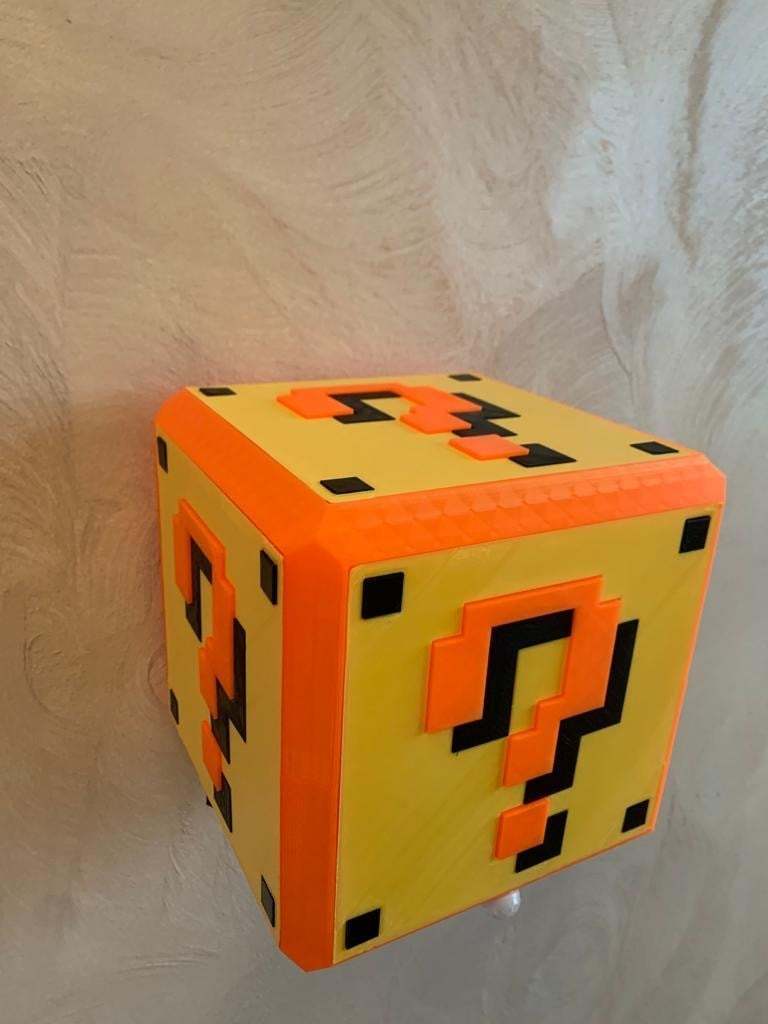

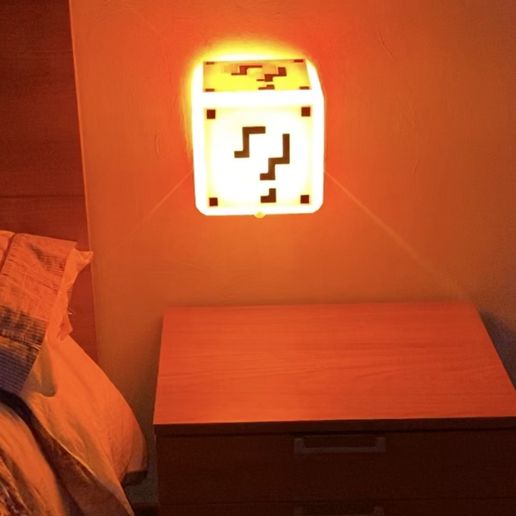

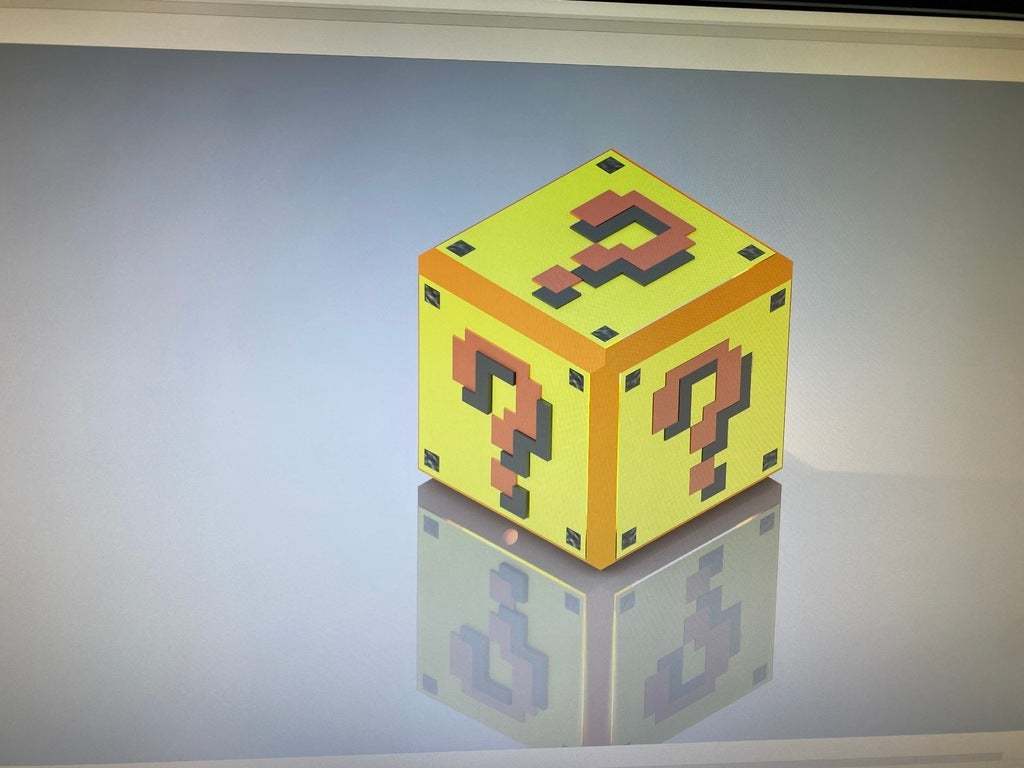

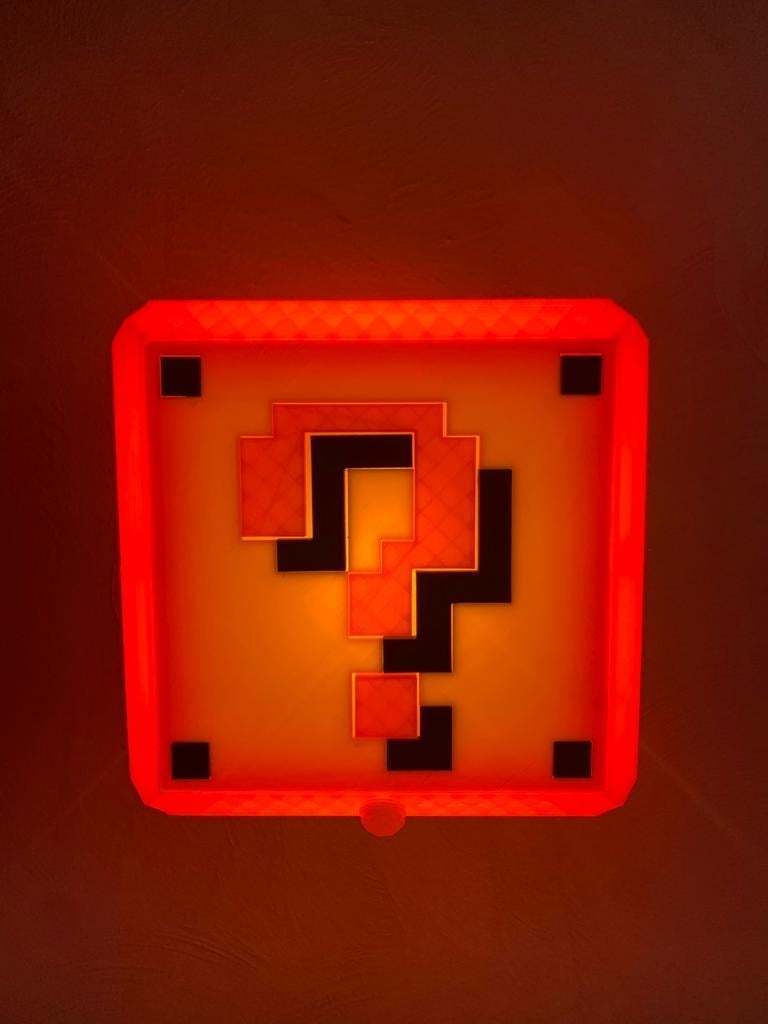

Mario Bros lamp with motion sensor

3D model description

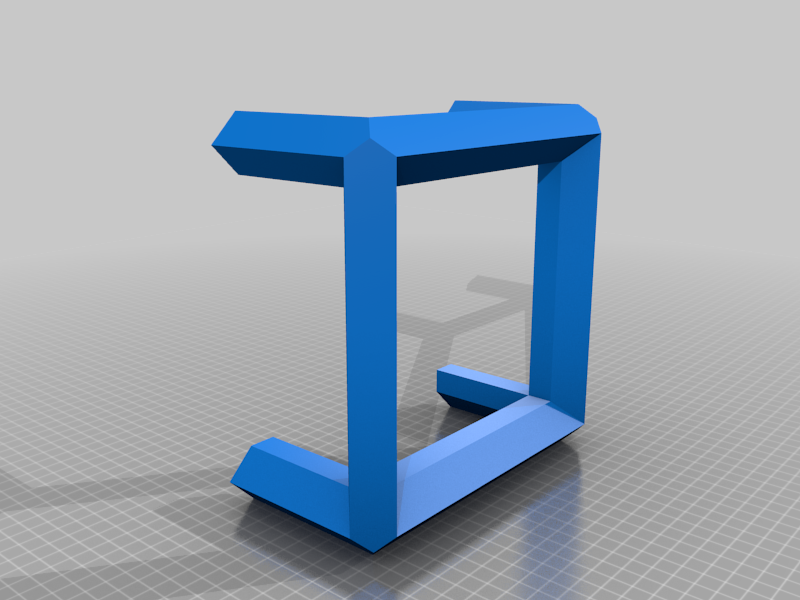

Mario Bros lamp with motion sensor 200x200x200 mm.

This lamp is based on the Wiper model and adapted to my needs.

https://www.thingiverse.com/thing:2474157

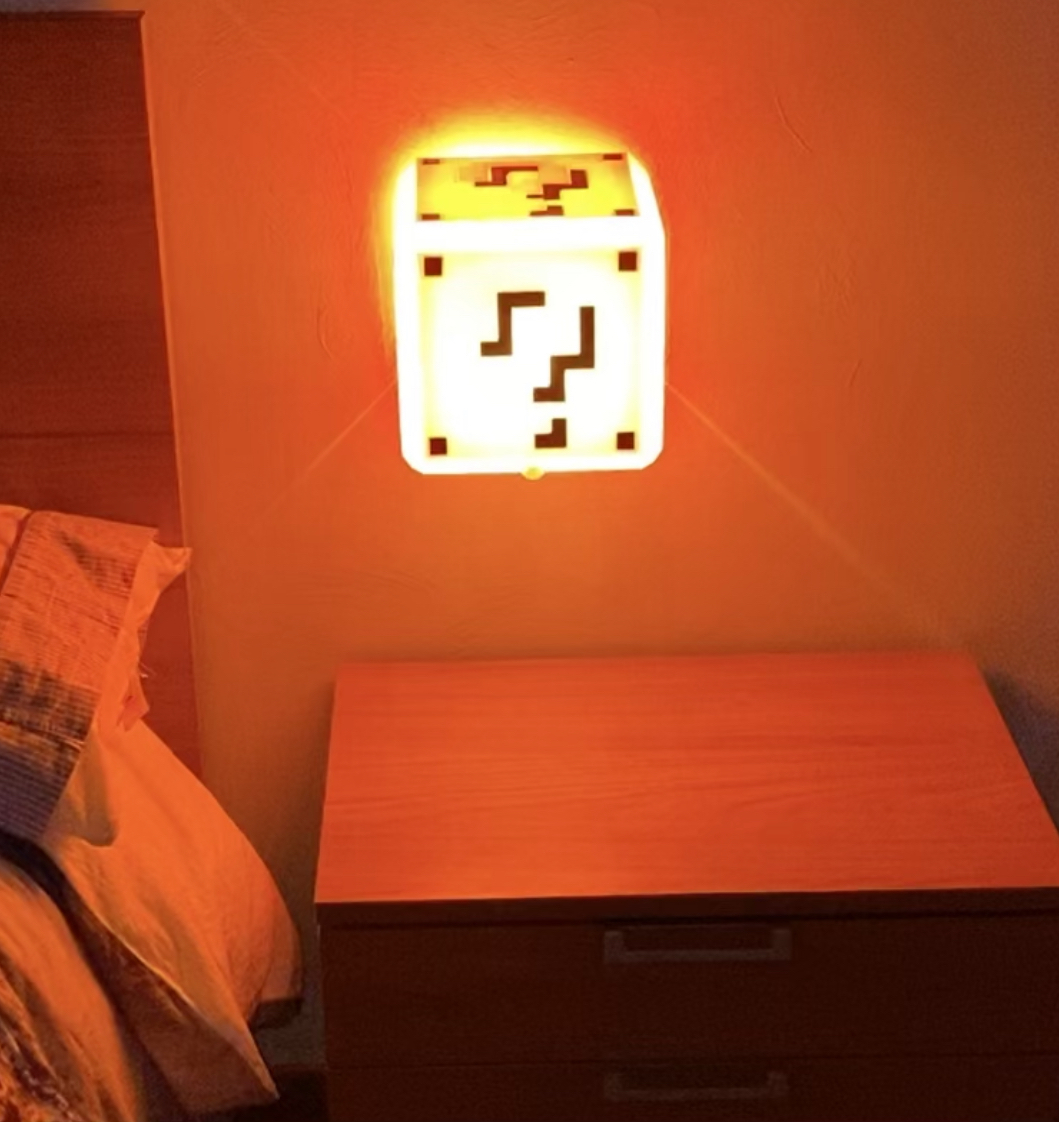

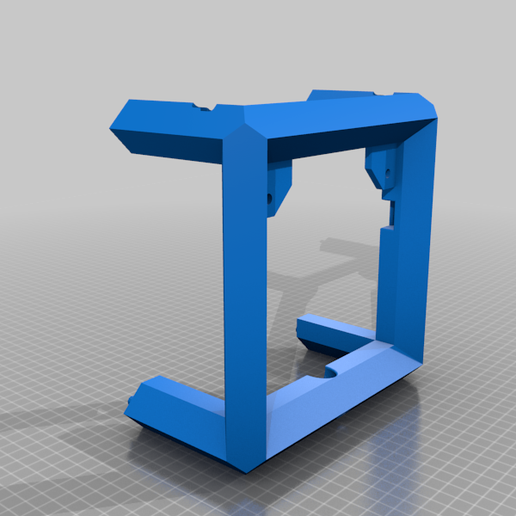

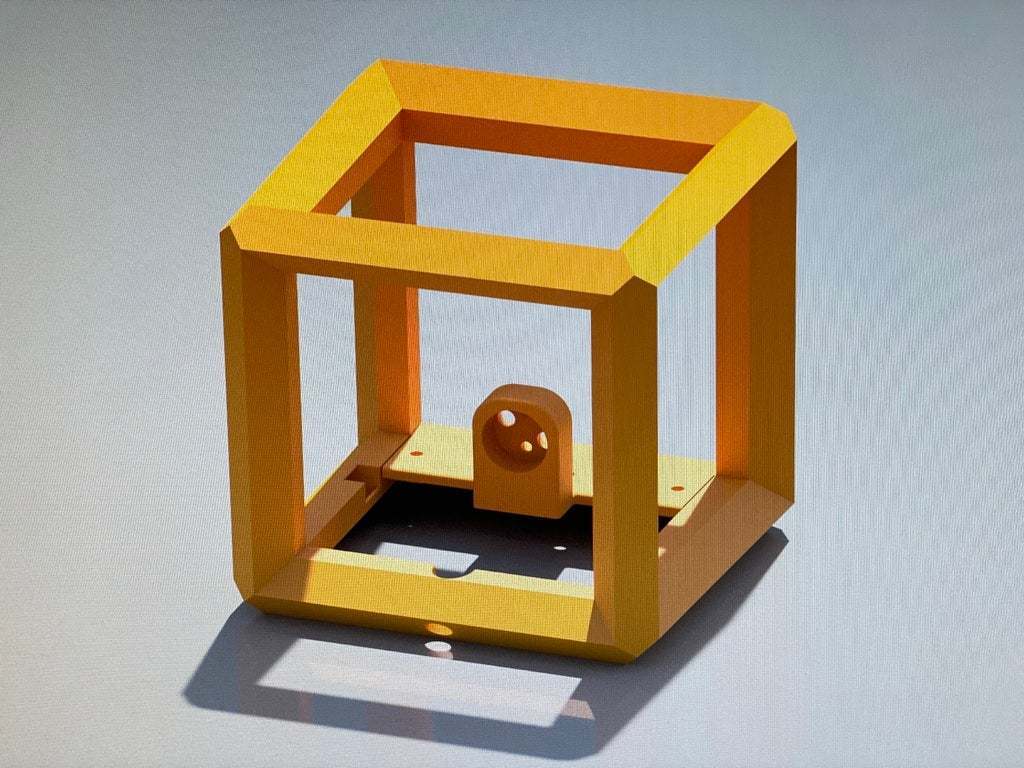

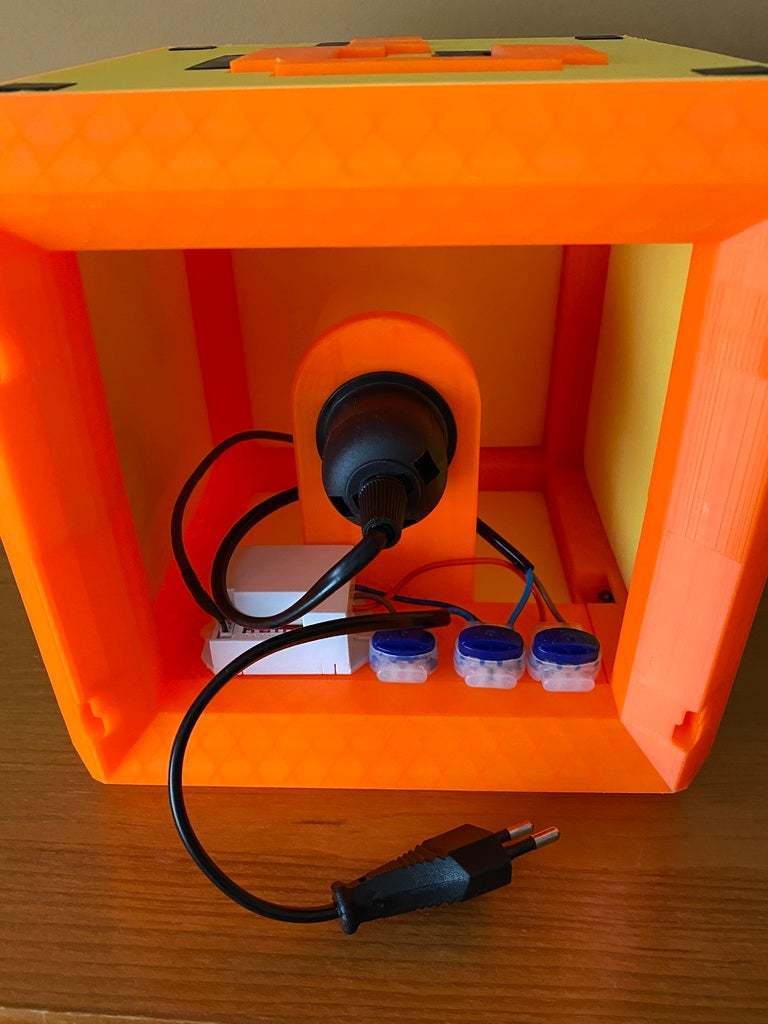

My design is to put the lamp in vertical and hide the plug where it will be fed, the motion sensor is increased and if you do not want for some reason you also have the possibility of activating it by a switch.

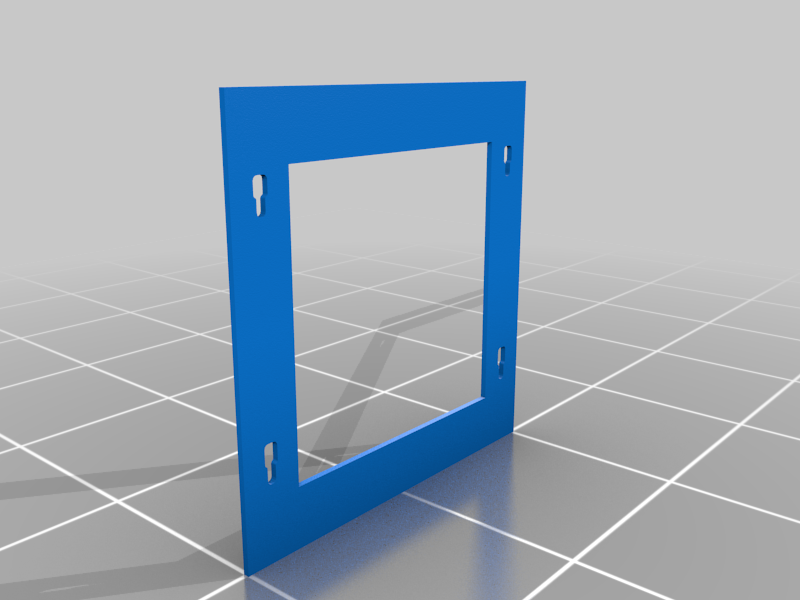

The file named "lamp template" is to facilitate the marking of the holes where the lamp will be supported. It is not necessary for the operation of the lamp.

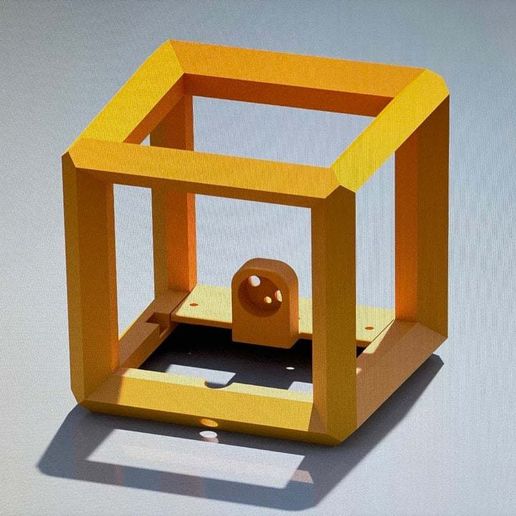

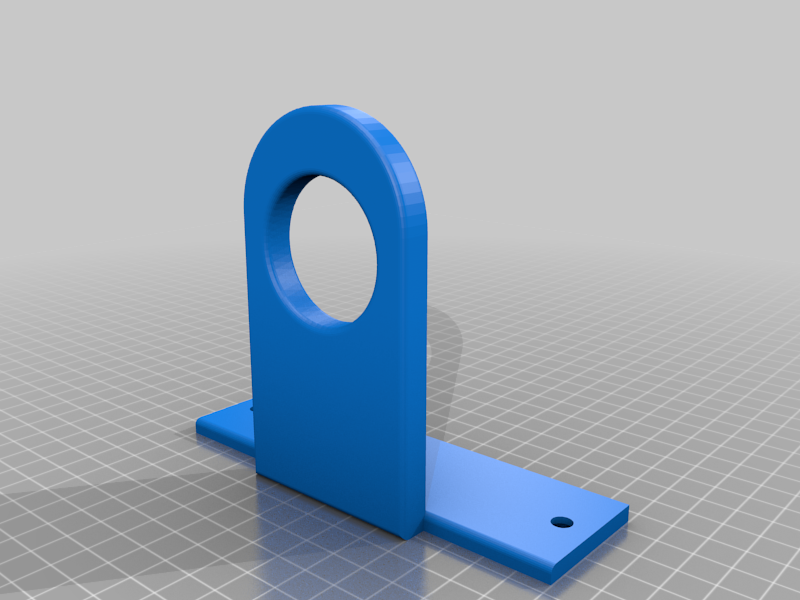

There are two files called electrical part, depending on the lamp holder you use you will have to print one or the other.

These are the materials that you should need

-Filament (color to choose)

https://www.amazon.es/gp/product/B07B6JCPLK/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1

-Movement sensor

https://www.amazon.es/Detector-Movimiento-empotrable-programable-Infrarrojos/dp/B07H2CXKDD/ref=sr_1_5?__mk_es_ES=%C3%85M%C3%85%C5%BD%C3%95%C3%91&dchild=1&keywords=sensor+movimiento&qid=1589191129&s=industrial&sr=1-5

-Switch

https://www.amazon.es/gp/product/B076GXD7XN/ref=ppx_yo_dt_b_asin_title_o02_s01?ie=UTF8&psc=1

-Lamp holder electric part

https://www.amazon.es/DiCUNO-0-75mm%C2%B2-Silicon-Connector-hal%C3%B3geno/dp/B07GTH2LCN/ref=sr_1_2_sspa?__mk_es_ES=%C3%85M%C3%85%C5%BD%C3%95%C3%91&dchild=1&keywords=portalamparas+led&qid=1589191199&s=tools&sr=1-2-spons&psc=1&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUEyWkRPTFVOM0NBRE9WJmVuY3J5cHRlZElkPUEwODg1NjA4TVpCNUZTNFFXRFNMJmVuY3J5cHRlZEFkSWQ9QTA0NDg0NTgxODlBNVlJQk4zRk9EJndpZGdde5hbWU9c3BfYXRmJmFjdGlvbj1jbGlja1JlZGlyZWN0JmRvTm90TG9nQ2xpY2s9dHJ1ZQ==

-Led bulb

https://www.amazon.es/dp/B07WPB19PQ/ref=sspa_dk_detail_8?psc=1&pd_rd_i=B07WPB19PQ&pd_rd_w=CwoaY&pf_rd_p=af12bbbd-c74b-4d8c-ad16-2ed2a7b363ab&pd_rd_wg=rJOFw&pf_rd_r=B5N5YWJ5CZT6JZMMTMG0&pd_rd_r=27f7335e-91c4-423b-9251-bae12f78710f&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUExNFlFRlpVNDZJNDQyJmVuY3J5cHRlZElkPUEwODYxNTQ2MUJGTDYxWkxSU1dINCZlbmNyeXB0ZWRBZElkPUEwMTMzNzI2MjlDM0QzU0Q5S0U5QyZ3aWRnZXROYW1lPXNwX2RldGFpbCZhY3Rpb249Y2xpY2tSZWRpcmVjdCZkb05vdExvZ0NsaWNrPXRydWU=

-Lamp holder electric part 2

https://www.amazon.es/gp/product/B07GJNQFTV/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1

-Bulb

https://www.amazon.es/gp/product/B01J1NTGYM/ref=ppx_yo_dt_b_asin_title_o03_s01?ie=UTF8&psc=1

20/09/2020**

Some users report temperature problems when the lamp is left on for long periods of time.

Make sure you mount heatless bulbs (LED type)

  • 3D file format: STL

Tags

Creator

License

CC BY

Page translated by automatic translation. See the original version.


Best sellers of the category Home


Add a comment

2 comments

Gracias por el comentario.

Edito la información y aviso del riesgo.
Esta lámpara la modifique de otros diseños que tengo del mismo modelo para poner de lámparas sobremesa. La idea de poner el temporizador es precisamente para evitar que me quedase encendida por un largo tiempo. De todas formas las lámparas que hice les puse bombillas led (no desprenden calor) y tienen estado encendidas por horas y sin problema.

Me puedes indicar qué tipo de bombilla le has montado?
Gracias

Muy bonito el diseño, yo lo hice, pero cuidado con el tipo de iluminación que poneis dentro, utilicé el soporte para poner una bombilla, con el calor se fundió el soporte y casi sale ardiendo el mueble de mi salón.
