Retrograde Clock Model 2

?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

I present to you the Retrograde Clock Model 2

The next version of the ol' Retrograde Clock

Assembly Guide

Update:
Due to popular request, I have included an alternate clock face / chassis that reads 00-60 (chassis 0060.stl) in the minutes dial instead of 00-00

Parts required:

12888 clock movement with 4.5 mm length threaded shaft (WHITE SHAFT with 4.98mm dia. hour shaft/3.12mm dia. minute shaft) with rubber washer, flat washer and nut for mounting.
Sample

2 pcs - 19 mm x 2 mm dia. round rod (brass or stainless steel). Ends should be free of burrs and chamfered to allow for easy insertion.

Tools required:

2 mm drill bit

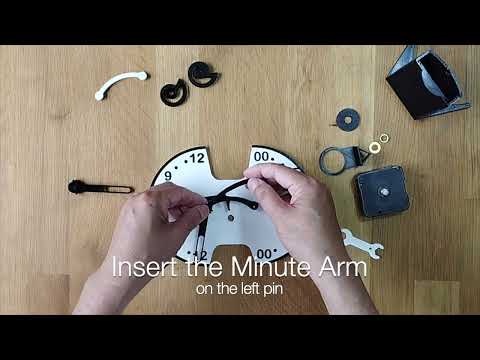

A reamer made with a ~50mm length of 2mm round rod with tip cut diagonally. Leave burrs and sharp edges as is.
3mm drill bit to remove the burrs on the holes.
Pin vise for the drill bit and reamer. (included)
Wrench to tighten the clock nut. (3d printable wrench included)


3D printing settings

Biggest piece is the Chassis / Face: around 210mm x 150mm

PLA
Layer height 0.2mm
Extrusion width 0.5mm 2 perimeters
10% infill

3D printer file information

  • 3D design format: PDF and STL Folder details Close
    • Assembly Guide.pdf
    • Pin Vise 2.0.stl
    • Pin Vise 3.0.stl
    • cap.stl
    • chassis 00-60.stl
    • chassis.stl
    • clock wrench.stl
    • hook 26.stl
    • hook 28.stl
    • hour arm.stl
    • hour hand.stl
    • hour spiral.stl
    • minute arm.stl
    • minute hand.stl
    • minute spiral.stl
    • stand.stl

    Learn more about the formats

  • Last update: 2022-06-23 at 13:06
  • Publication date: 2022-06-22 at 09:03
