Raspberry Pi 4 super silent case with 2.5 HDD(SSD) mount
:still():format(webp)/https://files.cults3d.com/uploaders/14337306/illustration-file/96f30aaa-77df-4397-877e-9bc96ed5426c/IMG_20210107_173044.jpg)
/https://preview3d-images.cults3d.com/variants/4ei6xi0vqpgnh67lp7lucxofzf1z/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/5u210gs08yw3l6n8s5m6zqzzpmyx/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/1c9t87ejep9ie30qt8xnj4o70edv/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/gczpg8mhopmtc109n84qj6izercq/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/qncz5p14nmdv9g2cb3sidoleevt0)
?
Creation quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 12.2k views
- 23 likes
- 245 downloads
- 0 comments
- 0 makes
Designer
3D model description

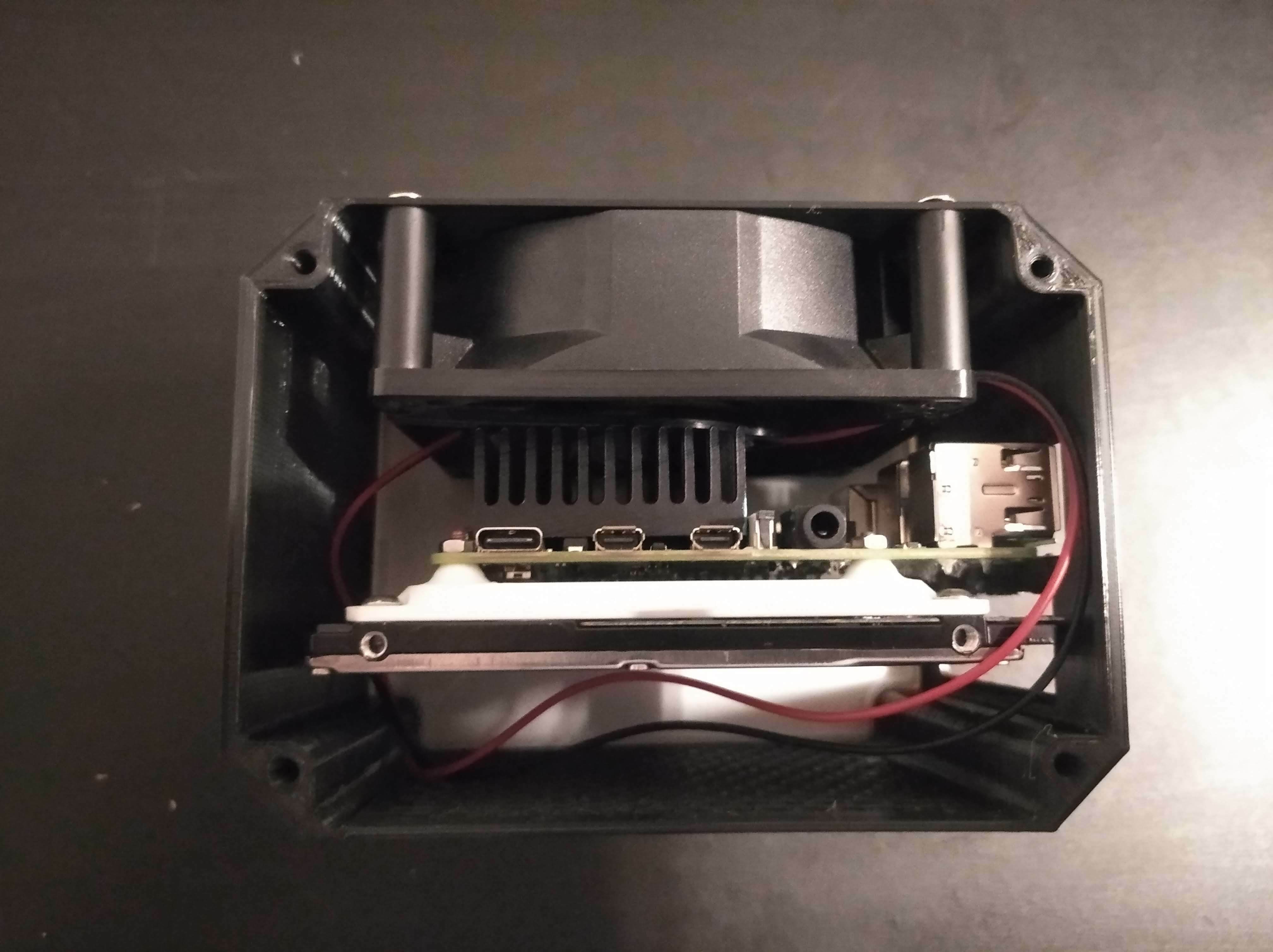

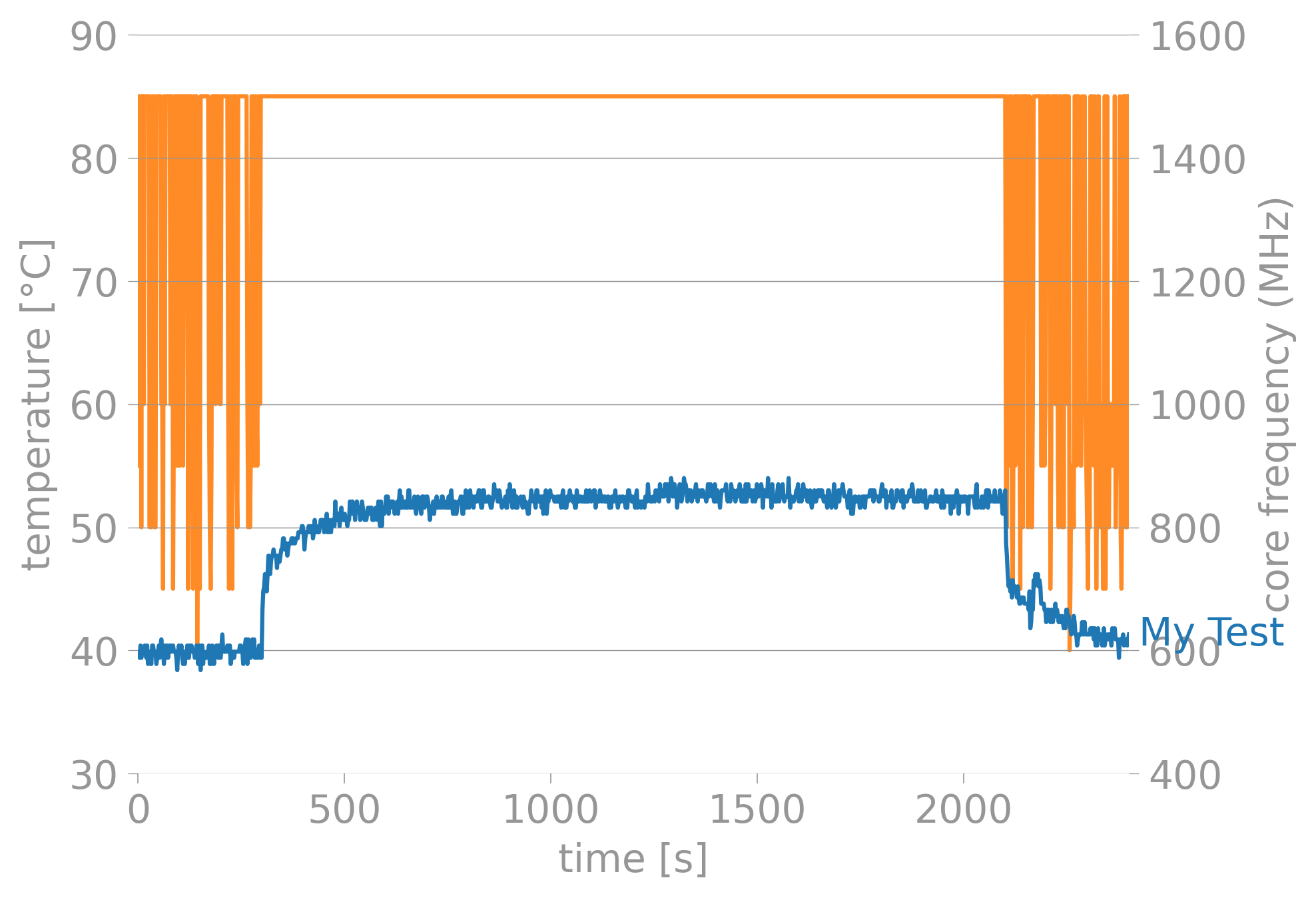

Super silent case for Raspberry Pi 4 with mount for HDD(SSD). I used this frame for mounting: https://www.thingiverse.com/thing:3126622 . Case is cooled by 12V old power supply from pc fan 80x80x25 mm. Fan is connected to 5V Raspberry out that cause fan is super silent. Practically no noise from fan. Temperature processor do not exceed 55°C in case see the Stressberry test screen. I used heat sink from old i386 processor.
I used M3 screws for mounting.
I added stl of side cover with holder for micro SD extend adapter like this: https://www.ebay.com/c/25016580769
3D printing settings
Printer brand:
Creality
Printer:
Ender 3
Rafts:
No
Supports:
Yes
Resolution:
0.2
Infill:
25%
Filament brand:
Creality
Filament color:
Black and white
Filament material:
PLA
3D printer file information
- Design number: 263501
-
3D design format: STL Folder details Close
- HDD_frame_to_RPI.STL
- bedna3logo.stl
- bok1.stl
- bok2.stl
- bok_microSD.stl
- Last update: 2021-02-06 at 11:27
- Publication date: 2021-01-13 at 18:58
License
CC BY-NC-ND - Attribution - Non commercial - No derivatives
