90 ° bar coupler connection

20170110_200421.jpg Free STL file 90 ° bar coupler connection・Template to download and 3D print
20170112_181147.jpg Free STL file 90 ° bar coupler connection・Template to download and 3D print
20170110_200453.jpg Free STL file 90 ° bar coupler connection・Template to download and 3D print
20170110_200437.jpg Free STL file 90 ° bar coupler connection・Template to download and 3D print
Pieces_Etendoir_V5_Rev1.stl Free STL file 90 ° bar coupler connection・Template to download and 3D print
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

Simdid

Simdid

3D model description

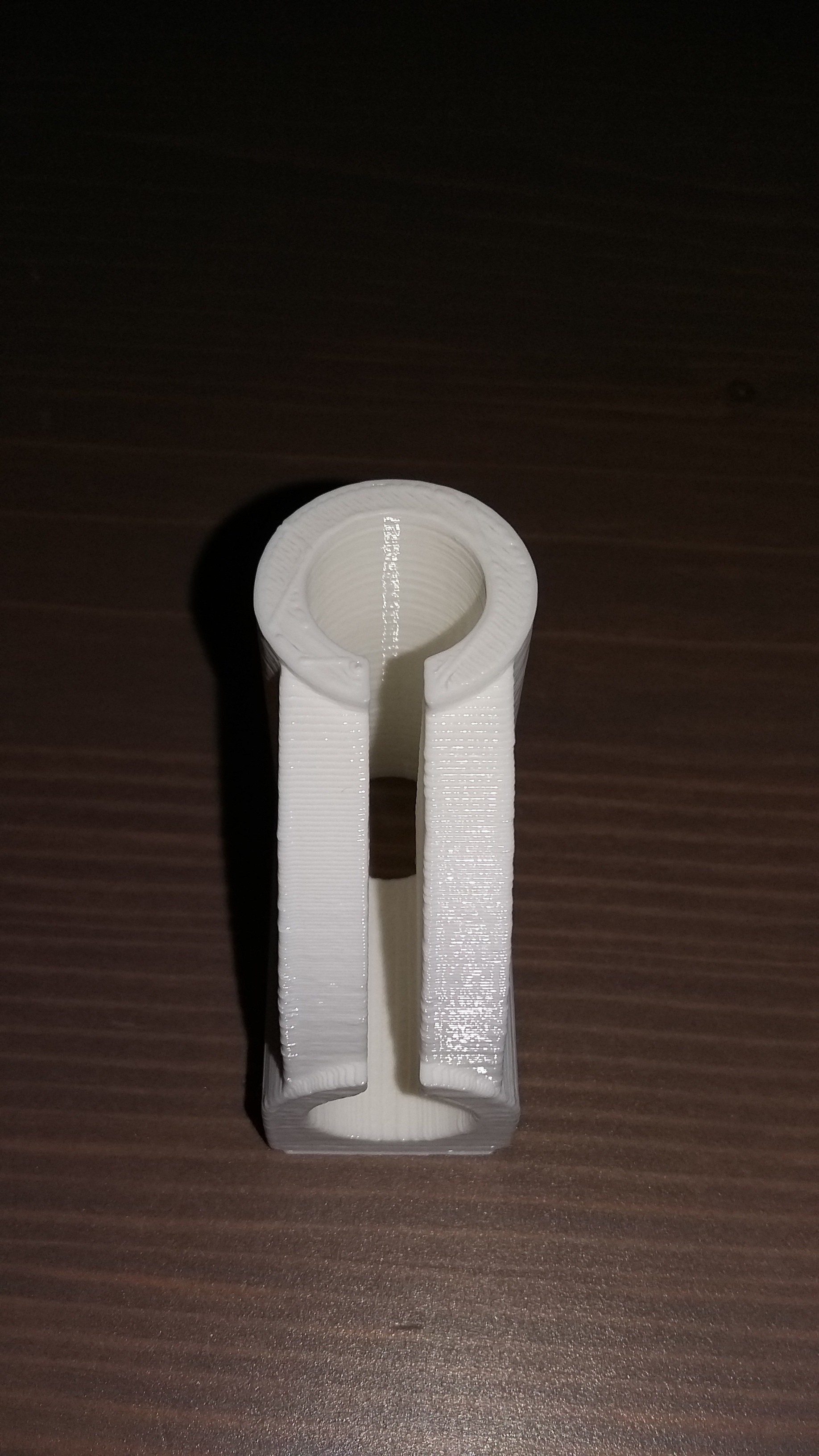

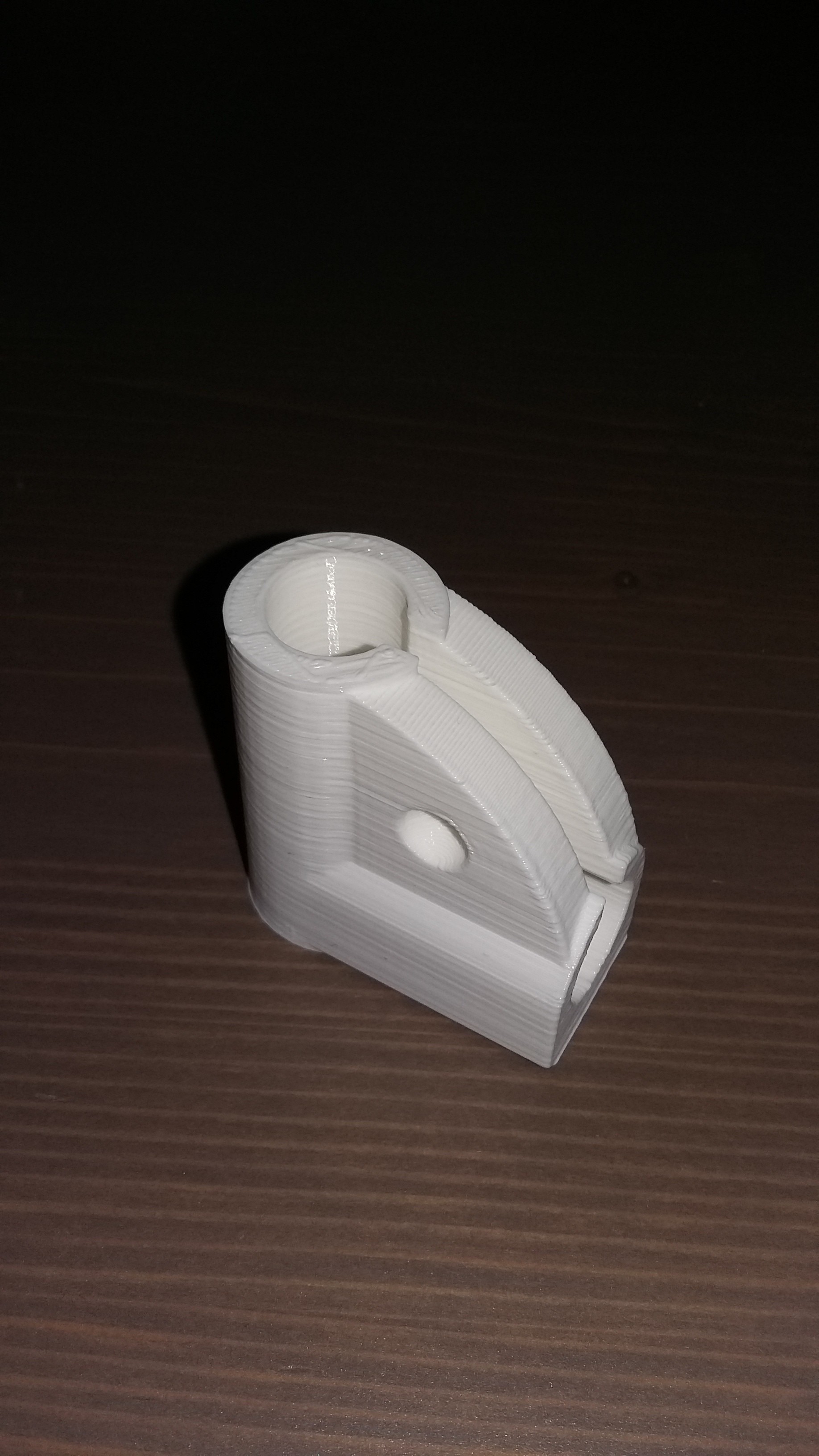

A connection for bars and bars of round section diameter 13mm with the object as is (can be easily modified).
A screw diameter 3.5 x 16mm is used to tighten the two bars.

I personally used them to repair a laundry linen tower whose welds had broken (see photo).

3D printing settings

PLA
Fast 0.2mm resolution
17% filling
Without support if positioned as on the .stl file

3D printer file information

  • Design number: 8949
  • 3D design format: STL Folder details Close
    • Pieces_Etendoir_V5_Rev1.stl

    Learn more about the formats

  • Publication date: 2017-01-12 at 19:59

License

CC BY - Attribution
