Powdered Sugar / Flour Sifter Dispenser

Advertising
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

  • 7.8k views
  • 68 likes
  • 41 downloads
  • 1 collection
  • 2 comments

Licence CULTS - Private Use
Last update 2021-01-16 at 02:13
Publication date 2021-01-05 at 22:52
Design number 258744
3D design format
STL Folder details Close
  • SugarSifter_Holder.stl
  • SugarSifter_Main.stl
  • SugarSifter_Roll.stl
  • SugarSifter_RollGear.stl
  • SugarSifter_Rotate.stl

Learn more about the formats

3D printer file info

3D model description

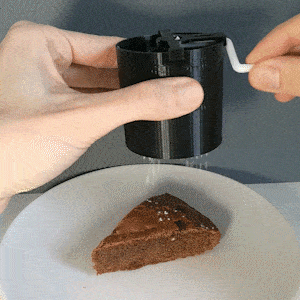

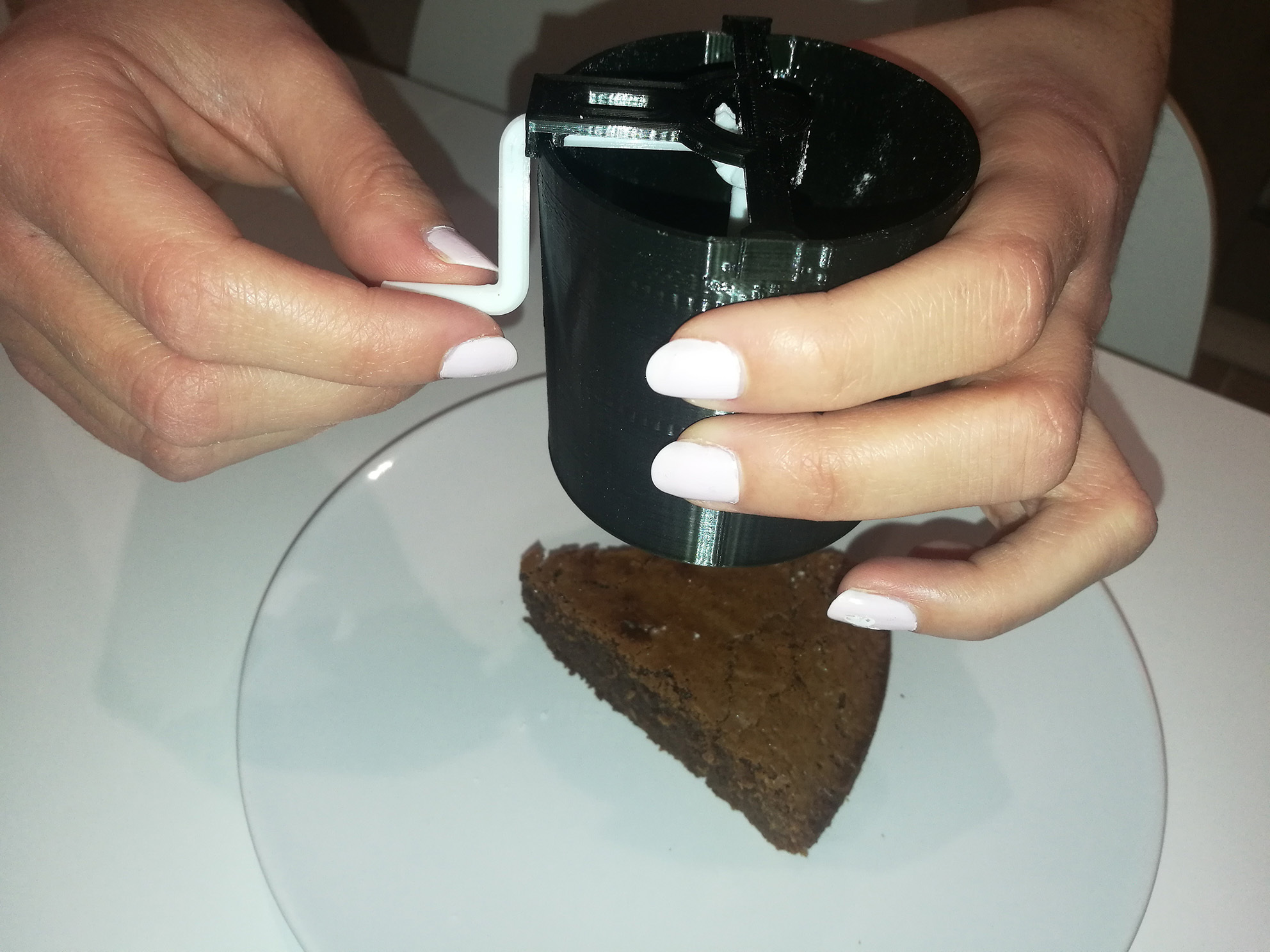

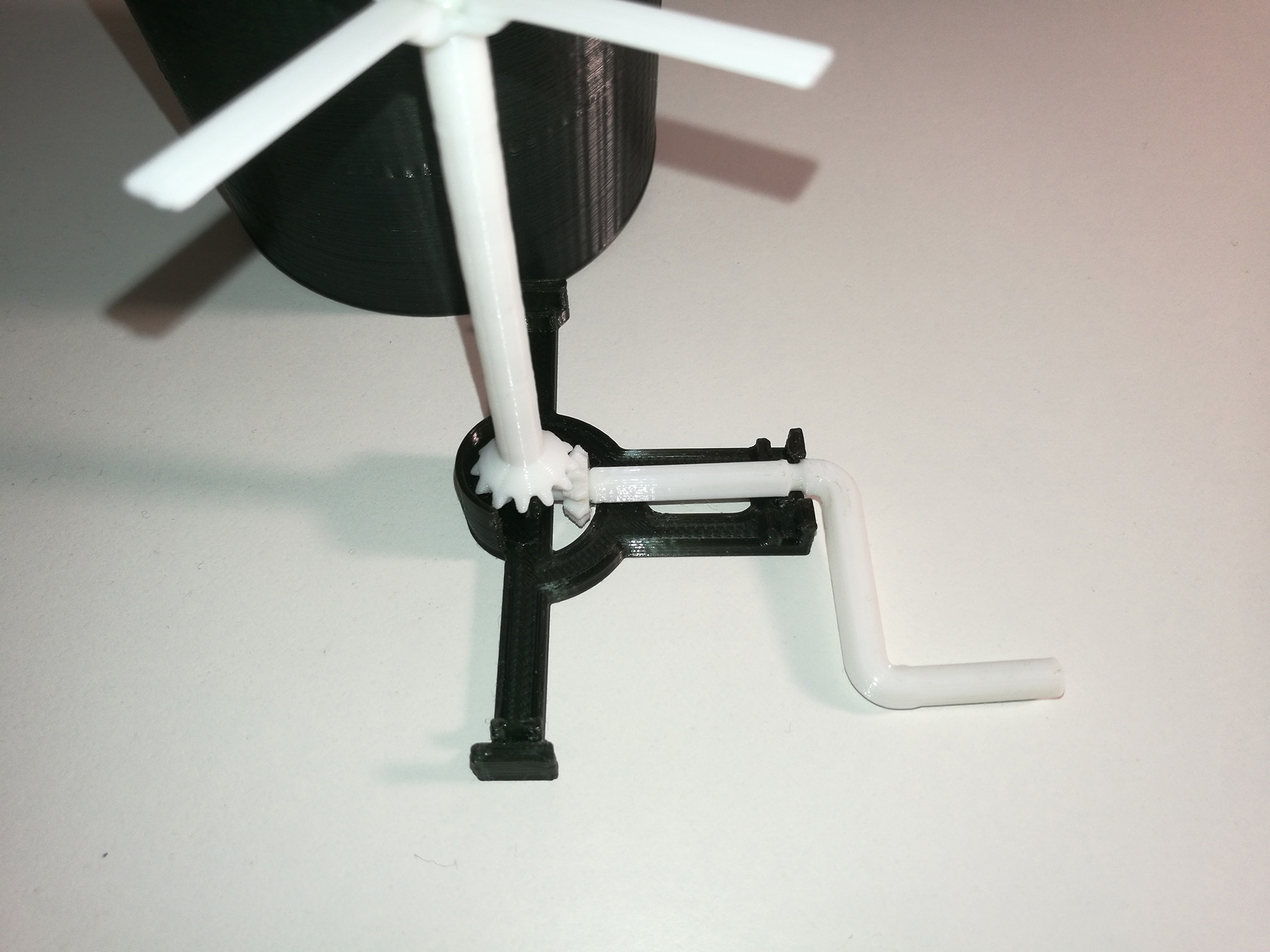

Make powdered sugar fluffy with this nice gadget in the kitchen. By rotating the handle on the side of the tool, it uses gears to rotate blades on top of the sieve. This way you can dispense sugar precisely and don't have to afraid of large pieces.
It works fine with flour as well.

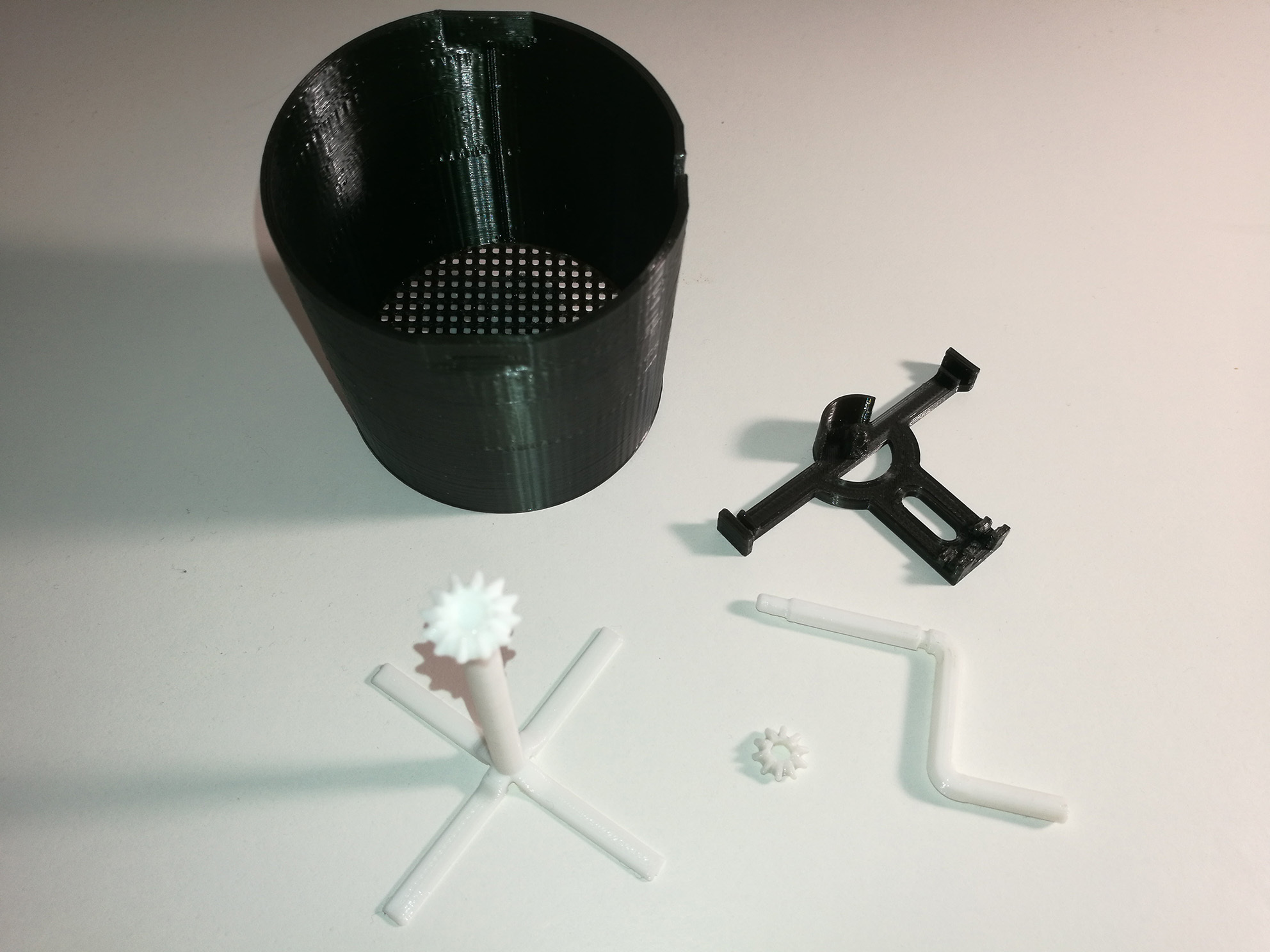

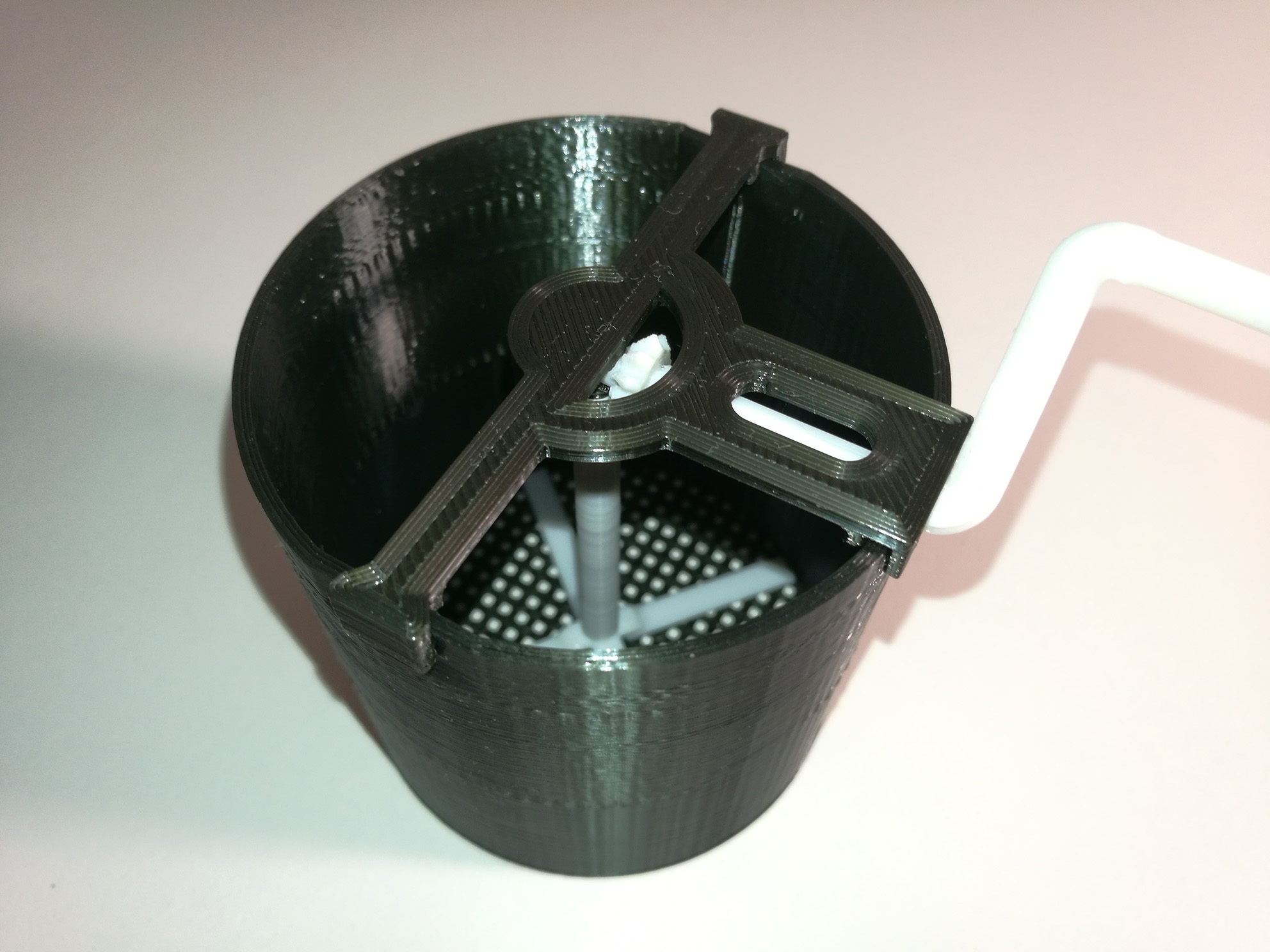

It is composed form 5 separated objects, but it is self-evident to assemble, as you can see on the images as well.

I suggest to print it from PLA, which is food safe if you don't store any food in it for a long time. It is also very easy to wash.

3D printing settings

I used the following settings on my Ender 3, using PLA filament:
- Nozzle size: 0.4mm
- Layer height: 0.2mm
- Wall line count: 3
- Top, bottom layers: 3
- Infill density: 20%
- Printing temperature: 210 °C
- Build plate temperature: 55 °C
- Print speed: 60 mm/s

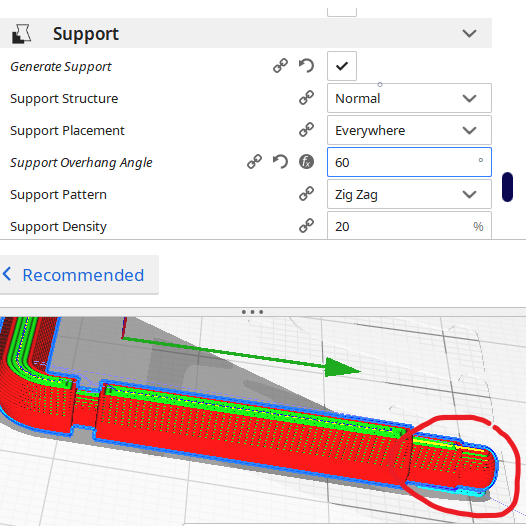

- A very small support is needed for as you can see on the last image.
- No Brim or Raft is needed

Note that temperatures and print speed may differ depending on the used material, but these are good for starting point.
